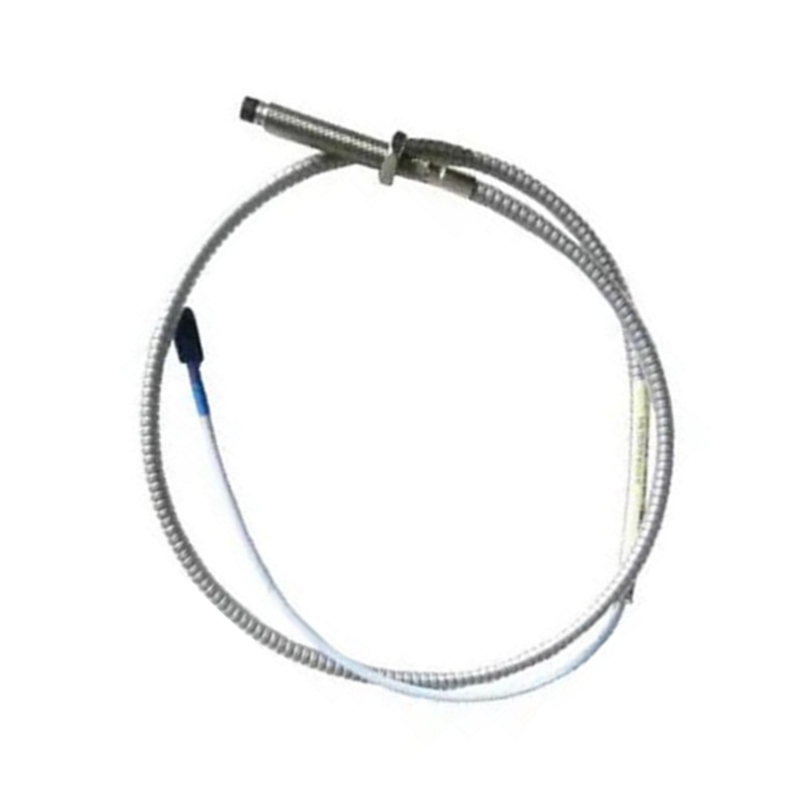

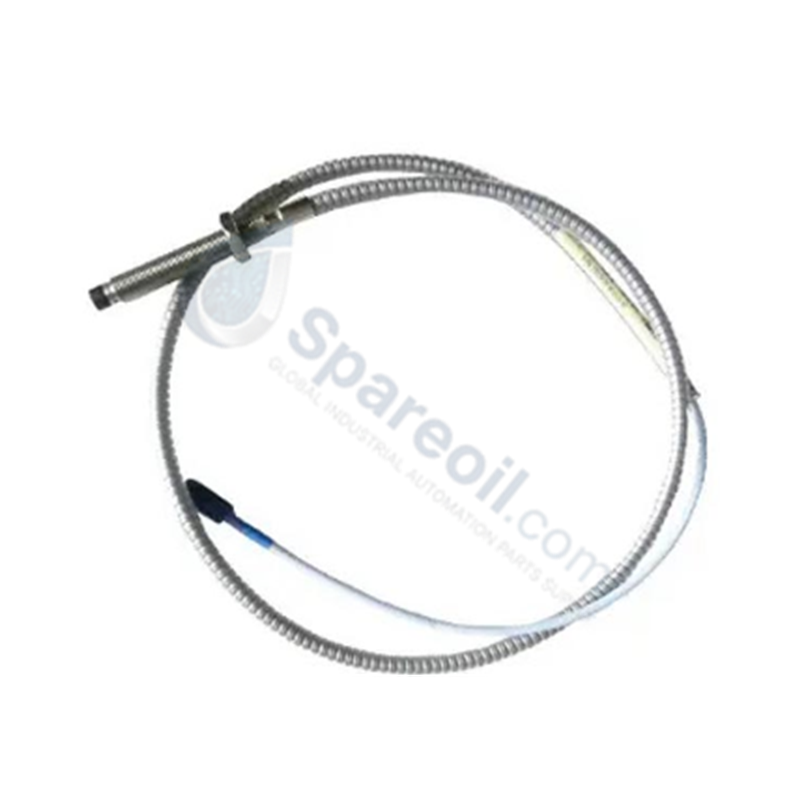

330104-00-12-10-02-00 Bently Nevada Proximity Probe

330104-00-12-10-02-00 | Bently Nevada | 3300 XL 8 mm Proximity Probe

330104-00-12-10-02-00 | Bently Nevada | 3300 XL 8 mm Proximity Probe

Availability: 10 left in stock

The Bently Nevada 330104-00-12-10-02-00 serves as the primary 330104 Proximity Probe utilized to execute non-contacting shaft displacement tracking across 3300...

SKU: 330104-00-12-10-02-00

Manufacturer: Bently Nevada
Product No.: 330104-00-12-10-02-00
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Bently Nevada 330104-00-12-10-02-00 serves as the primary 330104 Proximity Probe utilized to execute non-contacting shaft displacement tracking across 3300 XL Machinery Protection System platforms. The assembly establishes a localized high-frequency eddy-current field against a target area to capture mechanical anomalies, routing raw voltage variations through an integrated miniature coaxial transmission line to an external Proximitor module.

Suffix Breakdown & Model Matrix

Code	Option Category	Technical Configuration
330104	Base Model	3300 XL 8 mm Proximity Probe, Metric
00	Unthreaded Length	0 mm
12	Overall Case Length	120 mm
10	Total Length	1.0 meter (3.3 feet)
02	Connector and Cable Type	Miniature coaxial ClickLoc connector, standard cable
00	Agency Approval	Not required

Hardware Specifications

Parameter	Specification
Model	330104-00-12-10-02-00
Brand	Bently Nevada
Origin	U.S.A.
Probe Tip Diameter	8 mm
Linear Measurement Range	2.0 mm (80 mils)
Standard Sensitivity	7.87 V/mm (200 mV/mil)
Operating Temp	-51 to +177 deg C
Power Consumption	Passive sensor assembly (excited by external Proximitor loop power)
Dimensions	120 mm overall case length, 1.0 meter total cable length
Weight	Less than 1.0 kg nominal

Gap Voltage Validation (-10 VDC Targets)

Field integration requires precise gap voltage validation to maintain the probe within its designated linear operational envelope. During installation, the mechanical depth of the 120 mm case within the mounting bore must be adjusted while monitoring the DC voltage output from the matching Proximitor module. Positioning the sensor tip to secure a static gap voltage target of exactly -10 VDC places the target at the precise midpoint of the linear range, ensuring balanced parameters for tracking dynamic rotor dynamics and minimizing vulnerability to adjacent circuit interference.

Frequently Asked Questions

Q: Can this 1.0-meter probe assembly be directly linked to a standard 5.0-meter Proximitor module?

A: No. Transducer loops require matched electrical length configuration. This 1.0-meter probe must interface with an intermediate 4.0-meter extension cable to fulfill the 5.0-meter complete loop requirement of the matching Proximitor sensor.

Q: Is the ClickLoc coaxial connection rated for direct exposure to corrosive process environments?

A: No. The standard option 02 ClickLoc coaxial terminal is a dry joint. Exposure to conductive fluids, lubricants, or moisture will compromise the electrical contact, requiring an external connector protector sleeve or fluid-tight boot to isolate the terminal junction.

Field Installation Guidelines

Thread Mounting Torque Limits: When screwing the 120 mm metric threaded probe housing into the bracket, apply a calibrated torque wrench and restrict tightening to a maximum of 33.9 N-m (300 in-lb) to prevent mechanical deformation.
Coaxial Lead Bend Parameters: Route the 1.0-meter standard cable assembly with a minimum continuous bend radius of 25.4 mm (1.0 inch) to preserve internal core and insulation spacing.
Isolation of Signal Shielding: Ensure that the outer conductor shell of the ClickLoc connector joint is insulated from the machine casing. All signal shields must track cleanly back to terminate strictly at the common terminal ground of the monitoring enclosure.
