330106-05-30-05-02-CN Bently Nevada Proximity Probe

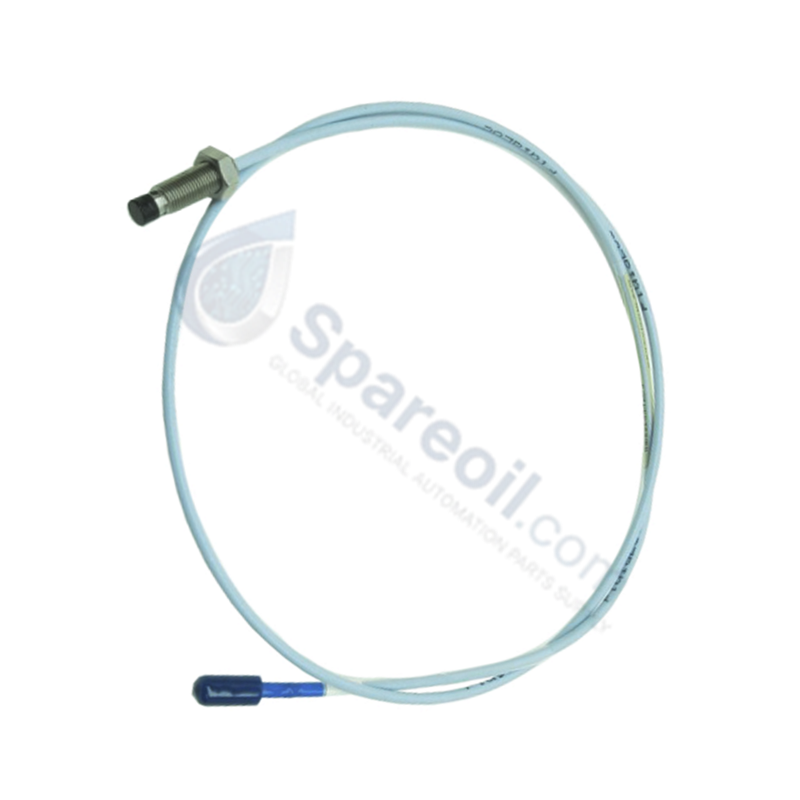

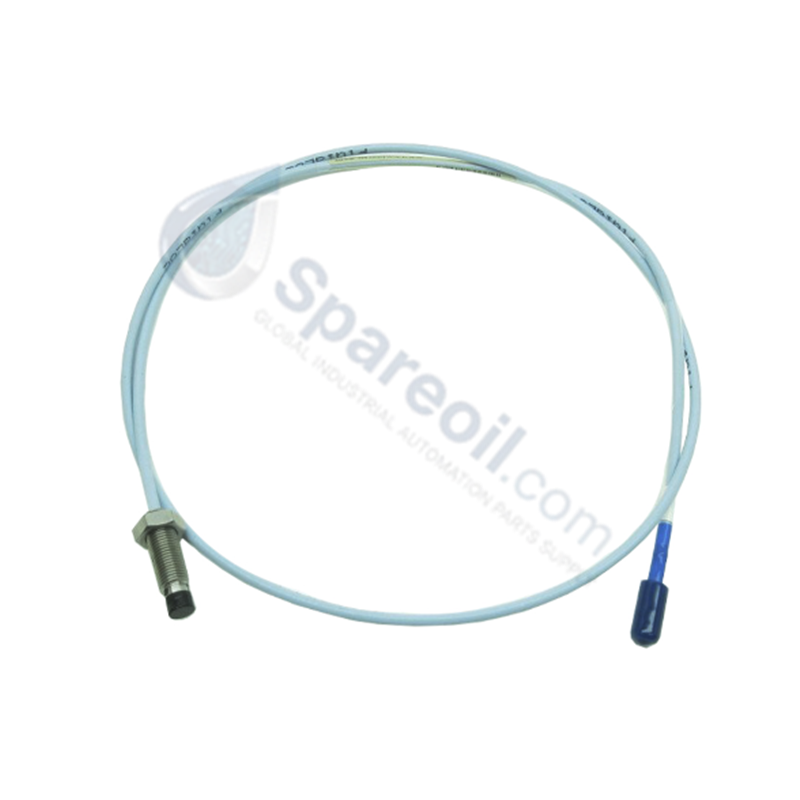

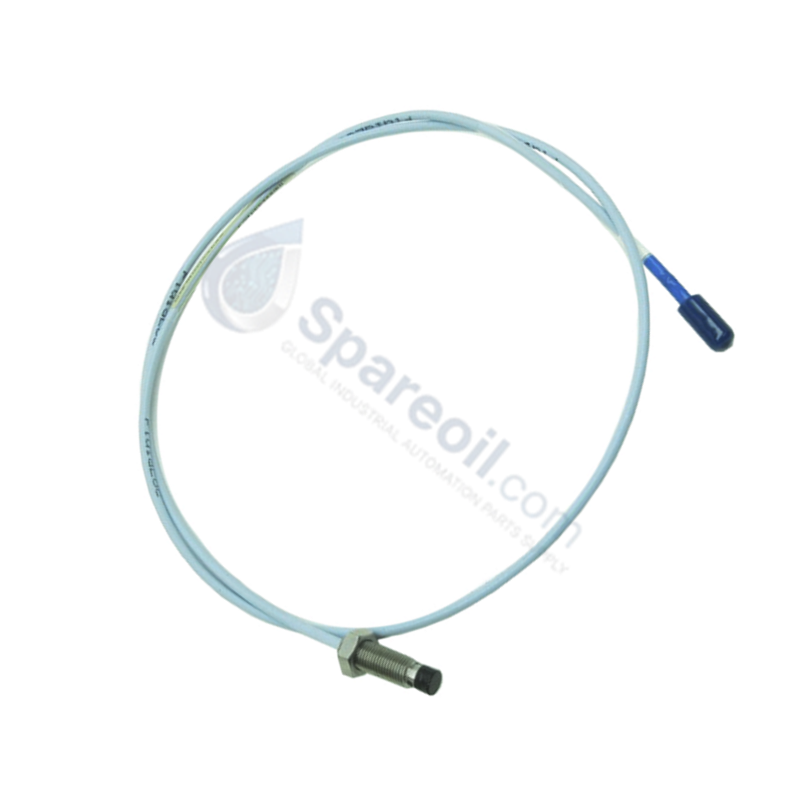

330106-05-30-05-02-CN Bently Nevada 3300 XL 8 mm Reverse Mount Probes

330106-05-30-05-02-CN Bently Nevada 3300 XL 8 mm Reverse Mount Probes

Availability: 10 left in stock

The Bently Nevada 330106-05-30-05-02-CN, also cataloged as the 330106 Reverse Mount Probe, operates as a dedicated hardware component for physical displacement measuring within...

SKU: 330106-05-30-05-02-CN

Manufacturer: Bently Nevada
Product No.: 330106-05-30-05-02-CN
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Bently Nevada 330106-05-30-05-02-CN, also cataloged as the 330106 Reverse Mount Probe, operates as a dedicated hardware component for physical displacement measuring within 3300 XL Proximity Transducer System platforms.

Suffix Breakdown & Model Matrix

330106: 3300 XL 8 mm Reverse Mount Probe Base Model (3/8-24 UNF threads)
-05: Unthreaded Length Option (0.5 in)
-30: Overall Case Length Option (3.0 in)
-05: Total Length Option (0.5 meter / 1.6 feet)
-02: Miniature ClickLoc coaxial connector
-CN: Approvals country specific (China standard compliance)

Hardware Specifications

Parameter	Specification
Model	330106-05-30-05-02-CN
Brand	Bently Nevada
Origin	USA
Weight	0.350 kg estimate (Shipping weight 3.0 kg)
Dimensions	3/8-24 UNF reverse mount threaded body profile
Operating Temp	-51 deg C to +177 deg C
Power Consumption	Passive sensor configuration (externally driven by Proximitor loop)
Sensor Diameter	8 mm
Connector Type	Miniature ClickLoc coaxial connector
Total Length	0.5 meter (1.6 feet)
Certification Matrix	Country specific regulatory standard compliance (CN suffix)

Mechanical Monitoring & TSI Technical Attributes

The 330106 physical sensor architecture relies on accurate eddy-current probe scaling to correctly capture dynamic shaft displacements without signal clipping. During baseline configuration, engineers perform gap voltage validation to match a targeted -10 VDC value, ensuring the transducer tip sits at the geometric center of its 80 mil linear span when evaluating a 4140 steel target. Coaxial connection pathways leverage the gold-plated miniature ClickLoc junction for passive cross-talk suppression and continuous structural shield termination. This grounding method isolates sub-synchronous rotor dynamics from electromagnetic noise floor fluctuations before the high-frequency modulation reaches the Proximitor loop driver.

Frequently Asked Questions

Q: What is the technical implication of the -CN suffix on this module variant?

A: The -CN suffix denotes country-specific regulatory certification compliance, indicating the hardware satisfies localized industrial standards documented in the CN Approvals Option Quick Reference Guide.

Q: Can this 0.5 meter sensor operate with a standard 9.0 meter Proximitor sensor?

A: Yes, provided that a matching 8.5 meter 3300 XL extension cable is integrated into the passive run. The cumulative electrical length must equal the specific length configuration required by the driver.

Q: How does the miniature ClickLoc connector perform during continuous high-vibration operations?

A: The positive-locking design maintains mechanical contact compression, preventing terminal impedance shifts and preserving cross-talk suppression metrics under aggressive rotor acceleration cycles.

Field Installation Guidelines

Confirm the target asset is offline and zero-energy criteria are met. Check the shaft observation track to ensure it is free from non-homogeneities, machine tooling marks, or magnetic runout.
Advance the reverse mount probe body into the internal threaded insertion sleeve, ensuring the sensor tip does not experience impact against internal metal walls.
Power the external Proximitor driver circuit and interface a calibrated digital multimeter. Rotate the probe depth position until the live gap voltage validation stabilizes at -10.0 VDC.
Secure the primary counter-locknut to prevent any physical displacement or threading back-out caused by structural case resonance or machine vibration.
Couple the miniature ClickLoc coaxial link to the extension cable terminal until an explicit mechanical seat is achieved. Encapsulate the joint with oil-proof self-fusing tape to prevent conductive contaminant or fluid ingress.
