330130-080-03-05 Bently Nevada Series Datasheet & Technical Manual

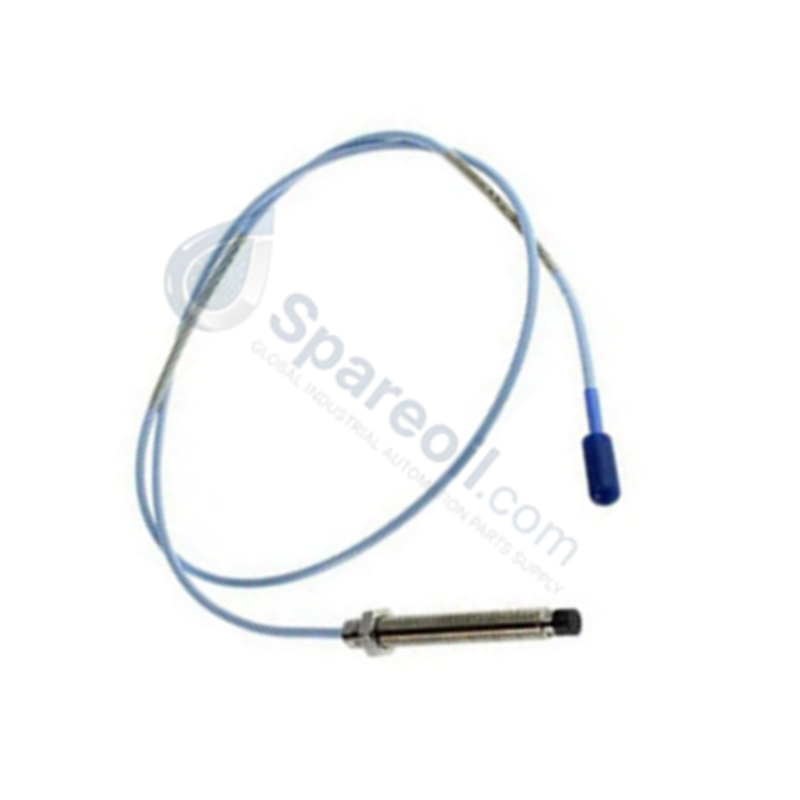

330130-080-03-05 Bently Nevada 3300 XL Series Extension Cable

330130-080-03-05 Bently Nevada 3300 XL Series Extension Cable

Availability: 10 left in stock

The Bently Nevada 330130-080-03-05, also cataloged as the 330130 Extension Cable, operates as a dedicated hardware component for RF signal...

SKU: 330130-080-03-05

Manufacturer: Bently Nevada
Product No.: 330130-080-03-05
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 600g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Bently Nevada 330130-080-03-05, also cataloged as the 330130 Extension Cable, operates as a dedicated hardware component for RF signal transmission within 3300 XL Transducer System networks. It functions as a calibrated passive analog path connecting a 5 mm or 8 mm proximity probe to a Proximitor sensor, executing high-frequency displacement parameter metrics without altering total loop capacitance parameters.

Suffix Breakdown & Model Matrix

330130 - Base Model: 3300 XL Standard Extension Cable
-080 - Cable Length Option: 8.0 meters (26.2 feet)
-03 - Connector Protector and Cable Option: Armored cable with connector protectors
-05 - Agency Approval Option: Multiple Approvals (CSA, ATEX, IECEx certified)

Hardware Specifications

Parameter	Specification
Model	330130-080-03-05
Brand	Bently Nevada
Origin	United States
Weight	0.60 kg (1.32 lbs)
Dimensions	8.0 m nominal cable length; 7.67 mm armor outside diameter
Operating Temp	-51 to +177 deg C nominal environmental range
Power Consumption	0.0 W (Passive structural loop architecture)
Nominal Impedance	75 ohm coaxial configuration
Cable Mechanical Shielding	Interlocking stainless steel armor layer with fluid barrier
Transducer Compatibility	3300 XL 5 mm and 8 mm proximity system components

Eddy-Current Probe Scaling & Cross-Talk Suppression

The integrated stainless steel armor of the 330130-080-03-05 extension cable provides high mechanical deflection protection while ensuring cross-talk suppression against adjacent electrical noise sources. The 75 ohm internal geometry maintains precise matching parameters required for factory eddy-current probe scaling. This control prevents phase shifts and high-frequency signal attenuation across the 8.0 meter line, enabling accurate real-time gap voltage validation targeting standard -10 VDC baselines during dynamic rotor dynamics evaluation.

Frequently Asked Questions

Q: What specific field protection is provided by the -03 suffix option?

A: The -03 option provides a flexible, interlocking stainless steel armor sheath over the coaxial line along with integrated connector protectors that encapsulate the miniature coaxial joints against moisture, fluids, and accidental structural grounding.

Q: Is it permissible to field-cut or shorten the 8.0 meter line to simplify routing layout?

A: No. Altering the physical cable length changes the factory-calibrated electrical length and loop capacitance. This shifts the linear scale factor of the paired Proximitor sensor, rendering displacement data inaccurate.

Field Installation Guidelines

Verify that the 8.0 meter extension cable is paired with the proper 1.0 meter proximity probe configuration to fulfill the exact 9.0 meter system specification required by the Proximitor.
Maintain a minimum static bend radius limit of 25.4 mm along the armored routing path to prevent mechanical crushing of the internal dielectric material.
Ensure the terminal connector protectors are fully joined and locked into position to maintain continuous electrical isolation before final conduit closure.
Route the armored assembly inside separate, dedicated cable trays away from parallel high-voltage AC lines to prevent magnetic noise induction from altering low-voltage analog sensor currents.
