330703-000-060-10-02-00 Bently Nevada Proximity Probe

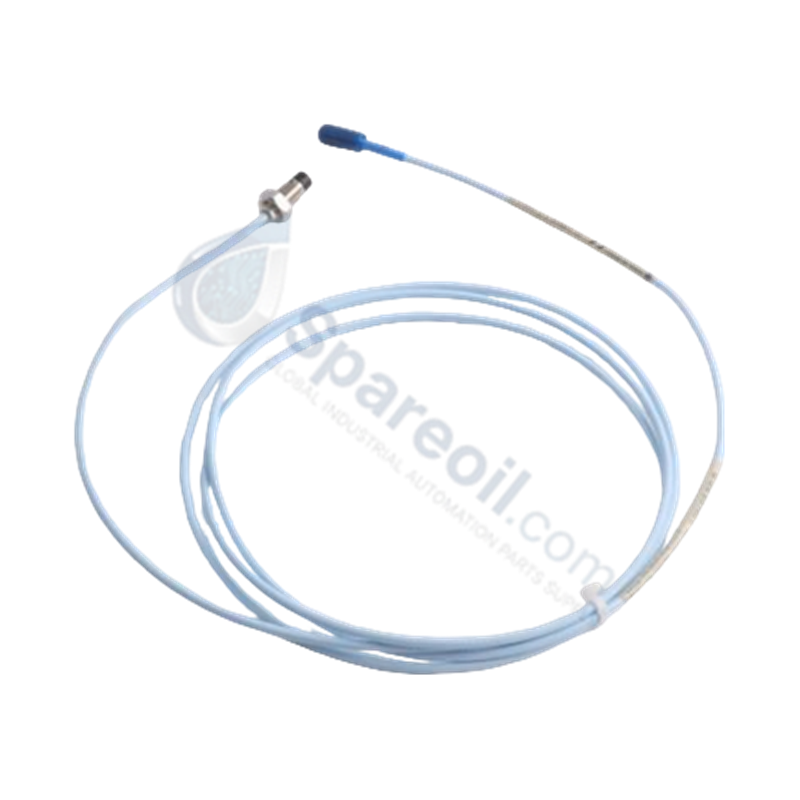

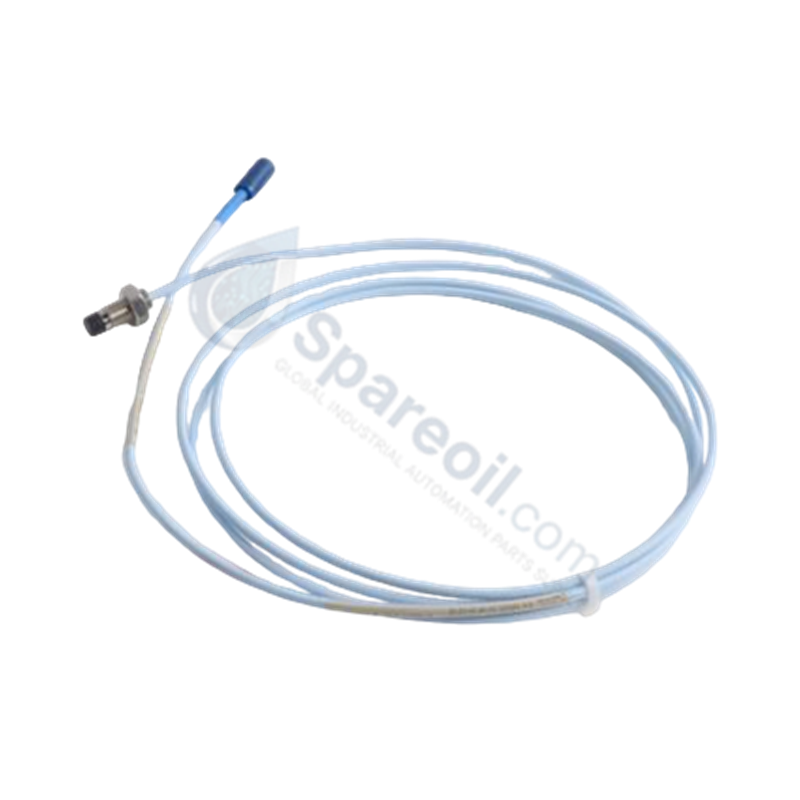

330703-000-060-10-02-00 Bently Nevada 3300 XL Proximity Probe

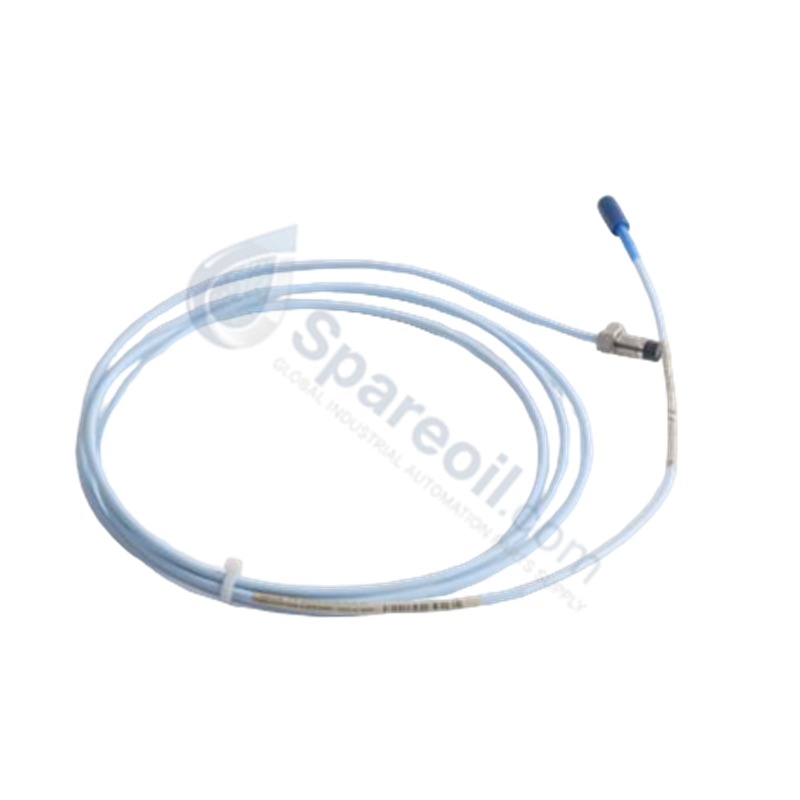

330703-000-060-10-02-00 Bently Nevada 3300 XL Proximity Probe

Availability: 10 left in stock

The Bently Nevada 330703-000-060-10-02-00, also cataloged as the 330703 Proximity Probe, operates as a dedicated hardware component for physical displacement...

SKU: 330703-000-060-10-02-00

Manufacturer: Bently Nevada
Product No.: 330703-000-060-10-02-00
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 100g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Bently Nevada 330703-000-060-10-02-00, also cataloged as the 330703 Proximity Probe, operates as a dedicated hardware component for physical displacement measurement within 3300 XL transducer networks.

Suffix Breakdown & Model Matrix

The part number 330703-000-060-10-02-00 designates specific physical properties based on the Bently Nevada ordering matrix:

330703: Base designator for 3300 XL 11 mm Proximity Probe (with M14 x 1.5 thread).
000: Unthreaded length option designating 0 mm.
060: Overall case length option designating 60 mm.
10: Total length option specifying 1.0 meter (3.3 feet).
02: Connector and cable type option specifying miniature coaxial ClickLoc connector, standard cable.
00: Agency approval option specifying no hazardous area approvals are required.

Hardware Specifications

Parameter	Specification
Model	330703-000-060-10-02-00
Brand	Bently Nevada
Origin	USA
Probe Tip Diameter	11.0 mm
Thread Type	M14 x 1.5 thread
Unthreaded Length	0 mm
Overall Case Length	60 mm
Total Probe Length	1.0 meter (3.3 feet)
Connector Type	Miniature coaxial ClickLoc
Cable Armor	Standard cable (without armor)
Agency Approval	None (Option 00)
Operating Temp	-51 to +177 deg C
Dimensions	2.5 cm * 2 cm * 12.4 cm
Net Weight	0.1 kg
Power Consumption	Passive transducer sensor (0 W)

Eddy-Current Probe Scaling & Gap Voltage Validation

This 11 mm probe relies on eddy-current technology to generate a high-frequency electromagnetic field that measures the distance between the probe tip and a conductive target. To maintain standard eddy-current probe scaling of 3.94 V/mm (100 mV/mil), the probe must be connected via a matched 11 mm extension cable to a calibrated 3300 XL 11 mm Proximitor. Accurate mechanical adjustment during commissioning is necessary to achieve proper gap voltage validation, aiming for a target value of -10 VDC at the physical center of the linear calibration range. Correct physical gapping ensures optimal tracking of rotor dynamics and prevents measurement distortion caused by signal cross-talk suppression between adjacent sensor installations.

Frequently Asked Questions

Q: Can this 11 mm proximity probe be used directly with an 8 mm Proximitor sensor?

A: No. The 11 mm probe tip has distinct electrical impedance properties and a wider sensing field than an 8 mm probe. Interfacing this probe with an 8 mm Proximitor will cause severe impedance mismatching, leading to calibration failure and invalid displacement readings.

Q: What is the significance of the 1.0 meter total length option in this transducer setup?

A: The 1.0 meter probe length represents the integrated cable length. This probe must be matched with an appropriate extension cable (such as 4.0 meters or 8.0 meters) to form a complete 5.0 meter or 9.0 meter system length required by the Proximitor calibration.

Field Installation Guidelines

Mounting and Torque: Thread the probe into the mounting bracket or sleeve. Do not exceed a tightening torque of 22.6 N-m (200 in-lb) for the M14 x 1.5 threads to prevent damaging the internal components.
Adjusting the Gap Voltage: Slowly rotate the probe toward the shaft target while monitoring the Proximitor sensor output voltage. Secure the probe locknut when the voltage matches the target offset of -10.0 VDC.
Connector Insulation: Keep the coaxial ClickLoc terminal dry and clean during connection. Ensure the integrated connector protector covers the interface completely to isolate the shield from the machine ground casing.
