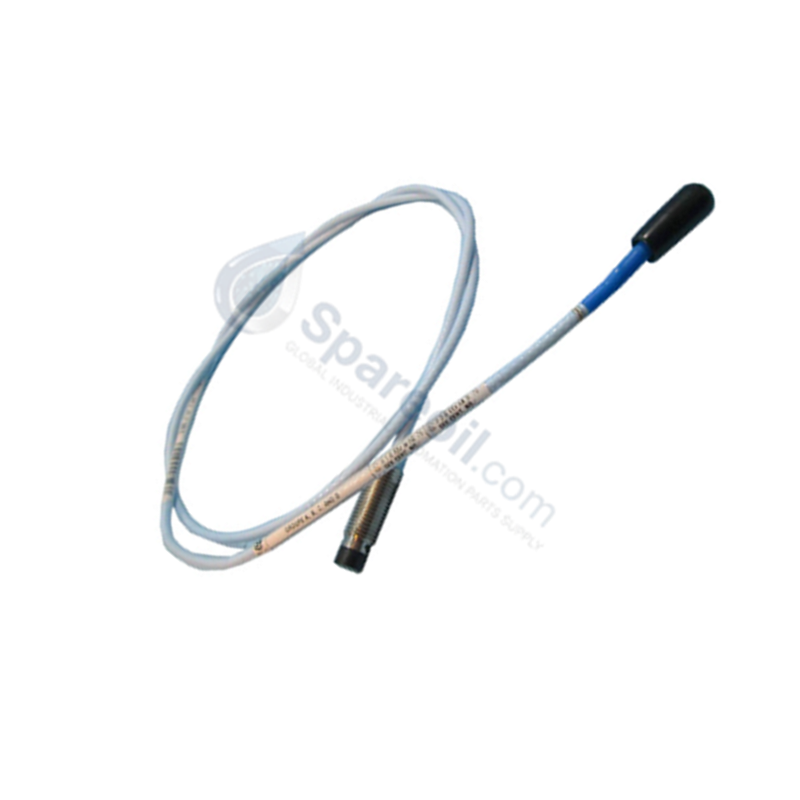

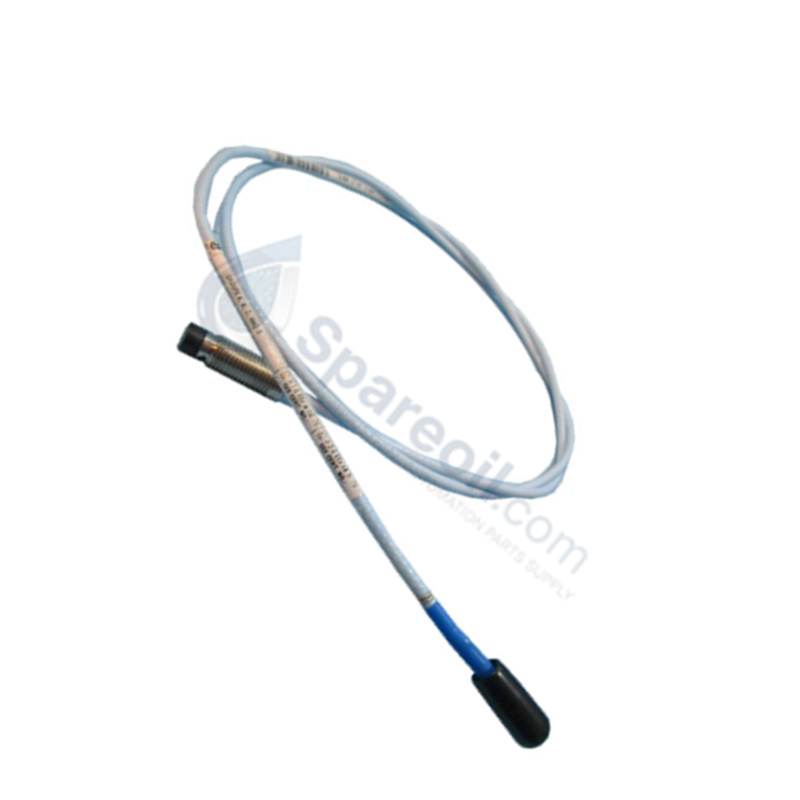

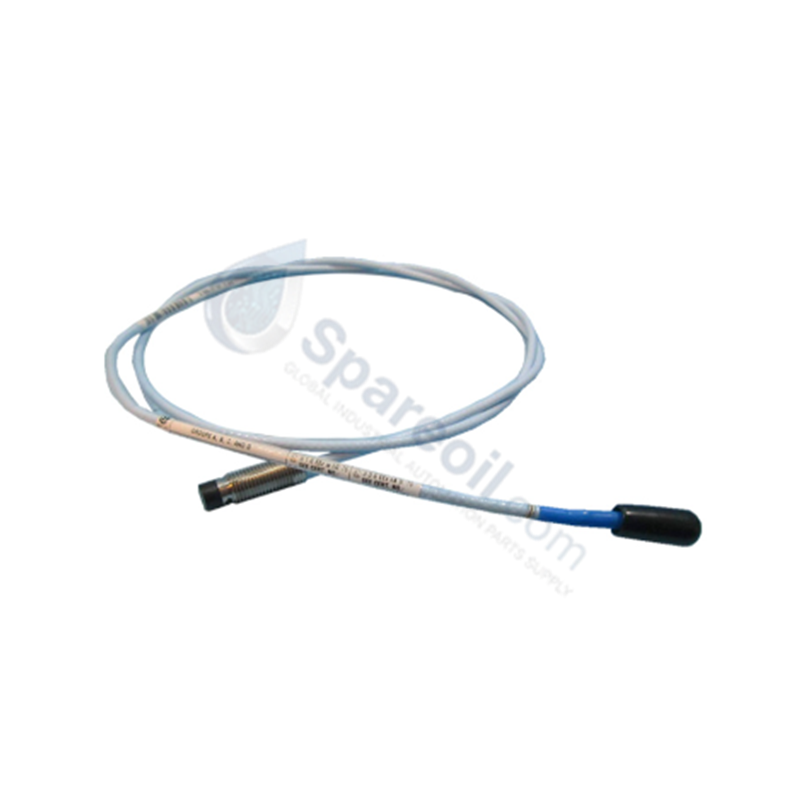

The Bently Nevada 330703-000-070-10-02-00, also cataloged as the 330704 Proximity Probe, operates as a dedicated hardware component for physical displacement measurement within 3300 XL transducer networks.

Suffix Breakdown & Model Matrix

The part number 330704-000-050-10-02-CN designates specific physical properties based on the Bently Nevada ordering matrix:

330704: Base designator for 3300 XL 11 mm Proximity Probe (with 3/8-24 UNF thread).
000: Unthreaded length option designating 0 mm (no unthreaded section).
050: Overall case length option designating 50 mm.
10: Total length option specifying 1.0 meter (3.3 feet).
02: Connector and cable-type option specifying miniature coaxial ClickLoc connector, standard cable.
CN: Agency approval option specifying country-specific approvals for China.

Hardware Specifications

Parameter	Specification
Model	330704-000-050-10-02-CN
Brand	Bently Nevada
Origin	USA
Probe Tip Diameter	11.0 mm
Thread Type	3/8-24 UNF thread
Unthreaded Length	0 mm
Overall Case Length	50 mm
Total Probe Length	1.0 meter (3.3 feet)
Connector Type	Miniature coaxial ClickLoc
Operating Temp	-51 to +177 deg C
Power Consumption	Passive transducer sensor (0 W)
Dimensions	11.0 mm tip, 50 mm case length, 1.0 m cable
Weight	3.0 kg (including shipping packaging)

Eddy-Current Probe Scaling & Gap Voltage Validation

This 11 mm proximity probe relies on eddy-current physics to generate a high-frequency electromagnetic field that measures the distance between the probe tip and a conductive target. To maintain standard eddy-current probe scaling of 3.94 V/mm (100 mV/mil), the probe must be connected via a matched 11 mm extension cable to a calibrated 3300 XL 11 mm Proximitor. Accurate mechanical adjustment during commissioning is necessary to achieve proper gap voltage validation, aiming for a target value of -10 VDC at the physical center of the linear calibration range. Correct physical gapping ensures optimal tracking of rotor dynamics and prevents measurement distortion caused by signal cross-talk suppression between adjacent sensor installations.

Frequently Asked Questions

Q: Can this 330704 probe be connected directly to an 8 mm 3300 XL Proximitor?

A: No. The 11 mm probe tip has distinct electrical impedance properties and a wider sensing field than an 8 mm probe. Interfacing this probe with an 8 mm Proximitor will cause severe impedance mismatching, leading to calibration failure and invalid displacement readings.

Q: What is the purpose of the CN suffix in the product part number?

A: The CN suffix denotes country-specific agency approvals for China. This ensures that the probe meets local regulatory requirements for explosion-proof and intrinsic safety standards in industrial installations.

Field Installation Guidelines

Mounting and Torque: Thread the probe into the mounting bracket or sleeve. Do not exceed a tightening torque of 22.6 N-m (200 in-lb) for the UNF threads to prevent damaging the internal components.
Adjusting the Gap Voltage: Slowly rotate the probe toward the shaft target while monitoring the Proximitor sensor output voltage. Secure the probe locknut when the voltage matches the target offset of -10.0 VDC.
Connector Insulation: Keep the coaxial ClickLoc terminal dry and clean during connection. Ensure the integrated connector protector covers the interface completely to isolate the shield from the machine ground casing.
