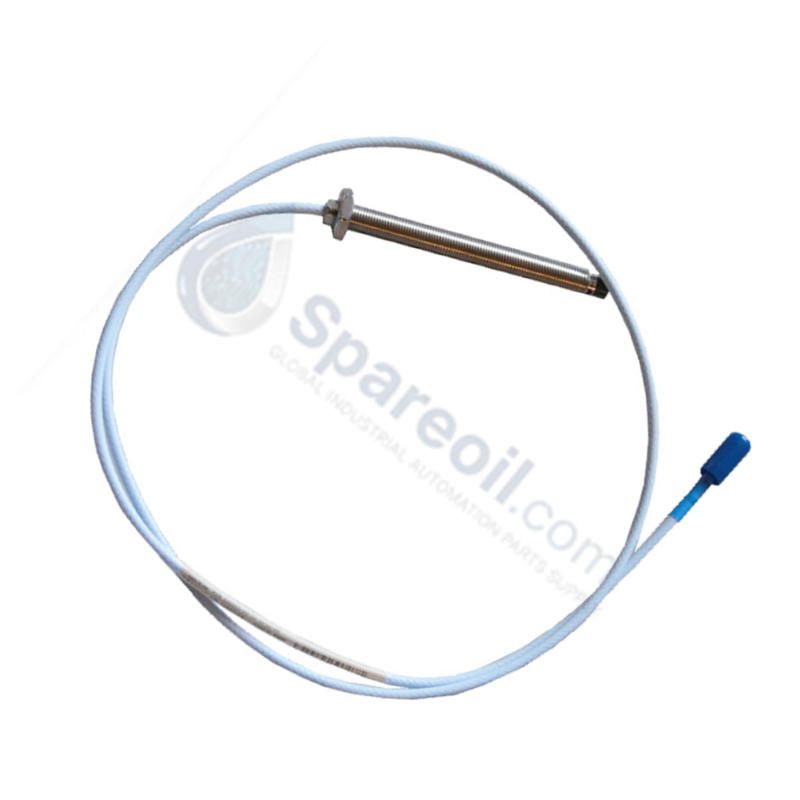

The Bently Nevada 330903-00-06-10-02-05, also cataloged as the 330903 Proximity Sensors, operates as a dedicated hardware component for non-contact shaft vibration and radial position measurement within 3300 NSv Machinery Monitoring System platforms. The assembly features an M8 x 1 metric thread profile with a 0 mm unthreaded length, a 60 mm overall case length, and a 1.0 m total cable length terminated with a miniature coaxial ClickLoc connector and certified for hazardous area agency approvals.
Suffix Breakdown & Model Matrix
| Option Code | Parameter Designation | Selected Configuration |
|---|---|---|
| 330903 | Base Model | 3300 NSv Probe, M8 x 1 thread, without armor |
| -00 | Unthreaded Length | 0 mm (0.0 in) |
| -06 | Overall Case Length | 60 mm (2.36 in) |
| -10 | Total Cable Length | 1.0 m (3.3 ft) |
| -02 | Connector & Cable Type | Miniature coaxial ClickLoc connector, standard cable |
| -05 | Agency Approvals | Multiple approvals / hazardous area certifications |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 330903-00-06-10-02-05 |
| Brand | Bently Nevada |
| Origin | United States |
| Weight | 0.45 kg (1.0 lb) |
| Dimensions | Metric M8 x 1 threaded body (60 mm case length) |
| Operating Temp | -51 deg C to +177 deg C (-60 deg F to +350 deg F) |
| Power Consumption | Passive transducer (Powered via Proximitor Sensor) |
| Cable Type | 75 Ohm coaxial, FEP insulated, standard cable |
| Connector Type | Miniature coaxial ClickLoc connector |
| Thread Specification | M8 x 1 metric thread without armor |
| Unthreaded Length | 0 mm |
| Overall Case Length | 60 mm |
| Total Cable Length | 1.0 m |
| Hazardous Approvals | Multiple agency approvals (Option 05) |
Mechanical Monitoring & TSI Performance
Engineered for narrow side-view applications, the 330903-00-06-10-02-05 probe executes precision rotor dynamics monitoring on small-diameter shafts where side-view clearance or counterbore restrictions prevent the installation of standard 5 mm or 8 mm probes. Paired with a matching 3300 NSv Proximitor Sensor, the eddy-current probe scaling produces a calibrated linear signal output corresponding to target surface displacement. During physical installation calibration, gap voltage validation targeted at -10 VDC ensures optimal positioning near the center of the probe linear dynamic range while providing cross-talk suppression between tightly spaced adjacent channels.
Frequently Asked Questions
Q: What is the primary purpose of the narrow side-view (NSv) probe design?
A: The NSv design reduces side-view clearance requirements and counterbore probe tip clearance rules, allowing accurate eddy-current displacement measurement near metal sidewalls or in tight bearing housings.
Q: What gap voltage should be targeted during physical installation of the 330903-00-06-10-02-05 probe?
A: Adjust the mechanical mounting depth until the paired Proximitor Sensor output reads -10 VDC, corresponding to the midpoint of the calibrated linear gap distance.
Q: Can the 1.0 m probe cable connect directly to a TSI monitoring rack without an extension cable?
A: No. The 1.0 m integrated probe cable must connect to a matching 3300 NSv extension cable to complete the total 5.0 m or 7.0 m system length required by the Proximitor Sensor.
Field Installation Guidelines
- Thread the M8 x 1 probe case into the mounting bracket or machine housing, ensuring threads align smoothly to prevent cross-threading.
- Maintain a minimum thread engagement (such as 5 full threads) to secure the sensor assembly against operational machine vibration.
- Protect the ClickLoc coaxial connector from dirt and liquid ingress during routing; clean optical/coaxial faces prior to final connection.
- Verify target shaft material composition and ensure the target surface is free of deep mechanical scratches or severe electrical runout.
