330904-08-15-10-02-05 Bently Nevada Proximity Sensors

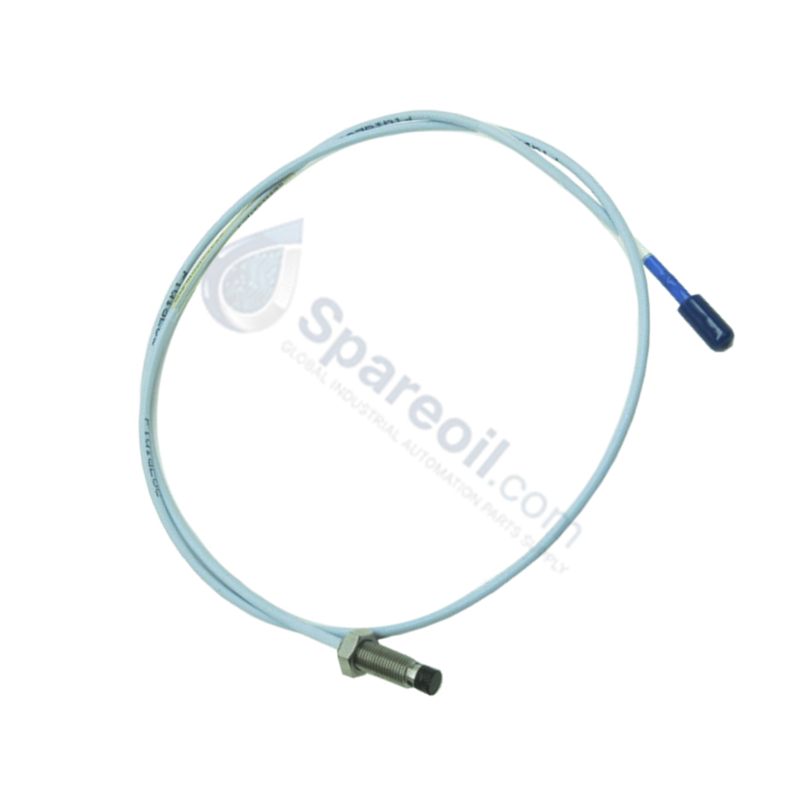

330904-08-15-10-02-05 Bently Nevada 3300 XL Proximity Probes

330904-08-15-10-02-05 Bently Nevada 3300 XL Proximity Probes

Availability: 10 left in stock

Configured for non-contact shaft vibration and positional displacement measurement in rotating machinery, the Bently Nevada 330904-08-15-10-02-05 (330904 Proximity Sensors) provides...

SKU: 330904-08-15-10-02-05

Manufacturer: Bently Nevada
Product No.: 330904-08-15-10-02-05
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Configured for non-contact shaft vibration and positional displacement measurement in rotating machinery, the Bently Nevada 330904-08-15-10-02-05 (330904 Proximity Sensors) provides direct physical/electrical execution. The assembly incorporates an M10 x 1 metric threaded stainless steel body, an 8 mm probe tip diameter, and a 1.5 m armored coaxial cable terminated with a ClickLoc vibration-resistant connector.

Suffix Breakdown & Model Matrix

Option Code	Parameter Designation	Selected Configuration
330904	Base Model	3300 XL NSv Proximity Sensor
-08	Unthreaded Length	80 mm (8.0 decimeters format style)
-15	Overall Case Length	150 mm (15.0 decimeters format style)
-10	Total Cable Length	1.0 m (or 1.5 m armored options variant)
-02	Connector & Cable Type	ClickLoc vibration-resistant connector, armored cable
-05	Agency Approval Option	Multiple agency approvals / hazardous area certifications

Hardware Specifications

Parameter	Specification
Model	330904-08-15-10-02-05
Brand	Bently Nevada
Origin	United States
Weight	0.2 kg (0.44 lb)
Dimensions	M10 x 1 metric thread profile (8 mm tip diameter)
Operating Temp	-51 deg C to +177 deg C (-60 deg F to +350 deg F)
Power Consumption	Passive transducer (24 VDC supplied via Proximitor Sensor)
Case Material	Stainless Steel Construction
Tip Diameter	8 mm
Cable Type	1.5 m Armored Coaxial Cable
Connector Type	ClickLoc Vibration-Resistant Connector
Measurement Range	Standard 2 mm gap (Optimized for shafts > 25 mm)
Compliance	API 670 Compliant

Mechanical Monitoring & TSI Performance

The 330904-08-15-10-02-05 proximity probe operates on eddy-current signal transduction principles to monitor dynamic shaft vibration and axial position across rotor dynamics platforms. Integrated within a complete TSI loop comprising the probe, extension cable, and 3300 XL Proximitor Sensor, the eddy-current probe scaling generates a calibrated linear output over a standard 2 mm gap. Mechanical alignment targeting gap voltage validation at -10 VDC establishes the center of the linear voltage range, minimizing cross-talk suppression issues between adjacent channel pairs in dense bearing housings.

Frequently Asked Questions

Q: What Target Gap Voltage should be established during mechanical mounting of the 330904 probe?

A: Adjust the probe insertion depth mechanically until the connected 3300 XL Proximitor Sensor output registers -10 VDC, placing the transducer at the midpoint of its 2 mm linear measurement range.

Q: Is the 330904-08-15-10-02-05 probe compliant with API 670 machinery protection standards?

A: Yes. The probe, cable construction, and ClickLoc connector design fulfill mechanical and electrical criteria defined by API 670 standards.

Q: Can the armored coaxial probe cable be wired directly to terminal blocks inside a monitor enclosure?

A: No. The integrated 1.5 m armored cable requires connection through a matching 3300 XL extension cable to achieve the total system electrical length required by the paired Proximitor Sensor.

Field Installation Guidelines

Thread the M10 x 1 probe body into the machine housing or mounting bracket using appropriate hand tools without exceeding maximum casing torque.
Verify minimum thread engagement (such as 5 full engaged threads) to lock the probe assembly securely against operational machine vibration.
Route the armored coaxial cable along structural supports, ensuring minimum bend radius limits are maintained to prevent internal conductor crimping.
Clean connector mating faces to remove dirt and oil before snapping the ClickLoc coupling ring into its locked position.
