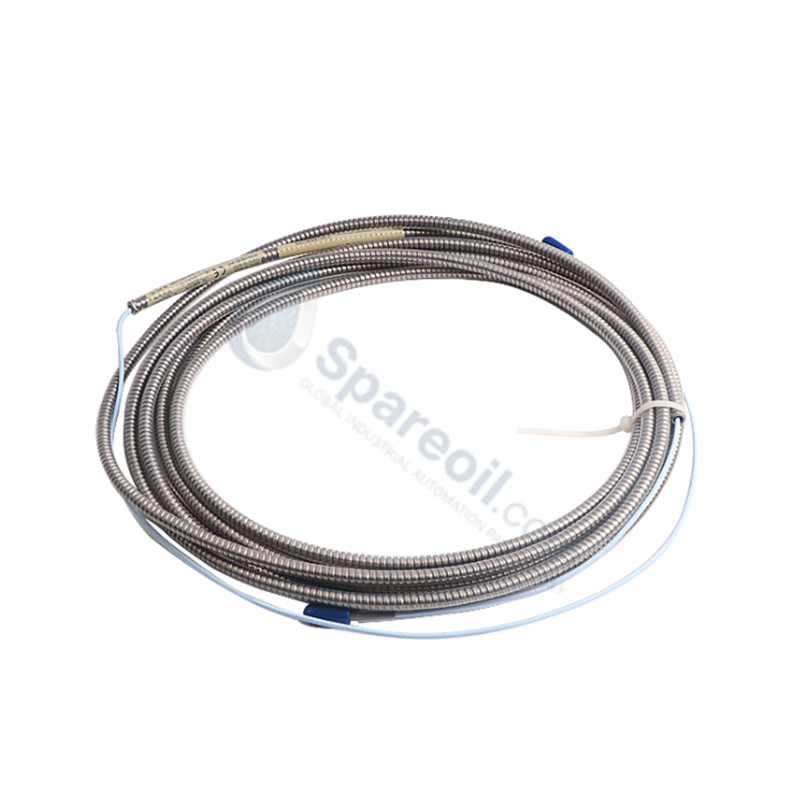

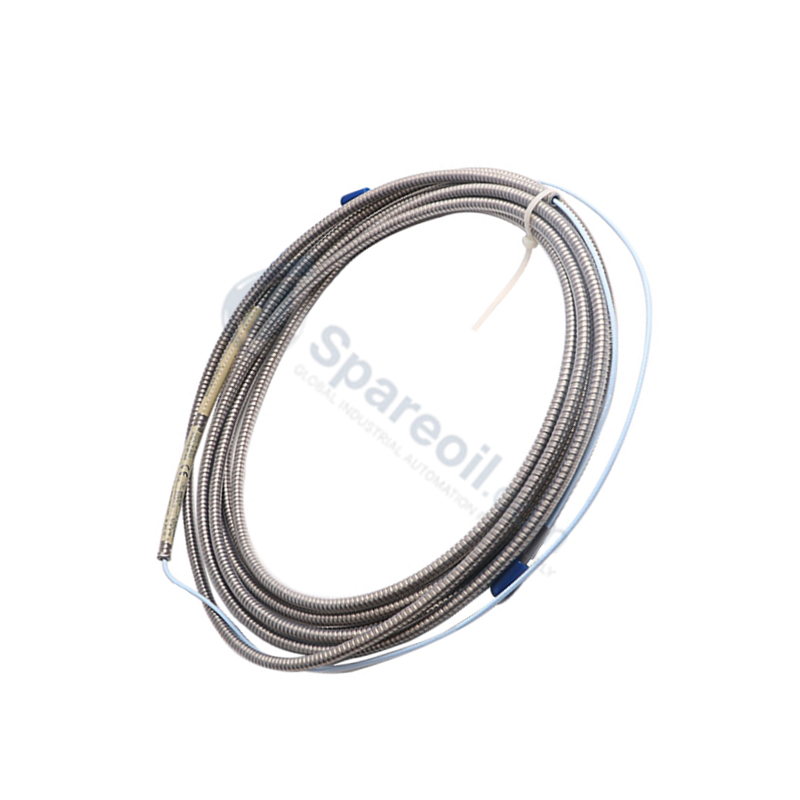

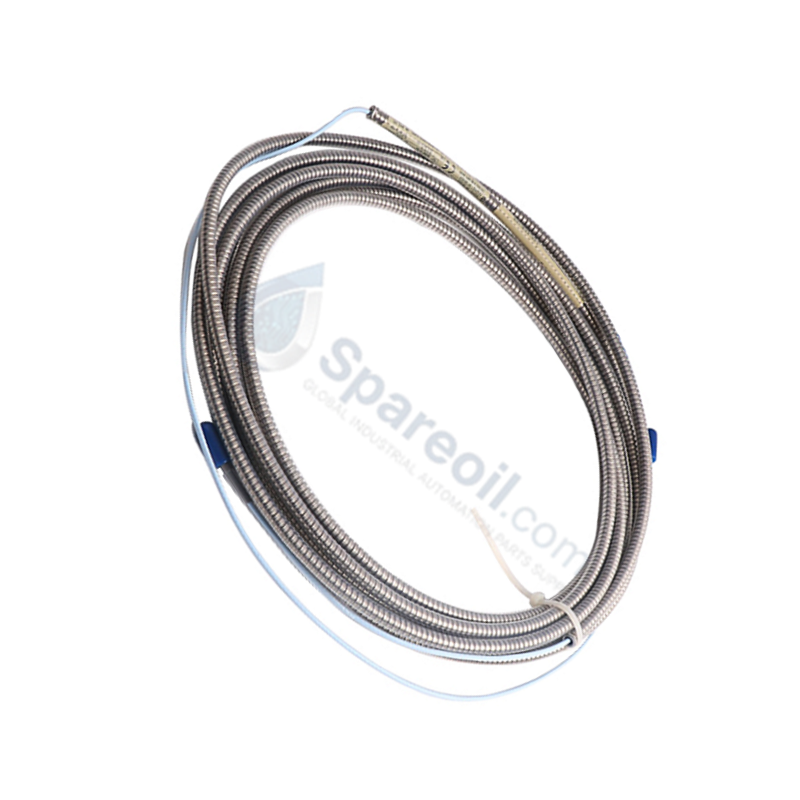

Configured for high-frequency vibration signal transmission in 3300 NSv Proximity Transducer Systems, the Bently Nevada 330930-065-01-05 (330930 Extension Cable) provides direct physical/electrical execution. It interfaces 3300 NSv proximity probes with Proximitor sensors to deliver continuous RF carrier voltage and dynamic signal pathing across machinery monitoring loops.
Suffix Breakdown & Model Matrix
| Option Code | Designation | Parameter Value / Option Description |
|---|---|---|
| 330930 | Base Model | 3300 NSv Extension Cable |
| -065 | Cable Length Option | 6.5 metres (21.3 feet) |
| -01 | Connector Protector & Cable Option | With stainless steel armor, with FEP jacket |
| -05 | Agency Approval Option | Multiple Approvals |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 330930-065-01-05 |
| Base Model | 330930 |
| Brand | Bently Nevada |
| Series | 3300 NSv |
| Product Type | Extension Cables |
| Origin | USA |
| Cable Length | 6.5 metres (21.3 feet) |
| Armor / Jacket Configuration | Stainless steel armor with fluorinated ethylene propylene (FEP) outer jacket |
| Agency Approval Option | Multiple Approvals (-05 option) |
| Operating Temp | -51 to +177 deg C (Standard 3300 NSv field environment rating) |
| Power Consumption | Passive physical component (0 W) |
| Cable Impedance | 75 ohm coaxial construction matching 3300 NSv Proximitor input impedance |
| Dimensions / Weight | Length: 6.5 m; Weight: Standard field cable density (~0.045 kg/m base, ~0.30 kg cable assembly) |
Eddy-Current Probe Scaling & Signal Path Verification
The 330930-065-01-05 extension cable maintains precise capacitance and inductance parameters across its 6.5-metre length to support eddy-current probe scaling. Deviations in physical line length or coaxial impedance alter the high-frequency RF carrier voltage supplied by the 3300 NSv Proximitor sensor, directly skewing linear scale factor response. Accurate cable capacitance matching ensures valid gap voltage validation targeting -10 VDC at nominal center-gap position. This signal path integrity is required for cross-talk suppression and continuous tracking of rotor dynamics under tight mechanical clearance constraints.
Frequently Asked Questions
Q: How does total transducer system length affect calibration when using the 6.5-metre 330930 extension cable?
A: 3300 NSv Proximitor sensors are calibrated to specific total system lengths (typically 5.0 metres or 7.0 metres). The 6.5-metre extension cable must be paired with a probe length (e.g., 0.5 metre) that totals the exact system length specified on the Proximitor label to prevent scale factor error.
Q: What physical protection does the -01 option code provide over unarmored versions?
A: The -01 option wraps the internal coaxial cable in a flexible stainless steel armor to protect against crushing and abrasion, while the outer FEP jacket provides chemical isolation and moisture sealing.
Q: Can the extension cable armor be grounded at intermediate conduit supports?
A: No. The cable armor and connector shields must remain electrically isolated from field ground along the run to prevent ground loops. Shield grounding occurs strictly at the monitor cabinet/Proximitor common ground terminal.
Field Installation Guidelines
- Inspect male and female miniature coaxial connectors for dirt, moisture, or bent central contacts prior to mating. Clean with non-residue electronic contact cleaner if necessary.
- Join coaxial connectors by hand until threads engage smoothly. Tighten to finger-tight, then torque using dedicated connector pliers to the recommended specification without twisting the cable body.
- Slide silicone connector protectors or insulation boots completely over mated connector junctions to prevent metal-to-metal contact with grounded junction boxes or conduit fittings.
- Route the armored cable through protective cable trays or conduit, maintaining a minimum bend radius of 25 mm (1.0 inch) to prevent kinking the flexible stainless steel armor.
- Secure cable runs at regular intervals using stainless steel hardware clamps. Ensure clamps clamp firmly around the outer FEP jacket without crushing or deforming internal coaxial geometry.
