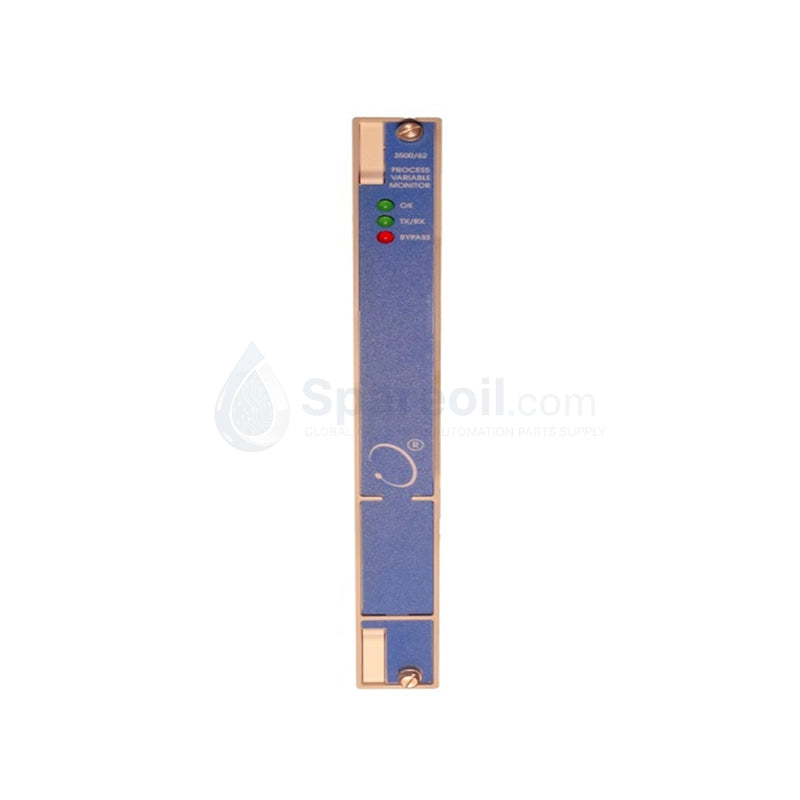

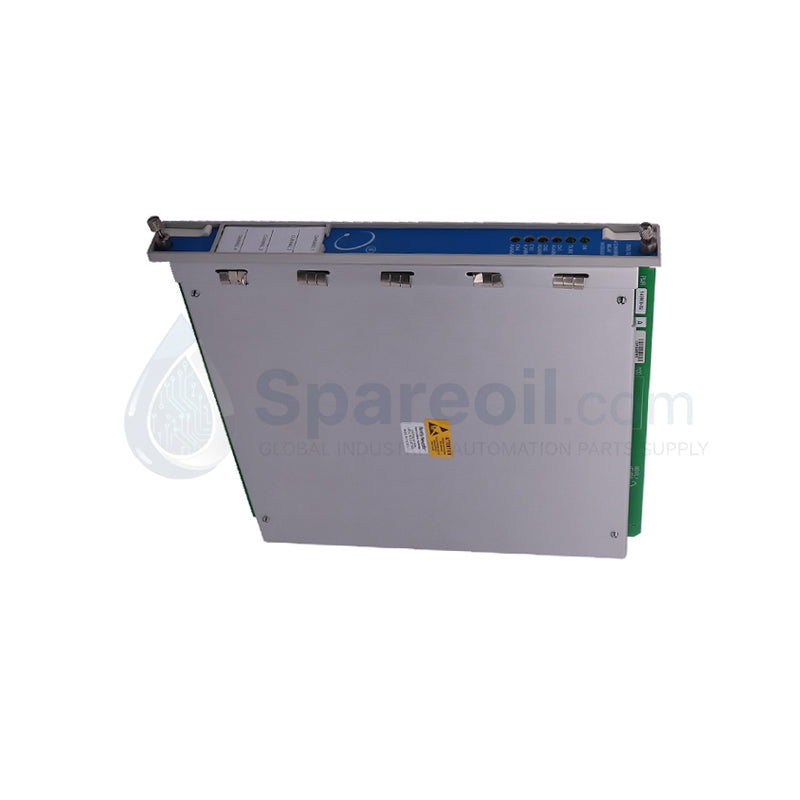

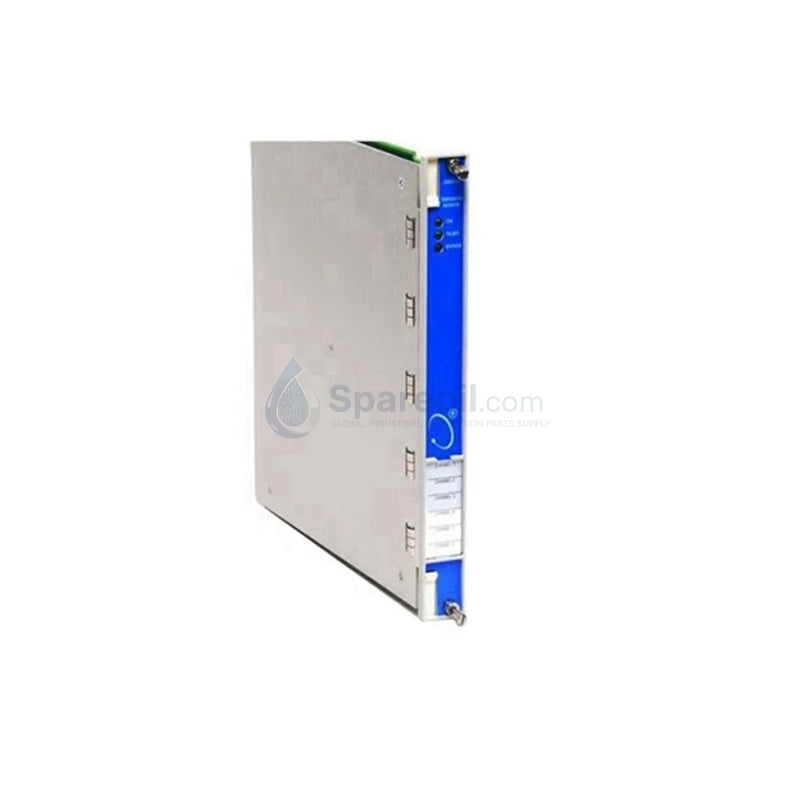

Bently Nevada 3500/62-04-00 Process Variable Monitor

The Bently Nevada 3500/62-04-00, also cataloged as the 3500/62 Process Variable Monitor, operates as a dedicated hardware component for process signal integration and alarm evaluation within the 3500 Series Machinery Protection System.

Hardware Specifications

Parameter	Specification
Model	3500/62-04-00
Brand	Bently Nevada (Baker Hughes)
Origin	United States
Weight	0.45 kg (1.0 lb)
Dimensions	24.4 mm x 241.3 mm x 99.1 mm (0.96 in x 9.50 in x 3.90 in)
Operating Temp	-30 deg C to 65 deg C (-22 deg F to 149 deg F)
Power Consumption	7.0 W typical
Input Channels	6 channels per monitor module
Input Signal Range	4 to 20 mA DC, 1 to 5 VDC, 0 to 5 VDC, or -10 to +10 VDC
Input Impedance	250 Ohm (Current mode) / 20 MOhm (Voltage mode)
Isolation Rating	500 Vrms channel-to-channel and channel-to-chassis
A/D Conversion	16-bit resolution
Accuracy	Within +/-0.33% of full-scale range
Update Rate	100 ms all channels
Termination Type	Internal Termination matrix

Eddy-Current Probe Scaling & Cross-Talk Suppression

While the module interfaces with standard industrial transmitter signals like pressure and temperature, it utilizes internal 16-bit A/D conversion pipelines to map voltage ranges up to -10 VDC. The analog front-end implements cross-talk suppression filters across the 6 channels to ensure that static voltage levels from proximity probe drivers or proportional sensors do not corrupt adjacent measurement registers.

The internal termination architecture routes the raw 4-20 mA or voltage loops directly to high-impedance sensing paths. Data variables are updated synchronously at 100 ms intervals, allowing the internal rack logic to evaluate auxiliary conditions against alarm setpoints while maintaining absolute signal separation under 500 Vrms isolation limits.

Frequently Asked Questions

Q: Can the 3500/62-04-00 monitor be removed from the 3500 rack while the machinery protection system is live? A: Yes. The module supports hot-swapping under power within the 3500 chassis. However, removing the active monitor immediately disables its 6 input channels and disrupts corresponding protective voting logic, which can trigger downstream trip actions if not bypassed.

Q: Can a single module process a mix of 4-20 mA current and -10 to +10 VDC voltage inputs simultaneously? A: Yes. Each of the 6 channels is independently configurable via the 3500 Rack Configuration Software. The input circuitry shifts between its 250 Ohm current shunt resistor and 20 MOhm voltage impedance paths based on the software parameter selection.

Q: What is the technical behavior of the module if an input line encounters an open-circuit fault? A: The hardware detects current drop below the programmable low-scale limit (e.g., <3.6 mA on a 4-20 mA loop). It enters a Not OK state, drives the channel status indicator LED, and bypasses the faulted channel from participating in protective trip logic to avoid false machinery shutdowns.

Field Installation Guidelines

Chassis Slot and Terminal Alignment: Power down the system if required by local operations or insert directly into an available slot of a live 3500 rack. Ensure the rear internal termination module aligns accurately with the backplane connectors before tightening the front panel thumbscrews.
Cable Shielding and Transmit Traces: Route all 4-20 mA and voltage lines using twisted, shielded instrumentation pairs. Ground the cable shields at a single point, preferably at the 3500 rack chassis earth ground bar, to eliminate potential ground loop currents.
Low-Voltage Conduit Segregation: Keep all process variable input lines separated from high-voltage AC power distribution wiring and heavy motor starter links to prevent inductive noise coupling into the 16-bit digitization path.
