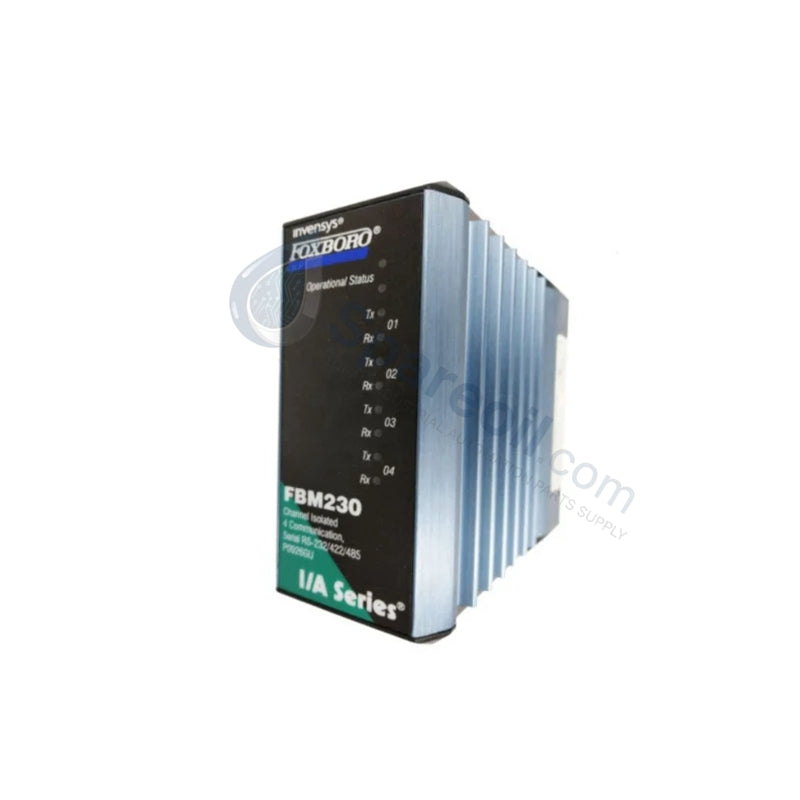

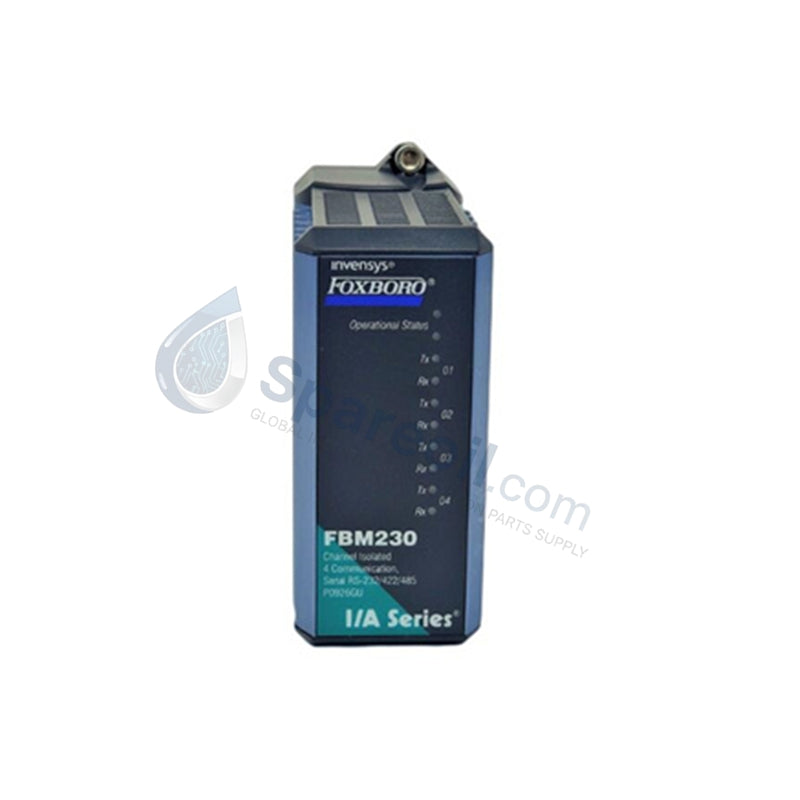

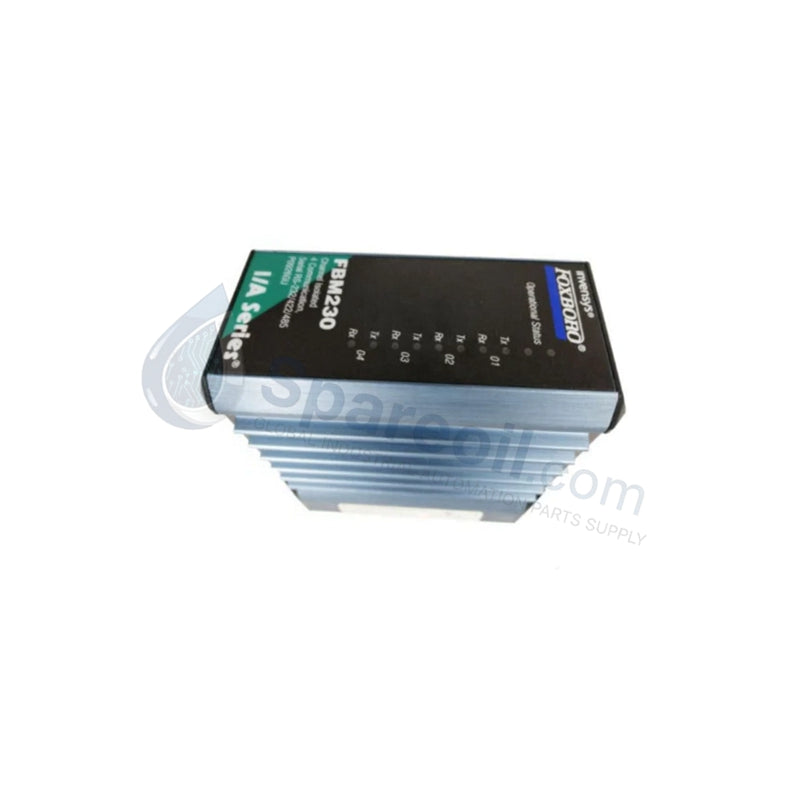

4-20mA Fieldbus Module | Foxboro FBM230 P0926GU

4-20mA Fieldbus Module | Foxboro FBM230 P0926GU

Availability: 10 left in stock

Product Overview The Foxboro FBM230 (Part Number: P0926GU) serves as a high-density analog input interface for the I/A Series Distributed Control System...

SKU: FBM230 P0926GU

Manufacturer: Foxboro
Product No.: FBM230 P0926GU
Product Type: Fieldbus Interfaces
Product Origin: USA
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Foxboro FBM230 (Part Number: P0926GU) serves as a high-density analog input interface for the I/A Series Distributed Control System (DCS). This module collects 16 independent 4–20 mA DC signals from field transmitters and sensors, converting physical process variables into actionable digital data for the control network. We supply this unit as 100% Brand New original factory stock, ensuring the highest level of precision and longevity in mission-critical environments such as chemical refining and power generation.

Technical Specifications

Feature	Specification
Model / Part Number	FBM230 / P0926GU
Input Channels	16 Isolated Analog Inputs
Signal Range	4–20 mA DC
Accuracy	±0.05% of span
Resolution	12-bit
Input Impedance	250 Ω
Isolation	Galvanic; 600 V AC for 1 minute
Communication	Redundant 2 Mbps Foxboro Fieldbus
Operating Temp	-20 °C to +70 °C (Terminal Assembly)
Environmental	ISA Class G3 (Harsh Industrial)
Certifications	UL, CSA, CE, ATEX, Class 1 Div 2

Engineering Advantages

High-Density Rack Efficiency: By providing 16 channels in a single slot, the FBM230 maximizes rack utilization. This footprint reduction significantly lowers the total cost of ownership (TCO) for cabinet hardware in large-scale installations.
Galvanic Noise Rejection: Each channel features independent galvanic isolation. This architecture blocks ground loops and prevents electrical noise from field-side disturbances—such as motor starts or lightning—from damaging the sensitive DCS backplane.
Redundant Communication Security: The module interfaces with the redundant 2 Mbps Foxboro fieldbus. This ensures continuous data flow to the control processor even if a single communication path sustains damage.
Harsh Environment Resilience: Foxboro engineers the P0926GU to meet ISA Class G3 standards. The module withstands corrosive atmospheres often found in oil & gas facilities and wastewater treatment plants.
Seamless Maintenance: The hot-swappable design allows technicians to replace a module without removing power or interrupting the wider system operation. This capability minimizes Downtime (MTTR) during routine service or hardware updates.

FAQs

Does the FBM230 require a specific baseplate?

The FBM230 P0926GU fits standard Foxboro I/A Series modular baseplates. You must ensure the baseplate supports the 2 Mbps fieldbus communication for full functionality.
Can this module handle 0-20mA signals?

The FBM230 is optimized for the standard 4-20mA DC range, which is the industry norm for loop-powered and self-powered transmitters. For signals outside this range, please consult our technical team for compatible alternatives.
Is this a genuine, brand-new product?

Yes. We provide this module as 100% Brand New original equipment. It includes the original factory packaging and our comprehensive industrial warranty.
How does the module handle channel failures?

Because the FBM230 utilizes per-channel isolation and independent current limiting, a fault or short circuit on one field device will not propagate to the other 15 channels, ensuring localized failure remains isolated.
