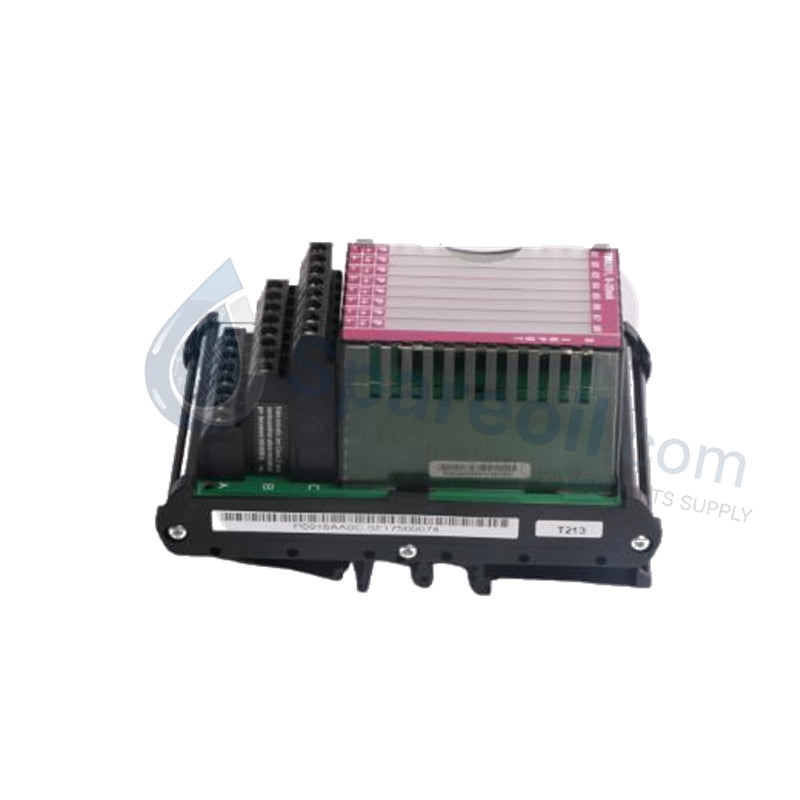

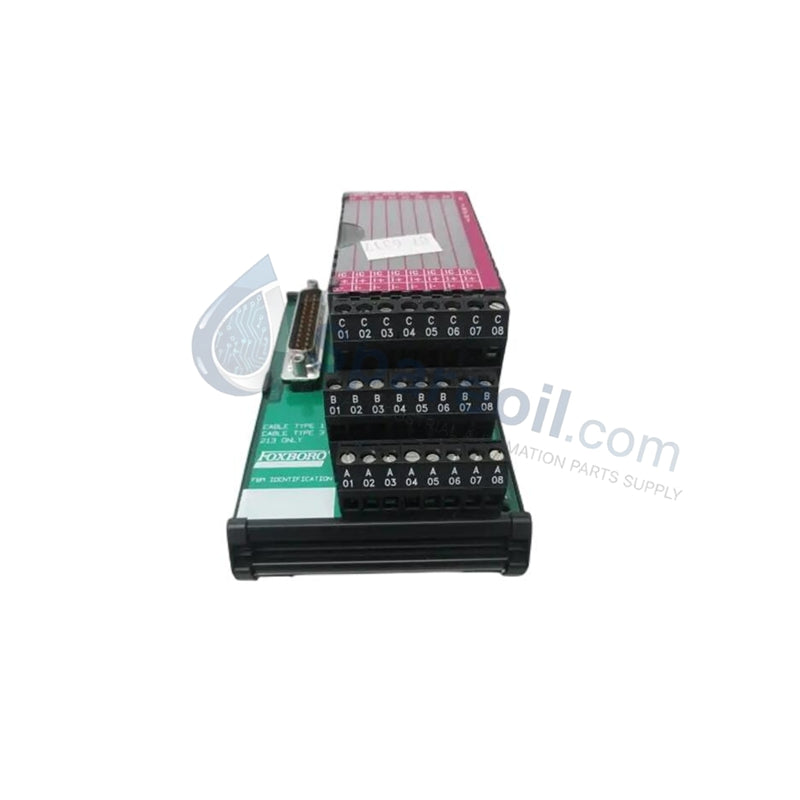

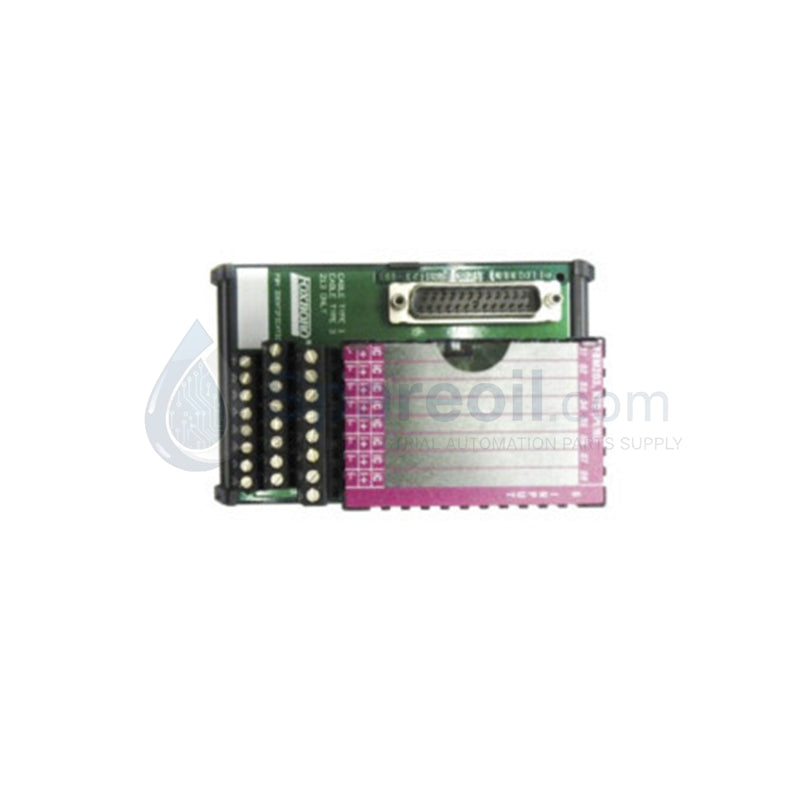

8-Input RTD Fieldbus Module | Brand New Foxboro P0916AE FBM203

Availability: 10 left in stock

Product Overview The Foxboro FBM203 (Part Number: P0916AE) serves as a specialized thermal interface for the I/A Series Distributed Control System (DCS)....

SKU: FBM203 P0916AE

Manufacturer: Foxboro
Product No.: FBM203 P0916AE
Product Type: RTD Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Foxboro FBM203 (Part Number: P0916AE) serves as a specialized thermal interface for the I/A Series Distributed Control System (DCS). This module accurately acquires signals from up to eight independent Resistance Temperature Detectors (RTD), specifically supporting Platinum (Pt) and Nickel (Ni) sensor types. By converting resistance changes into precise temperature data for the control processor, the FBM203 provides the foundational data required for heat balance and process safety. We supply this unit as 100% Brand New original factory stock, complete with its compression terminal base.

Technical Specifications

Feature	Specification
Model / Part Number	FBM203 / P0916AE
Input Channels	8 Isolated RTD Inputs
Sensor Types	Platinum (Pt) and Nickel (Ni) RTDs
Accuracy	±0.05% of span (typical)
Isolation	Galvanic; 600 V AC for 1 minute
Communication	Redundant 2 Mbps Foxboro Fieldbus
Power Consumption	Max 7 W
Operating Temp	–20 °C to +70 °C (Terminal Assembly)
Dimensions	5.00 x 3.00 x 3.00 in
Weight	0.3 kg (Net) / 284 g
Origin	USA
Warranty	12 Months

Engineering Advantages

High-Precision Temperature Acquisition: The FBM214 provides a typical accuracy of ±0.05% of span. This precision ensures that control loops in chemical reactors and power boilers operate within tight thermal tolerances, directly improving fuel efficiency and product consistency.
Galvanic Noise Rejection: Each of the 8 channels features independent galvanic isolation. This barrier prevents ground loops and protects the internal system logic from field-side electrical surges (up to 600 V AC), which frequently occur in motor-heavy industrial environments.
Redundant Data Paths: The module interfaces with the redundant 2 Mbps Foxboro fieldbus. If one communication path sustains damage, the module automatically utilizes the secondary path to maintain continuous data visibility for the operator.
Compression Terminal Security: The P0916AE includes a compression terminal base. This design ensures vibration-resistant field wiring connections, eliminating the risk of signal drift caused by loose screw terminals in high-vibration power generation or metallurgical plants.
Simplified Life-Cycle Management: The hot-swappable design allows technicians to replace the FBM203 module without removing power or interrupting the wider I/O rack. This minimizes Mean Time to Repair (MTTR) and maintains process continuity during maintenance.

FAQs

What specific RTD types does the FBM203 support?

The FBM203 primarily supports standard Platinum (Pt) and Nickel (Ni) RTDs. You configure the specific sensor curve and range through the I/A Series engineering software to ensure correct linearisation.
Is the compression terminal base included with the P0916AE?

Yes. This specific part number includes the FBM203 module and the associated compression terminal base, providing a complete out-of-the-box solution for field wiring.
Can this module replace existing FBM203 units in an older I/A Series system?

Absolutely. The P0916AE is a direct replacement for existing FBM203 modules. It fits standard modular baseplates and maintains full compatibility with FCP270 and FCP280 control processors.
Is this a genuine original product?

We guarantee the unit is 100% Brand New, original equipment from Foxboro (by Schneider Electric). It ships in its original factory packaging and includes a full 12-month warranty.
