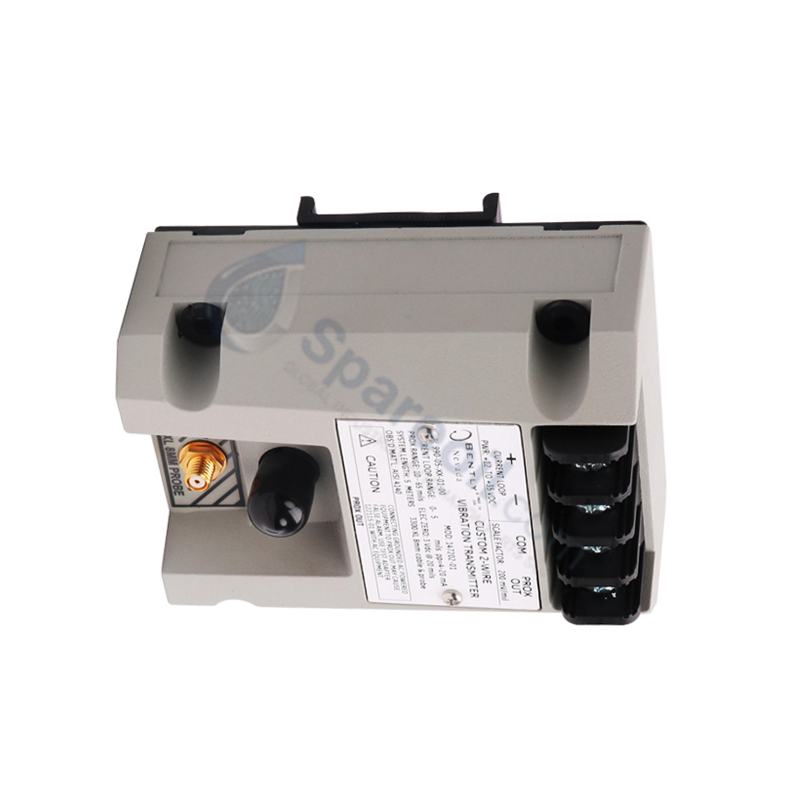

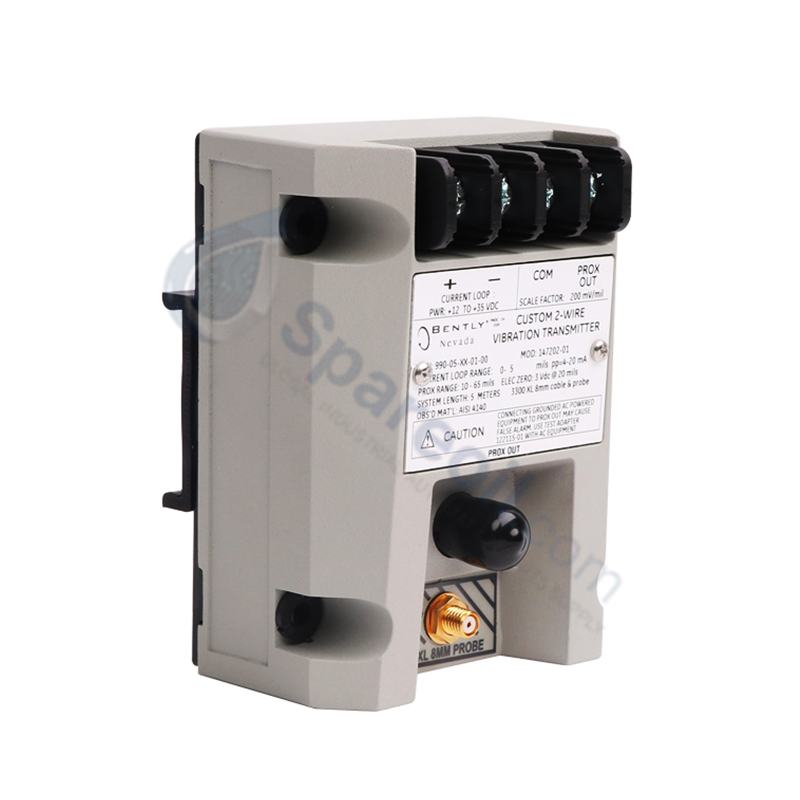

The Bently Nevada 990-04-50-01-CN, also cataloged as the 990 2-Wire Vibration Transmitter, operates as a dedicated hardware component for proximity probe signal conditioning and 4-20 mA loop current conversion within machinery protection platforms.

Suffix Breakdown & Model Matrix

Option Code Option Description Technical Definition
990 Base Model 2-Wire Vibration Transmitter
-04 Full-Scale Option 0 to 100 um peak-to-peak measurement range
-50 System Length Option 5.0 meters (16.4 feet) total system length
-01 Mounting Option 35 mm DIN rail clips installed
-CN Agency Approval Option ATEX/IECEx and Chinese NEPSI hazardous area approvals

Hardware Specifications

Parameter Specification
Model 990-04-50-01-CN
Brand Bently Nevada
Origin USA
Product Type Vibration Transmitters
Measurement Range 0 to 100 um peak-to-peak
System Length 5.0 meters (16.4 feet)
Input Device Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable
Output Signal 4-20 mA loop current proportional to vibration amplitude
Mounting 35 mm DIN rail clips
Agency Approvals ATEX, IECEx, and NEPSI hazardous area marking
Construction Potted internal assembly for high-humidity environments
Power Consumption Loop-powered via output 4-20 mA current loop

Gap Voltage Validation (-10 VDC Targets) & Cross-Talk Suppression

The module conditions raw high-frequency signals from a 3300 NSv proximity probe system across a 5.0-meter system length. Non-isolated PROX OUT and COM terminals deliver direct dynamic vibration and static gap voltage signals, requiring physical probe gap voltage validation to maintain a nominal -10 VDC bias at target center. Integrated potted construction and internal filtering facilitate cross-talk suppression and signal integrity when multiple transmitters are co-located in densely wired instrument enclosures.

Frequently Asked Questions

Q: What mechanisms prevent false alarm tripping during power interruption or probe fault states?

A: The transmitter incorporates a power-up inhibit circuit to block line voltage transient errors during startup, alongside a Not OK/Signal Defeat circuit that clamps high output signals caused by a damaged proximity probe or loose wiring.

Q: How are calibration adjustments performed on the transmitter in the field?

A: Zero and span potentiometers are accessible under the front label, allowing field technicians to calibrate the loop current output directly using the integrated Test Input Pin for verification.

Q: Does the transmitter require a separate external Proximitor Sensor unit?

A: No, the transmitter features an integrated Proximitor Sensor circuit inside a single potted module housing, eliminating the need for an external signal conditioner.

Field Installation Guidelines

  1. Mount the module onto a clean 35 mm DIN rail, confirming secure clip engagement against panel vibration.
  2. Connect the 3300 NSv extension cable to the input connector, ensuring a tight coaxial connection.
  3. Measure static DC voltage at the PROX OUT and COM terminals using a calibrated multimeter, adjusting physical probe depth to achieve the -10 VDC gap voltage target.
  4. Wire the 4-20 mA current loop terminals to the control system analog input card using shielded twisted-pair conductors.
  5. Ground the cable shield at a single point on the main enclosure instrument bus bar to prevent ground loops and electromagnetic interference.
