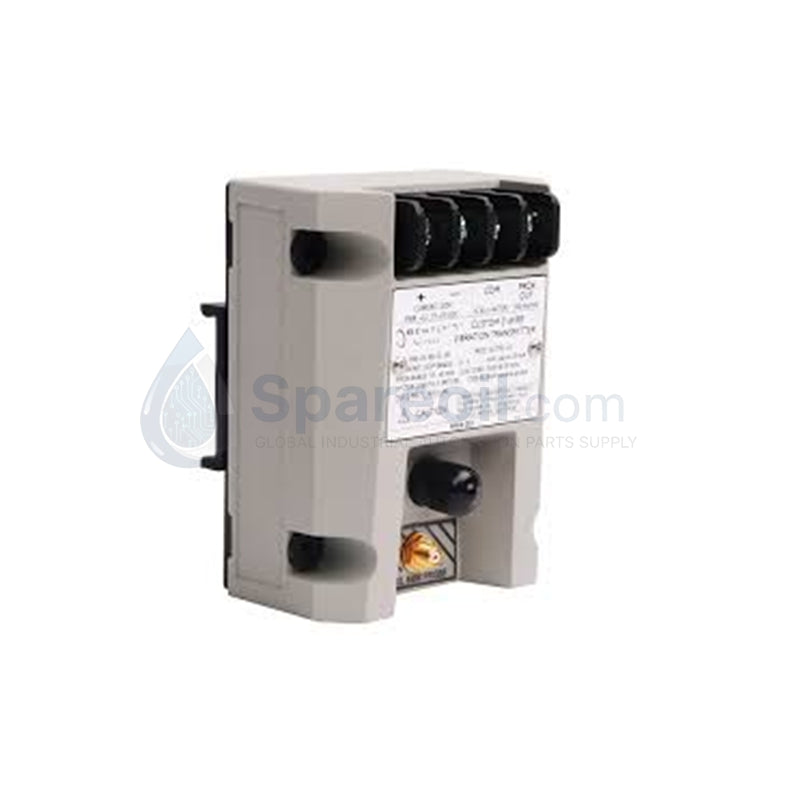

Bently Nevada 990-04-70-01-00 990 Series Vibration Transmitter

Configured for radial vibration monitoring in space-restricted applications, the Bently Nevada 990-04-70-01-00 (990-04-70-01-00 2-Wire Vibration Transmitter) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

The full order code breakdown determines the strict hardware configuration factory-calibrated for the 3300 NSv proximity probe system:

  • 04: Full-scale measurement range of 0-4 mils pp (0-100 um pp) radial vibration.
  • 70: 7.0-meter system length electrical calibration (combined probe and extension cable).
  • 01: 35 mm DIN rail mounting clip interface integrated onto the housing.
  • 00: Standard configuration option with no hazardous area agency approvals.

Hardware Specifications

Parameter Specification
Model 990-04-70-01-00
Brand Bently Nevada
Origin USA
Transmitter Series 990 Series 2-Wire Vibration Transmitter
Full-Scale Range 0-4 mils pp (0-100 um pp)
System Length 7.0 meters (23.0 feet)
Mounting Type 35 mm DIN rail clip
Compatible Sensor 3300 NSv Proximity Probe
Output Signal 4-20 mA DC current loop
Supply Voltage +12 VDC to +35 VDC
Frequency Response 10 Hz to 1000 Hz
Operating Temp -35 to +85 deg C
Power Consumption 0.7 W maximum
Dimensions Standard compact DIN module housing footprint
Weight 0.54 kg

Gap Voltage Validation and Eddy-Current Probe Scaling

The 990-04-70-01-00 transmitter interfaces natively with 3300 NSv eddy-current proximity probes to convert mechanical displacement into an industry-standard loop current. Field loop optimization requires systematic gap voltage validation during installation to locate the probe tip precisely within the linear sensing domain. The embedded driver circuit imposes high-frequency eddy-current probe scaling onto the sensor tip; any shift in the shaft-to-probe gap alters the loop loading, which the internal signal processor linearizes into a proportional 4-20 mA current output. Internal cross-talk suppression mechanics prevent high-frequency driver interference when multiple transmitter bodies are arranged side-by-side on a shared mounting profile.

Frequently Asked Questions

Q: How does a physical break in the 3300 NSv proximity probe cable change the 4-20 mA output loop state?

A: An open circuit or short circuit in the sensor connection triggers an out-of-range sensor fault condition, forcing the transmitter current output down to a clamping level below 3.6 mA to signal an error state to the PLC or DCS.

Q: Can the 990-04-70-01-00 transmitter be safely disconnected from the 35 mm DIN rail while the power loop is live?

A: Yes. The 2-wire loop structure allows individual transmitter units to be hot-swapped or removed from the DIN rail without disturbing adjacent current loops, provided appropriate field loop overrides are engaged at the control processor interface first.

Q: What are the exact voltage requirements needed to guarantee a stable 20 mA maximum output through the loop?

A: The transmitter accepts +12 VDC to +35 VDC loop supply. To support a maximum 20 mA driving current through high-resistance field loops, the power source must maintain enough headroom to cover the internal voltage drop plus the loop line resistance.

Field Installation Guidelines

  • DIN Rail Stability and Alignment: Secure the module package onto a rigid 35 mm top-hat DIN rail section. Verify that the mechanical plastic locking tab clicks firmly into place to isolate the unit from ambient structural machinery vibration.
  • Coaxial Signal Line Isolation: Route the 3300 NSv proximity probe extension cable inside a dedicated, isolated conduit. Avoid close parallel routing alongside high-voltage AC motor lines to eliminate inductive noise pick-up on the low-level signal carrier.
  • Shield Grounding Framework: Connect the loop cable outer shield wire to the instrumentation earth bus bar at the receiver cabinet side only. Keep the shield isolated at the transmitter end to eliminate potential ground loop currents.
  • Transducer Gap Stabilization: Adjust the physical probe installation position until a digital multimeter reads the exact gap voltage validation baseline matching the center-scale distance specified in the 3300 NSv system technical manual.
