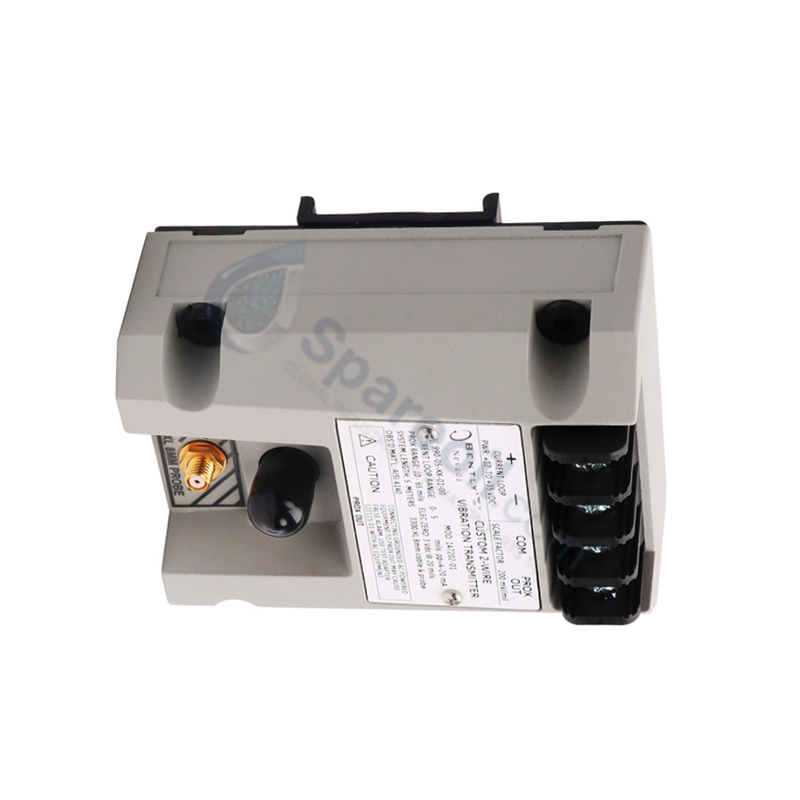

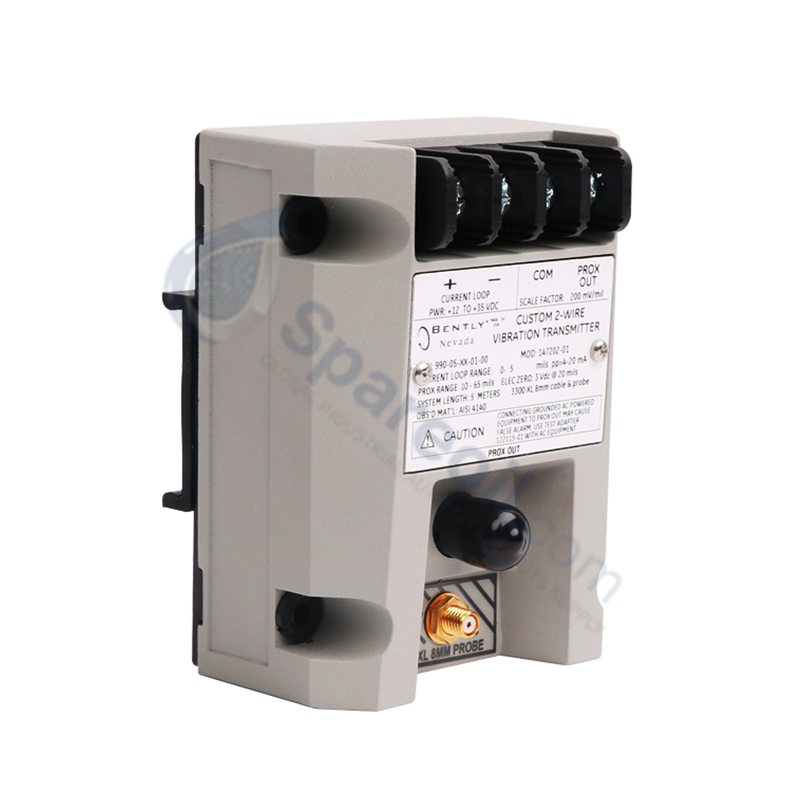

The Bently Nevada 990-05-50-01-00, also cataloged as the 990 2-Wire Vibration Transmitter, operates as a dedicated hardware component for proximity probe signal conditioning and 4-20 mA current loop conversion within machinery protection networks.

Suffix Breakdown & Model Matrix

Option Code Option Description Technical Definition
990 Base Model 2-Wire Vibration Transmitter
-05 Full-scale Option 0-5 mils pp (0-125 um pp) vibration amplitude range
-50 System Length Option 5.0 metres (16.4 feet) total calibrated system length
-01 Mounting Option 35 mm DIN rail clips installed
-00 Agency Approval Option No hazardous area approvals required

Hardware Specifications

Parameter Specification
Model 990-05-50-01-00
Brand Bently Nevada
Origin USA
Product Type Vibration Transmitters
Measurement Range 0-5 mils pp (0-125 um pp)
System Length 5.0 metres (16.4 feet)
Minimum Target Size 9.5 mm (0.375 in) diameter
Output Signal Proportional 4-20 mA loop current
Mounting Interface 35 mm DIN rail clips
Operating Temp Standard 990 transmitter rating
Dimensions Standard 990 enclosure profile
Weight 0.43 kg
Power Consumption Loop-powered via 4-20 mA current loop

Gap Voltage Validation (-10 VDC Targets) & Eddy-Current Probe Scaling

The transmitter processes high-frequency eddy-current signals from a non-contacting probe across a calibrated 5.0-metre system length. Commissioning requires physical gap voltage validation across raw probe test terminals to ensure the sensor tip achieves a -10 VDC static bias voltage at the physical center of its linear span. Precise eddy-current probe scaling converts dynamic shaft displacement across targets as small as 9.5 mm (0.375 in) in diameter into a 4-20 mA current signal without phase distortion or amplitude degradation.

Frequently Asked Questions

Q: What minimum target area is required for accurate displacement measurement?

A: The transmitter requires a minimum observed target diameter of 9.5 mm (0.375 in) directly facing the probe tip to maintain specified probe scaling and linear current output.

Q: How is loop power supplied to the module?

A: Operating power is drawn directly from the 2-wire 4-20 mA loop circuit connected to the control system terminal interface.

Q: What mounting method does the -01 option code designate?

A: The -01 mounting option specifies factory-installed 35 mm DIN rail clips attached to the base of the transmitter housing for rail snap-mounting.

Field Installation Guidelines

  1. Mount the transmitter module securely onto a grounded 35 mm DIN rail inside a protective field enclosure.
  2. Attach the proximity probe extension cable coaxial connector to the transmitter input interface, tightening hand-tight.
  3. Validate static DC gap voltage using a multimeter across test points, adjusting physical probe depth to achieve the -10 VDC target voltage.
  4. Route 2-wire shielded twisted-pair cabling from the output terminals to the DCS or PLC analog input channel.
  5. Ground the field cable shield at a single earth point on the cabinet earthing bar to mitigate ground loop noise.
