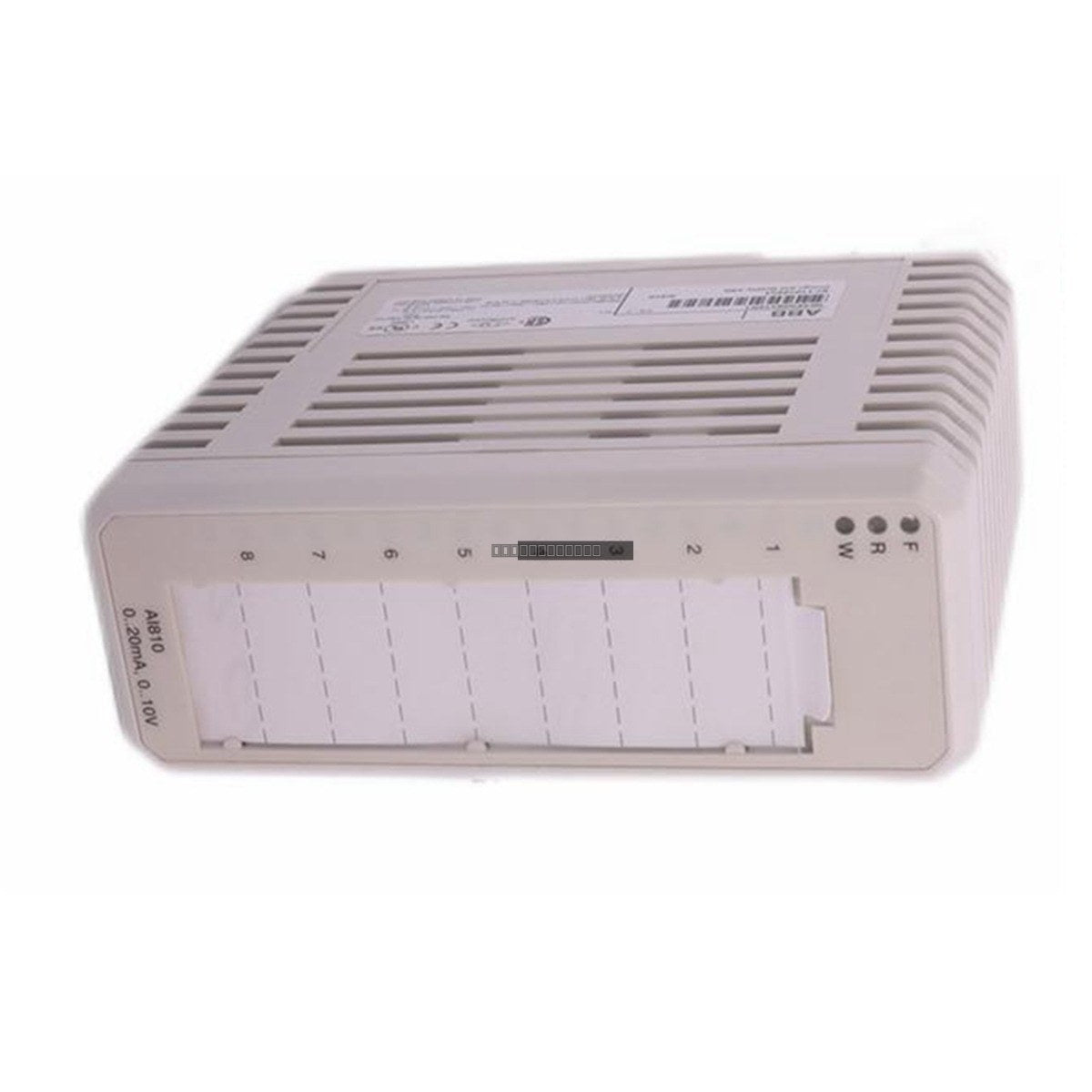

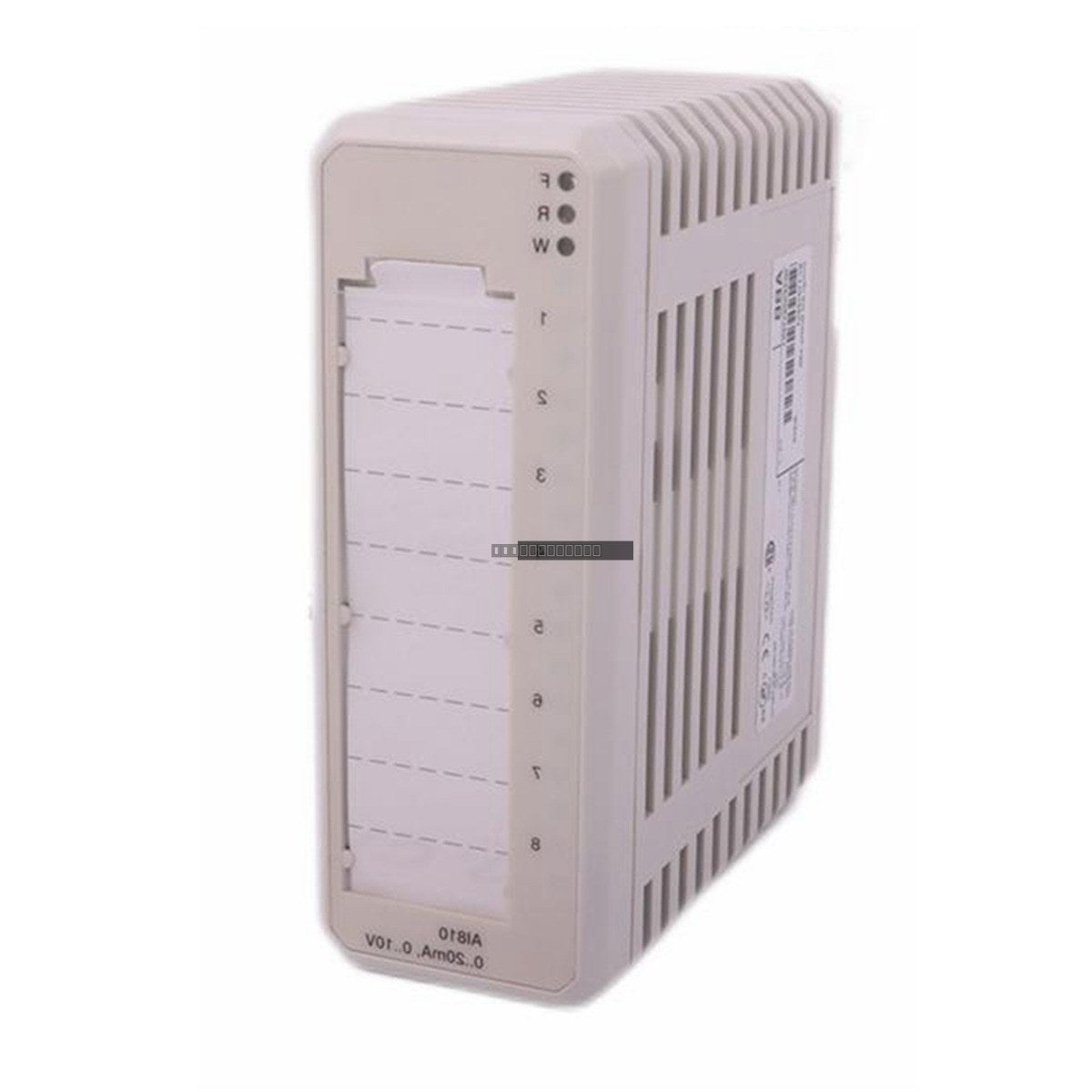

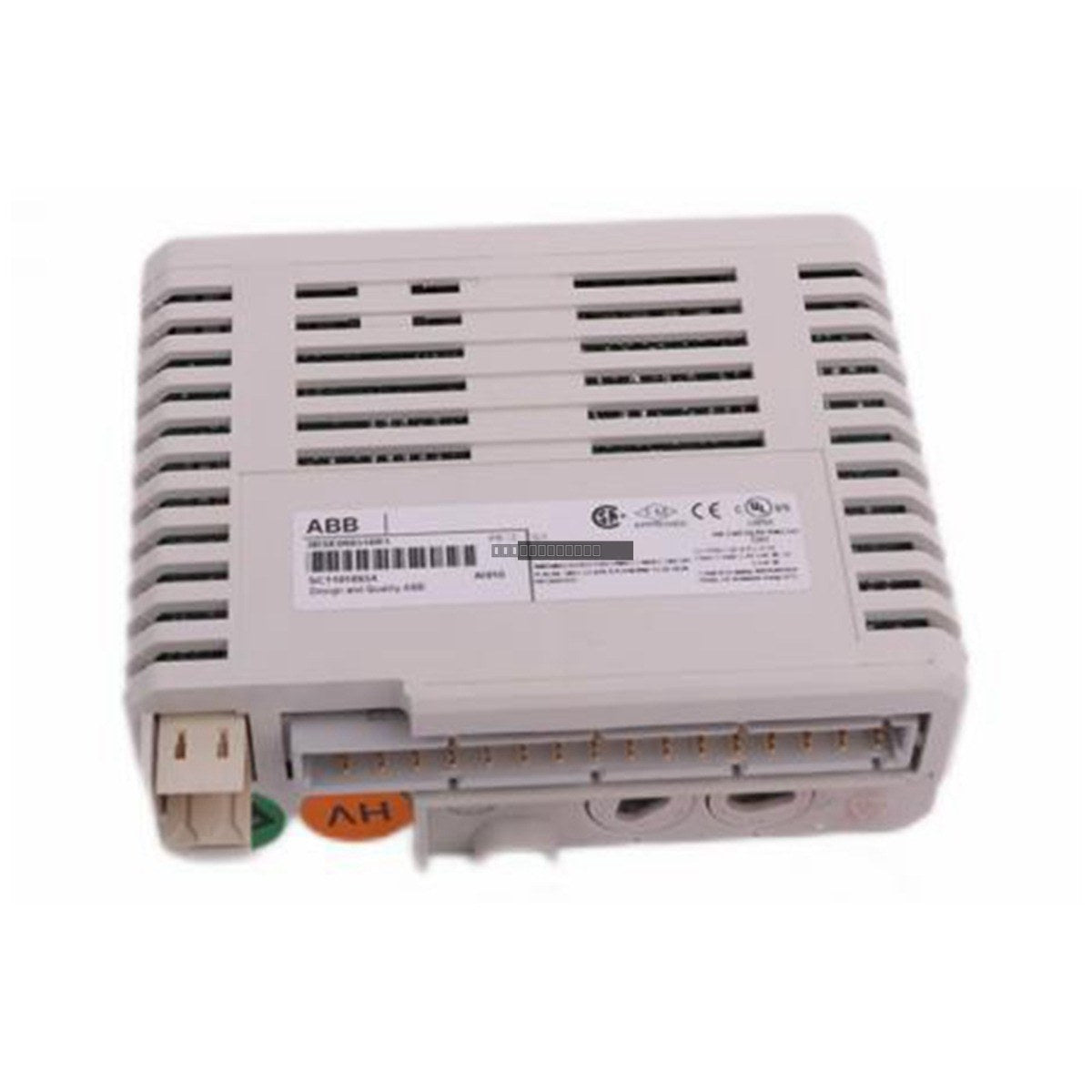

The ABB AI810 (3BSE008516R1) is an 8-channel analog input module designed for the ABB S800 I/O platform. It provides high-precision signal acquisition for industrial control systems, supporting both current and voltage inputs with independent configuration per channel.
Features
- 8 single-ended unipolar input channels.
- Configurable for 0–20 mA, 4–20 mA, 0–10 V, or 2–10 V DC signals.
- 12-bit resolution for accurate process measurement.
- Integrated HART communication support for transparent digital data transmission.
- Robust protection with PTC current-limiting resistors, capable of withstanding 30 V DC overvoltage.
- Galvanic isolation of the channel group from ground.
Applications
- Refinery process control (pressure, level, and flow monitoring).
- Turbine auxiliary systems (lube oil, cooling, and steam flow).
- Boiler control and combustion management.
- Renewable energy infrastructure (pitch control and hydraulic pressure monitoring).
Technical Specifications
| Model | AI810 (3BSE008516R1) |
| Channels | 8 |
| Resolution | 12-bit |
| Input Signals | 0–20 mA, 4–20 mA, 0–10 V, 2–10 V DC |
| Input Resistance (Current) | 250 Ohm (PTC included) |
| Input Resistance (Voltage) | 290 kOhm |
| Max Input Voltage | 30 V DC (non-destructive) |
| NMRR (50/60 Hz) | > 40 dB |
| Power Dissipation | 1.5 W |
| Modulebus Consumption | 70 mA (+5 V) / 40 mA (+24 V) |
Installation Guidelines
- Ensure the system is powered down before installing or removing the module from the Module Termination Unit (MTU).
- The AI810 is compatible with various MTUs including TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838, and TU850.
- Use shielded cabling for field inputs to minimize EMI interference, especially in high-noise industrial environments.
- Maintain proper grounding practices for the S800 I/O rack to ensure signal integrity.
- Handle with care to prevent electrostatic discharge (ESD) damage to the module components.
FAQ
What is the primary function of the AI810 module?
The AI810 is an analog input module that converts field signals (voltage or current) into digital values for processing by the ABB S800 I/O system.
Does this module support HART?
Yes, the AI810 supports HART communication, allowing digital data to be transmitted alongside analog process values.
What is the maximum field cable length?
The module supports field cable lengths up to 600 meters (656 yards).
