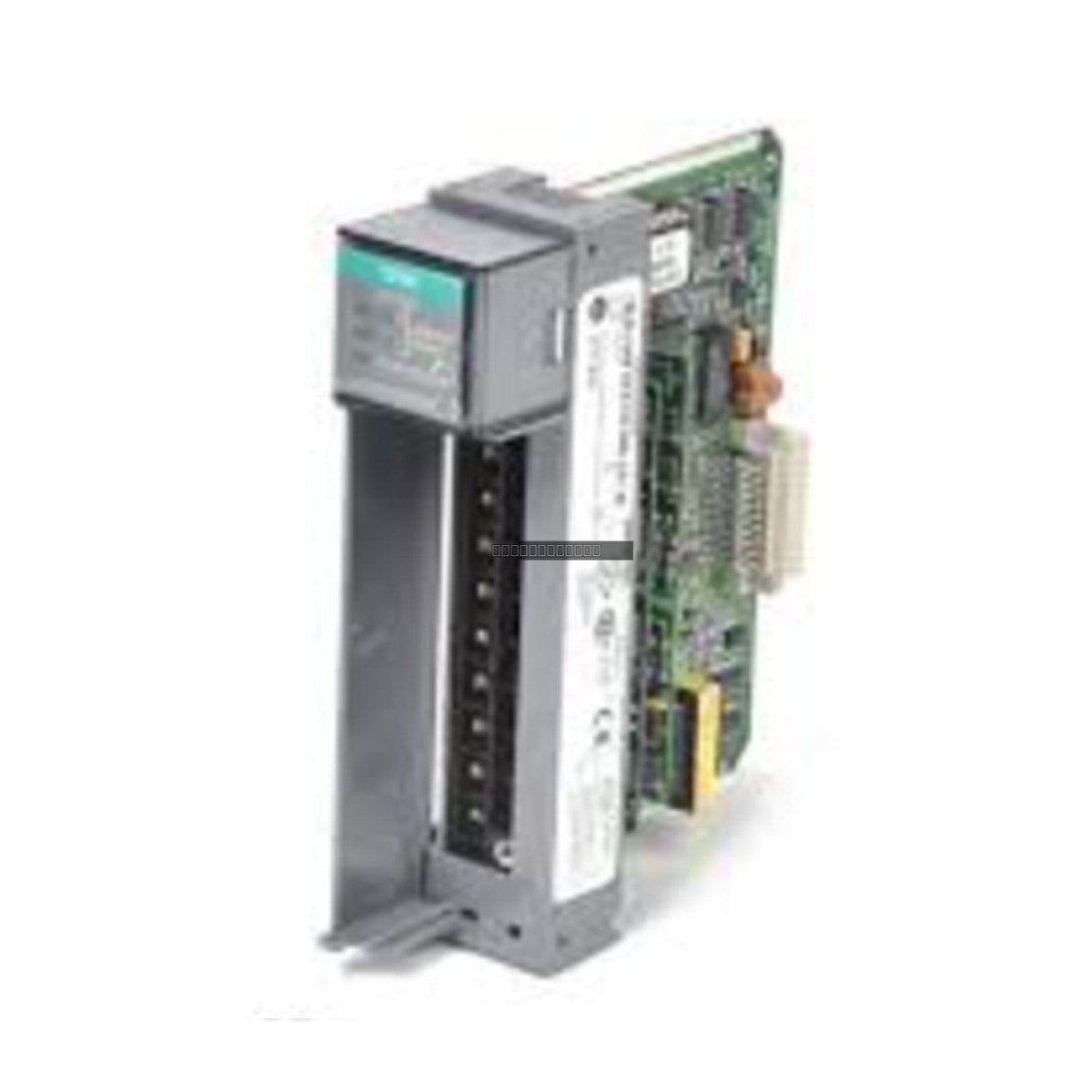

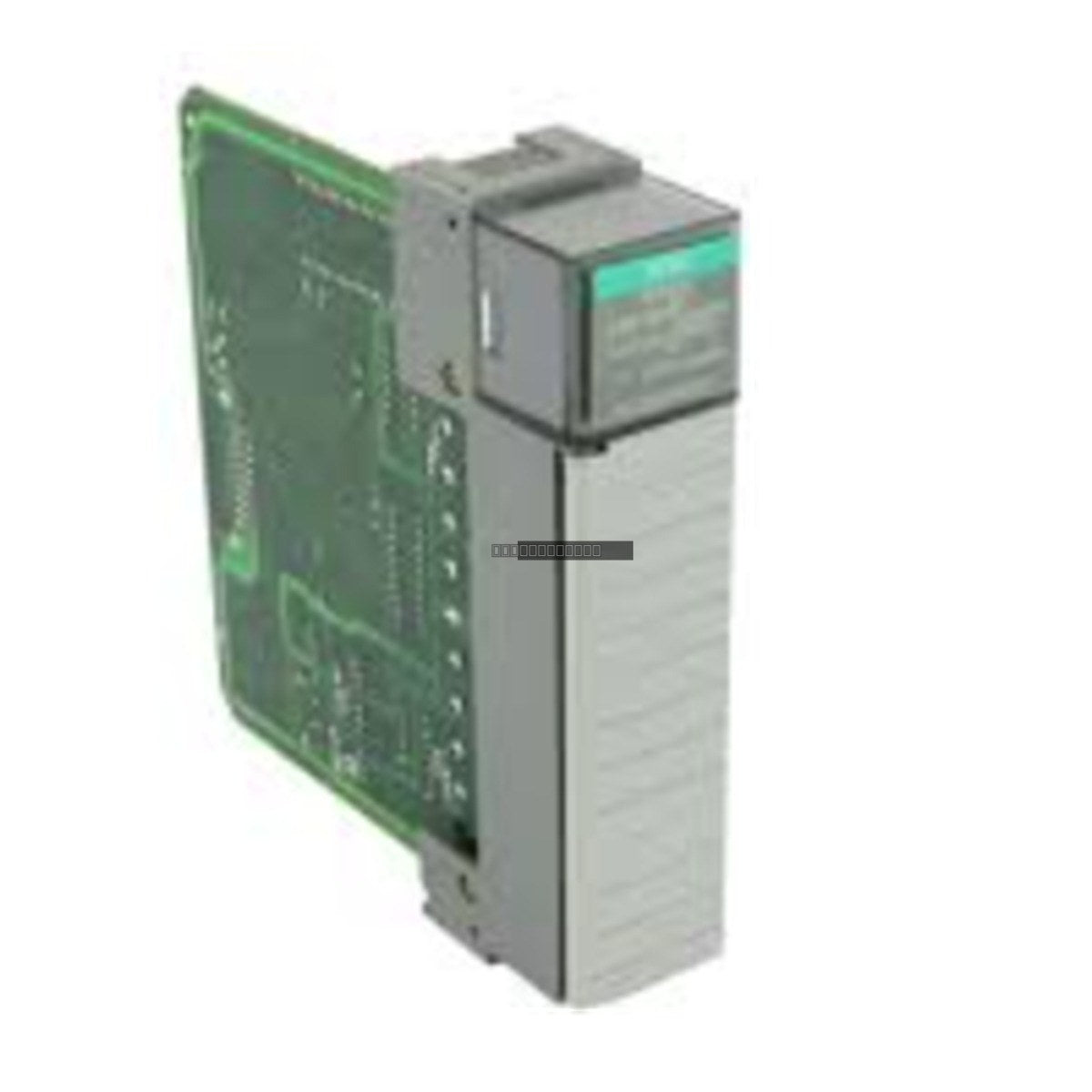

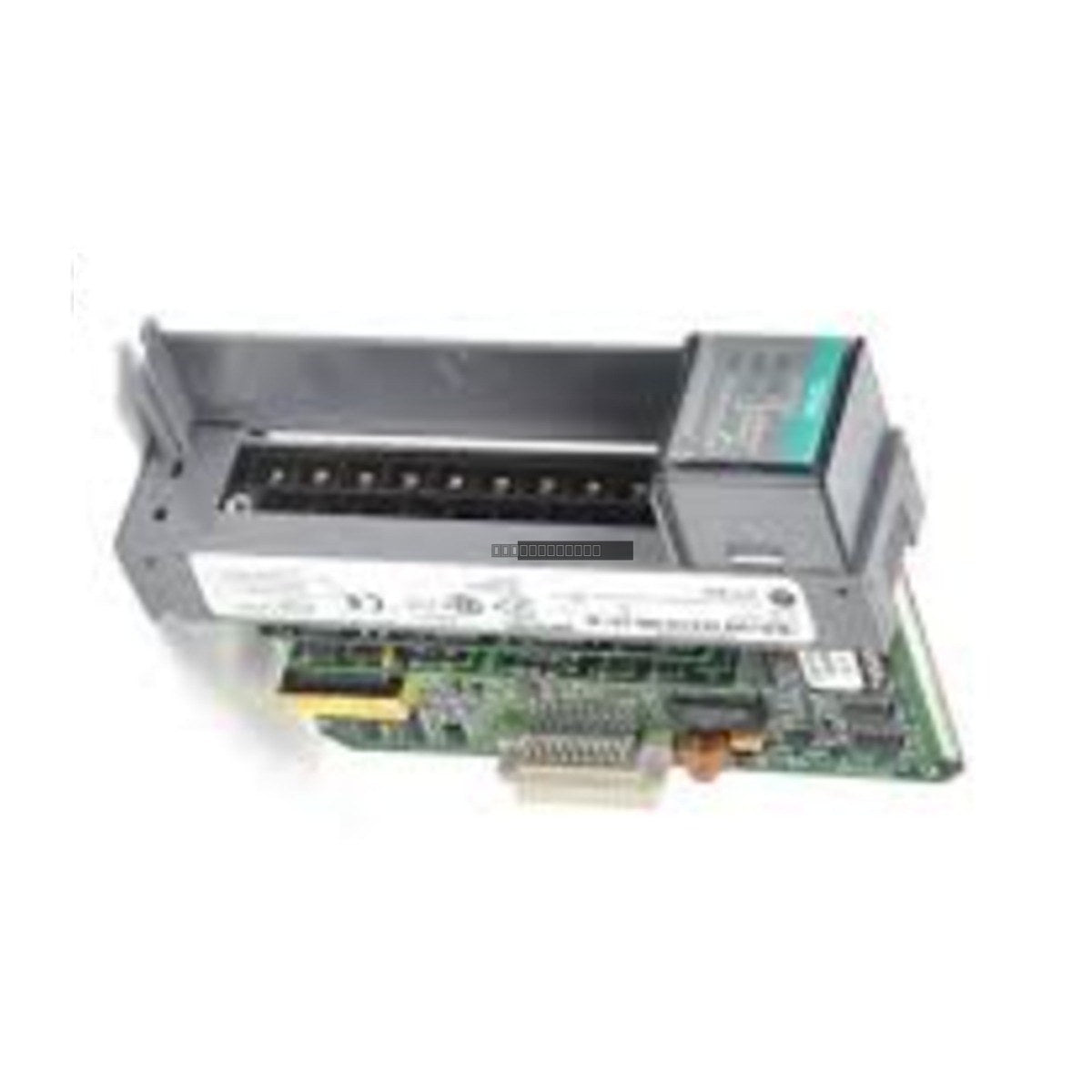

Allen-Bradley 1746-FIO4I SLC 500 Fast Analog Combination I/O Module

Availability: 3 left in stock

DescriptionThe Allen-Bradley 1746-FIO4I is a high-speed analog combination I/O module engineered for the SLC 500 programmable controller platform. Designed for...

SKU: 1746-FIO4I

Manufacturer: Allen-Bradley
Product No.: 1746-FIO4I
Product Type: Analog I/O Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 370g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Allen-Bradley 1746-FIO4I is a high-speed analog combination I/O module engineered for the SLC 500 programmable controller platform. Designed for applications requiring rapid signal processing, this module provides two analog input channels and two analog output channels in a single-slot configuration. The module utilizes successive approximation conversion to achieve high-speed performance, making it suitable for control loops that demand faster response times than standard analog modules can provide.

Features

High-Speed Conversion: Utilizes successive approximation for a 7.5 microsecond conversion time.
I/O Configuration: Two configurable voltage/current inputs and two dedicated current output channels.
High Bandwidth: Features a 7 kHz bandwidth for rapid signal tracking.
Resolution: Provides 12-bit resolution for inputs and 14-bit resolution for outputs.
Compatibility: Fully compatible with both fixed and modular SLC 500 chassis systems.

Technical Specifications

Brand	Allen-Bradley
Product Line	SLC 500
Module Type	Fast Analog Combination I/O
Input Channels	2 (Voltage or Current)
Output Channels	2 (Current: 0–20 mA)
Input Ranges	0 to 10V DC or 0 to 20 mA
Conversion Method	Successive Approximation
Input Resolution	12-bit
Output Resolution	14-bit
Conversion Time	7.5 µs
Update Time	512 µs
Backplane Current (5V)	55 mA
Backplane Current (24V)	150 mA
Operating Temperature	0 to 60 degC (32 to 140 degF)

Installation Guidelines

Power Down: Always remove power from the SLC 500 chassis before inserting or removing the module to prevent electrical damage.
Slot Placement: The module can be installed in any available I/O slot of a modular SLC 500 chassis.
Wiring: Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI). Ensure the shield is grounded at one end only.
Handling: Observe standard ESD (Electrostatic Discharge) precautions when handling the module.
Cooling: Ensure adequate ventilation within the enclosure to maintain the operating temperature within the specified 0 to 60 degC range.

FAQ

What is the primary advantage of the 1746-FIO4I over standard analog modules?

The 1746-FIO4I is designed for high-speed applications. Unlike standard modules that typically use Sigma-Delta conversion, this module uses a successive approximation method, resulting in a significantly faster 7.5 microsecond conversion time and a 7 kHz bandwidth.

Is this module compatible with all SLC 500 systems?

Yes, the 1746-FIO4I is compatible with both fixed and modular SLC 500 hardware platforms.
