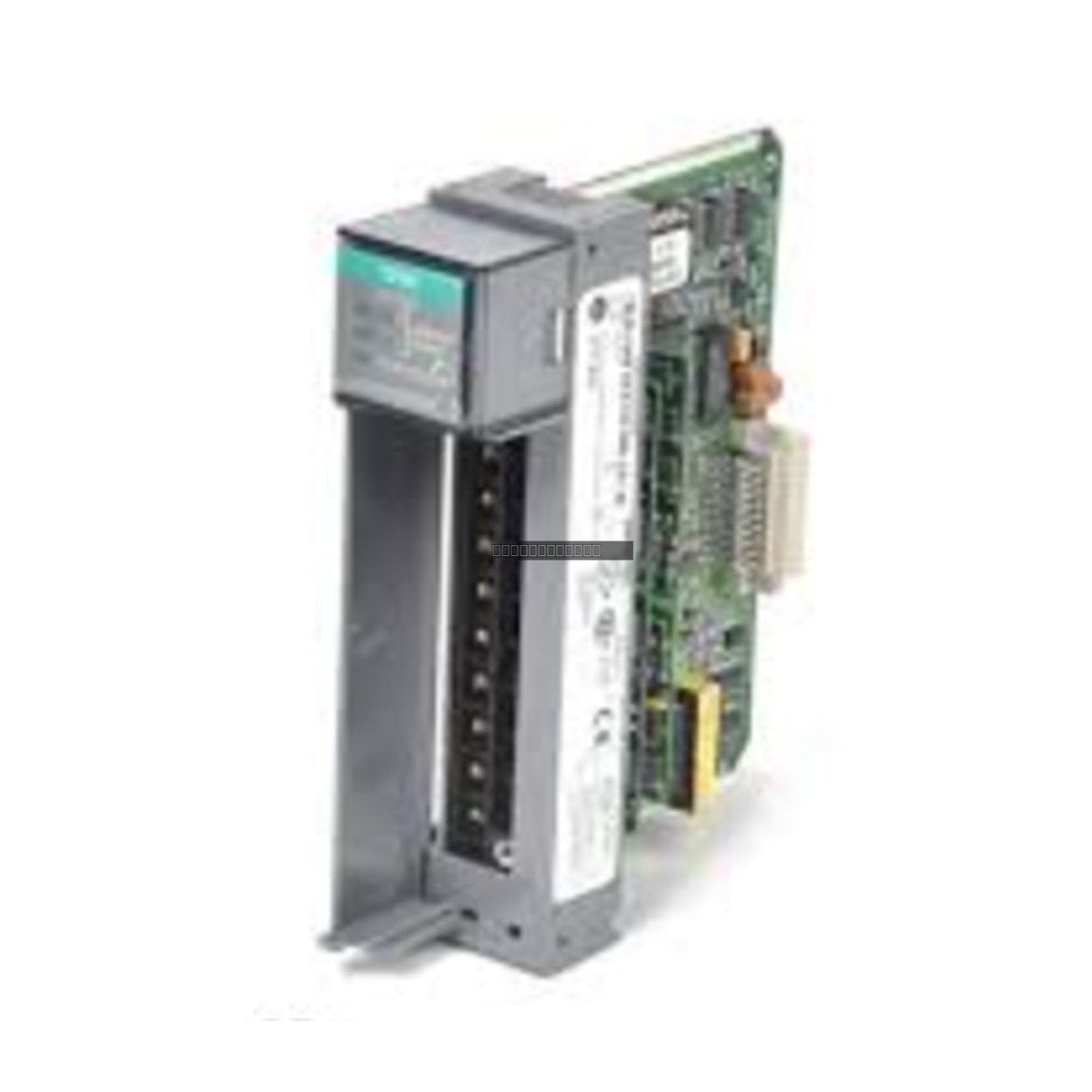

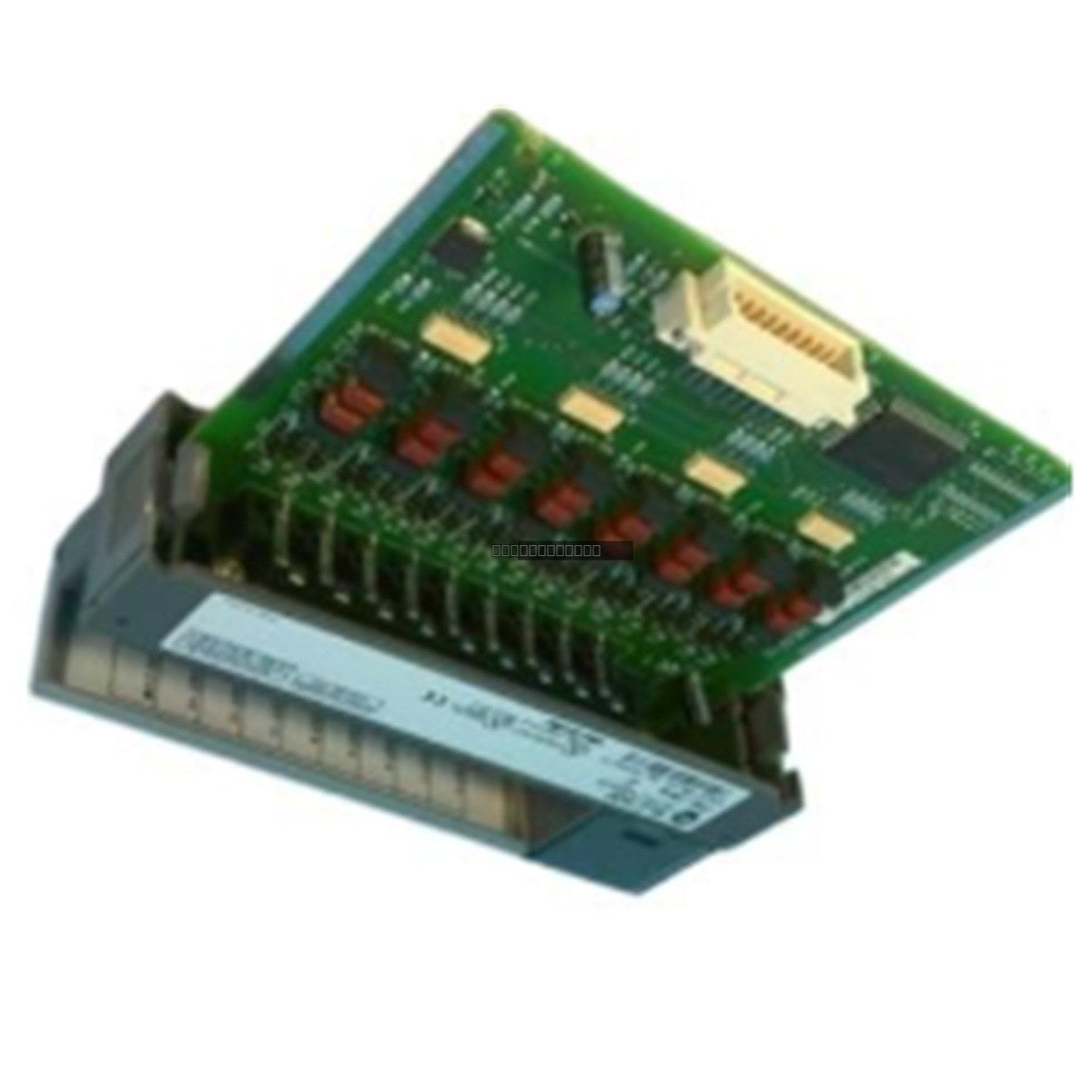

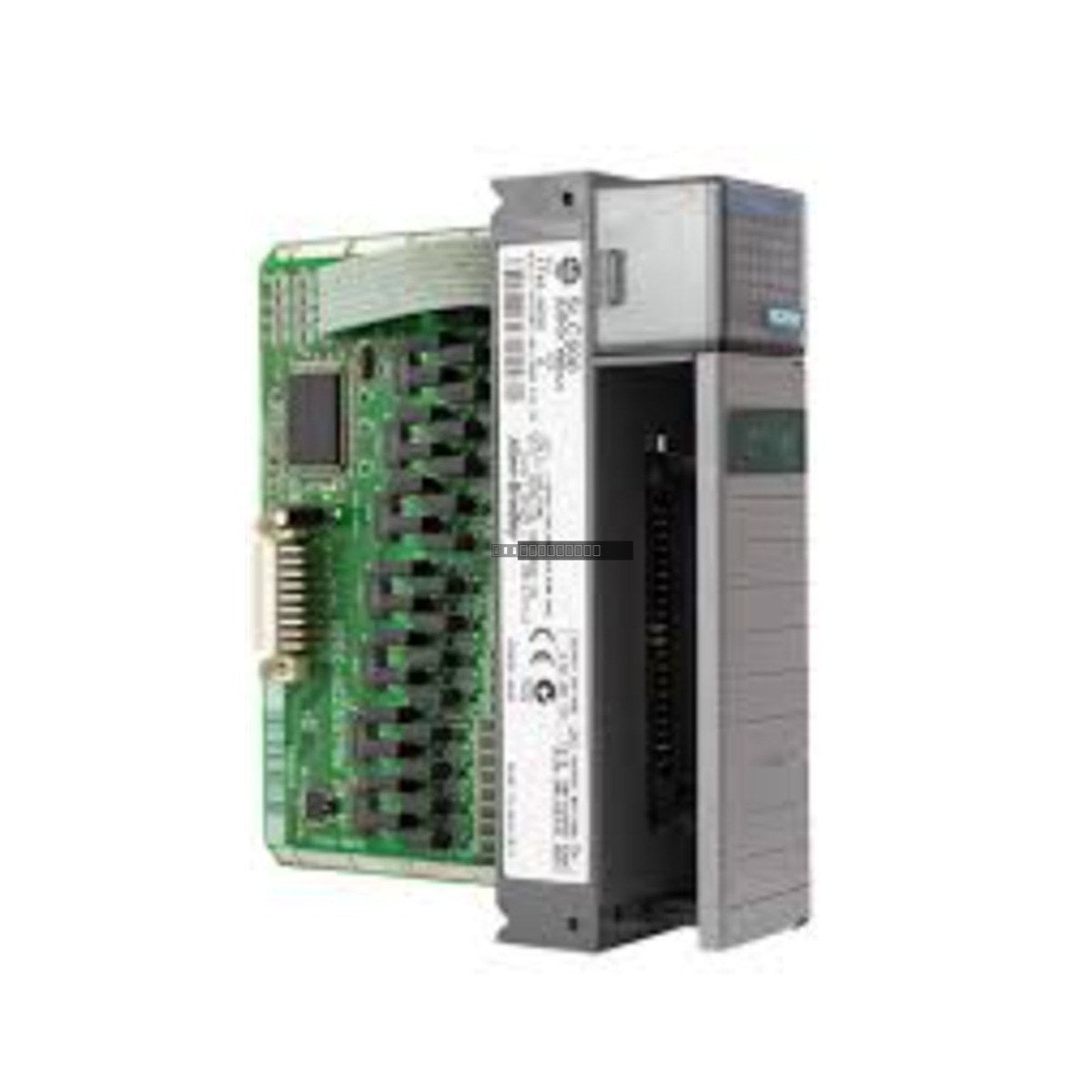

Allen-Bradley 1746-NI16V SLC 500 Analog Voltage Input Module

Availability: 10 left in stock

DescriptionThe Allen-Bradley 1746-NI16V is a high-density analog input module specifically engineered for the SLC 500 programmable controller platform. This module...

SKU: 1746-NI16V

Manufacturer: Allen-Bradley
Product No.: 1746-NI16V
Product Type: Analog Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Allen-Bradley 1746-NI16V is a high-density analog input module specifically engineered for the SLC 500 programmable controller platform. This module provides sixteen (16) single-ended voltage inputs, allowing for efficient data acquisition in applications requiring a high channel count. It is designed to interface directly with standard industrial voltage-based instrumentation, including pressure transducers, potentiometers, and various analytical sensors that provide DC voltage outputs.

Features

Sixteen voltage-type analog inputs configured in four groups of four channels each.
Utilizes Sigma-Delta conversion technology for precise 16-bit digital signal representation.
Programmable digital low-pass filtering with eight selectable frequencies ranging from 6 Hz to 250 Hz.
Adjustable step response times between 9 ms and 630 ms to balance signal stability against response speed.
Comprehensive support for common voltage ranges: +/-10V, 0-10V, 0-5V, and 1-5V DC.
Integrated 500V AC isolation for 1 second to protect backplane circuitry from field-side transients.

Technical Specifications

Brand	Allen-Bradley
Product Series	SLC 500
Input Channels	16 (4 groups of 4)
Input Ranges	+/-10V, 0-10V, 0-5V, 1-5V DC
Resolution	16-bit
Conversion Method	Sigma-Delta
Backplane Current (5V DC)	125 mA
Backplane Current (24V DC)	75 mA
Operating Temperature	0 to 60 degC (32 to 140 degF)

Installation Guidelines

Power must be removed from the SLC 500 backplane before installing or removing the module to prevent electrical damage.
Ensure the module is fully seated in the chassis slot and the locking tabs are secured.
Use shielded twisted-pair cabling for all analog input signals to minimize electromagnetic interference (EMI).
Ground the cable shields at one end only to prevent ground loop currents.
Route signal wiring away from high-voltage AC lines or high-current DC power cables to maintain signal integrity.
Maintain proper ventilation in the control cabinet to ensure ambient temperatures remain within the 0 to 60 degC range.

FAQ

What is the primary function of the 1746-NI16V?
This module is used to convert sixteen analog voltage signals into digital data for processing by the Allen-Bradley SLC 500 control system.

Can I configure the filter settings for this module?
Yes, the module features programmable digital low-pass filtering, allowing you to select from eight different frequencies between 6 Hz and 250 Hz to optimize noise rejection.

What is the resolution of the input signals?
The module provides a 16-bit resolution, ensuring high-precision data acquisition for your industrial processes.
