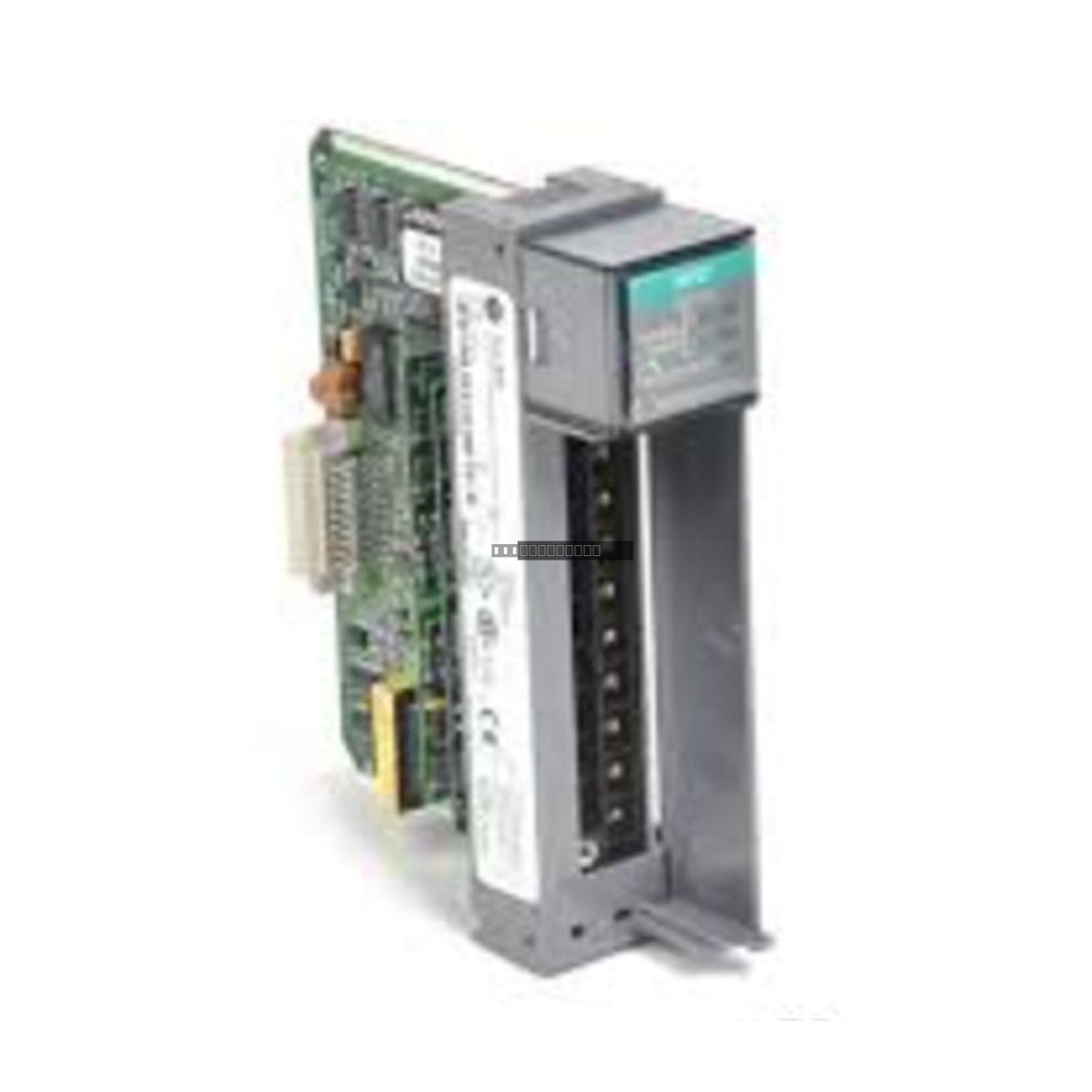

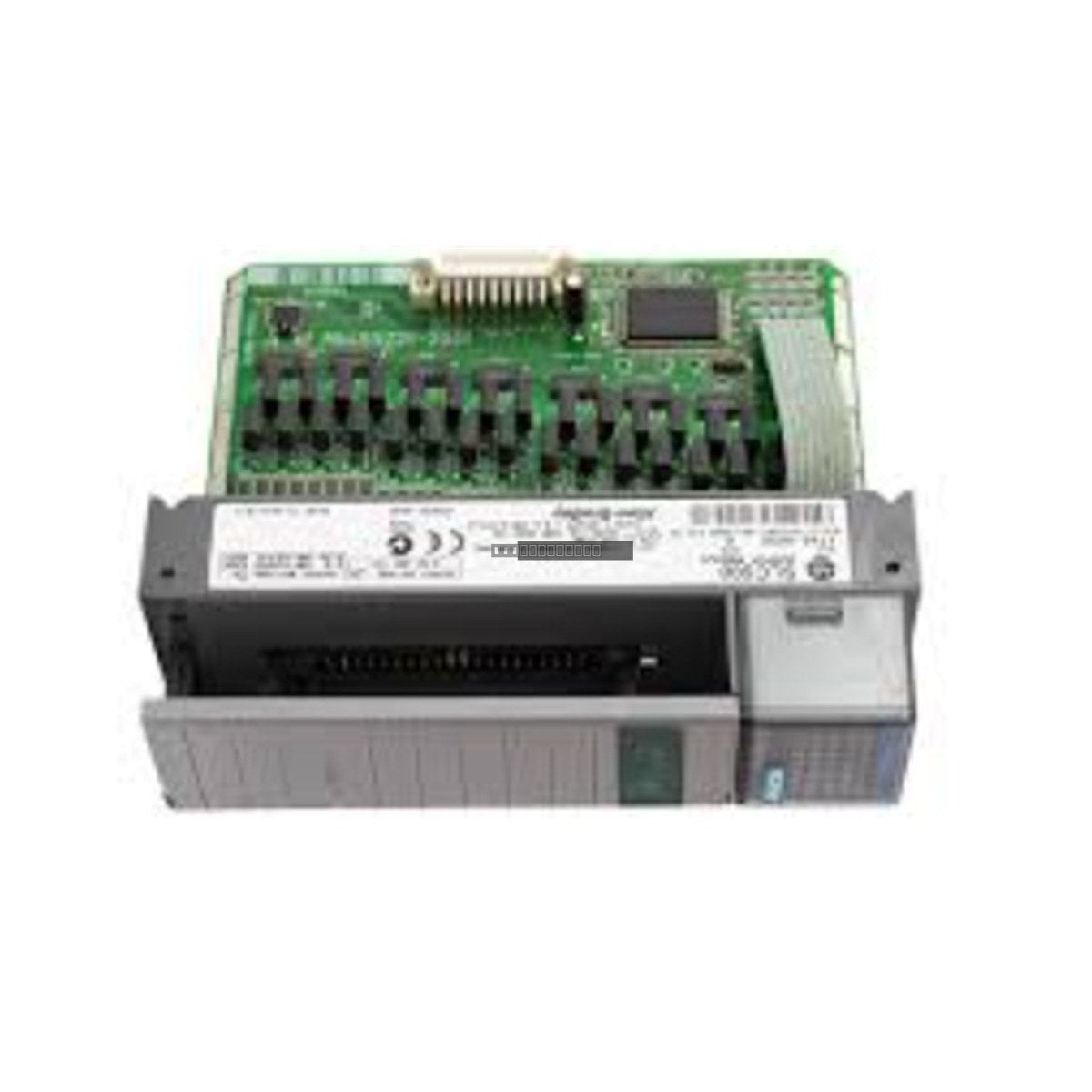

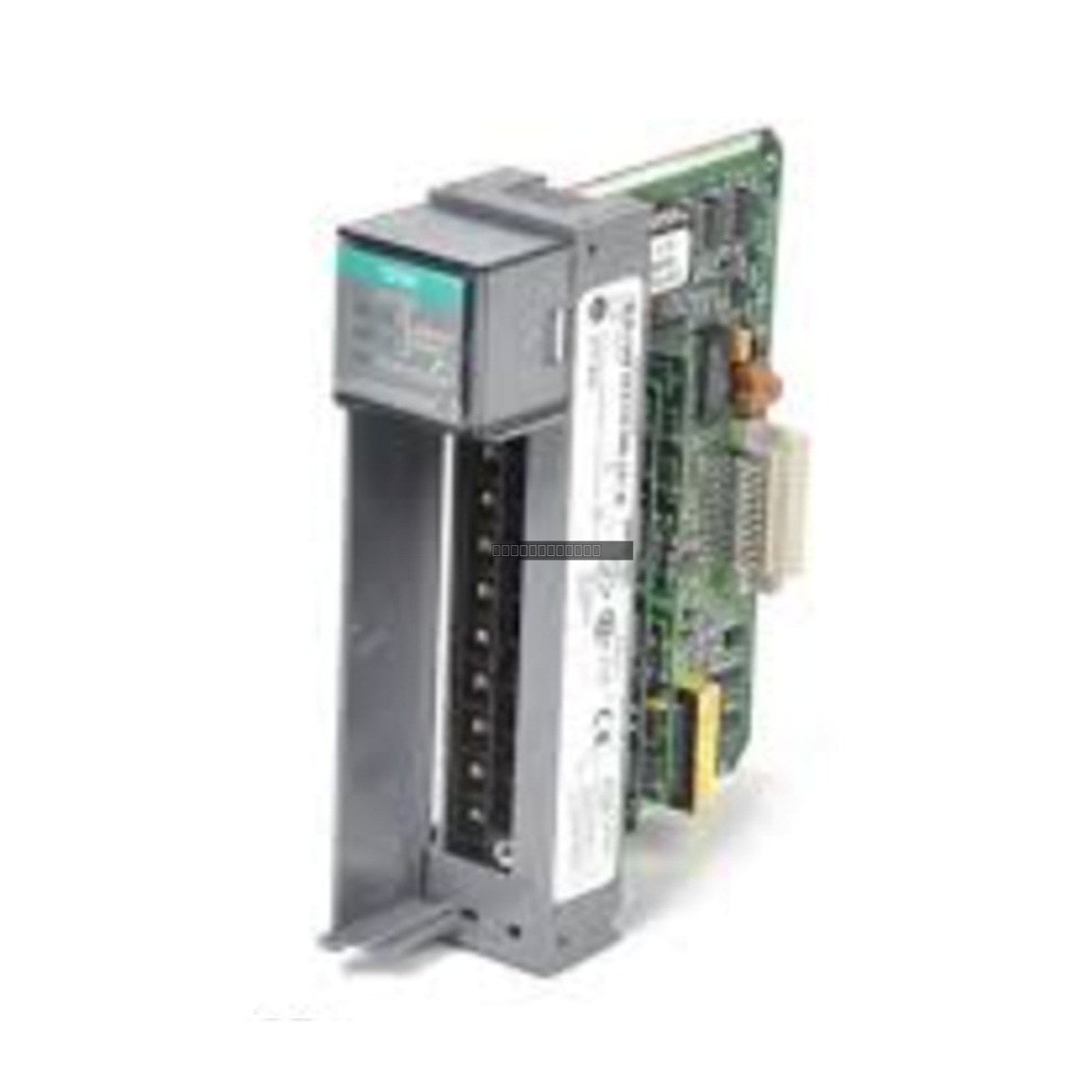

Allen-Bradley 1746SC-INI4I Isolated Analog Input Module

Availability: 0 left in stock

DescriptionThe Allen-Bradley 1746SC-INI4I is a high-performance, 4-channel isolated analog input module engineered by Spectrum Controls for the Allen-Bradley SLC 500...

SKU: 1746SC-INI4I

Manufacturer: Allen-Bradley
Product No.: 1746SC-INI4I
Product Type: Analog Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Allen-Bradley 1746SC-INI4I is a high-performance, 4-channel isolated analog input module engineered by Spectrum Controls for the Allen-Bradley SLC 500 platform. This module is specifically designed for industrial applications requiring high signal integrity in environments prone to electrical noise and ground loop interference. By providing channel-to-channel isolation, the 1746SC-INI4I ensures that surges or faults on one input loop remain isolated, protecting the integrity of the remaining channels and the host PLC system.

Features

Four (4) fully isolated, differential analog input channels.
16-bit resolution for high-precision measurement of pressure, temperature, flow, and other process variables.
Channel-to-channel isolation rated at 1500V DC to prevent ground loop issues.
Selectable channel filtering to balance between high-speed updates and maximum noise rejection.
Supports both voltage and current input signals on a per-channel basis.

Applications

This module is ideal for critical process control loops in industrial automation where electrical noise is a significant factor. It is commonly used in water treatment, chemical processing, and manufacturing facilities where sensors are located at varying distances from the PLC rack, necessitating robust isolation to maintain accurate control data.

Technical Specifications

Manufacturer	Spectrum Controls
Platform	SLC 500
Module Type	Isolated Analog Input
Channels	4 (Differential and Isolated)
Resolution	16-bit
Accuracy	+/- 0.1% of full scale
Isolation	1500V DC (Channel-to-Channel)
Update Rate	10 ms per channel
Voltage Impedance	1 M Ohm
Current Impedance	250 Ohm

Installation Guidelines

Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
Use shielded twisted-pair cabling for all analog inputs to minimize EMI/RFI interference.
Properly ground the cable shields at the source or the module end as per standard industrial grounding practices, avoiding ground loops.
Maintain adequate clearance around the module to ensure proper ventilation and prevent overheating.
Handle the module using ESD-safe procedures to prevent damage to sensitive internal components.

FAQ

What is the primary advantage of the 1746SC-INI4I over a standard analog input module?

The primary advantage is the channel-to-channel isolation. Standard modules often share a common ground, which can lead to measurement errors or equipment damage in the presence of ground loops. This module isolates each channel at 1500V DC, ensuring superior protection and signal accuracy.

Can this module measure both voltage and current?

Yes, the 1746SC-INI4I is designed to support both voltage and current inputs, providing flexibility for various sensor types within a single I/O rack slot.
