Allen-Bradley 1756-DICAM Digital Cam Switch Module

Availability: 1 left in stock

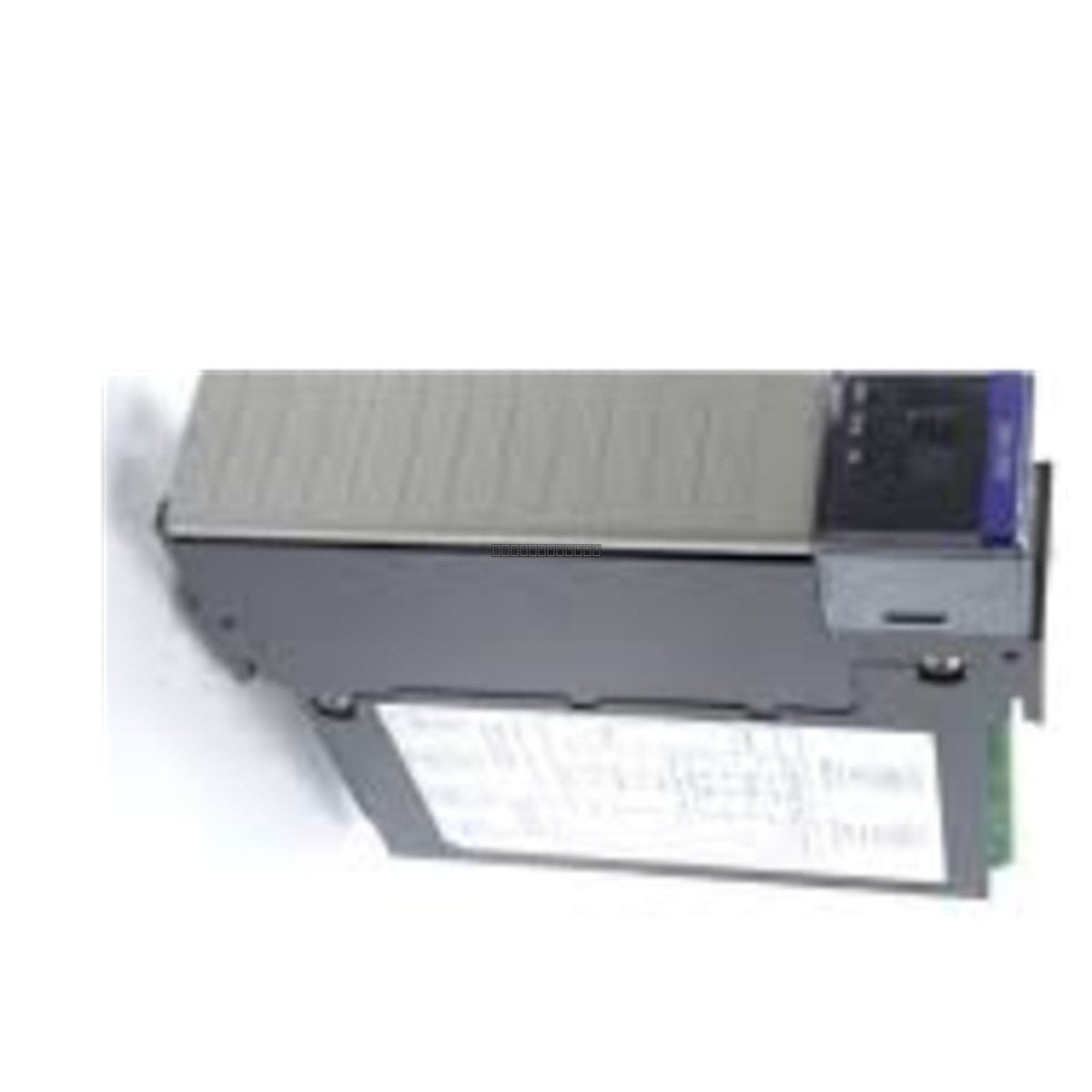

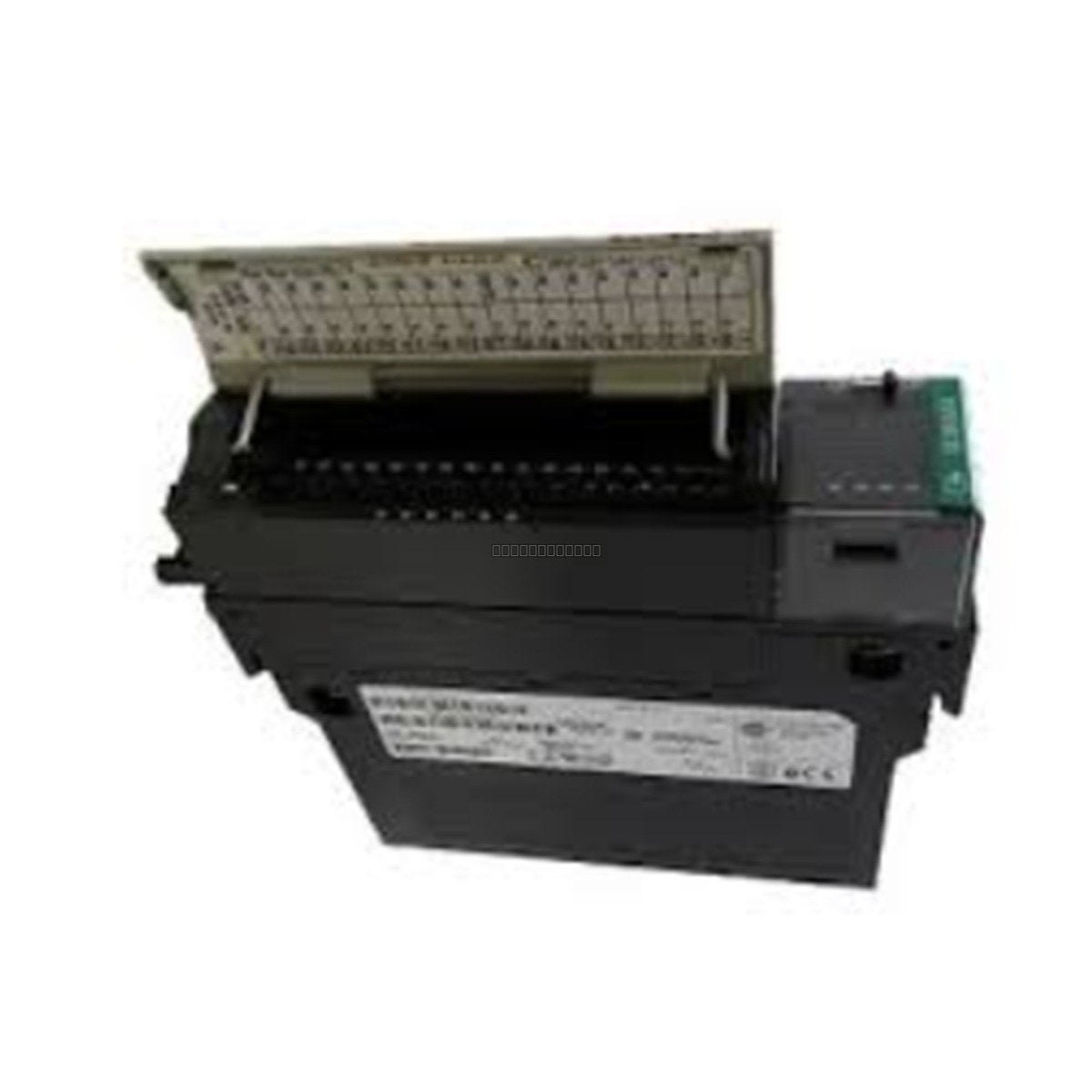

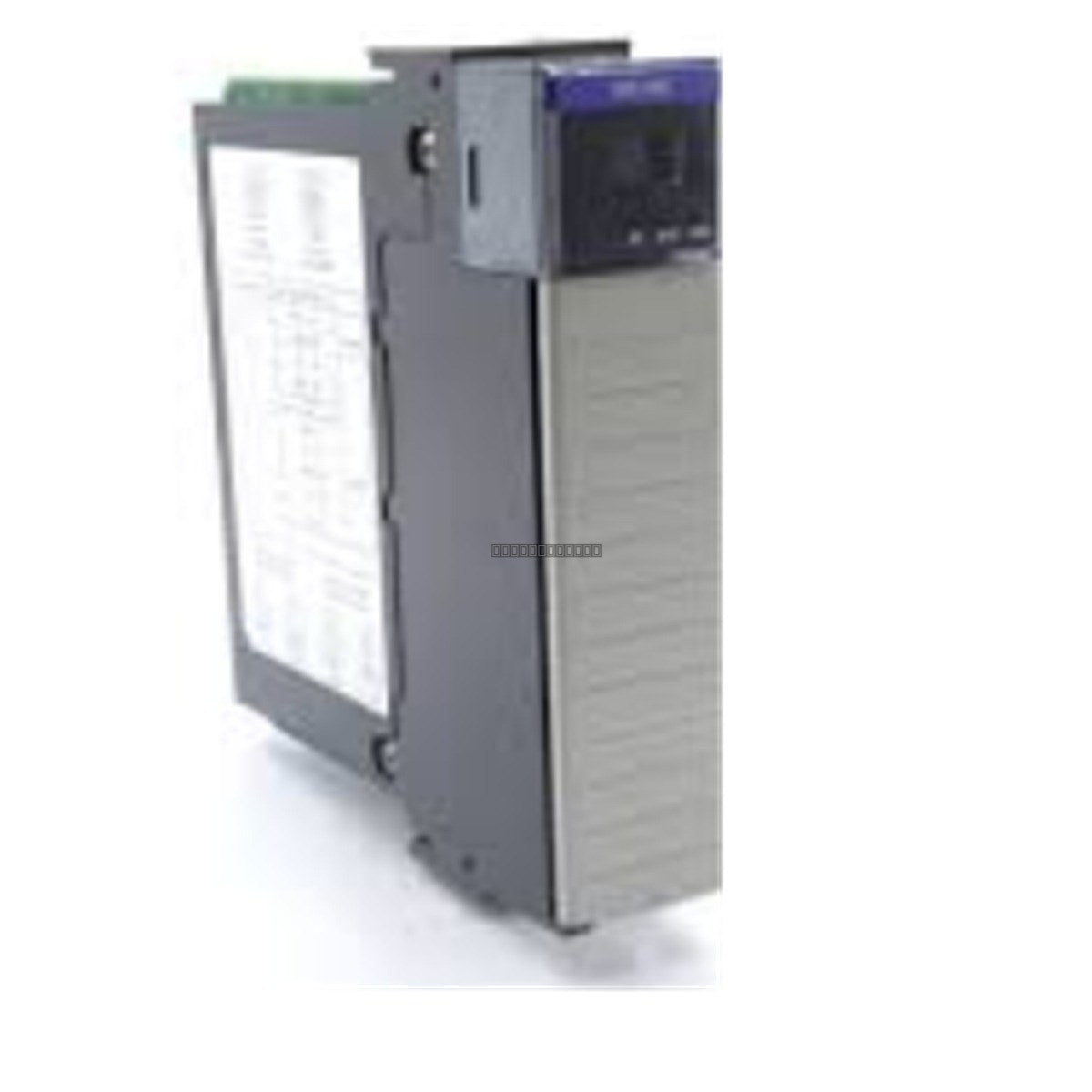

The Allen-Bradley 1756-DICAM is a specialized digital cam switch module designed for the ControlLogix automation platform. By utilizing an onboard...

SKU: 1756-DICAM

Manufacturer: Allen-Bradley
Product No.: 1756-DICAM
Product Type: Digital Cam Switch Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 910g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Allen-Bradley 1756-DICAM is a specialized digital cam switch module designed for the ControlLogix automation platform. By utilizing an onboard Motorola ColdFire CPU, this single-slot module offloads complex position-proportional logic from the primary controller, executing high-speed cam scheduling directly at the hardware layer. This autonomous operation optimizes execution rates for rotational position sensing and sequential tool triggering, reducing system latency and mechanical downtime in high-speed applications such as packaging, rotary assembly, and bottling.

Features

Co-Processing Architecture: Executes high-speed cam logic independently to minimize controller scan time impact.
High-Capacity Profiles: Supports up to 10,000 programmable cam steps for complex, non-linear mechanical profiles.
High-Density I/O: Features 8 field inputs and 24 sourcing (positive-switching) digital outputs.
Flexible Output Current: Outputs support 200 mA or 400 mA per point, depending on wiring and load requirements.
Dynamic Configuration: Enables rapid recipe hot-swaps without requiring firmware resets.

Applications

The 1756-DICAM is ideal for high-speed industrial machinery requiring precise, sub-millisecond switching behaviors. Common applications include:

Rotary packaging and bottling lines
High-speed material handling systems
Automated assembly and stamping machinery
Dynamic tool triggering based on rotational position

Technical Specifications

Model	1756-DICAM
Processor	Motorola ColdFire CPU
Inputs	8
Outputs	24 Sourcing (Positive-Switching)
Field Voltage	24 VDC Nominal
Output Current	200 mA or 400 mA per point
Storage Capacity	10,000 Cam Steps
Operating Temperature	0 to 55 deg C
Relative Humidity	5 to 95 percent (non-condensing)
Chassis Slot Width	1 Slot

Installation Guidelines

ESD Precautions: Always use a grounded wrist strap when handling the module to prevent electrostatic discharge damage to internal circuitry.
Power Down: Ensure the ControlLogix chassis is powered down before inserting or removing the module.
Mounting: The module is designed for installation in any standard 1756 ControlLogix chassis. Ensure the module is fully seated and the top/bottom retaining latches are locked.
Wiring: Use shielded cables for field I/O to minimize EMI interference. Ensure proper grounding of the chassis backplane.
Environment: Maintain the module within the specified 0 to 55 deg C operating temperature range and ensure adequate ventilation within the enclosure.

FAQ

What is the primary function of the 1756-DICAM?

The 1756-DICAM acts as a high-speed co-processor for the ControlLogix system, specifically designed to handle digital cam switch functions, position sensing, and rapid output triggering independent of the main PLC scan cycle.

Can this module be used in any ControlLogix chassis?

Yes, the 1756-DICAM is a standard single-slot module compatible with all standard 1756 ControlLogix chassis series.

What type of outputs does the module provide?

The module provides 24 sourcing (positive-switching) 24 VDC outputs, capable of handling either 200 mA or 400 mA per point depending on the specific application wiring.
