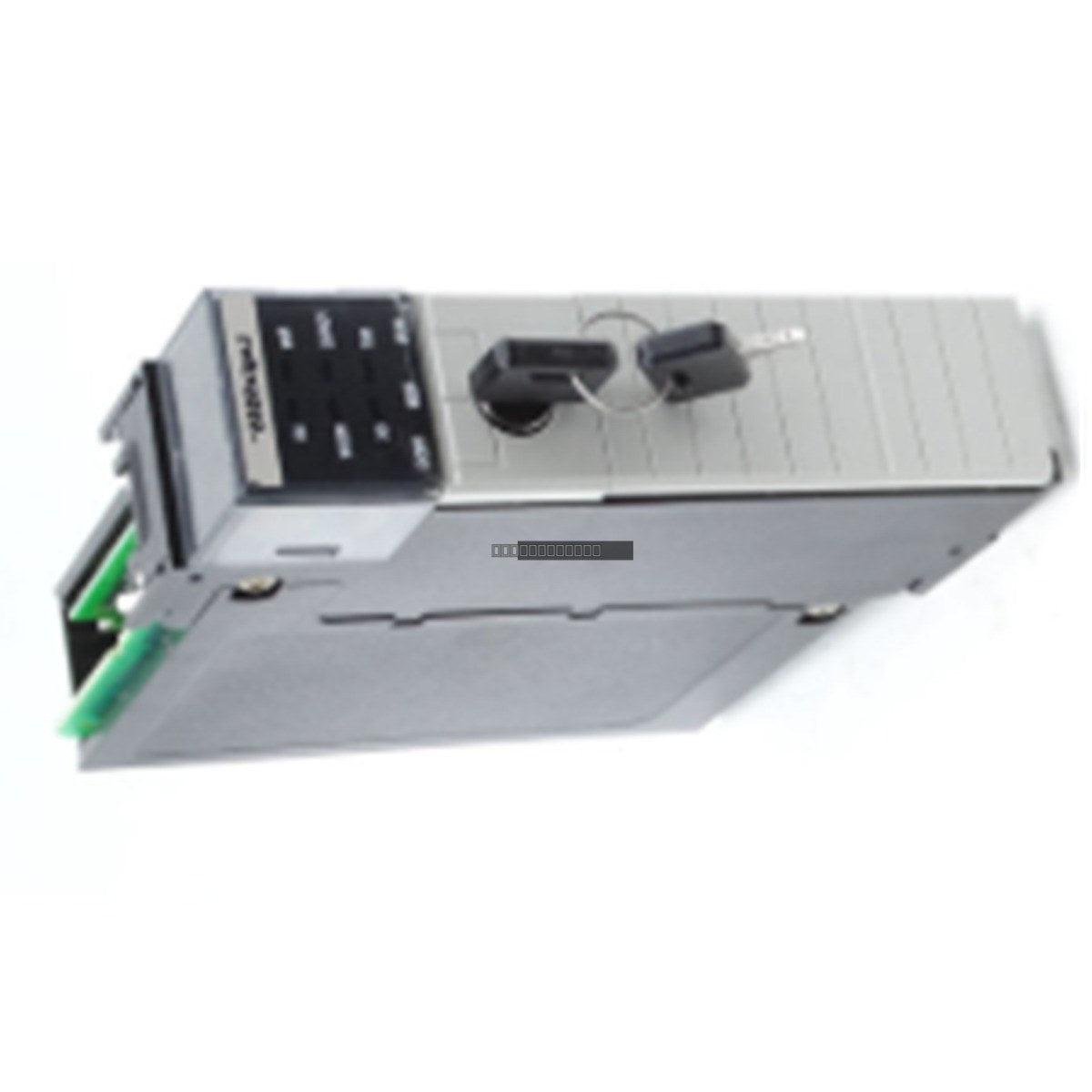

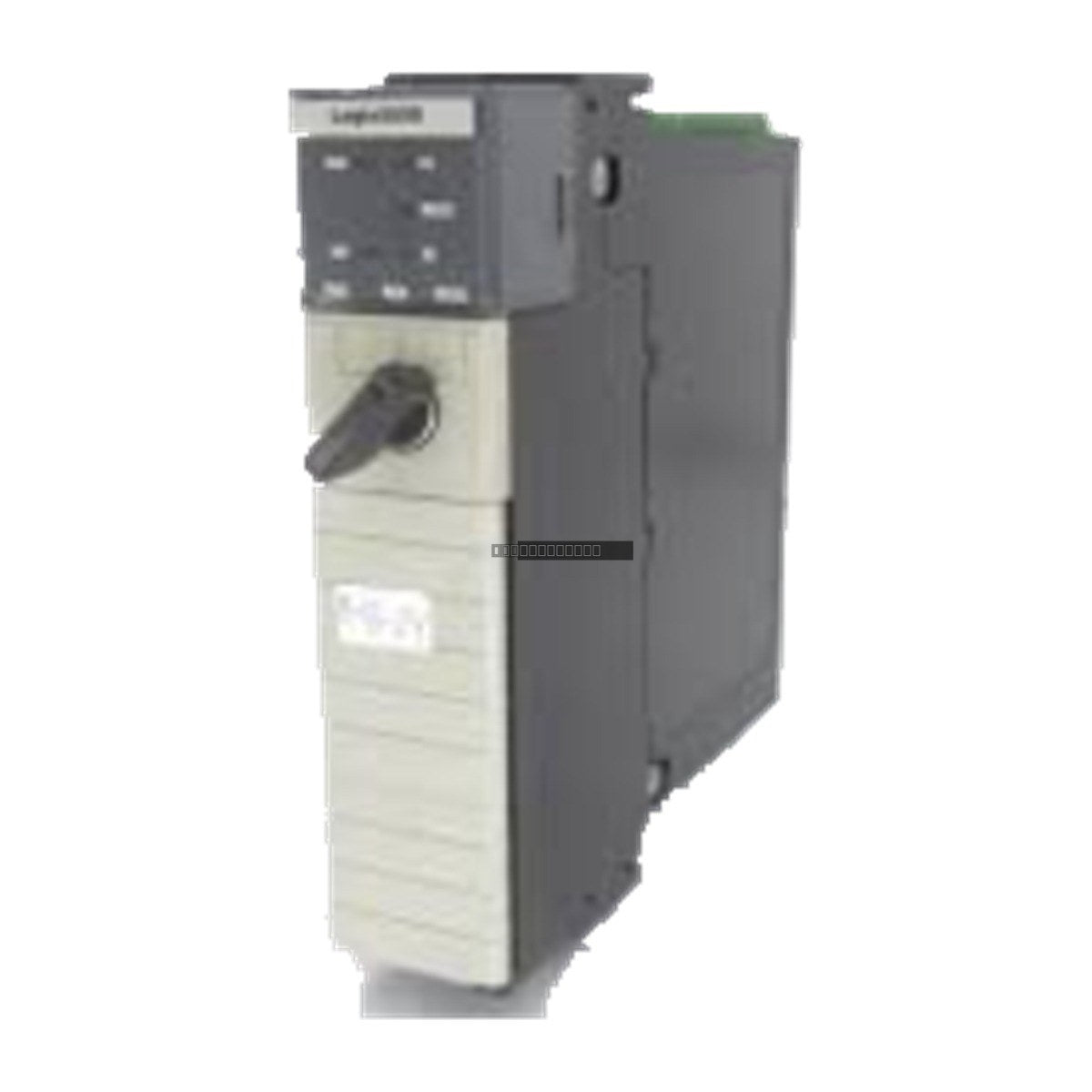

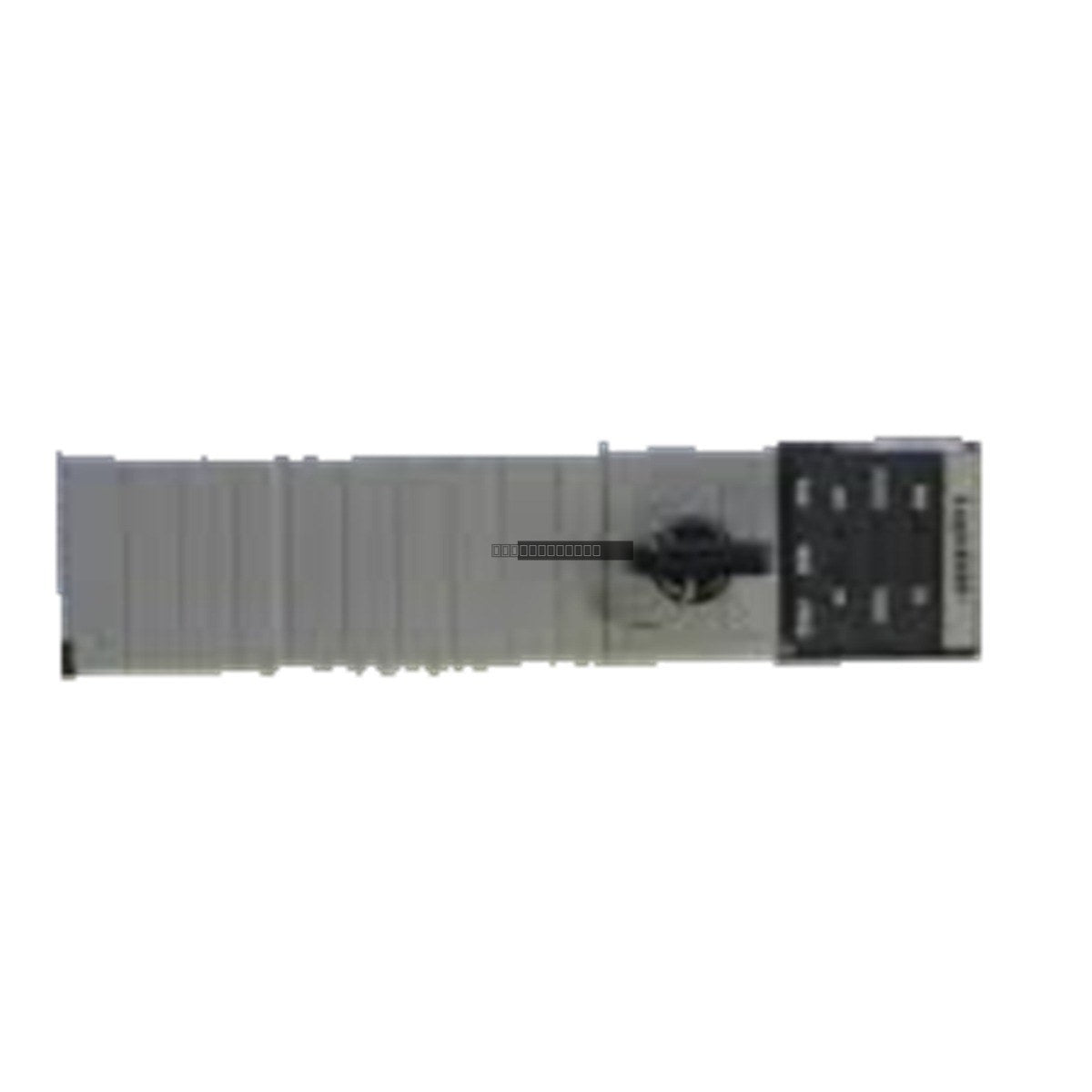

Allen-Bradley 1756-L63 ControlLogix Logix5563 Processor Module

Allen-Bradley 1756-L63 ControlLogix Logix5563 Controller Module

Availability: 8 left in stock

DescriptionThe Allen-Bradley 1756-L63 is a high-performance Logix5563 controller module designed for the ControlLogix platform. This processor provides robust control and...

SKU: 1756-L63

Manufacturer: Allen-Bradley
Product No.: 1756-L63
Product Type: PLC Controller Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 340g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Allen-Bradley 1756-L63 is a high-performance Logix5563 controller module designed for the ControlLogix platform. This processor provides robust control and communication capabilities for demanding industrial automation applications, offering 8 MB of user memory and 478 KB of I/O memory to handle complex logic, motion, and process control tasks.

Features

Supports up to 32 tasks with 100 programs per task.
Integrated RS-232 serial communication port for local device connectivity.
High-capacity memory architecture: 8 MB user memory and 478 KB I/O memory.
Scalable I/O support: up to 128,000 digital I/O and 4,000 analog I/O points.
Optional nonvolatile memory storage support up to 128 MB.

Technical Specifications

Parameter	Specification
Product Model	1756-L63
User Memory	8 MB
I/O Memory	478 KB
Nonvolatile Storage (Optional)	128 MB
Max Digital I/O	128,000
Max Analog I/O	4,000
Current Draw @ 5.1V DC	1200 mA
Current Draw @ 24V DC	14 mA
Power Dissipation	3.5 W
Thermal Dissipation	11.9 BTU/hr

Installation Guidelines

Ensure the ControlLogix chassis is powered down before inserting or removing the controller module to prevent electrical damage.
The module must be seated firmly into the chassis slot; secure the top and bottom latches to ensure proper backplane connection.
Maintain adequate clearance around the chassis to ensure proper ventilation and prevent overheating.
Follow standard ESD (Electrostatic Discharge) procedures when handling the module to protect internal circuitry.
Ensure all communication cables are routed away from high-voltage power lines to minimize EMI interference.

FAQ

What is the primary function of the 1756-L63?

The 1756-L63 serves as the central processing unit for a ControlLogix system, executing user programs, managing I/O data, and coordinating communications across the backplane.

Can this controller be used for motion control?

Yes, the Logix5563 processor supports integrated motion control capabilities within the ControlLogix environment, provided the appropriate motion modules and software configuration are utilized.
