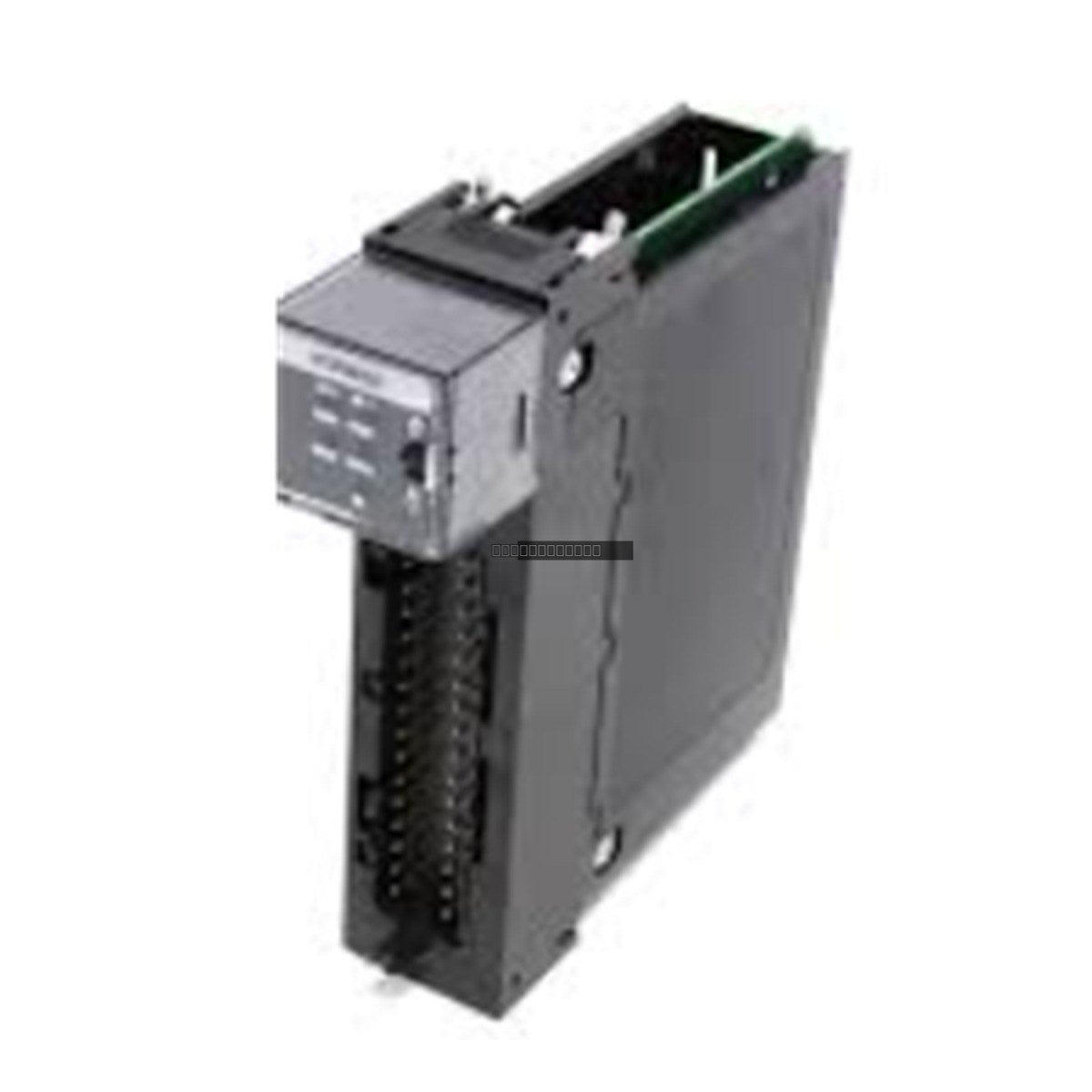

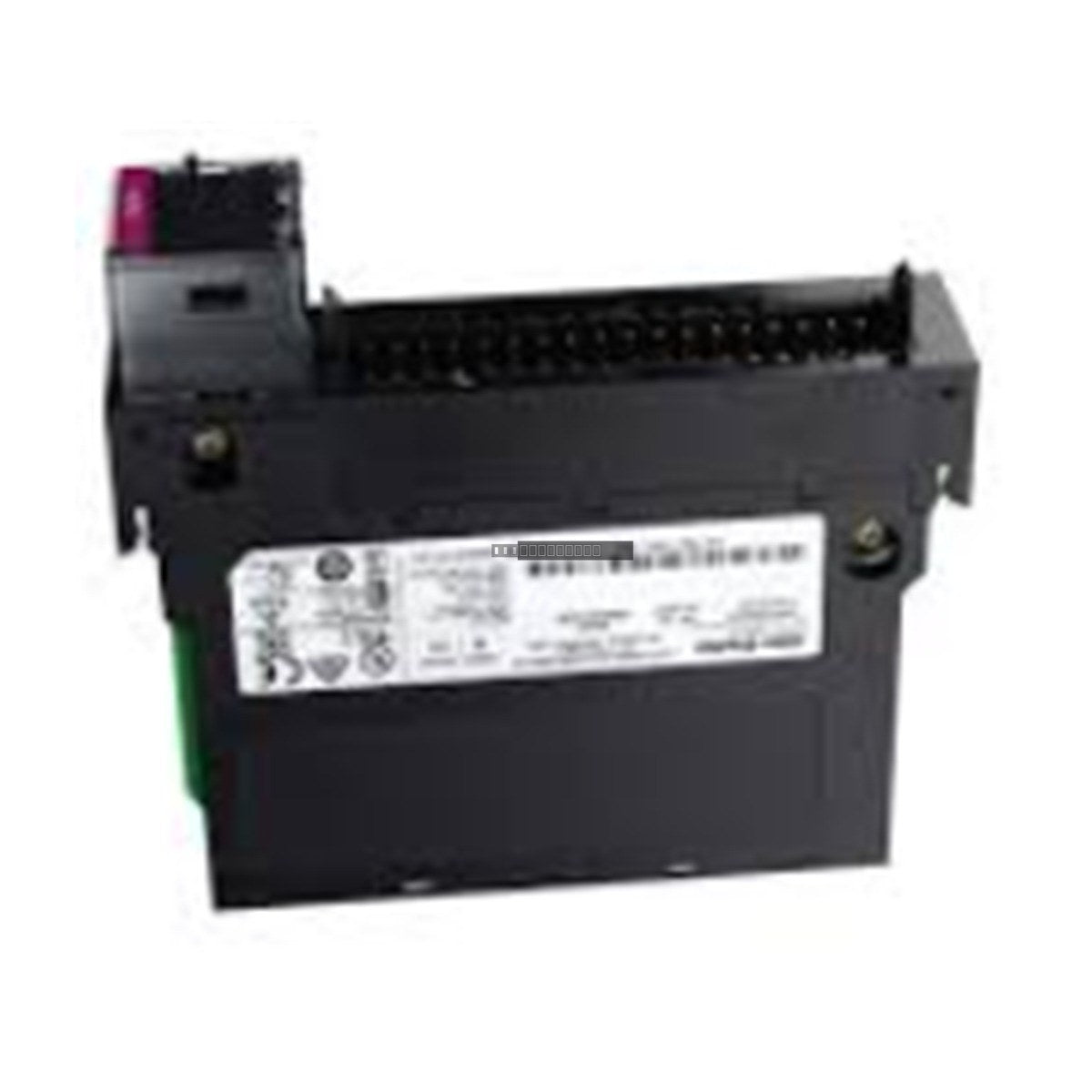

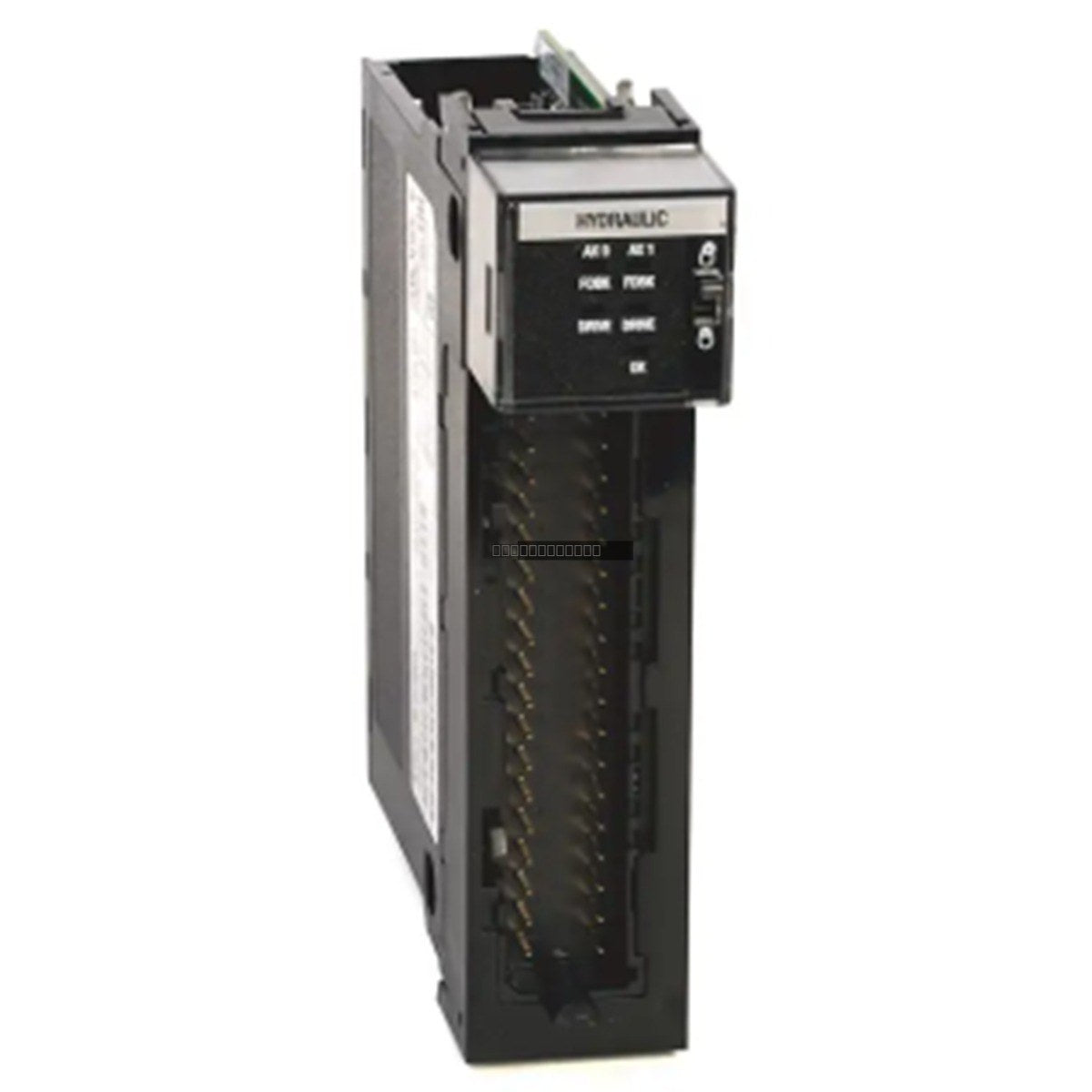

Allen-Bradley 1756-M02AS ControlLogix Integrated Motion Module

Availability: 2 left in stock

The Allen-Bradley 1756-M02AS is a ControlLogix Integrated Motion module designed to provide high-performance motion control for industrial automation applications. This...

SKU: 1756-M02AS

Manufacturer: Allen-Bradley
Product No.: 1756-M02AS
Product Type: Motion Control Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Allen-Bradley 1756-M02AS is a ControlLogix Integrated Motion module designed to provide high-performance motion control for industrial automation applications. This module supports two axes per module and is compatible with the ControlLogix platform, allowing for up to 32 axes per controller.

Features

Supports 2 axes per module.
Integrated motion control with 32-bit floating-point gain resolution.
Analog voltage servo output with a range of +/- 10V DC.
16-bit analog output resolution for precise control.
Includes solid-state isolated relay contacts for discrete outputs.
Discrete output operating voltage: 24V DC nominal.

Applications

This module is typically used in complex motion control systems requiring high-speed, synchronized axis management, such as packaging machinery, material handling, and precision assembly lines within the ControlLogix architecture.

Technical Specifications

Product Model	1756-M02AS
Axes per Module	2
Axes per Controller	32
Servo Output Type	Analog Voltage
Voltage Range	+/- 10V DC
Analog Output Resolution	16 bits
Gain Resolution	32-bit floating point
Backplane Current (5V)	700 mA
Backplane Current (24V)	2.5 mA

Installation Guidelines

Ensure the ControlLogix chassis is powered down before inserting or removing the module.
The module is designed for standard ControlLogix backplane mounting.
Use shielded cables for analog signal connections to minimize electromagnetic interference (EMI).
Ensure proper grounding of the chassis to a common earth ground to maintain signal integrity.
Maintain adequate clearance around the module to ensure proper airflow and cooling within the cabinet.

FAQ

What is the primary function of the 1756-M02AS?
It is a motion control module that interfaces with servo drives using analog voltage signals to control axis movement within a ControlLogix system.

How many axes can this module control?
The 1756-M02AS supports 2 axes per module.
