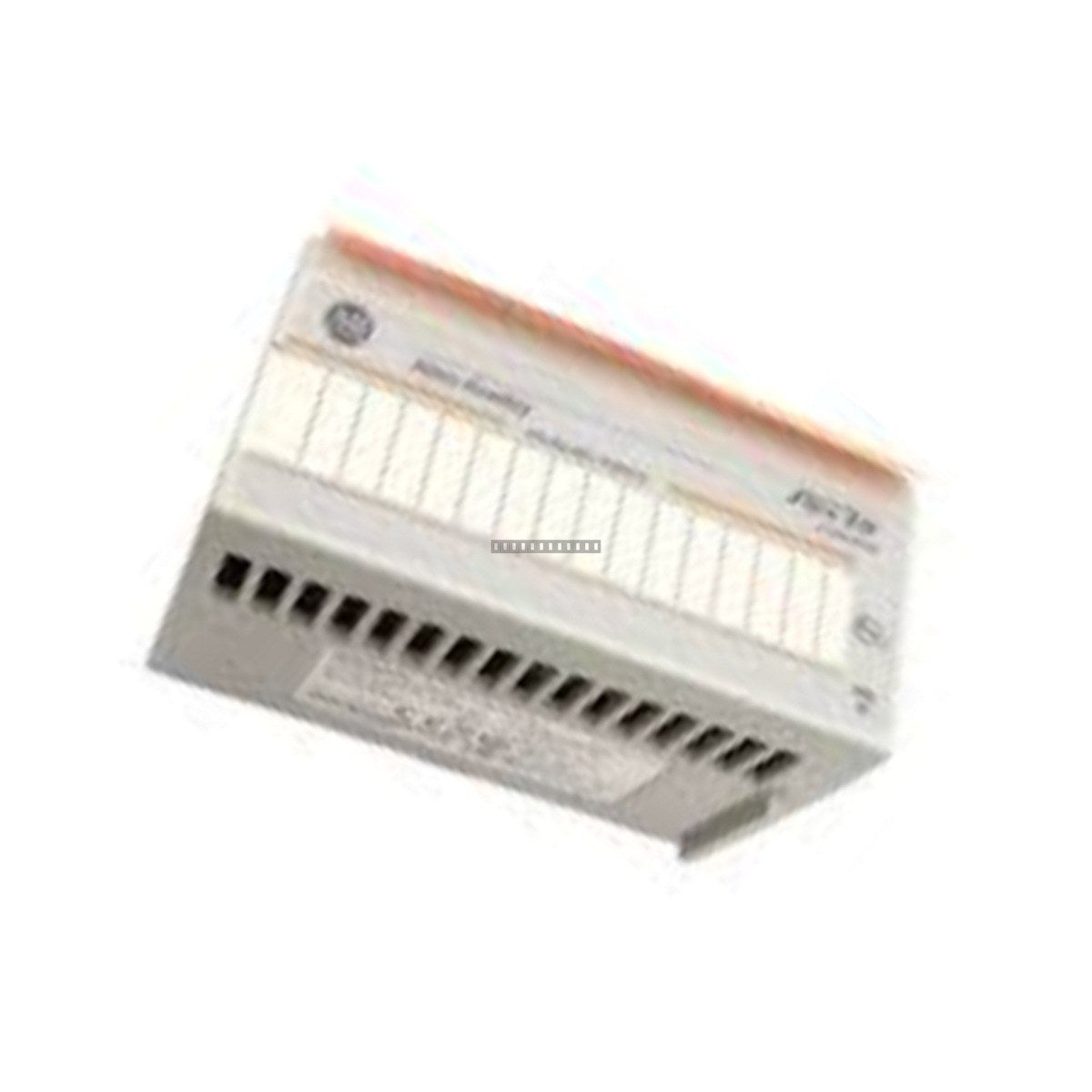

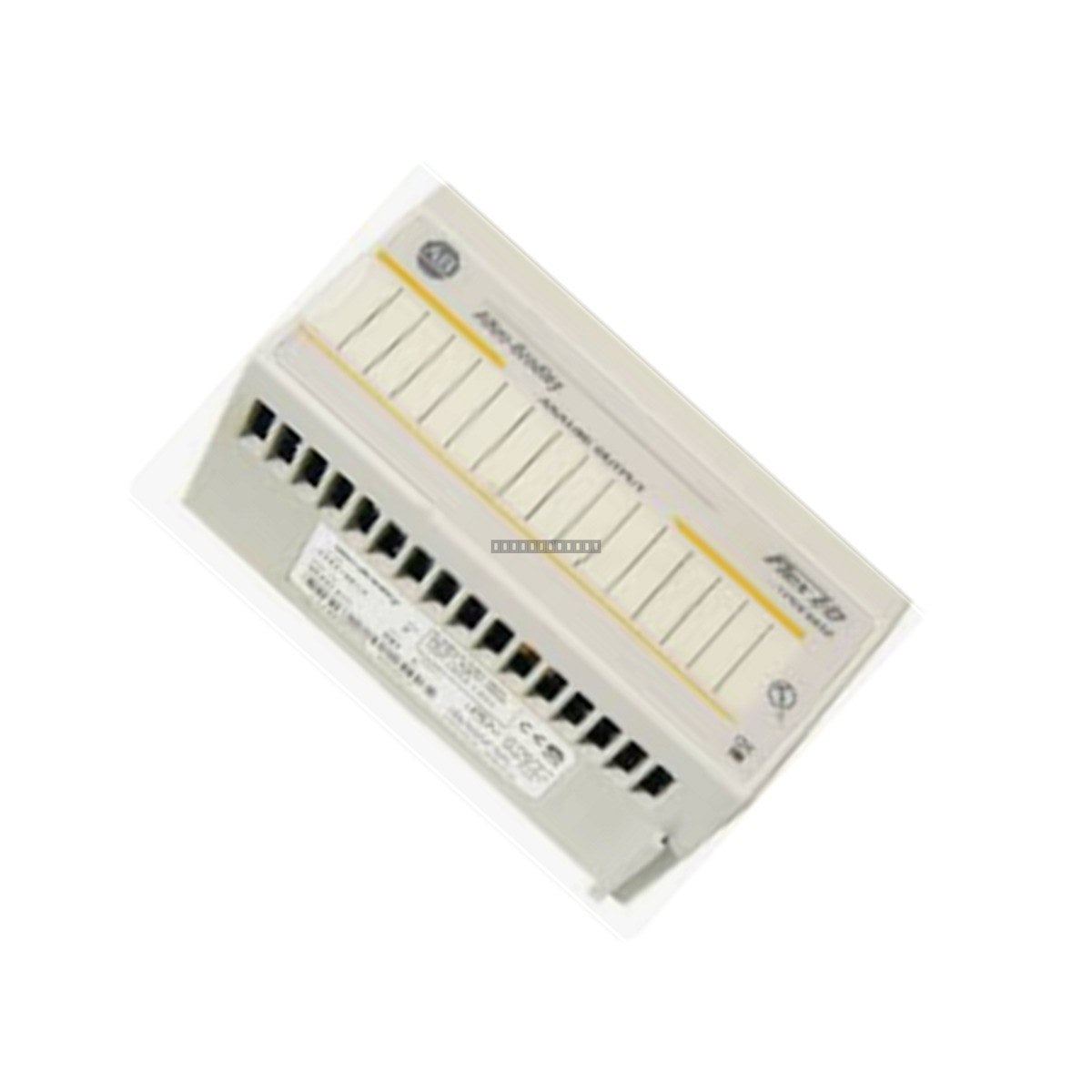

Allen-Bradley 1794-OF4I FLEX I/O Isolated Analog Output Module

Availability: 3 left in stock

DescriptionThe Allen-Bradley 1794-OF4I is a high-performance, 4-channel isolated analog output module designed for the FLEX I/O distributed I/O platform. This...

SKU: 1794-OF4I

Manufacturer: Allen-Bradley
Product No.: 1794-OF4I
Product Type: Analog Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Allen-Bradley 1794-OF4I is a high-performance, 4-channel isolated analog output module designed for the FLEX I/O distributed I/O platform. This module provides precise digital-to-analog conversion for industrial control applications, offering 16-bit resolution (15 bits plus sign) to ensure accurate signal delivery to field devices. It is engineered for robust performance in industrial environments, supporting a variety of terminal bases including the TB2, TB3, TB3S, TB3T, TB3TS, and TBN series.

Features

4 isolated analog output channels.
16-bit resolution (15 bits plus sign) for high-precision control.
Fast update rate of 2.5 to 5.0 ms for all channels.
Step response time of less than 25 microseconds to 63% of full-scale.
Supports 0-20 mA current output ranges.
Compatible with multiple FLEX I/O terminal base options for flexible wiring.

Applications

This module is ideal for distributed control systems requiring isolated analog outputs, such as controlling proportional valves, variable frequency drives (VFDs), or other actuators that require a 0-20 mA control signal. It is widely used in process automation, manufacturing, and material handling systems where signal isolation is necessary to prevent ground loops and electrical noise interference.

Technical Specifications

Product Model	1794-OF4I
Channels	4 Isolated
Resolution	15 bits plus sign
Update Rate	2.5 / 5.0 ms (all channels)
Output Current	0 to 20 mA
Resistive Load	0 to 750 Ohms
Max Overload	30V continuous or 32 mA continuous (one channel at a time)
Operating Temperature	-20 to 55 degC (-4 to 131 degF)
Relative Humidity	5 to 95% noncondensing

Installation Guidelines

Ensure the power is disconnected from the FLEX I/O system before installing or removing the module.
Mount the module onto a compatible terminal base (TB2, TB3, TB3S, TB3T, TB3TS, or TBN).
Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
Ensure proper grounding of the terminal base to the DIN rail or chassis ground to maintain signal integrity.
Maintain adequate ventilation around the module to ensure the surrounding air temperature does not exceed 55 degC.
Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

What is the primary function of the 1794-OF4I?

The 1794-OF4I is an isolated analog output module used to convert digital data from a PLC or controller into analog current signals (0-20 mA) to drive field instruments and actuators.

Is this module compatible with all FLEX I/O terminal bases?

The module is compatible with the TB2, TB3, TB3S, TB3T, TB3TS, and TBN terminal bases. Please verify your specific wiring requirements before selecting the base.

What is the maximum load resistance for the output?

The module supports a resistive load on the output of 0 to 750 Ohms.
