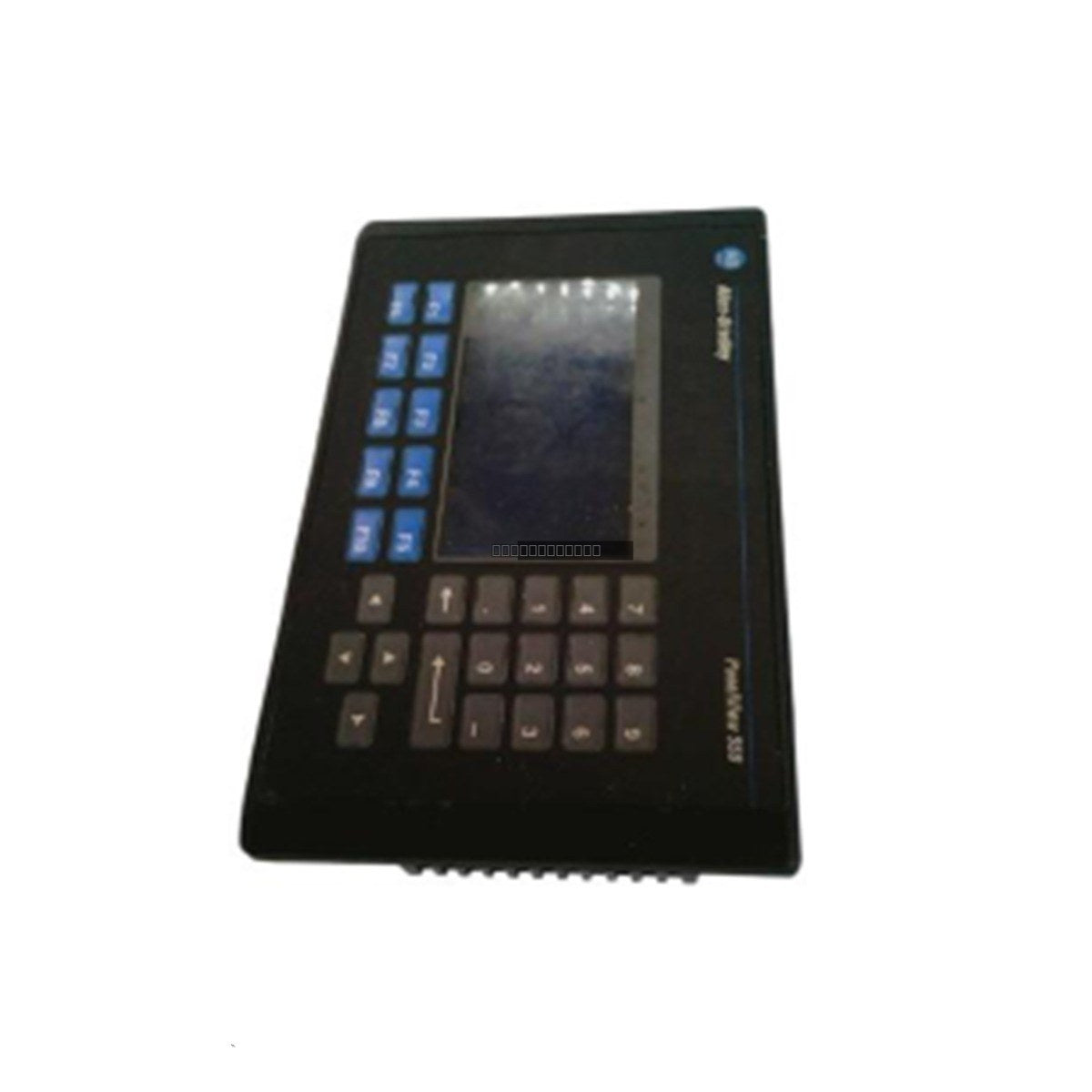

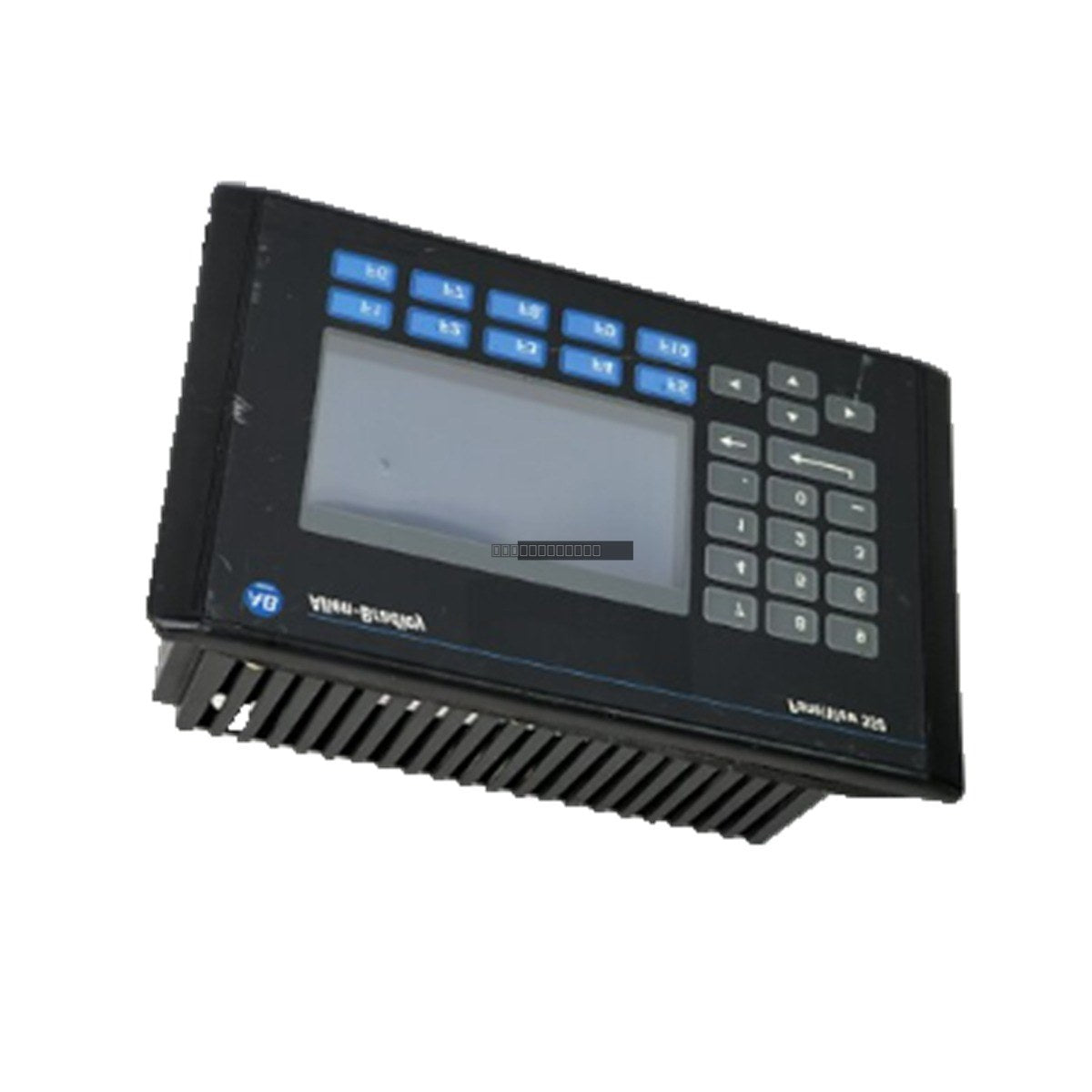

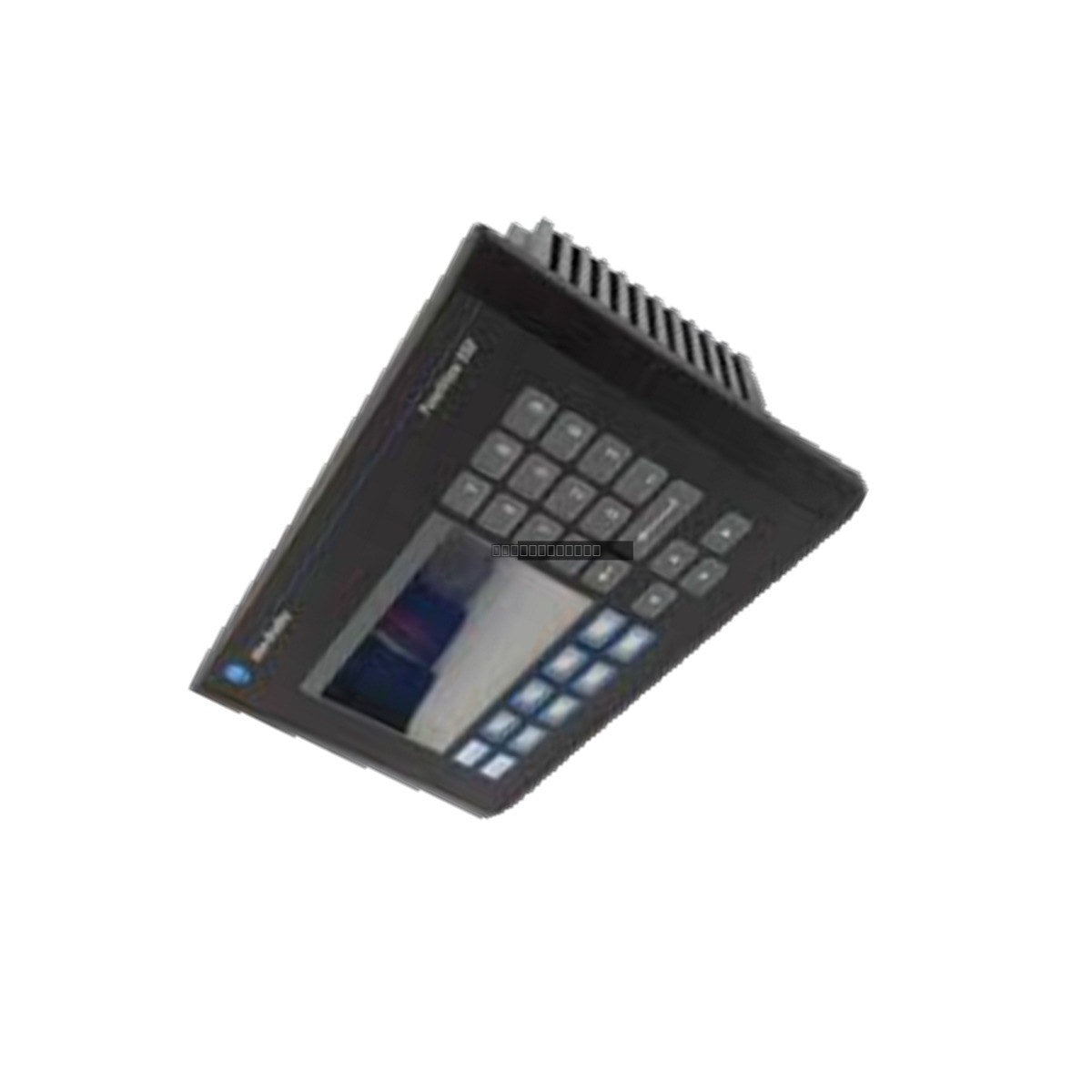

Allen-Bradley 2711-B5A3L1 PanelView 550 Operator Terminal

Availability: 9 left in stock

DescriptionThe Allen-Bradley 2711-B5A3L1 is a PanelView 550 operator terminal designed for reliable human-machine interface (HMI) applications in industrial environments. This...

SKU: 2711-B5A3L1

Manufacturer: Allen-Bradley
Product No.: 2711-B5A3L1
Product Type: Operator Terminal
Product Origin: USA
Payment:T/T, Western Union
Weight: 1220g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Allen-Bradley 2711-B5A3L1 is a PanelView 550 operator terminal designed for reliable human-machine interface (HMI) applications in industrial environments. This DC-powered unit serves as a critical control interface, allowing operators to monitor system variables, execute manual commands, and manage automated processes. Built for durability, the terminal replaces complex physical pushbutton arrays with a consolidated electronic interface, reducing wiring requirements and enhancing system uptime in sectors such as petrochemical, water treatment, and automated packaging.

Features

Hybrid input configuration featuring both an analog resistive touchscreen and a 10-key tactile function keypad (F1-F10).
5.5-inch monochrome blue-mode LCD display with 256 x 128 pixel resolution.
Integrated DH-485 communication port for multi-node network connectivity.
Dedicated RS-232 serial port for local printer data logging.
170 KB of application runtime memory with non-volatile storage for screen data.
Field-replaceable backlight module (2711-NL1) to extend operational life.

Applications

This operator terminal is suitable for a wide range of industrial automation tasks, including machine control, process monitoring, and data logging in manufacturing facilities. Its robust design allows for operation in high-vibration environments where traditional mechanical interfaces might fail.

Technical Specifications

Model	2711-B5A3L1
Product Line	PanelView 550
Input Power	24 VDC nominal
Display Size	5.5 inches
Display Type	Monochrome blue-mode LCD
Resolution	256 x 128 pixels
Input Method	Touchscreen and Keypad
Memory	170 KB application runtime
Communication	DH-485 and RS-232 (Printer)
Operating Temperature	0 to 55 deg C
Lifecycle Status	Discontinued / Obsolete

Installation Guidelines

Ensure the terminal is mounted in a panel with adequate clearance for ventilation and cable routing.
Verify that the 24 VDC power supply is stable and properly grounded to prevent electrical noise interference.
Use shielded communication cables for DH-485 and RS-232 connections to maintain signal integrity.
Power down the unit before performing any maintenance, such as replacing the 2711-NL1 backlight module.
Handle the unit with standard ESD precautions during installation to protect internal circuitry.

FAQ

Is the 2711-B5A3L1 still supported by the manufacturer?

The 2711-B5A3L1 is classified as a discontinued or obsolete product. While it remains a reliable component for existing legacy systems, users should plan for eventual migration to modern HMI platforms.

Can I replace the backlight on this unit?

Yes, the display backlight is field-replaceable using the 2711-NL1 replacement module.

What communication protocols does this terminal support?

This model features an integrated DH-485 port for network communication and an independent RS-232 serial port specifically for printer data logging.
