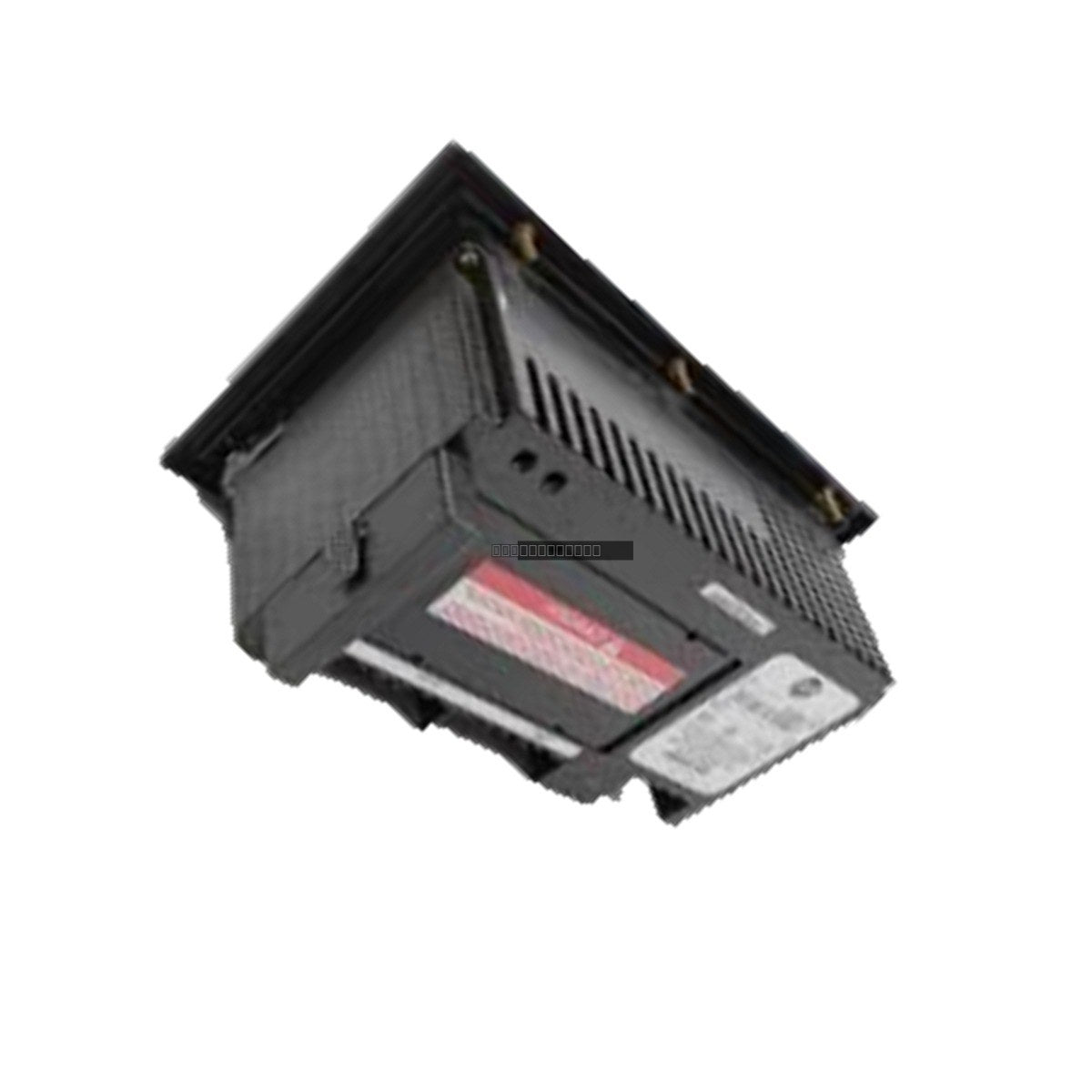

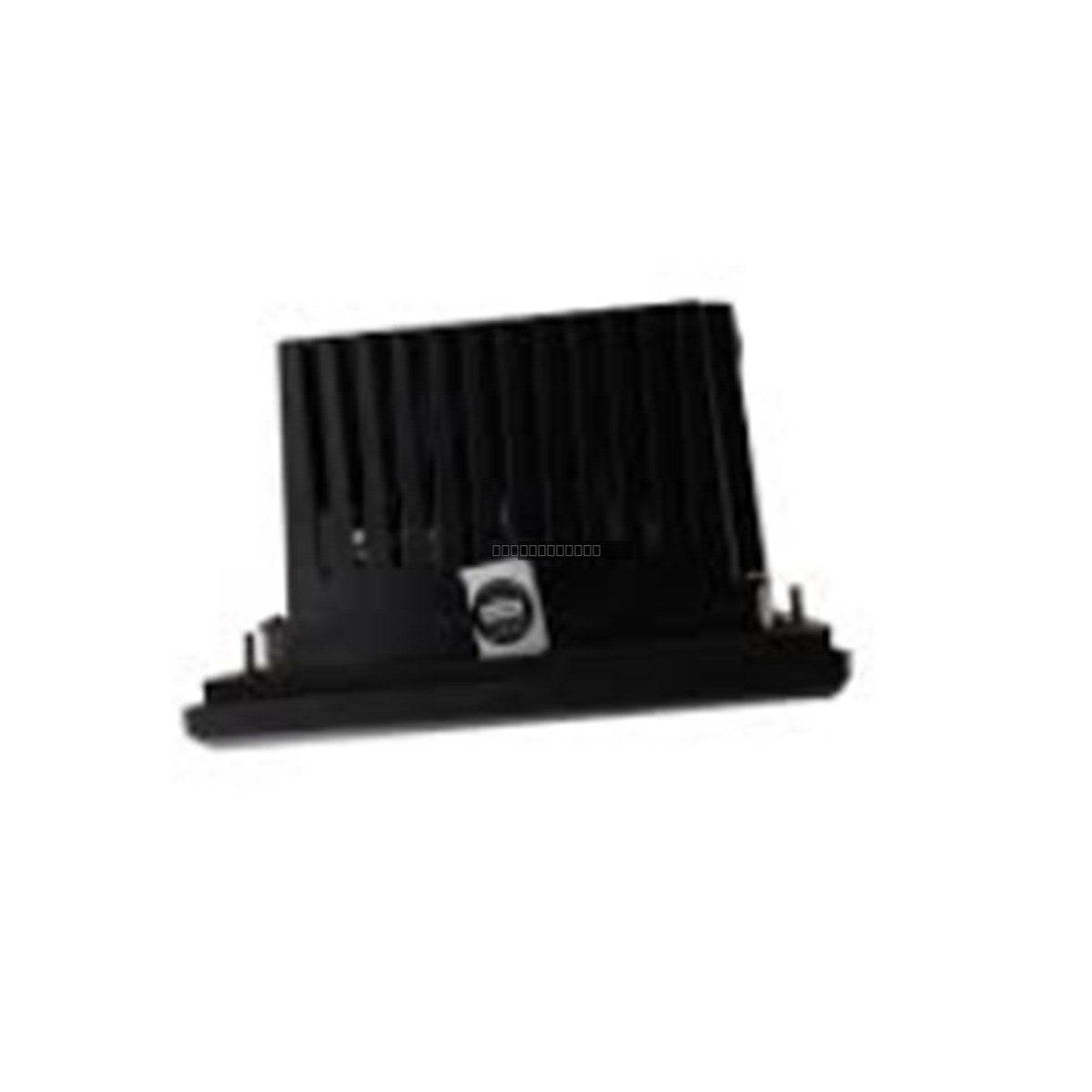

Allen-Bradley 2711-B5A5L1 PanelView 550 Operator Terminal

Availability: 4 left in stock

DescriptionThe Allen-Bradley 2711-B5A5L1 is a PanelView 550 operator terminal designed for reliable human-machine interface (HMI) applications in industrial environments. This...

SKU: 2711-B5A5L1

Manufacturer: Allen-Bradley
Product No.: 2711-B5A5L1
Product Type: Operator Terminal
Product Origin: USA
Payment:T/T, Western Union
Weight: 1220g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Allen-Bradley 2711-B5A5L1 is a PanelView 550 operator terminal designed for reliable human-machine interface (HMI) applications in industrial environments. This DC-powered unit facilitates real-time process monitoring, alarm logging, and operator control by communicating with programmable logic controllers (PLCs). Engineered for demanding settings such as water treatment, food packaging, and chemical processing, the terminal provides a robust interface that helps minimize downtime and improve system reliability.

Features

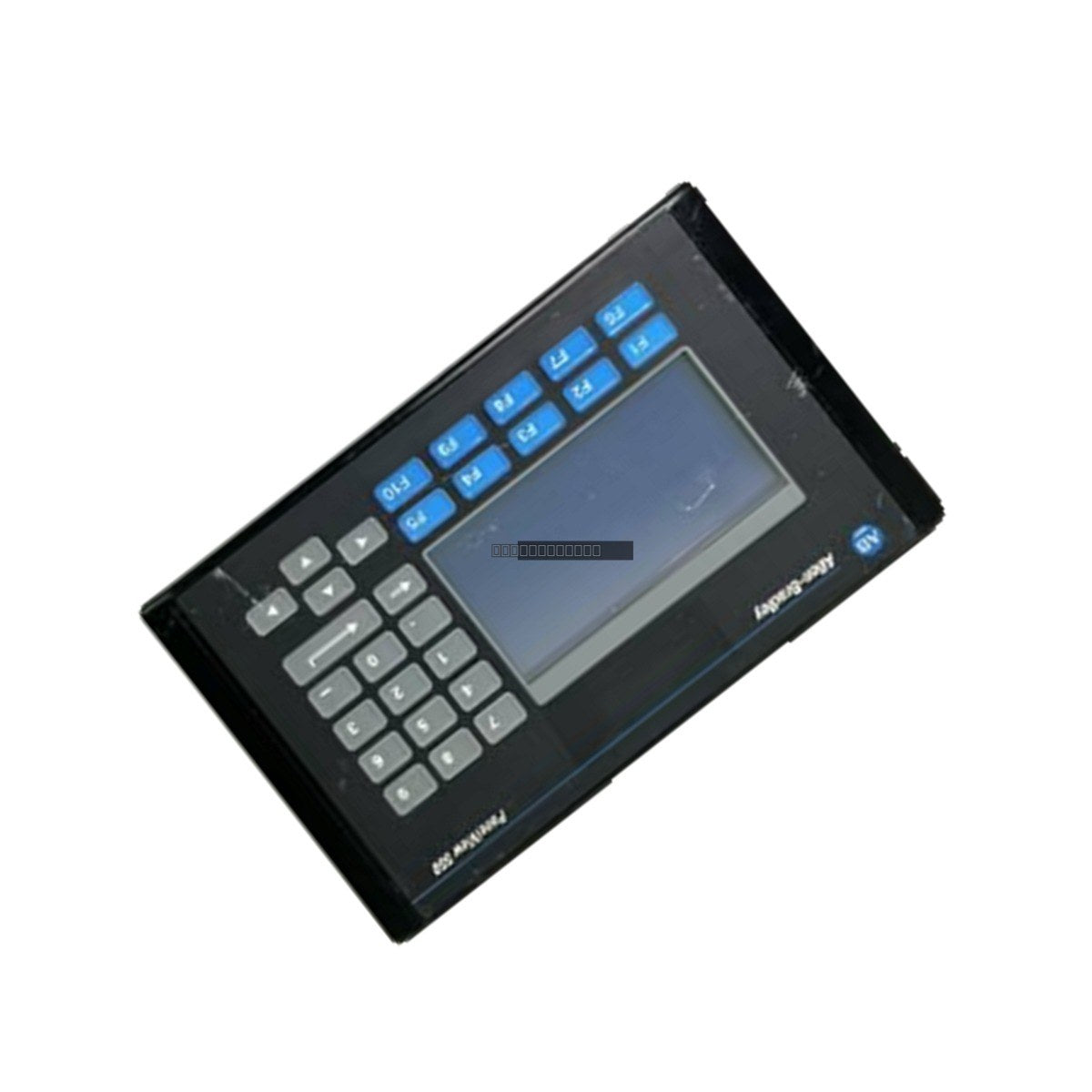

Hybrid input system featuring both an analog resistive touchscreen and a 10-key mechanical function keypad (F1 to F10) for operation in high-vibration environments.
5.5-inch monochrome blue-mode LCD display with a 256 x 128 pixel resolution.
Integrated RS-232 communication port supporting DH-485 protocol for connectivity with SLC 500 and MicroLogix controllers.
Internal 170 KB application runtime memory with nonvolatile storage for screen and font data.
Field-replaceable backlight module (2711-NL1) to extend service life.

Applications

This terminal is suitable for various industrial automation tasks, including local machine control, status monitoring, and alarm management in manufacturing and process control facilities. It is compatible with standard DH-485 network architectures.

Technical Specifications

Model	2711-B5A5L1
Product Line	PanelView 550
Power Supply	24 VDC nominal
Display Size	5.5 inches
Display Type	Monochrome LCD (Blue Mode)
Resolution	256 x 128 pixels
Input Method	Keypad and Touchscreen
Communication	RS-232 (DH-485)
Memory	170 KB Application Runtime
Operating Temperature	0 to 55 deg C
Lifecycle Status	Discontinued / Obsolete

Installation Guidelines

Ensure the terminal is mounted in a panel or enclosure that provides adequate protection against environmental contaminants.
Maintain proper clearance around the unit to allow for adequate ventilation and cooling.
Use shielded communication cables (e.g., 2711-NC13) to prevent signal interference from high-voltage equipment or EMI sources.
Verify that the 24 VDC power supply is stable and properly grounded before connecting to the terminal.
Always power down the unit before performing maintenance, such as replacing the backlight module.

FAQ

Is this terminal still in production?

No, the 2711-B5A5L1 is classified as a discontinued or obsolete product. We provide these units as spare parts for existing legacy systems.

What communication protocol does this unit use?

This model utilizes the RS-232 physical interface configured for the DH-485 proprietary network protocol.

Can the backlight be replaced?

Yes, the unit supports the 2711-NL1 field-replaceable backlight module.
