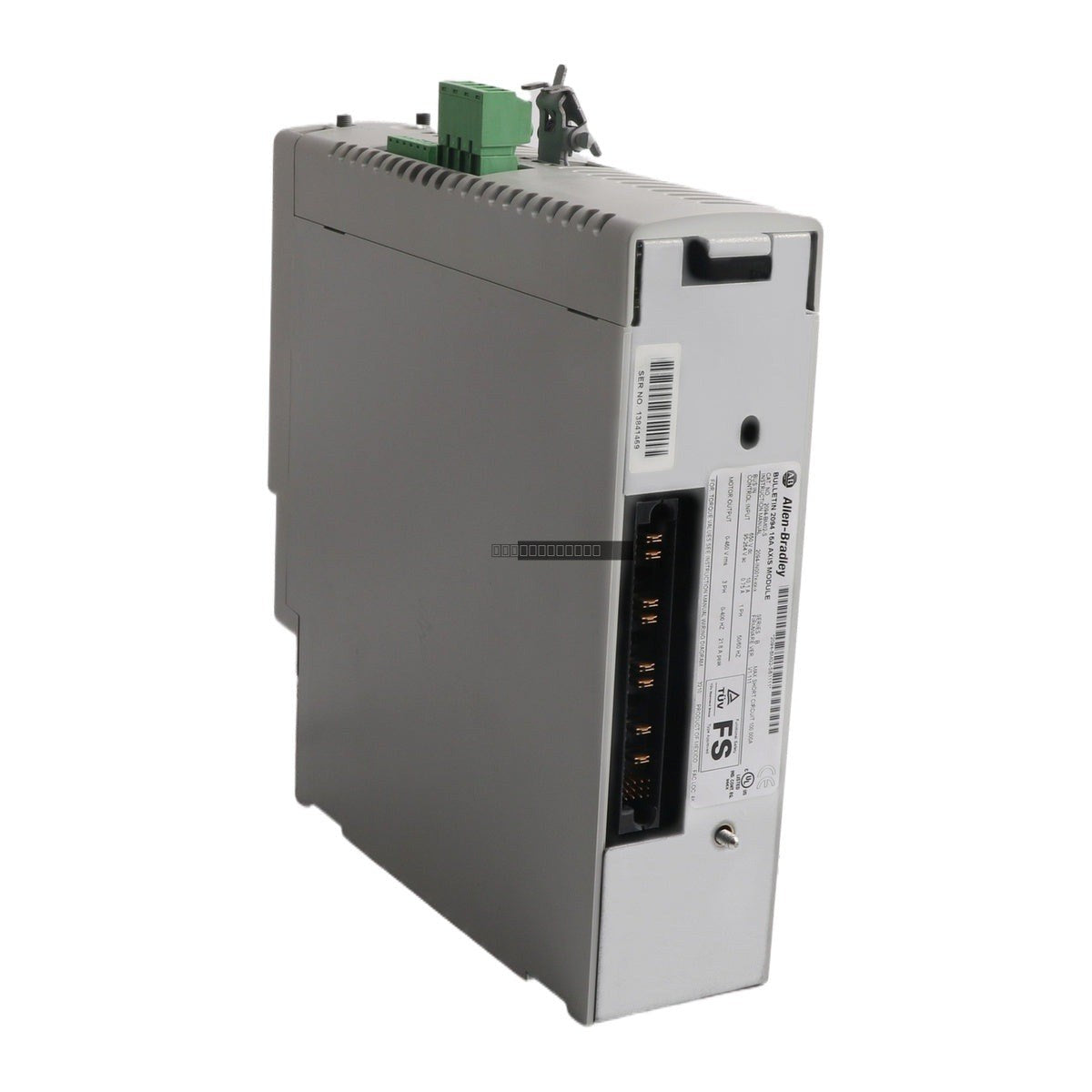

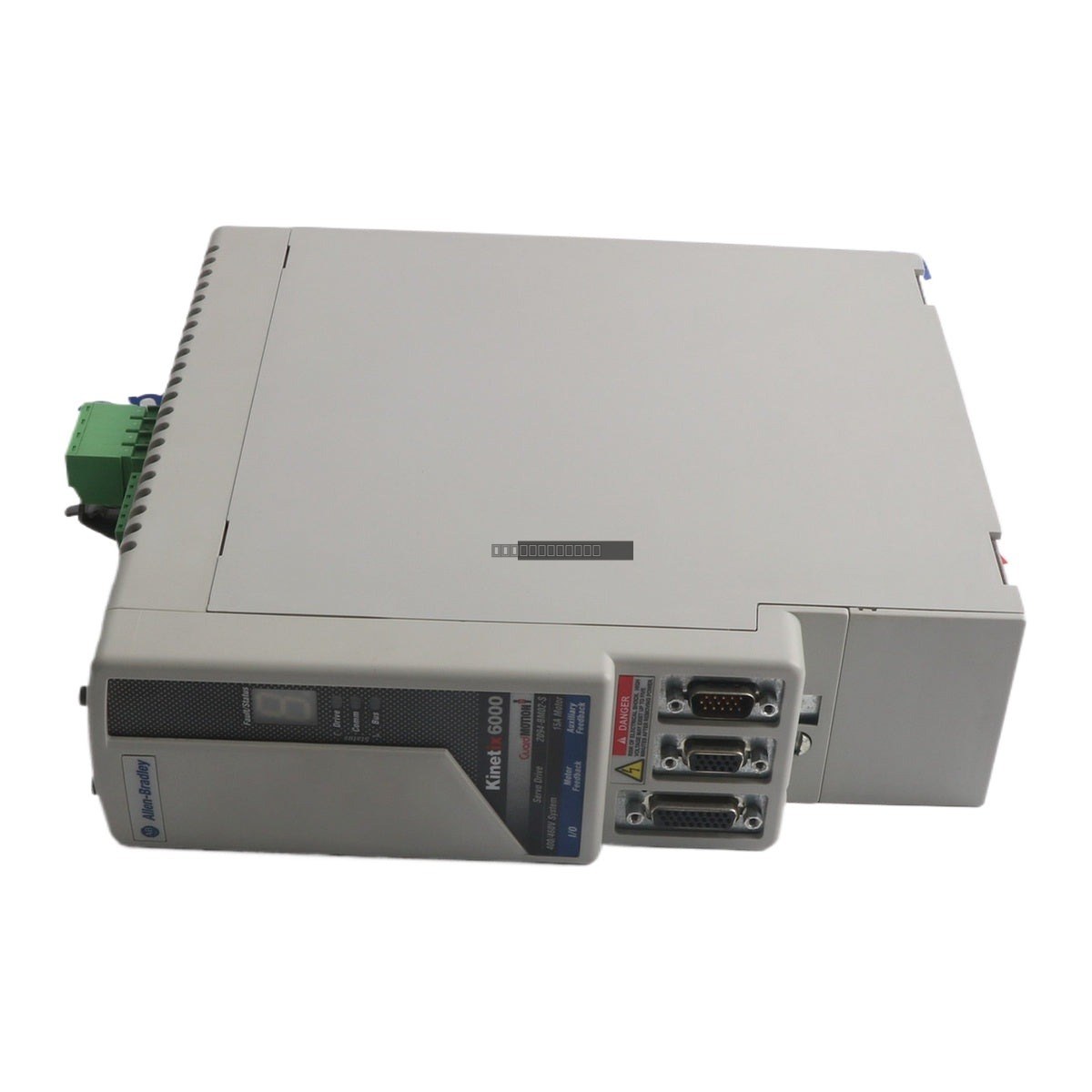

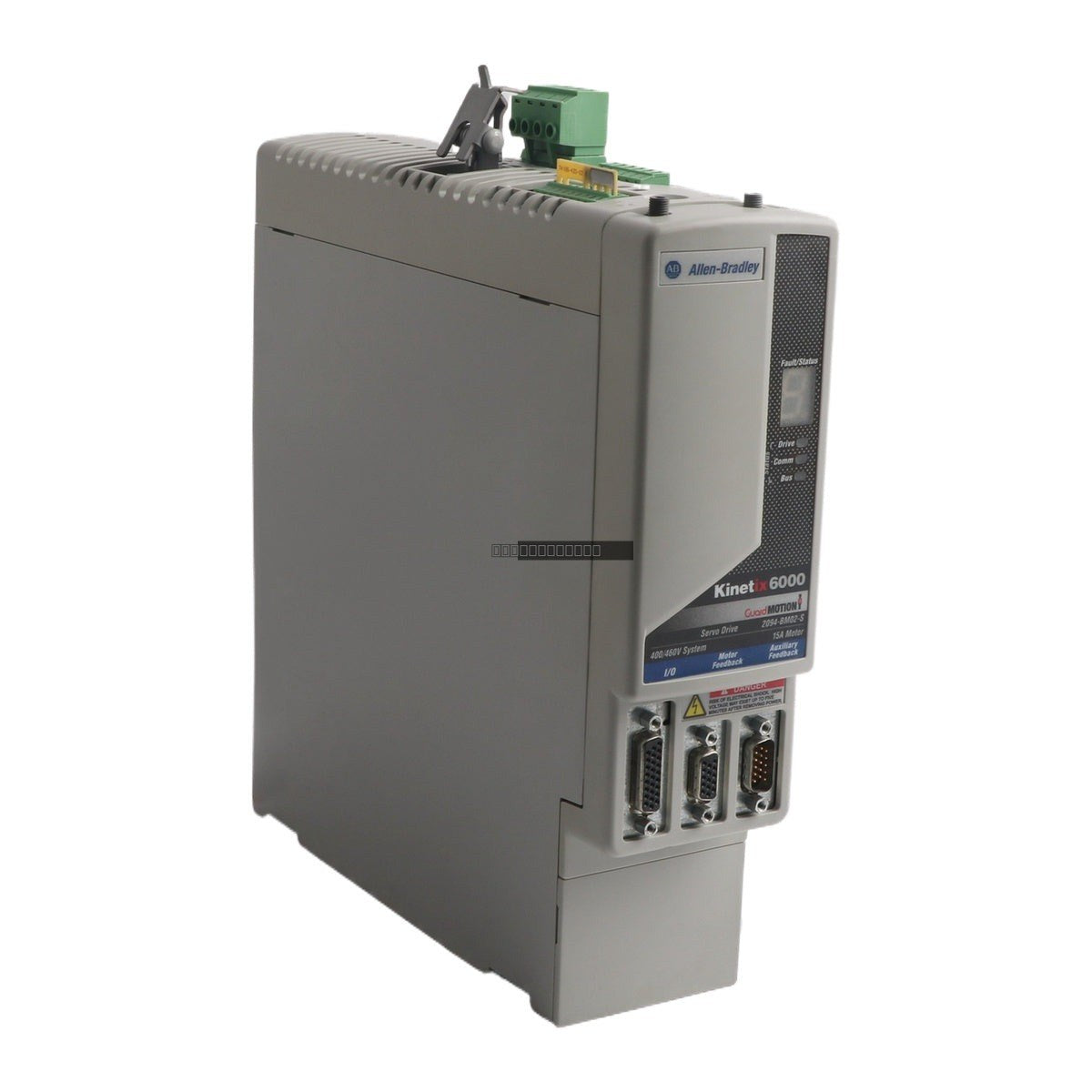

Allen-Bradley 2094-BM02-S Kinetix 6000 Axis Module

Availability: 6 left in stock

DescriptionThe Allen-Bradley 2094-BM02-S is a high-performance axis module belonging to the Kinetix 6000 multi-axis servo drive system. Designed for demanding...

SKU: 2094-BM02-S

Manufacturer: Allen-Bradley
Product No.: 2094-BM02-S
Product Type: Servo Drive Axis Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 3140g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Allen-Bradley 2094-BM02-S is a high-performance axis module belonging to the Kinetix 6000 multi-axis servo drive system. Designed for demanding motion control applications, this module provides integrated power conversion and control for servo motors within a compact, modular footprint. This unit features an integrated Safe Torque-Off (STO) function to enhance machine safety by removing rotational power from the motor without removing power from the drive.

Features

Integrated Safe Torque-Off (STO) functionality for enhanced safety compliance.
Designed for 400V class operation with a nominal input voltage range of 360-480V AC (3-phase).
Provides 6.6 kW of continuous output power.
Compact modular design optimized for multi-axis Kinetix 6000 configurations.
Includes internal shunt capabilities for effective energy dissipation during deceleration.

Technical Specifications

Model	2094-BM02-S
Series	Kinetix 6000
Continuous Output Current	10.3 A
Continuous Output Current (Sine)	14.6 A
Peak Current	25.8 A
Continuous Power Output (Nominal)	6.6 kW
Input Voltage	360-480V AC (3-Phase)
Internal Shunt Continuous Power	50 W
Internal Shunt Peak Power	5.6 kW
Heat Dissipation	93 W

Installation Guidelines

Ensure the drive is mounted in a clean, dry, and vibration-free environment with adequate airflow for cooling.
Maintain proper clearance above and below the module to allow for heat dissipation.
Always disconnect all power sources and verify zero energy state before installing or removing the module from the Kinetix 6000 power rail.
Use shielded cables for motor connections to minimize electromagnetic interference (EMI).
Ensure proper grounding of the chassis to the cabinet backplane to maintain signal integrity and safety.
Handle with care to prevent electrostatic discharge (ESD) damage to internal circuitry.

FAQ

Is the 2094-BM02-S still in production?

No, this model has been superseded. The manufacturer recommends the 2198-D032-ERS3 as a replacement for Kinetix 6000 system upgrades.

Does this module support Safe Torque-Off?

Yes, the 2094-BM02-S includes the Safe Torque-Off feature as a standard integrated safety function.
