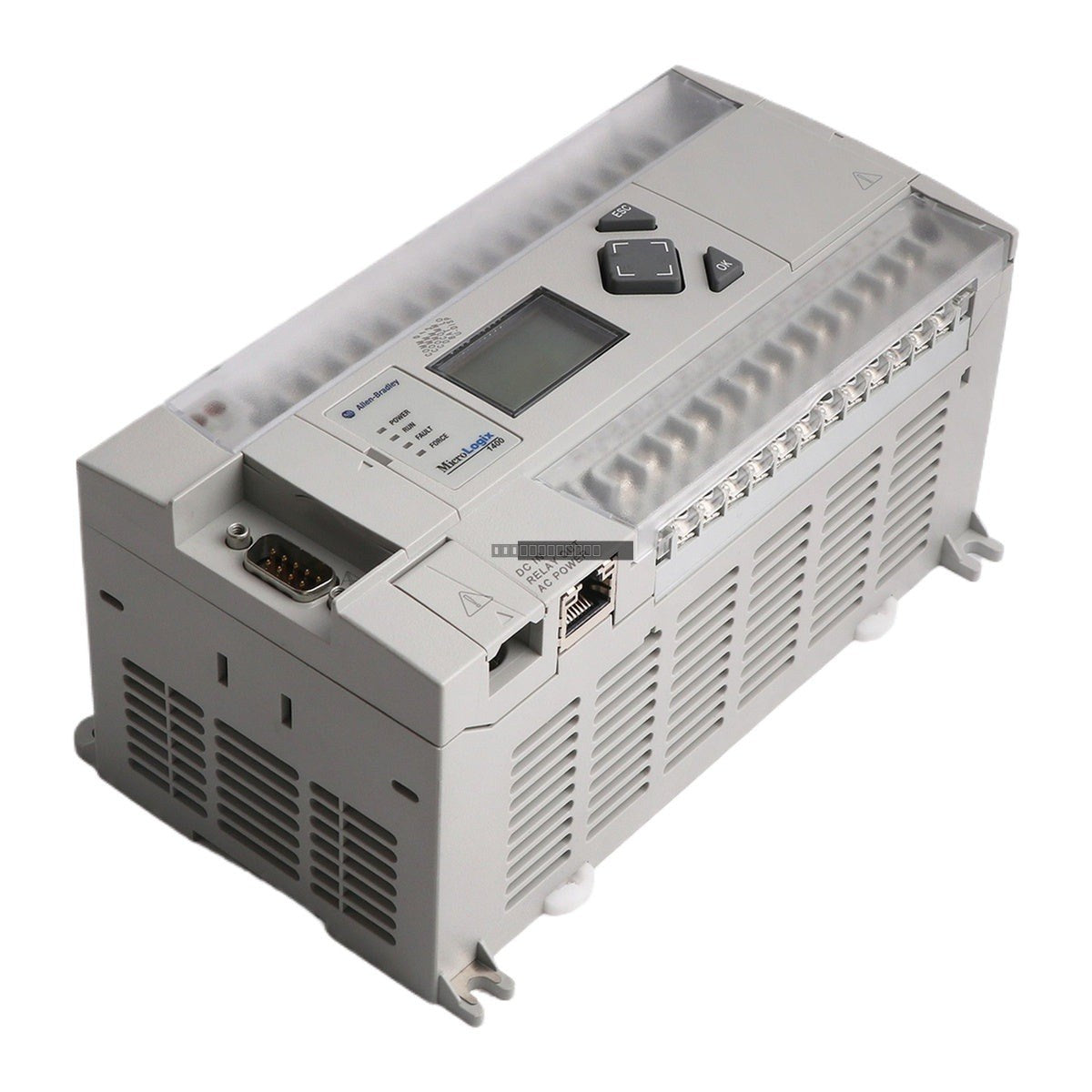

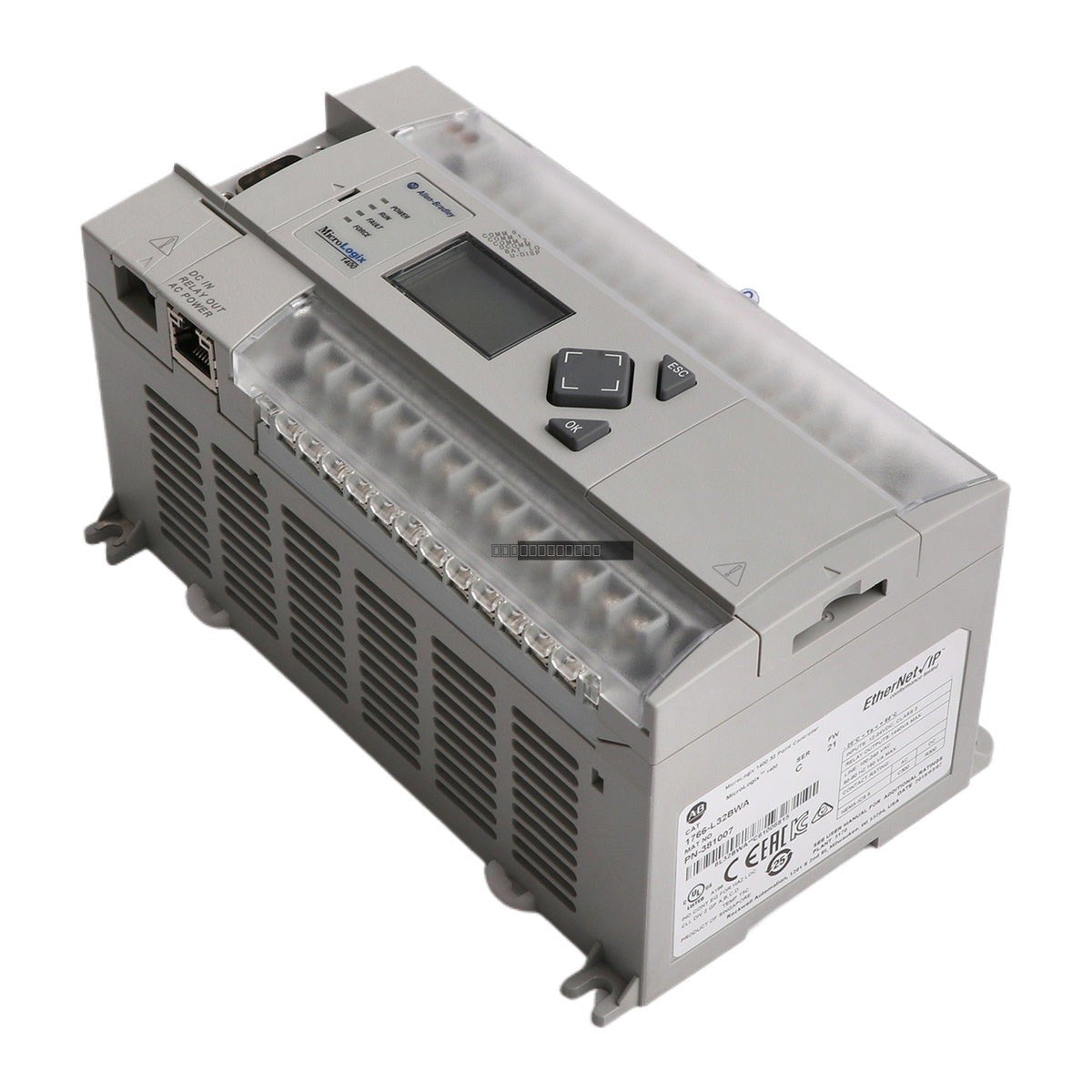

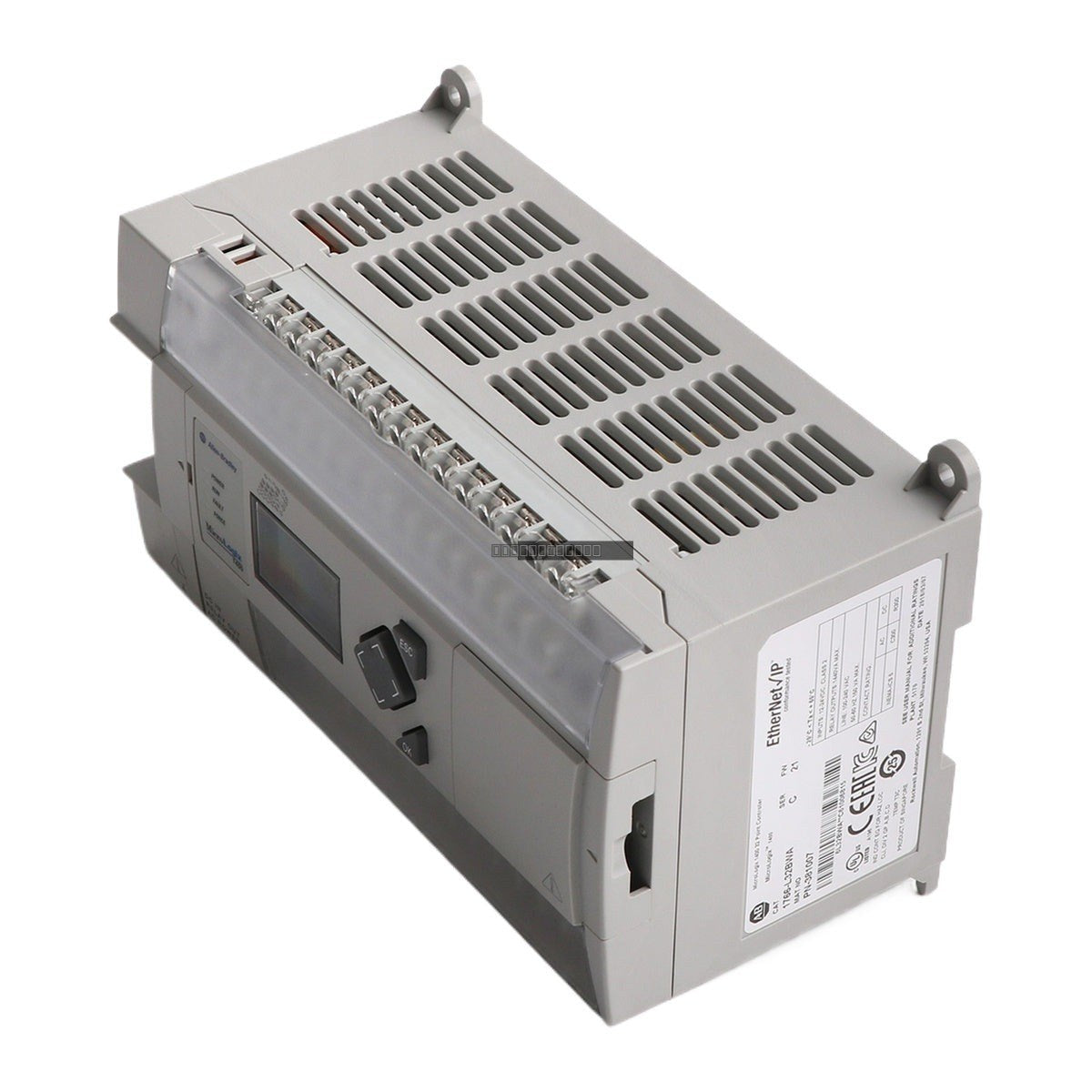

Allen-Bradley 1766-L32BWA MicroLogix 1400 Controller

Availability: 9 left in stock

DescriptionThe Allen-Bradley 1766-L32BWA is a high-performance MicroLogix 1400 programmable logic controller (PLC) designed for small to mid-sized industrial automation applications....

SKU: 1766-L32BWA

Manufacturer: Allen-Bradley
Product No.: 1766-L32BWA
Product Type: PLC Controller
Product Origin: USA
Payment:T/T, Western Union
Weight: 940g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Allen-Bradley 1766-L32BWA is a high-performance MicroLogix 1400 programmable logic controller (PLC) designed for small to mid-sized industrial automation applications. This compact controller integrates advanced communication capabilities, including an Ethernet port, an isolated RS-232/RS-485 combo port, and a non-isolated RS-232 port, facilitating seamless integration into modern industrial networks. It features a built-in LCD with a backlight for local monitoring, status diagnostics, and network configuration.

Features

Embedded I/O: 12 Fast 24V DC inputs, 8 Normal 24V DC inputs, and 12 Relay outputs.
High-Speed Counting: Supports up to 6 embedded 100 kHz high-speed counters.
Communication: Integrated Ethernet (supporting DNP3, web server, and email), RS-232, and RS-485 ports.
Expansion: Supports up to 7 additional 1762 series expansion I/O modules.
LCD Interface: Backlit display for viewing controller status, I/O monitoring, and fault codes.
Real-Time Clock: Embedded RTC for time-based control and logging.

Applications

Material Handling: Conveyor systems, sorting, and assembly line automation.
Packaging & Food/Beverage: Control of packaging machinery and processing equipment.
HVAC & Building Automation: Pump control, lighting management, and environmental monitoring.
Water/Wastewater: SCADA integration and remote data logging.
OEM Equipment: Integration into commercial machinery such as industrial washers and vending units.

Technical Specifications

Model	1766-L32BWA
Input Power	100/240V AC
Power Consumption	120 VA
Digital Inputs	20 (12 Fast 24V DC, 8 Normal 24V DC)
Digital Outputs	12 Relay Outputs
Sensor Power	24V DC @ 250 mA
Communication Ports	1x Ethernet, 1x RS-232/485, 1x RS-232
Expansion Capacity	Up to 7 modules (1762 series)
Mounting	DIN Rail or Panel Mount

Installation Guidelines

Orientation: The controller must be mounted horizontally to ensure proper thermal dissipation. Vertical mounting is not supported.
Environment: Install in a clean, dry industrial environment. Ensure the installation location does not exceed Over Voltage Category II.
Wiring: Verify the 100/240V AC power source before connection. Refer to the specific terminal block diagrams for input/output wiring to prevent damage.
Safety: Always power down the system before inserting or removing modules or performing wiring changes.
ESD Handling: Use standard electrostatic discharge (ESD) precautions when handling the unit to protect internal circuitry.

FAQ

What is the 1766-L32BWA?

The Allen-Bradley 1766-L32BWA is a MicroLogix 1400 PLC designed for industrial control tasks. It operates on 100/240V AC power and provides 20 digital inputs and 12 relay outputs.

Does it have analog I/O?

The base 1766-L32BWA unit does not include built-in analog I/O, but it can be expanded with up to seven 1762 expansion I/O modules to add analog or additional digital capabilities.

How do I monitor the controller status?

The unit features an integrated LCD screen and keypad, allowing users to view I/O status, change IP addresses, and monitor fault codes directly on the hardware.
