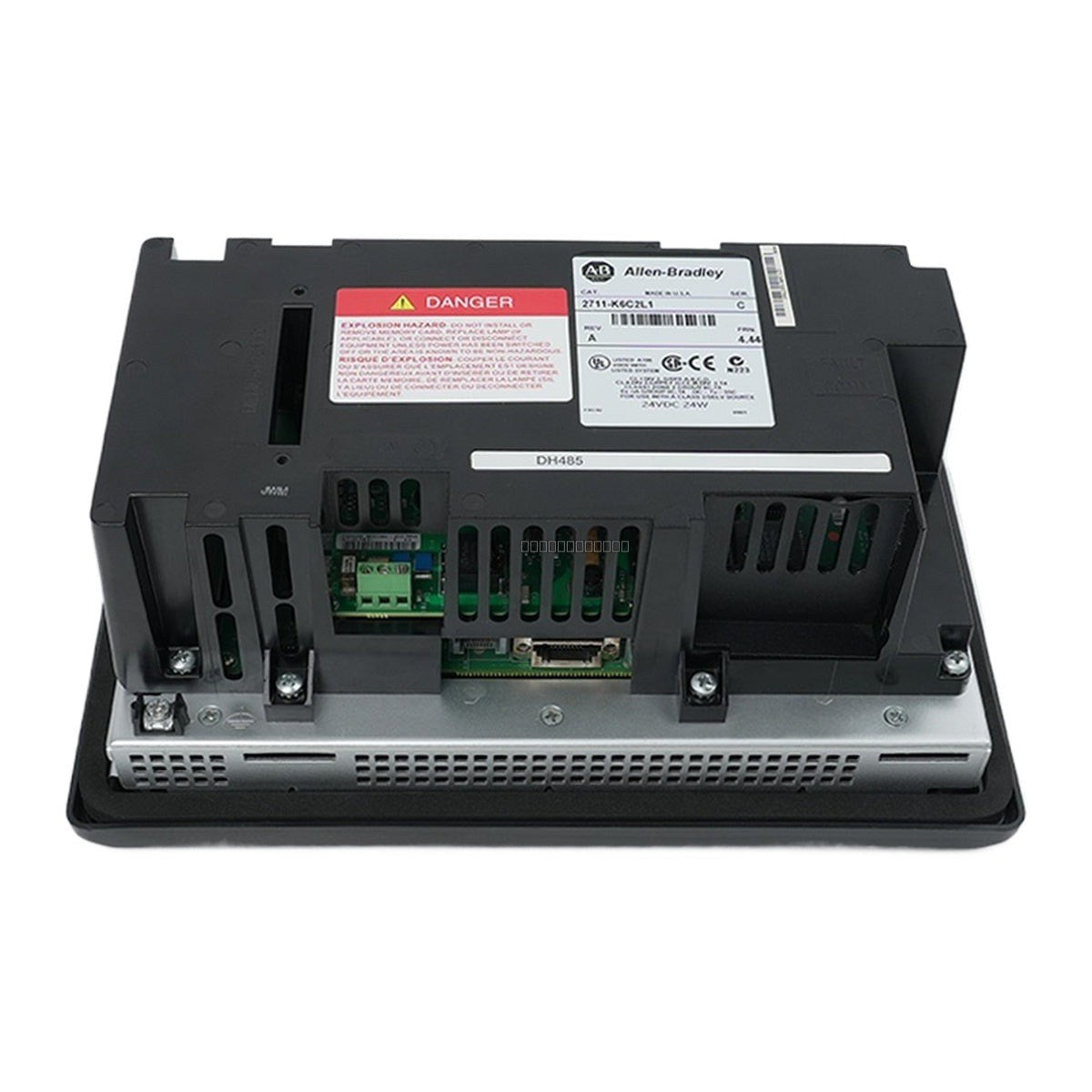

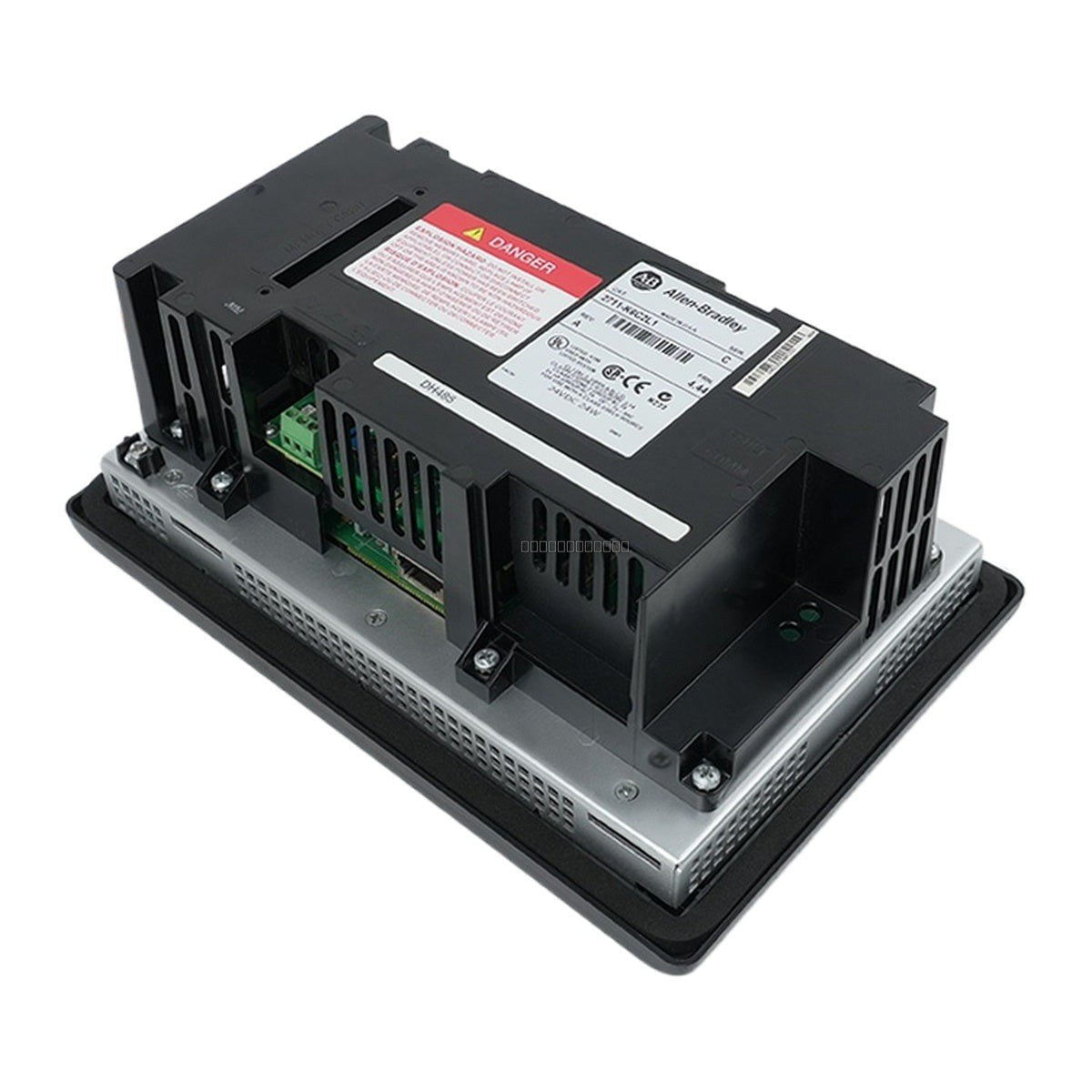

Allen-Bradley 2711-K6C2L1 PanelView 600 HMI Terminal

Allen-Bradley 2711-K6C2L1 PanelView 600 Operator Interface

Availability: 2 left in stock

DescriptionThe Allen-Bradley 2711-K6C2L1 is a PanelView Standard 600 operator terminal designed for real-time machine monitoring and control. This Human-Machine Interface...

SKU: 2711-K6C2L1

Manufacturer: Allen-Bradley
Product No.: 2711-K6C2L1
Product Type: Operator Interface Terminal
Product Origin: USA
Payment:T/T, Western Union
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

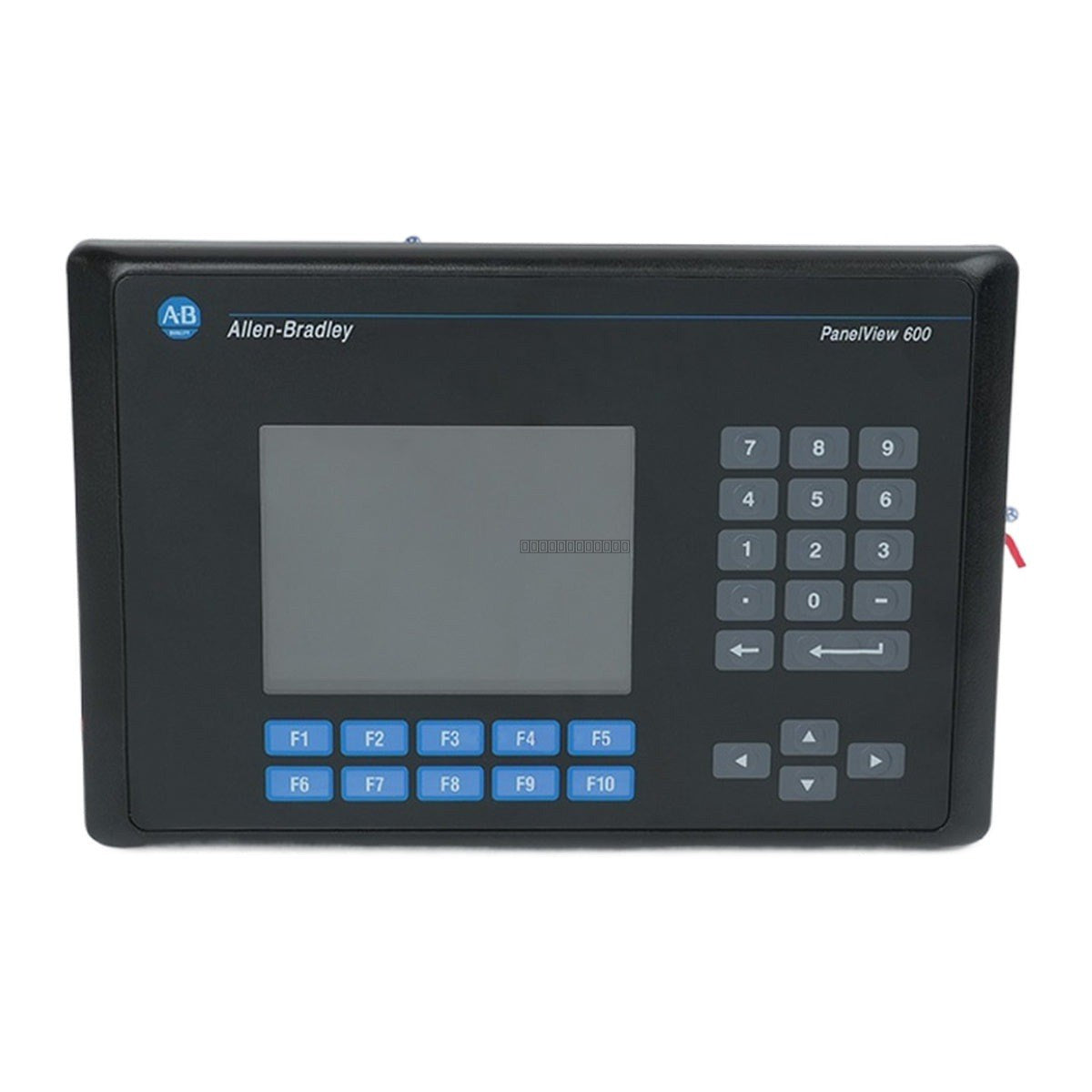

The Allen-Bradley 2711-K6C2L1 is a PanelView Standard 600 operator terminal designed for real-time machine monitoring and control. This Human-Machine Interface (HMI) features a 5.7-inch color active matrix TFT display with a resolution of 320 x 234 pixels. It provides a robust, tactile keypad interface suitable for industrial environments where touchscreen operation may be impractical. This specific model utilizes DH-485 communication and supports a 24V DC power input.

Features

5.7-inch color active matrix TFT display.
Tactile keypad input with 10 configurable function keys, numeric keypad, and navigation buttons.
Rated for up to 1 million actuations per key.
Field-replaceable backlight with 50,000-hour expected half-life.
Supports DH-485 communication protocol.
Field-replaceable internal battery for real-time clock and memory retention.
Compatible with various enhancement modules, including memory cards and anti-glare overlays.

Applications

Automotive: Real-time monitoring for robotic cells, welding, and stamping lines.
Food and Beverage: Suitable for packaging, bottling, and heat-sealing applications.
Water and Wastewater: Localized control for filtration, pumping, and dosing systems.
Pharmaceutical and Chemical: Batch processing and reactor vessel monitoring.
Pulp and Paper: Reliable operation in high-vibration machinery environments.

Technical Specifications

Model	2711-K6C2L1
Display Type	Color Active Matrix TFT
Resolution	320 x 234 pixels
Input Voltage (DC)	18-32V DC (24V DC nominal)
Power Consumption (DC)	34W max
Communication	DH-485
Printer Port	RS-232 (1200, 2400, 9600, 19,200 Kbps)
Keypad	10 Function keys + numeric/navigation
Weight	1.5 kg

Installation Guidelines

Ensure the panel cutout is prepared according to the manufacturer's mounting template to maintain NEMA/IP seal integrity.
Use appropriate gasket seals when mounting in NEMA 4X enclosures to prevent moisture ingress.
Maintain adequate clearance around the unit for ventilation and to prevent overheating.
Route communication cables away from high-voltage lines and sources of electromagnetic interference (EMI).
Always power down the terminal before inserting or removing memory modules or performing maintenance.
Ensure the unit is properly grounded to the enclosure chassis to mitigate electrical noise.

FAQs

What is the primary communication method for the 2711-K6C2L1?

This terminal uses the DH-485 communication protocol for both application transfers and network integration.

Can I use the RS-232 port for programming?

No, the RS-232 port on this specific model is dedicated to printing functions. Application uploads and downloads must be performed via the DH-485 port.

Is the backlight replaceable?

Yes, the unit features a field-replaceable backlight designed for a 50,000-hour service life.
