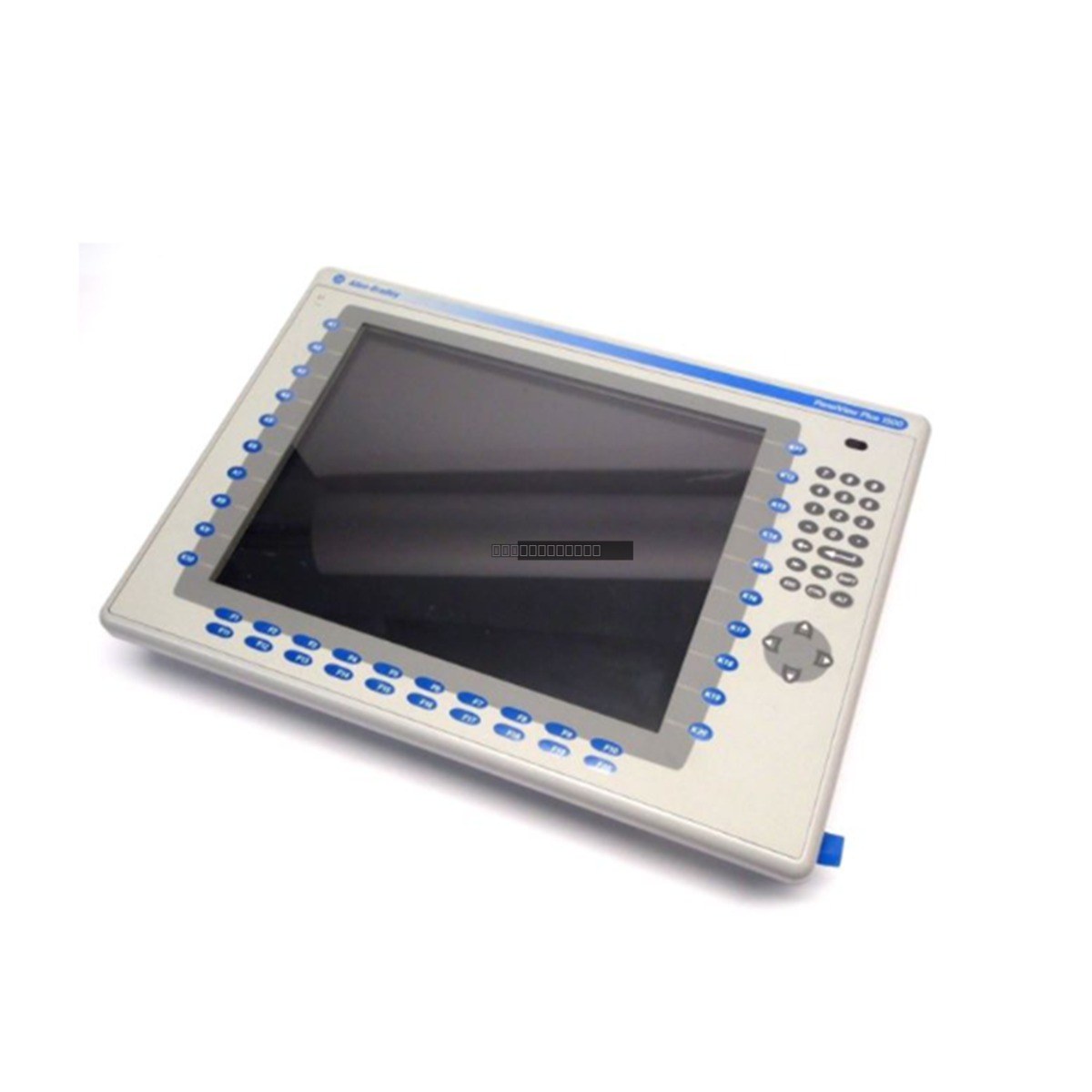

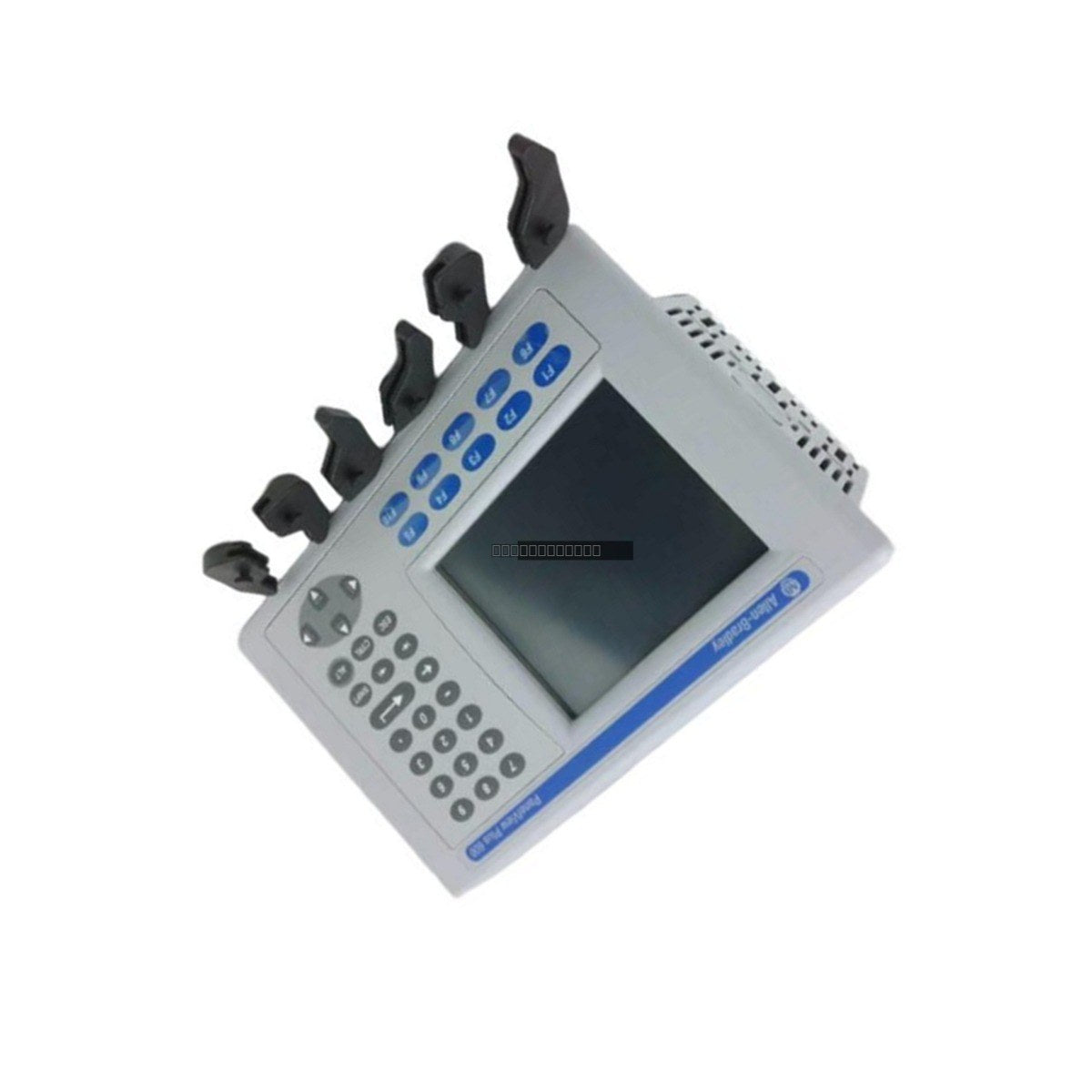

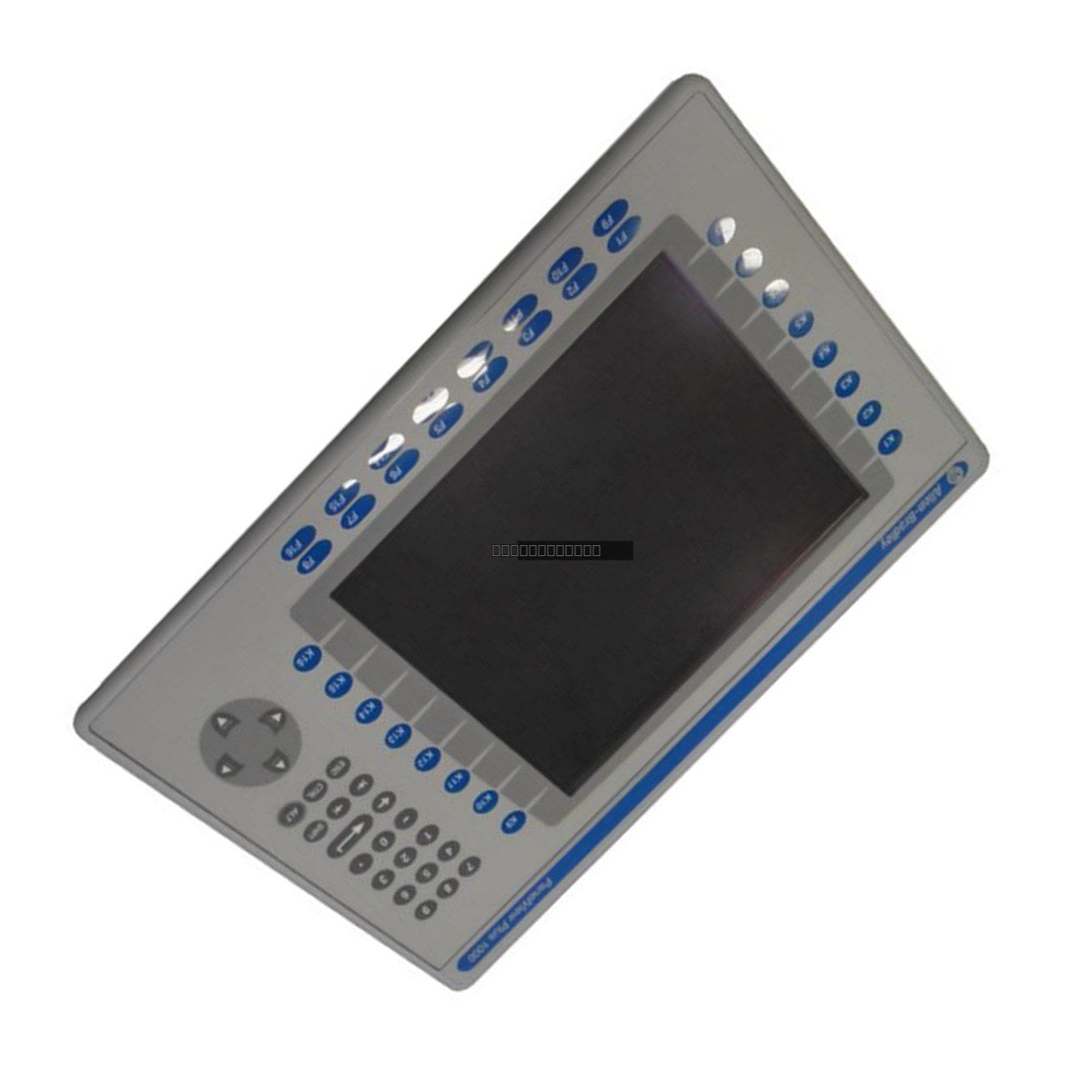

Allen-Bradley 2711P-B6C20D8 PanelView Plus 6 600 HMI Terminal

Allen-Bradley 2711P-B6C20D8 PanelView Plus 6 600 Graphic Interface Terminal

Availability: 5 left in stock

The 2711P-B6C20D8 is a high-performance Human Machine Interface (HMI) terminal from the Allen-Bradley PanelView Plus 6 series. It is engineered...

SKU: 2711P-B6C20D8

Manufacturer: Allen-Bradley
Product No.: 2711P-B6C20D8
Product Type: Graphic Interface Terminal
Product Origin: USA
Payment:T/T, Western Union
Weight: 940g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The 2711P-B6C20D8 is a high-performance Human Machine Interface (HMI) terminal from the Allen-Bradley PanelView Plus 6 series. It is engineered for continuous process visualization and control in demanding industrial environments, providing robust data processing and reliable operator interaction. With 512 MB of RAM and 512 MB of nonvolatile flash memory, this terminal supports complex applications requiring real-time feedback and high-speed communication.

Features

Dual-input interface featuring a 4-wire analog resistive touchscreen and a stainless-steel membrane keypad.
5.7-inch active-matrix TFT color display with 320 x 240 resolution.
Integrated 10/100 Mbps Ethernet port supporting EtherNet/IP and CIP protocols.
RS-232 serial interface for point-to-point communication.
Dual USB host ports for peripheral connectivity (keyboards, mice, flash drives).
Dedicated SD card slot for external storage and data logging.
Battery-backed real-time clock using a field-replaceable CR2032 lithium coin cell.

Applications

This terminal is suitable for critical industrial automation tasks, including water treatment, automotive manufacturing, pharmaceutical packaging, and material handling systems where precise operator control and deterministic controller feedback are essential.

Technical Specifications

Model	2711P-B6C20D8
Display Size	5.7 inches
Resolution	320 x 240 pixels
System RAM	512 MB
Nonvolatile Memory	512 MB
Input Voltage	18-30 VDC (24 VDC nominal)
Power Consumption	15 W max
Operating Temperature	0 to 55 deg C
Storage Temperature	-25 to 70 deg C
Weight	0.94 kg

Installation Guidelines

Ensure the terminal is mounted in an enclosure rated for the intended environment (e.g., NEMA/UL Type 12, 13, or 4X).
Maintain adequate clearance around the unit to allow for proper ventilation and cooling.
Use shielded communication cables and ensure proper grounding to minimize EMI interference.
Power down the unit before inserting or removing any communication modules or memory cards.
Replace the CR2032 battery periodically according to the maintenance schedule to ensure real-time clock accuracy.

FAQ

What is the primary power requirement for this unit? The terminal operates on 18-30 VDC, with a nominal requirement of 24 VDC.

Can I use external storage with this HMI? Yes, the unit includes dual USB host ports for external flash drives and a dedicated SD card slot for data storage.

What type of operator input does this model support? This model features a dual-input design with both a 4-wire analog resistive touchscreen and a physical membrane keypad.
