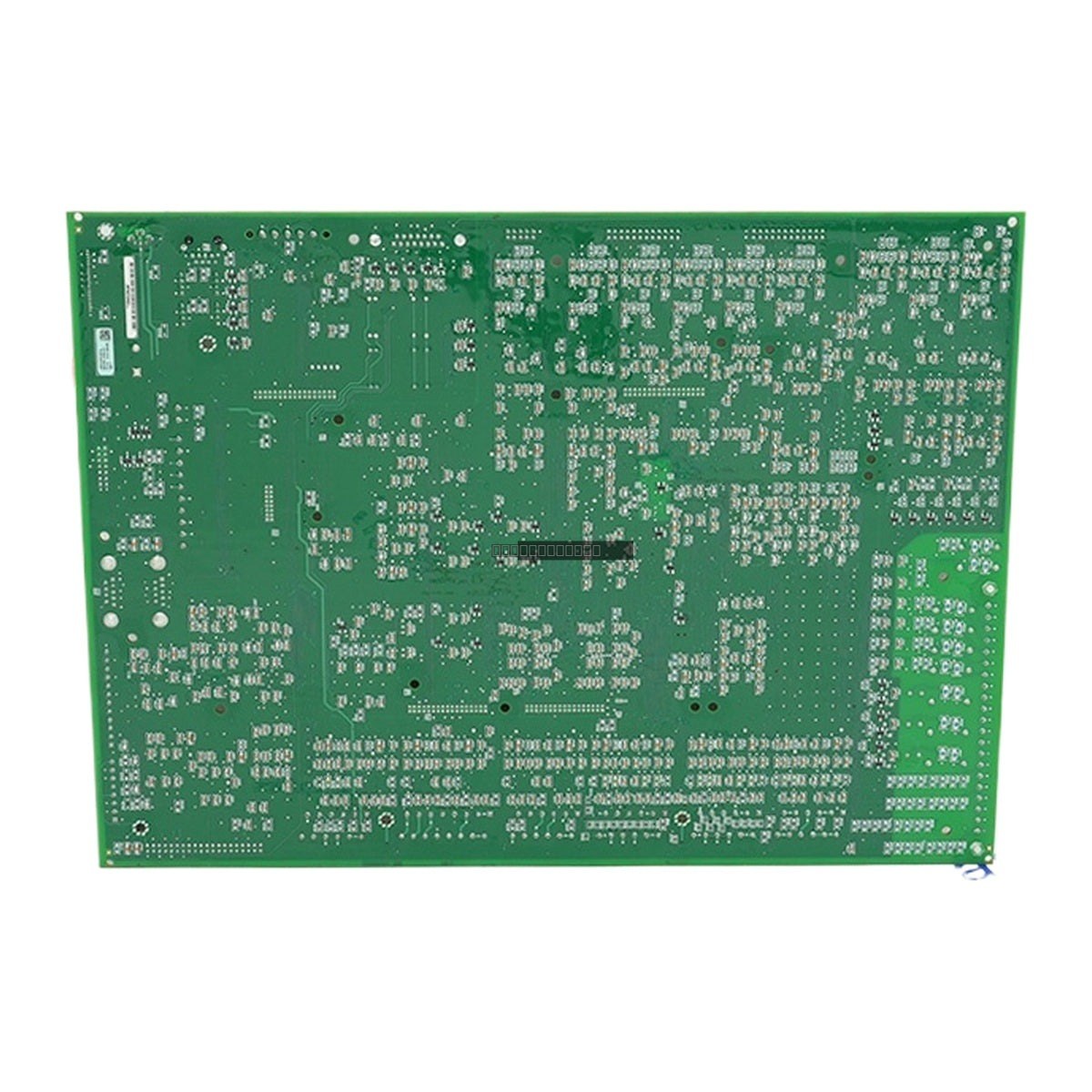

Allen-Bradley 80190-560-01-R PowerFlex 7000 Analog Control Board

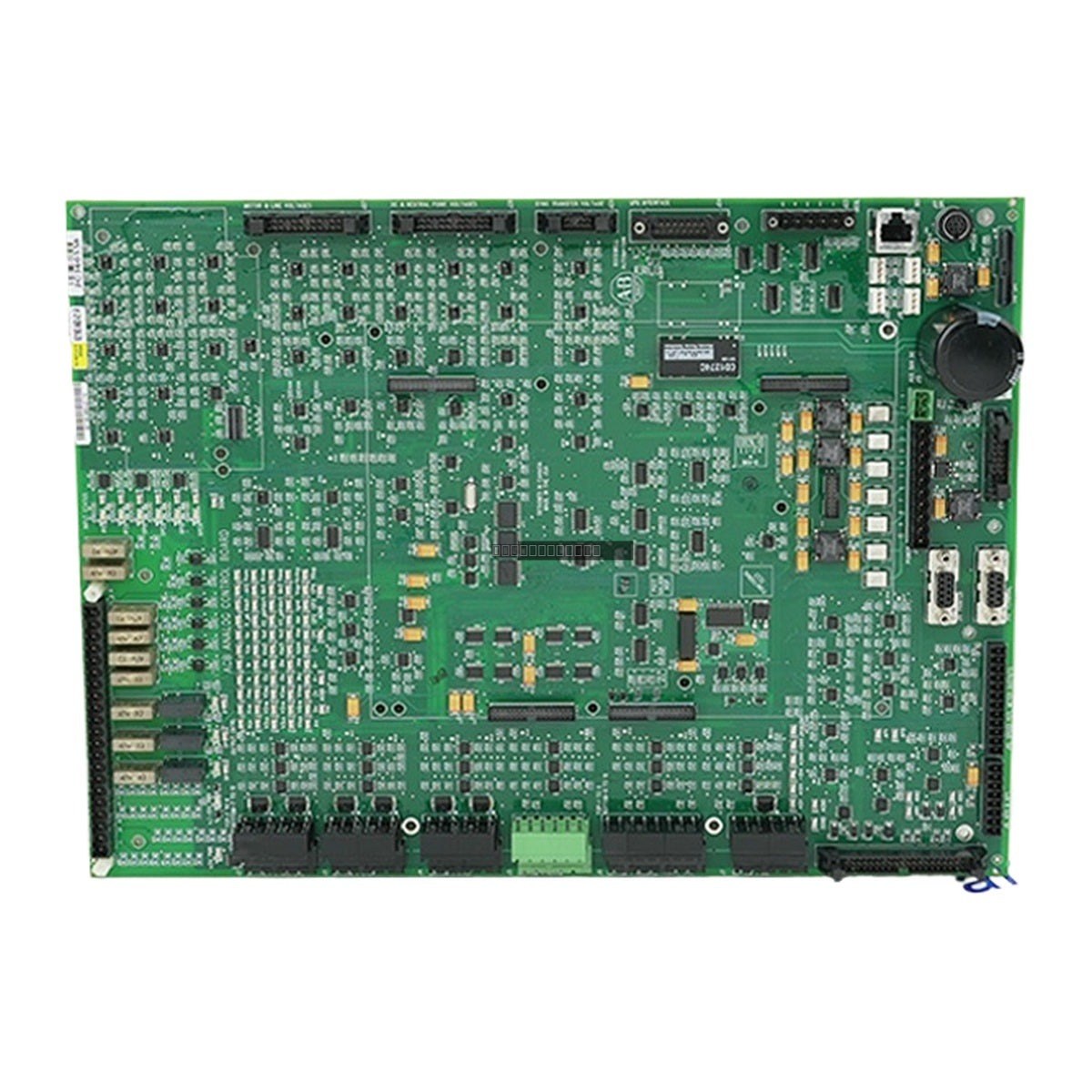

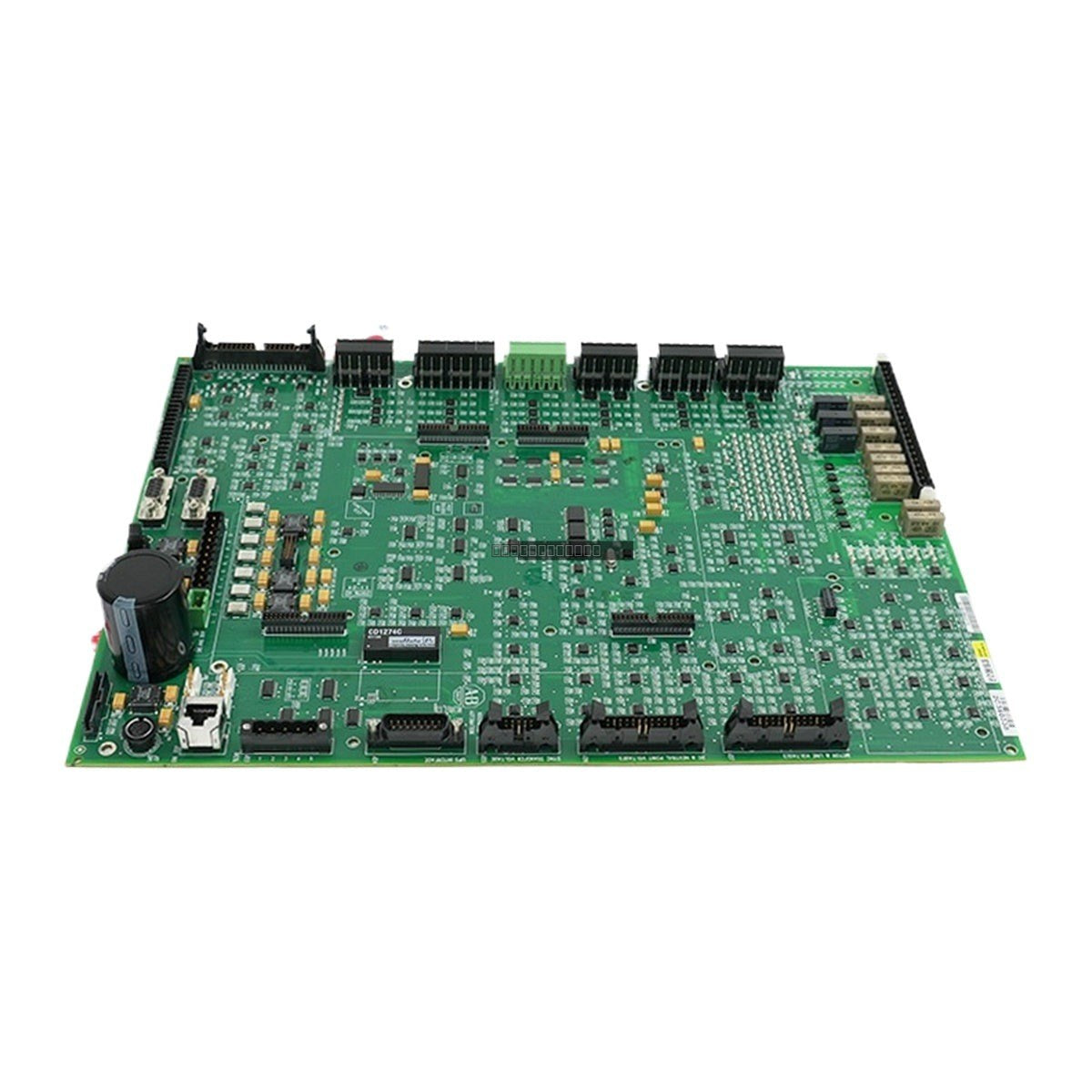

Allen-Bradley 80190-560-01-R PowerFlex 7000 Controller Circuit Board

Availability: 10 left in stock

The Allen-Bradley 80190-560-01-R is a high-performance Analog Control Board (ACB) engineered for integration within PowerFlex 7000 18-pulse medium-voltage AC drives....

SKU: 80190-560-01-R

Manufacturer: Allen-Bradley
Product No.: 80190-560-01-R
Product Type: Controller Circuit Board
Product Origin: USA
Payment:T/T, Western Union
Weight: 850g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Allen-Bradley 80190-560-01-R is a high-performance Analog Control Board (ACB) engineered for integration within PowerFlex 7000 18-pulse medium-voltage AC drives. This controller circuit board serves as a central processing unit for analog signal management, providing precise regulation for motor speed and torque control in demanding industrial environments.

Features

Designed specifically for PowerFlex 7000 18-pulse medium-voltage drive architectures.
Microprocessor-based electronic protection scheme, reducing reliance on traditional semiconductor fuses.
Integrated DC link monitoring to detect voltage drops and trigger protective trips (Fault Codes 48–51).
Supports thermal management through heatsink temperature monitoring and cooling system supervision via air flow pressure switches.
Supports Safe Torque Off (STO) functionality for secure motor power removal.
High-resolution 12-bit ADC/DAC processing for accurate analog signal conversion.

Applications

Oil & Gas: Pipeline pumping stations and refinery process control.
Mining & Minerals: Heavy-duty conveyor systems, crushers, mills, and mine elevators.
Power Generation: Boiler feed pumps, induced draft fans, and circulating water systems.
Water & Wastewater: Large-scale raw water pumps and pressurized distribution stations.

Technical Specifications

Model	80190-560-01-R
Supply Voltage	24 V DC
Current Draw	50 mA (typ) / 70 mA (max)
Power Consumption	1.2 W
Analog Inputs	4 channels (0/4-20 mA or 0/1-5 V)
Analog Outputs	2 channels (0/4-20 mA or 0/1-5 V)
Resolution	12-bit ADC / DAC
Accuracy	+/- 0.1 % FSR
Isolation	1500 V AC

Installation Guidelines

Ensure the drive is fully de-energized and locked out before attempting to install or remove the control board.
Handle the PCB using standard electrostatic discharge (ESD) precautions to prevent damage to sensitive components.
Verify that all ribbon cables and terminal connections are securely seated before applying power.
Document all existing fault codes on the operator interface prior to a reset to avoid potential damage to SGCT or SCR components.
Ensure the cooling fan and airflow pressure switches are functional, as the ACB requires proper thermal conditions for operation.

FAQ

What is the primary function of the 80190-560-01-R?

This board acts as the Analog Control Board for the PowerFlex 7000 drive, managing analog I/O signals to ensure precise motor regulation across voltage ranges from 2400V to 6600V.

How can I verify a DC fault on this board?

Monitor terminals J18 through J21. Under normal operating conditions, a 5V DC signal should be present at terminal J18 (pins 2-3); a reading of 0V indicates a fault condition.

Is this board compatible with EOL drives?

Yes, this component is often used to maintain and support legacy PowerFlex 7000 systems that have reached their manufacturer End-Of-Life status.
