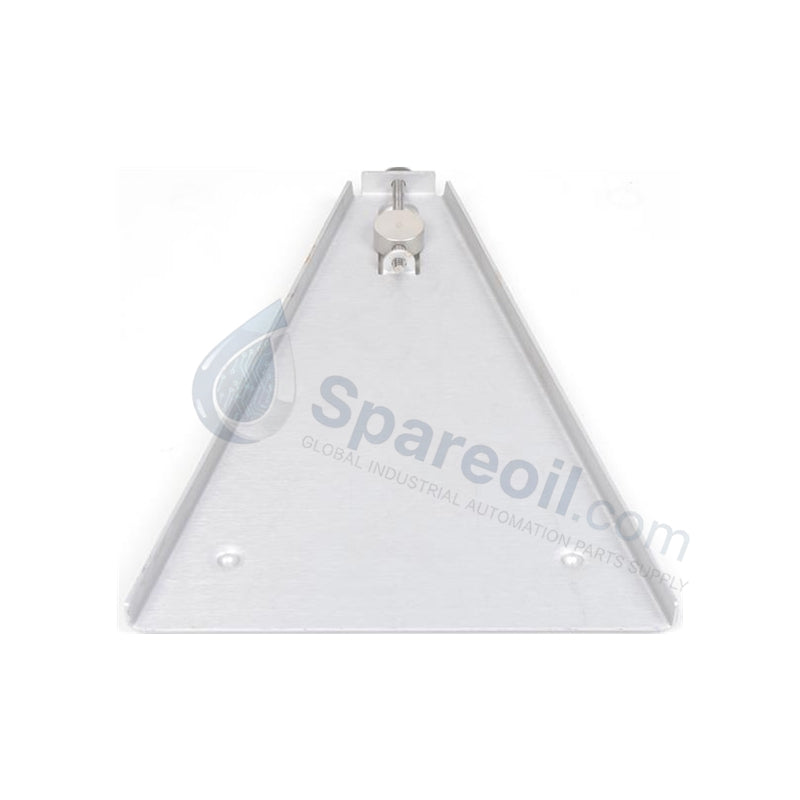

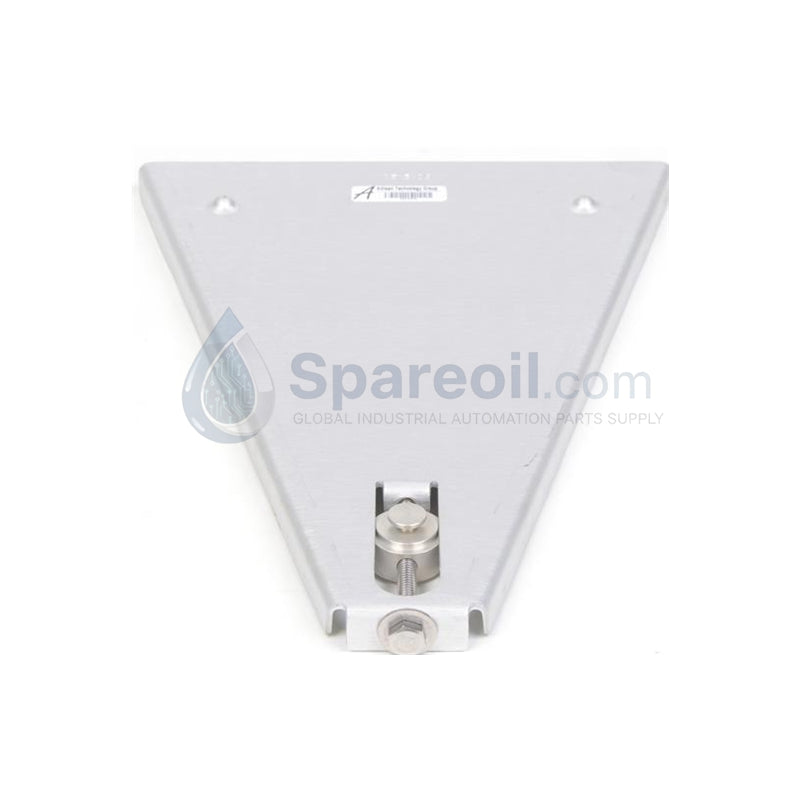

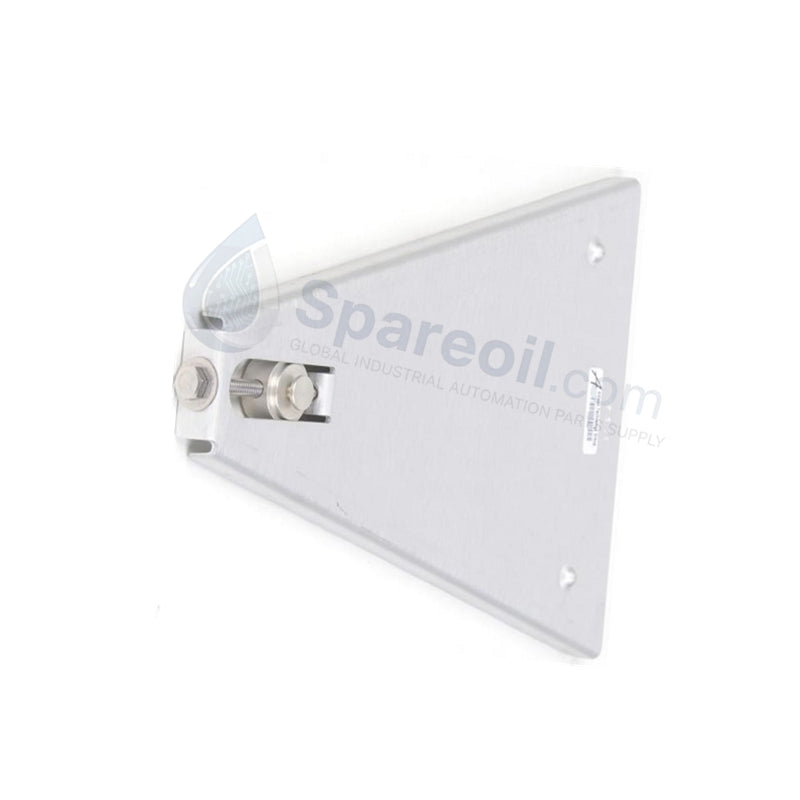

Bently Nevada 10513-02 Clamp Drawer | Brand New Original

Availability: 10 left in stock

Product Overview The Bently Nevada 10513-02 functions as a specialized Clamp Drawer module within the legacy 3300 Series Monitoring System. This module provides...

SKU: 10513-02

Manufacturer: Bently Nevada
Product No.: 10513-02
Product Type: Bently Nevada 3300 Series
Product Origin: USA
Payment:T/T, Western Union
Weight: 620g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Bently Nevada 10513-02 functions as a specialized Clamp Drawer module within the legacy 3300 Series Monitoring System. This module provides the essential mechanical housing and electrical interface for various monitoring cards. It enables the system to perform continuous, online data acquisition of critical machinery parameters, including vibration, axial position, overspeed, and temperature. By integrating seamlessly into the 3300 rack, the 10513-02 facilitates real-time analysis to prevent catastrophic machine failure. We offer this product as 100% Brand New and Original, ensuring your protection system meets strict industrial safety standards.

Technical Specifications

Attribute	Specification Value
Model Number	10513-02
Product Type	Clamp Drawer / Industrial I/O Module
System Compatibility	Bently Nevada 3300 Series
Standard Compliance	API 670 (Machinery Protection)
Monitoring Scope	Vibration, Position, Temperature, Overspeed, Pressure
Material	Industrial-grade reinforced metal housing
Dimensions	2.6 cm x 25.3 cm x 24 cm
Weight	0.62 kg
Origin	USA

Engineering Advantages

API 670 Compliance: The 10513-02 meets the rigorous requirements of API 670 standards. This makes it suitable for high-reliability machinery protection in petrochemical and power generation industries where regulatory compliance is mandatory.
Mechanical Stability and Integration: The clamp drawer design ensures that monitoring cards remain securely seated despite the high-vibration environments typical of industrial turbine decks. It provides a stable mechanical interface that prevents signal intermittent faults caused by loose connections.
Modular Expandability: This module allows engineers to customize the 3300 Series rack. It supports a "plug-and-play" approach to system expansion, enabling the addition of specialized vibration or temperature monitors without redesigning the entire rack architecture.
Online Monitoring Support: The internal circuitry supports continuous, non-stop data transmission. This feature allows operators to track machine health trends in real-time, facilitating predictive maintenance rather than reactive repairs.
Ruggedized Construction: Bently Nevada uses industrial-grade materials to construct the 10513-02. It resists the corrosive atmospheres and high temperatures often found near large rotating equipment like compressors and steam turbines.

FAQs

Is the 10513-02 compatible with 3500 Series racks?

No. The 10513-02 specifically fits the 3300 Series Monitoring System. The 3500 Series uses a different form factor and backplane architecture. Always verify your rack type before ordering.
Does this module require external power?

The 10513-02 receives power directly through the 3300 Series rack backplane. Once you slide the drawer into the powered rack, the internal connections distribute power to the installed monitoring cards automatically.
Can this module handle both vibration and temperature cards?

Yes. The Clamp Drawer acts as a versatile housing. Depending on the specific configuration of your 3300 system, it supports various I/O cards including those for vibration, position, and thermal monitoring.
What is the condition of the stock?

We guarantee that the Bently Nevada 10513-02 is 100% Brand New and Original. It ships in its original factory packaging with all standard documentation.
