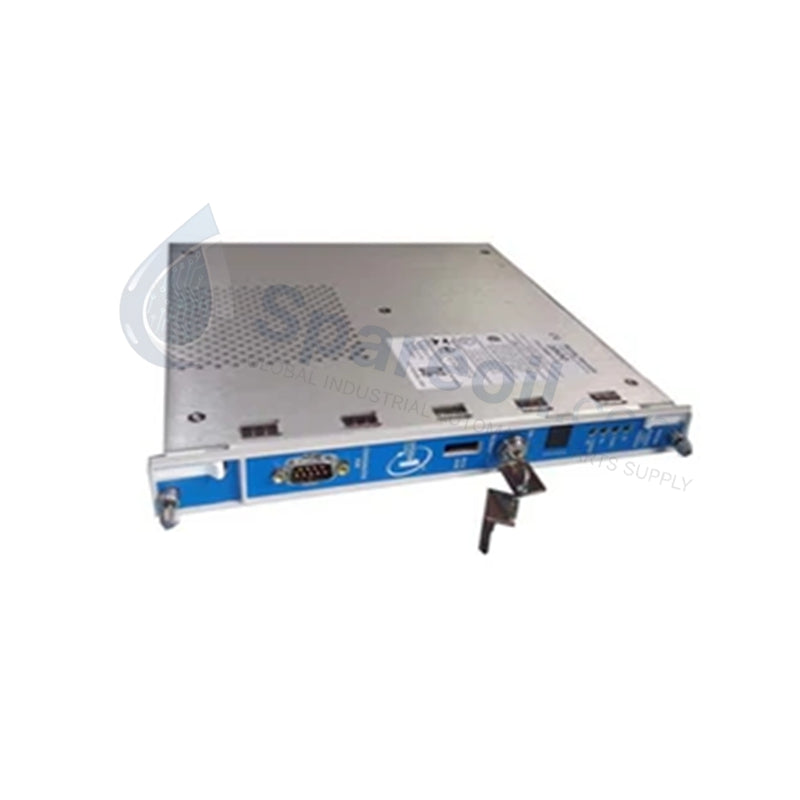

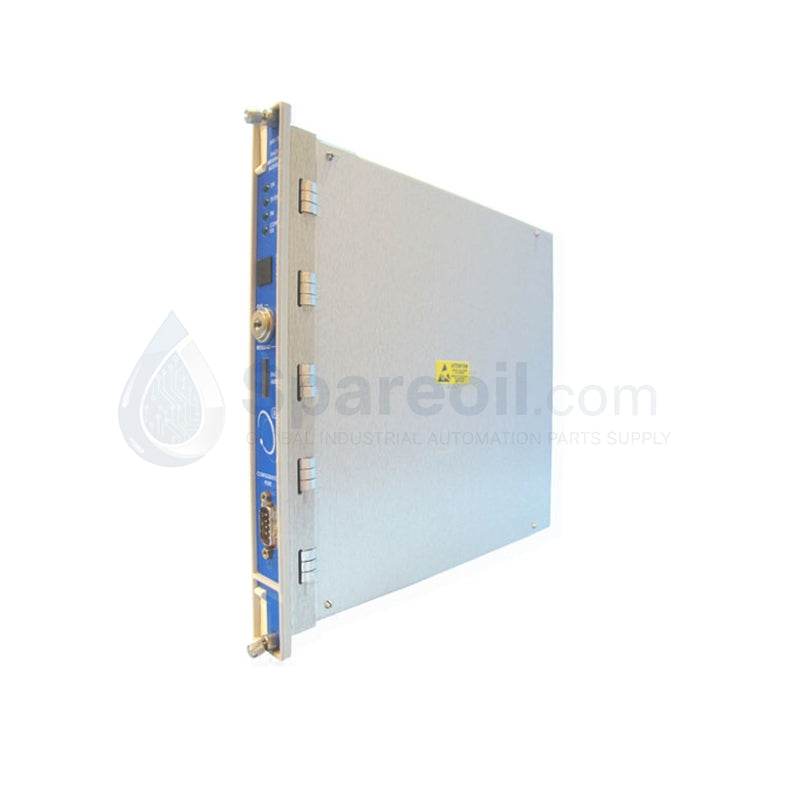

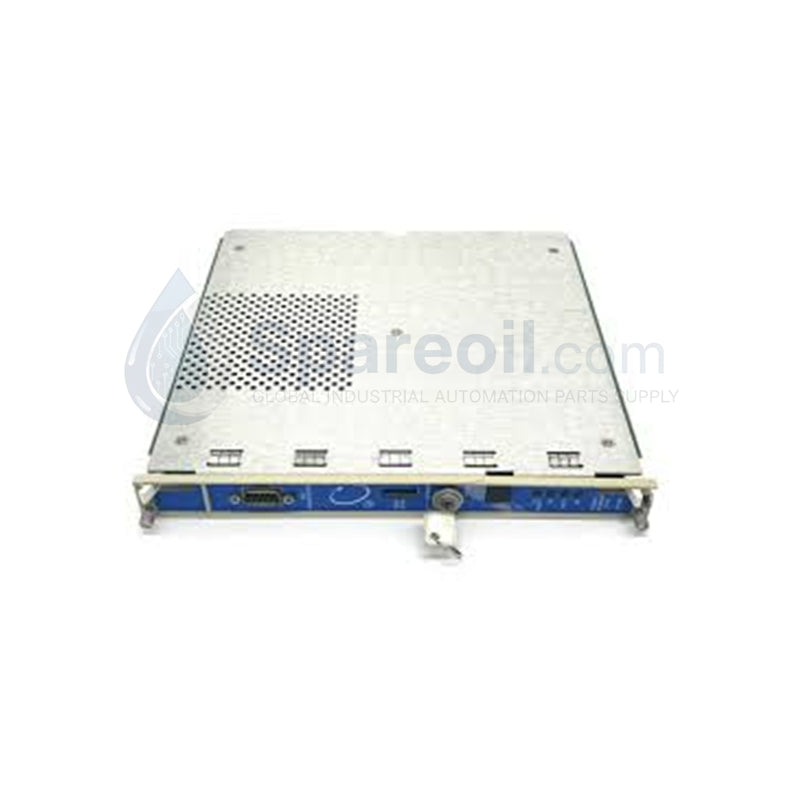

Bently Nevada 125744-02 3500 Series Rack Interface Module

The Bently Nevada 125744-02, also cataloged as the 3500/20 Rack Interface Module, operates as a dedicated hardware component for rack-level configuration management and internal data arbitration within 3500 Series Machinery Protection System networks.

Hardware Specifications

Parameter Specification
Model 3500/20
Brand Bently Nevada (Baker Hughes)
Part Number 125744-02
Product Type Rack Interface Module (RIM)
Origin USA
Weight 0.9 kg
Dimensions 241 mm x 24.4 mm x 242 mm
Operating Temp -30 to +65 deg C
Storage Temp -40 to +85 deg C
Power Consumption 4.75 W typical
Communication Protocols Proprietary Bently Nevada Protocol, RS232, RS422
Baud Rate Up to 38.4 kbaud
Internal Interface High-speed parallel backplane bus
Humidity 95% non-condensing

Machinery Monitoring & Cross-Talk Suppression

The module coordinates backplane operations across the high-speed parallel bus to maintain phase-coherent data collection. It manages gap voltage validation targets across multiple channels, ensuring that eddy-current probe scaling coefficients remain stable without thermal drift. Advanced cross-talk suppression algorithms isolate high-frequency dynamic rotor dynamics signals from adjacent slots, preventing administrative serialization routines from disrupting time-critical trip multiply commands or primary machine protection loops.

Frequently Asked Questions

Q: Can the 3500/20 RIM be hot-swapped while the machinery protection system is live?

A: No. Removing or inserting the 125744-02 module while the rack backplane is energized can interrupt internal configuration streaming and cause momentary communication faults across the entire 3500 rack. Power down the rack before executing physical replacement.

Q: What happens to the protection functions if the 125744-02 fails or is disconnected?

A: The primary protection monitors operate on autonomous internal circuits. If the RIM fails, machinery protection and physical relay trips remain active, but software parameter configuration, System 1 static/dynamic data buffering, and rack-level diagnostic reporting will halt.

Field Installation Guidelines

  1. Always locate the module in the dedicated full-height slot immediately to the right of the rack power supply modules.
  2. Align the printed circuit board with the upper and lower chassis guides, then press firmly until the rear connector seats into the internal parallel backplane bus.
  3. Tighten the two integrated captive screws on the front panel to secure the hardware; do not use power tools, as torque limits can damage the faceplate.
  4. Route all serial RS232 and RS422 data cables through separate dedicated industrial wire trays, keeping a minimum clearance from high-voltage motor wiring to prevent electromagnetic induction.
  5. Terminate all communication cable shields at the designated rack ground point using an approved low-impedance termination block.
