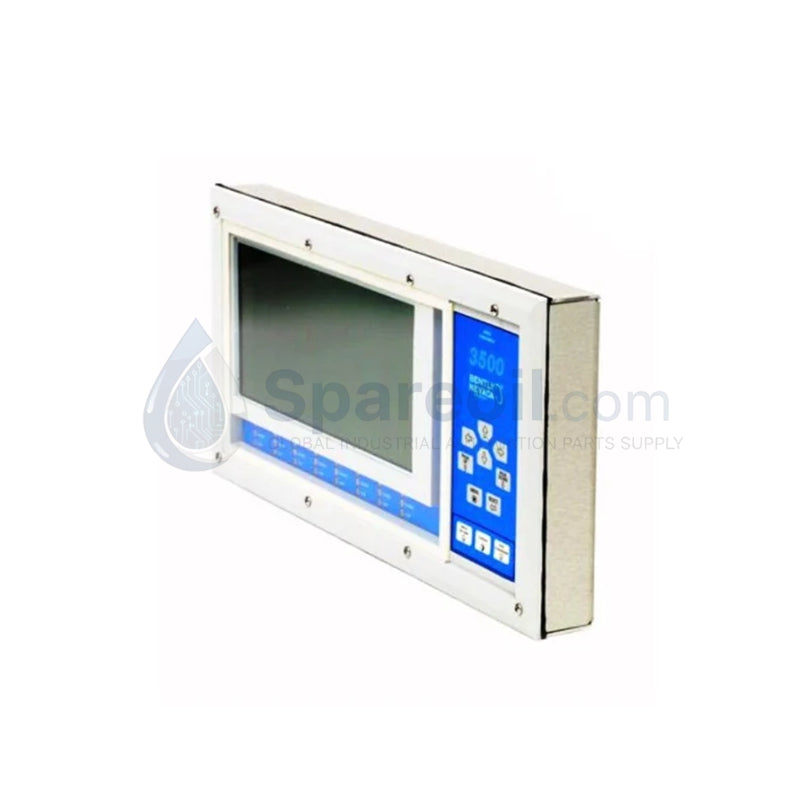

Bently Nevada 135785-01 3500/93 System Display Module

Bently Nevada 135785-01 3500/93 System Display Module

Availability: 10 left in stock

Bently Nevada 3500/93 135785-01 Display Interface Module Configured for local visualization and real-time operator interface execution in Bently Nevada 3500...

SKU: 3500/93 135785-01

Manufacturer: Bently Nevada
Product No.: 3500/93 135785-01
Product Type: Display Interface Modules
Product Origin: Switzerland
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Bently Nevada 3500/93 135785-01 Display Interface Module

Configured for local visualization and real-time operator interface execution in Bently Nevada 3500 Machinery Protection System platforms, the Bently Nevada 135785-01 (3500/93 Display Interface Module) provides direct physical/electrical execution. This module connects across the internal backplane bus to extract real-time telemetry from channel monitors, relay states, and Keyphasor tachometer readings. Operating at 12 VDC input voltage, it formats digital asset condition data into a 640 x 480 pixel graphical LCD layout, providing local visibility for channel values, alarm logs, and system event lists without affecting primary protection machinery logic.

Hardware Specifications

Parameter	Specification
Model	3500/93 (135785-01)
Brand	Bently Nevada
Origin	USA
Weight	0.2 kg
Dimensions	150 mm x 120 mm x 30 mm
Operating Temp	-40 to +85 deg C
Power Consumption	Driven by 12 VDC input voltage
Display Type	Backlit graphical LCD
Resolution	640 x 480 pixels
Internal Refresh Rate	200 Hz internal acquisition
Communication Interface	Ethernet/IP (via Display Interface Module)
Mounting Options	Face mount (Slot 15), Panel mount, or Independent remote mount
API Compliance	API 670 machinery protection standards compliant
Storage Temp	-40 to +105 deg C

Rotor Dynamics and Gap Voltage Validation Parameters

The 3500/93 135785-01 display module visualizes high-speed dynamic telemetry generated by proximity transducing systems without interfering with primary trip relays. As proximity probes convert shaft displacement into analog signals, eddy-current probe scaling metrics (such as standard 200 mV/mil or 7.87 V/mm) pass across the backplane to render dynamic channel trends directly on the LCD panel. Field technicians monitor real-time gap voltage validation (-10 VDC nominal targets) to verify physical probe position relative to baseline centerline offsets. By displaying simultaneous Keyphasor rotational speed and vibration channels alongside internal cross-talk suppression status across adjacent slots, the display allows immediate field analysis of shaft centerline position, unbalance, and rotor dynamics stability.

Frequently Asked Questions

Q: Is the 3500/93 135785-01 display module cross-compatible with the 3500/94 VGA display architecture?

A: No, the 135785-01 operates strictly within the dedicated 3500/93 LCD framework and cannot drive standard external VGA monitors designed for 3500/94 display interfaces.

Q: Which rack position must house the Display Interface Module during face-mount installation?

A: For face-mounted chassis layouts, the accompanying display interface hardware must occupy Slot 15 (the right-most slot of the 3500 chassis) to connect directly with the LCD unit.

Q: What operational response occurs if communication between the display module and the backplane drops?

A: A loss of display communication triggers an internal diagnostic fault indication on the display interface while primary protection monitoring cards and machinery safety trip relays continue independent execution.

Field Installation Guidelines

When installing the Bently Nevada 3500/93 135785-01 display unit in an industrial monitoring chassis, follow these engineering steps:

De-energize cabinet power or follow site hot-swap safety protocols before seating the display interface card into Slot 15 of the 3500 rack.
Align the module chassis edges with the guide rails and slide the assembly backward until the backplane connectors seat securely.
Tighten the upper and lower panel captive screws to 0.6 N m torque to ensure continuous chassis grounding and immunity against electrostatic discharge.
Route the dedicated display interconnect cabling away from high-voltage AC power lines and variable frequency drive outputs to avoid electrical noise interference.
Bond the mounting panel or display housing shield to the cabinet single-point ground system in accordance with API 670 installation standards.
