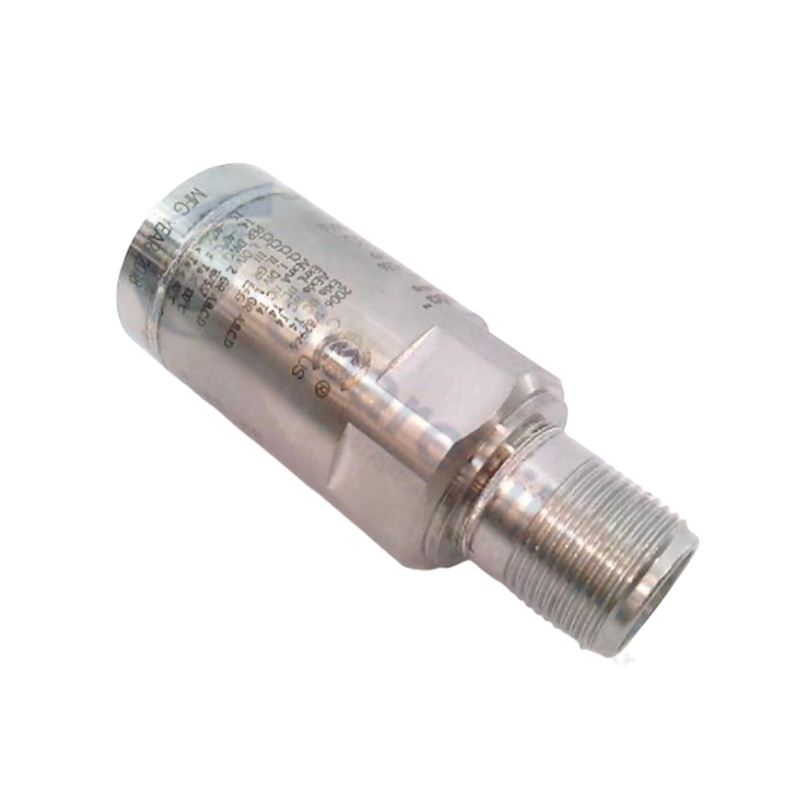

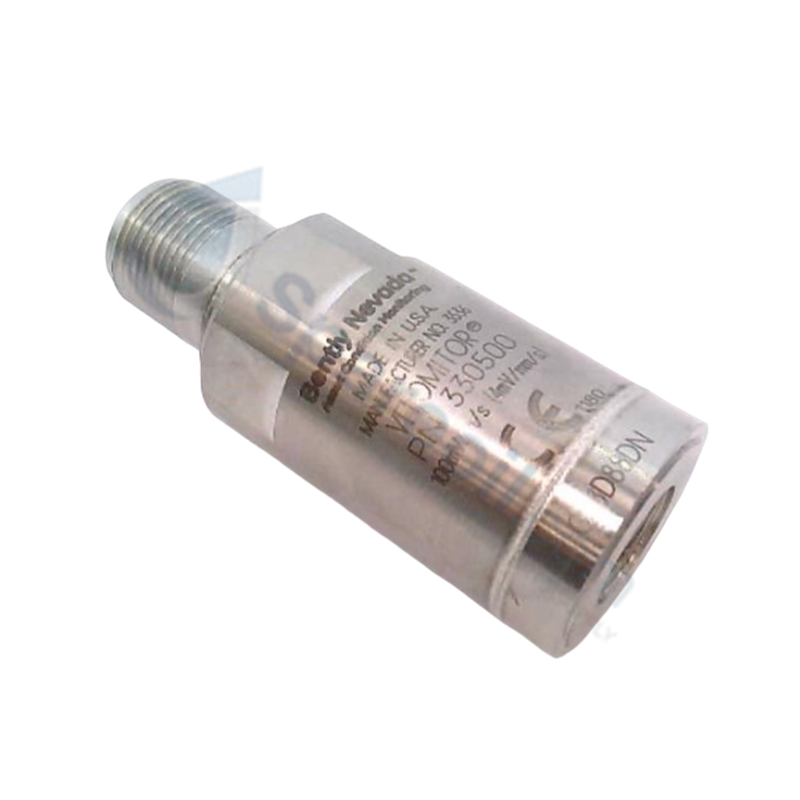

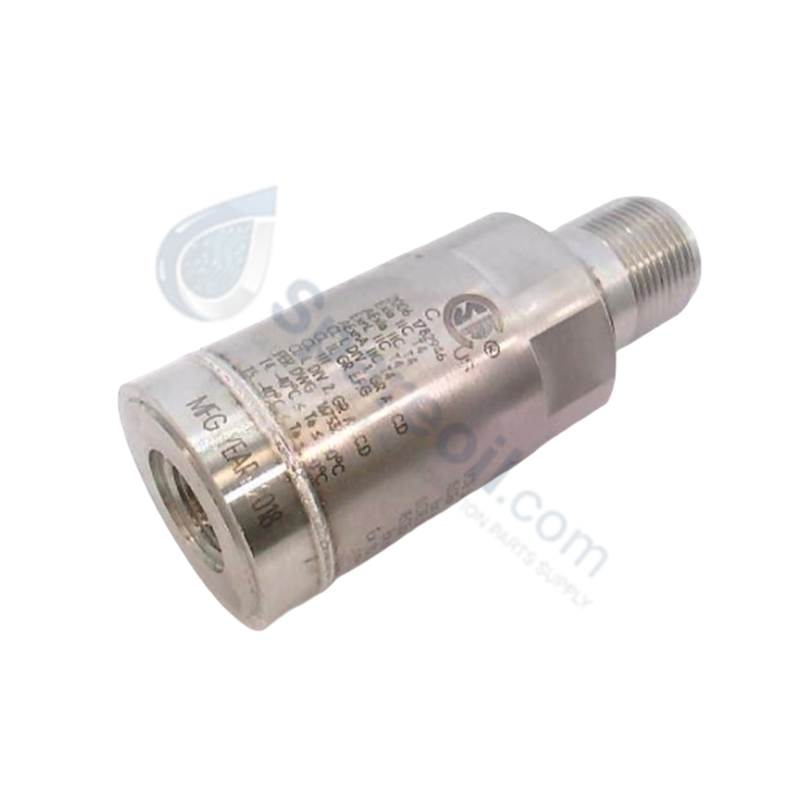

The Bently Nevada 177230-00-02-05, also cataloged as the 177230 Seismic Transmitter, operates as a dedicated hardware component for casing vibration monitoring within 3500 TSI and PLC interface platforms. The 2-wire loop-powered transducer converts dynamic mechanical motion into a standardized 4-20 mA output across a 3 Hz to 1 kHz frequency spectrum.

Suffix Breakdown & Model Matrix

Suffix Component Option Code Description
Measurement Range Option 00 0 to 12.7 mm/s (0 to 0.5 in/s) velocity peak
Frequency Response Option 02 3 Hz to 1 kHz (180 to 60,000 cpm peak)
Approvals Option 05 Multiple Approvals (CSA/NRTL/C, ATEX/IECEx)

Hardware Specifications

Parameter Specification
Model 177230-00-02-05
Brand Bently Nevada
Origin USA
Operating Temp Standard field operating temperature limits
Power Consumption Loop-powered (2-wire 4-20 mA loop interface)
Transducer Type Seismic Transmitter
Measurement Range 0 to 12.7 mm/s (0 to 0.5 in/s)
Frequency Response 3 Hz to 1 kHz (180 to 60,000 cpm peak)
Hazardous Area Approvals CSA/NRTL/C, ATEX/IECEx multiple approvals
Interconnect Cable Option Compatible with 16925-AA unarmored cable (3 to 99 ft)

Machinery Monitoring and TSI Integration

The 177230 seismic transmitter integrates directly into control systems to process structural dynamic response into continuous loop signals. Internal sensor conditioning maintains calibrated velocity scaling to capture subtle variations in fundamental rotor dynamics down to the 3 Hz low-frequency limit.

During initial installation and field commissioning, routing signal cables through dedicated conduit lines maintains cross-talk suppression and noise immunity. The 4-20 mA analog output enables direct wiring to PLC and DCS input modules without requiring intermediate signal drivers.

Frequently Asked Questions

Q: What power source is required to operate the 177230-00-02-05 transmitter?

A: The device operates as a 2-wire loop-powered transmitter, drawing excitation power directly from a standard 24 VDC instrument loop.

Q: What hazardous area approvals are certified under option 05?

A: Option 05 includes Multiple Approvals incorporating CSA/NRTL/C and ATEX/IECEx standards for global hazardous area deployment.

Q: Which interconnect cable model is specified for unarmored wiring installations?

A: The transmitter interfaces with the 16925-AA unarmored interconnect cable, configurable in lengths ranging from 3 feet to 99 feet.

Field Installation Guidelines

  • Thread the transmitter directly into the pre-tapped casing port, applying standard torque to ensure solid physical coupling with the machine surface.
  • Inspect the connector seal interface before attaching the 16925-AA interconnect cable to prevent ingress of moisture and contaminants.
  • Route signal conductors through grounded metallic conduit, keeping transmitter wiring isolated from high-voltage AC electrical lines.
  • Connect the cable shield to the system ground at the control cabinet while leaving the shield isolated at the sensor body to prevent ground loops.
  • Verify 4-20 mA loop continuity across the full 0 to 12.7 mm/s range prior to configuring system alarm thresholds.
