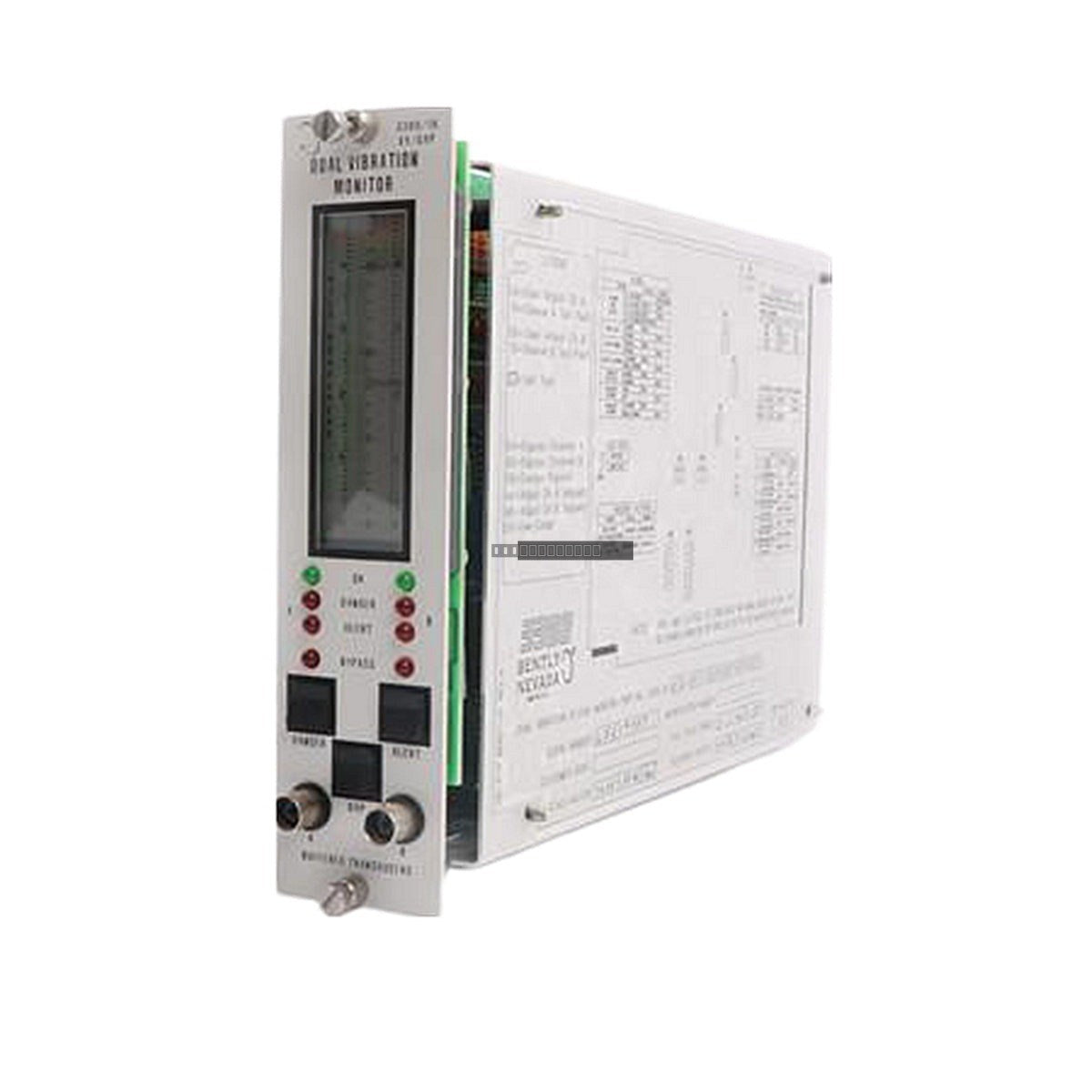

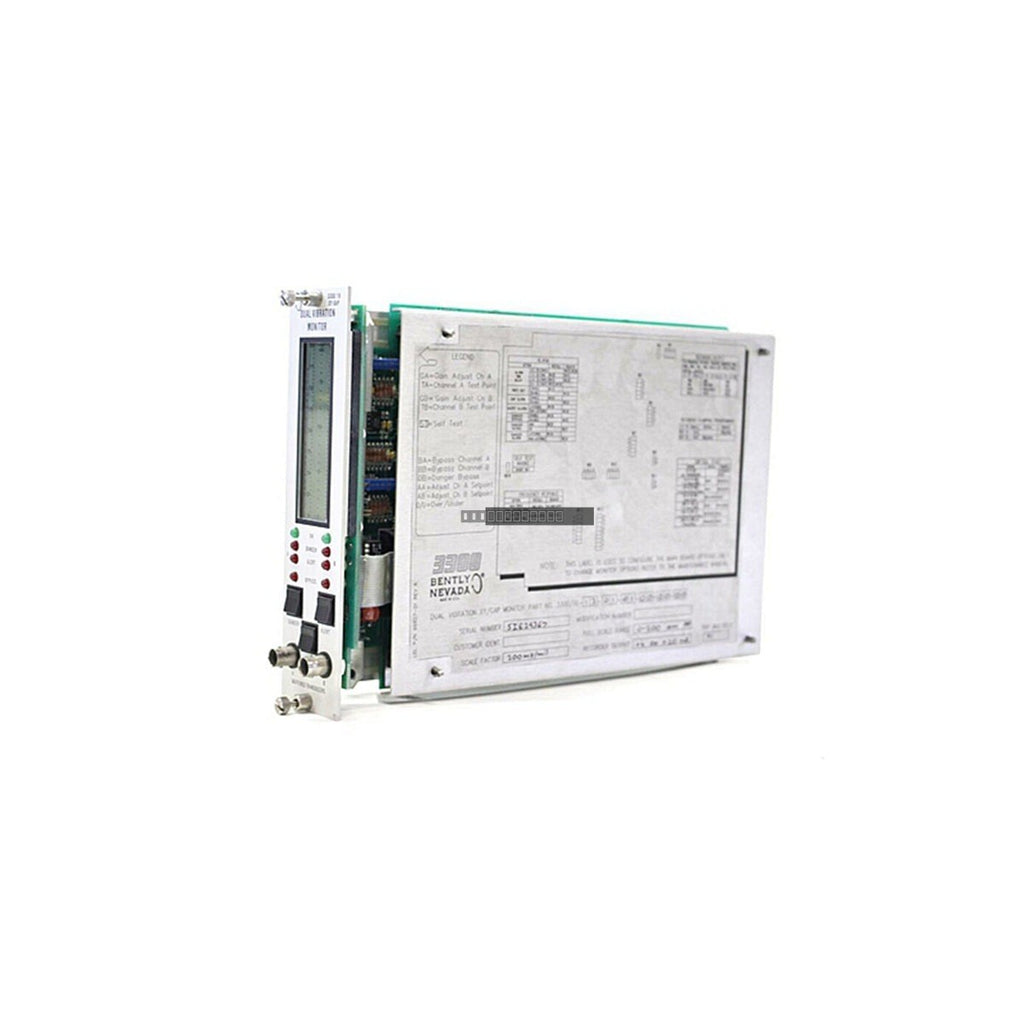

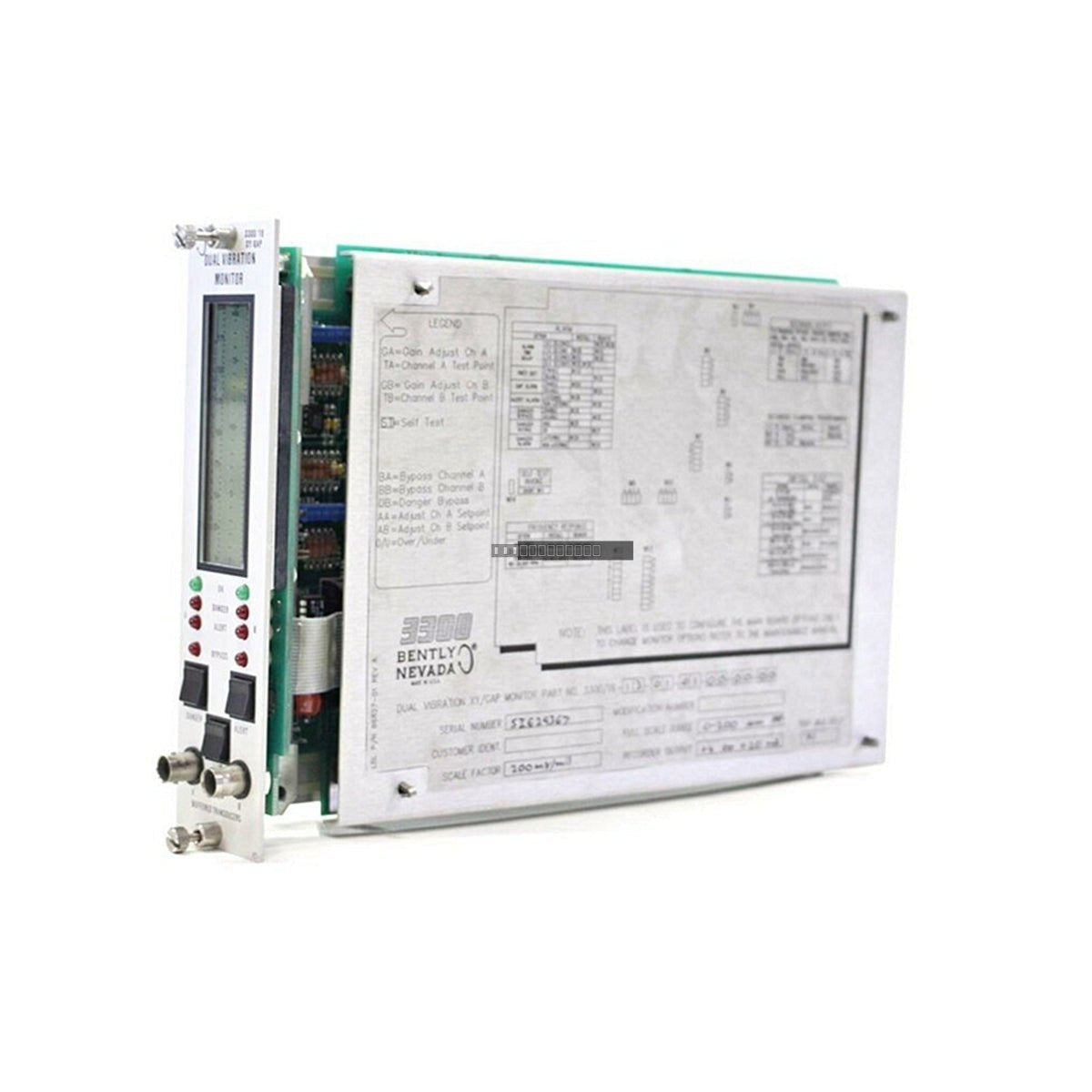

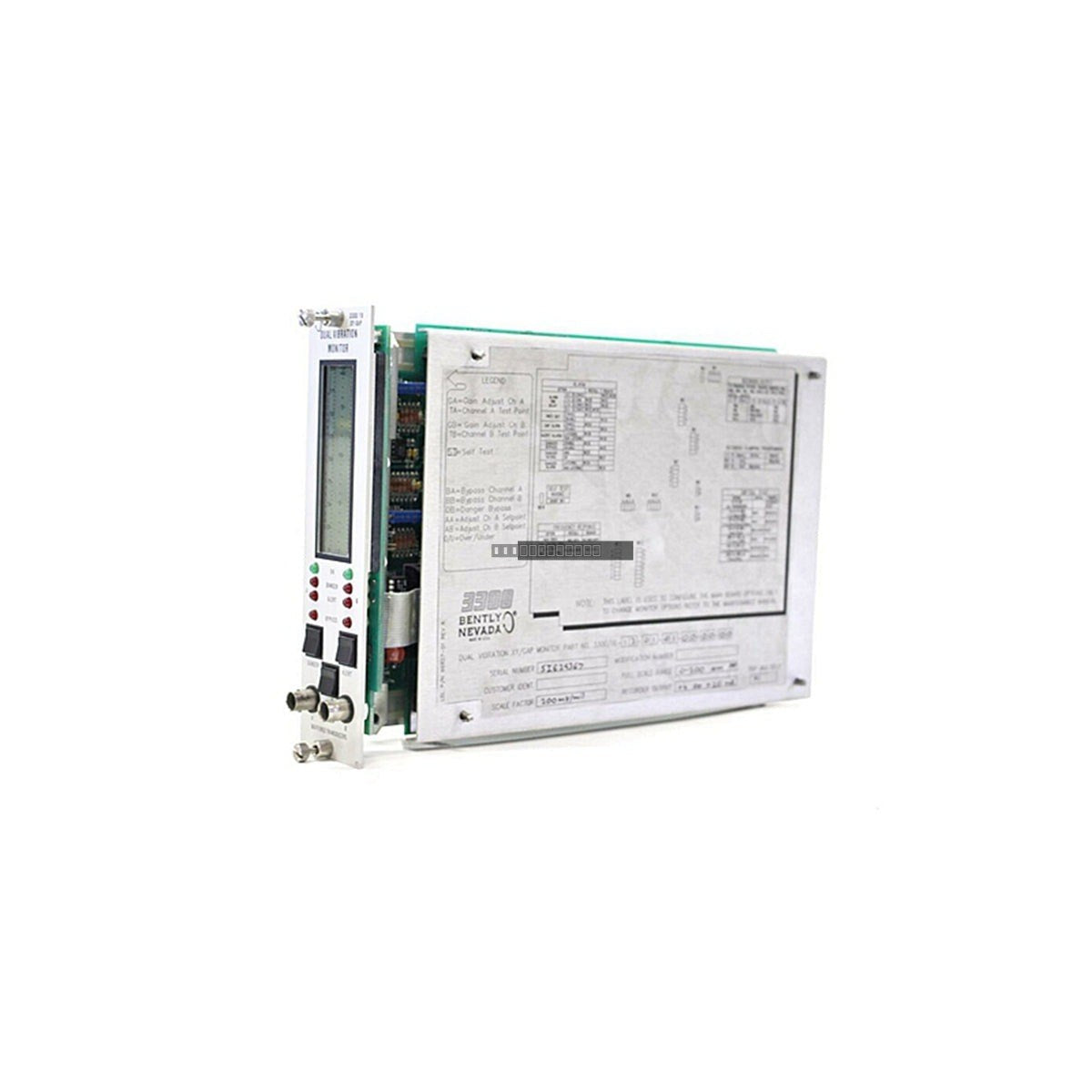

Bently Nevada 3300/16-13-01-01-00-00-00 XY/Gap Dual Vibration Monitor

Availability: 3 left in stock

DescriptionThe Bently Nevada 3300/16-13-01-01-00-00-00 is a specialized dual-channel monitor engineered for the 3300 rack system. It is designed to provide...

SKU: 3300/16-13-01-01-00-00-00

Manufacturer: Bently Nevada
Product No.: 3300/16-13-01-01-00-00-00
Product Type: Vibration Monitor Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Bently Nevada 3300/16-13-01-01-00-00-00 is a specialized dual-channel monitor engineered for the 3300 rack system. It is designed to provide simultaneous monitoring of radial shaft vibration and probe gap voltage. By continuously tracking these critical machinery parameters, the module assists in the protection of high-value rotating assets such as industrial turbines, centrifugal compressors, and pumps. It provides real-time data processing to trigger alarm setpoints, ensuring early detection of mechanical anomalies.

Features

Dual-channel input architecture for simultaneous XY and Gap monitoring.
Direct integration with Bently Nevada Proximitor sensors for high-precision displacement sensing.
Integrated alarm logic for both Alert and Danger operational states.
Front-panel status LEDs providing clear visual feedback for OK, Bypass, Alert, and Danger conditions.
Standardized output signals including 4-20 mA and voltage-based outputs for external system integration.

Applications

This monitor is primarily utilized in critical rotating machinery protection systems. It is essential for facilities requiring continuous displacement and vibration analysis to support predictive maintenance programs and automated machinery shutdown sequences.

Technical Specifications

Model	3300/16-13-01-01-00-00-00
Brand	Bently Nevada
Series	3300
Operating Temperature	0 to 60 deg C
Power Consumption	Approx. 1.5 W
Sensitivity	200 mV/mil (8 V/mm) or 100 mV/mil (4 V/mm)
Signal Accuracy	±0.33% typical (±1% max at 25 deg C)
Output Signals	4 to 20 mA, 1 to 5 VDC, 0 to -10 VDC

Installation Guidelines

Ensure the 3300 rack power is disconnected before installing or removing the module.
Handle the module using proper ESD (Electrostatic Discharge) mitigation techniques to prevent component damage.
Verify that the slot position in the rack is configured correctly for the 3300/16 module type.
Ensure all signal wiring from the Proximitor sensors is shielded and routed away from high-voltage or high-EMI sources to maintain signal integrity.
Confirm that the module is fully seated in the rack backplane to ensure proper electrical contact.

FAQ

Does this module require external power?

The 3300/16 module draws its operating power directly from the 3300 rack backplane once properly seated.

What is the primary function of the XY/Gap configuration?

The XY configuration allows for the monitoring of two radial vibration channels, while the Gap function provides a continuous reading of the physical distance between the probe tip and the shaft, which is critical for verifying transducer health and shaft position.
