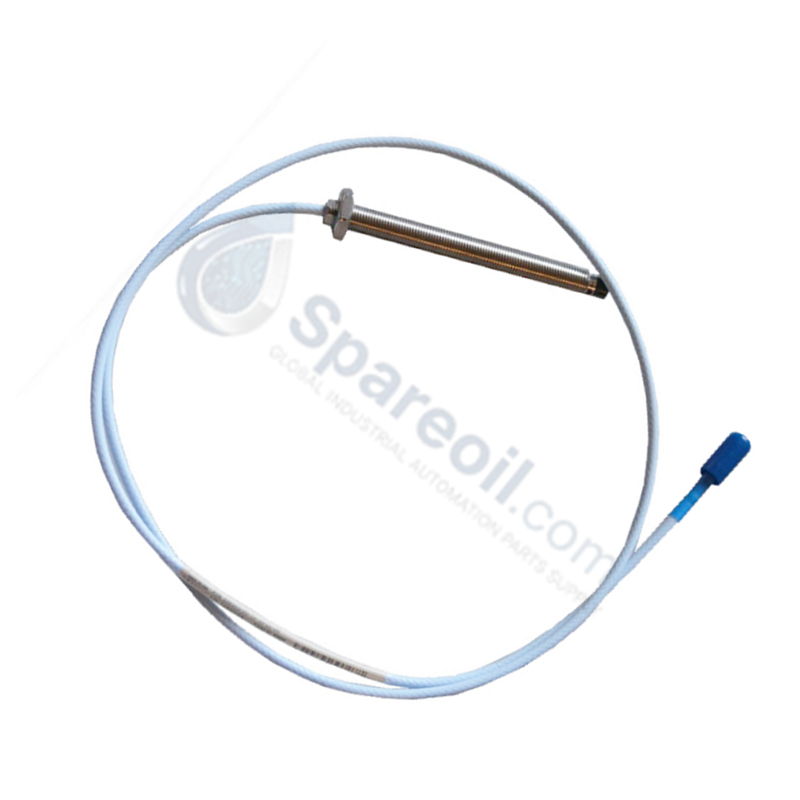

The Bently Nevada 330905-00-20-10-02-00, also cataloged as the 330905 Proximity Sensors, operates as a dedicated hardware component for non-contact shaft displacement and dynamic vibration measurement within 3300 NSv Machinery Monitoring System platforms. Engineered with an unarmored M10 x 1 AISI 304 stainless steel case, this transducer integrates a 0 mm unthreaded length, a 200 mm overall case length, and a 1.0 m (39 in) FEP-insulated coaxial cable terminated with a miniature ClickLoc connector.
Suffix Breakdown & Model Matrix
| Option Code | Parameter Designation | Selected Configuration |
|---|---|---|
| 330905 | Base Model | 3300 NSv Probe, M10 x 1 thread, without armor |
| -00 | Unthreaded Length | 0 mm |
| -20 | Overall Case Length | 200 mm |
| -10 | Total Length Option | 1.0 m (39 in) |
| -02 | Connector & Cable Type | Miniature coaxial ClickLoc connector, standard cable |
| -00 | Agency Approval Option | Not required |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 330905-00-20-10-02-00 |
| Brand | Bently Nevada |
| Origin | United States |
| Weight | 1.5 kg |
| Dimensions | M10 x 1 thread profile (200 mm overall case length) |
| Operating Temp | -34 deg C to +177 deg C (-30 deg F to +351 deg F) |
| Power Consumption | Passive transducer (Powered via Proximitor Sensor) |
| Storage Temp | -51 deg C to +177 deg C (-60 deg F to +351 deg F) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 304 stainless steel (SST) |
| Cable Specification | 75 Ohm coaxial, fluoroethylene propylene (FEP) insulated |
| Connector Type | Miniature coaxial ClickLoc connector |
| Agency Approvals | Not required (Option 00) |
Mechanical Monitoring & TSI Performance
The 330905-00-20-10-02-00 probe functions through calibrated eddy-current probe scaling to monitor high-frequency rotor dynamics on small-diameter shafts and confined counterbores. Output voltage varies linearly relative to the proximity between the PPS tip and the conductive target area. During field alignment, executing gap voltage validation targeting -10 VDC positions the transducer in the center of its linear output range, providing optimal cross-talk suppression and signal integrity across adjacent monitoring channels.
Frequently Asked Questions
Q: What gap voltage reading confirms correct mechanical installation for the 330905 probe?
A: Mechanical thread position must be adjusted until the output voltage measured at the connected 3300 NSv Proximitor Sensor reads -10 VDC, centering the sensor in its calibrated linear operating region.
Q: Can the 1.0 m probe cable be connected directly to cabinet terminal strips?
A: No. The integrated 1.0 m (39 in) FEP coaxial cable must couple via its ClickLoc connector to a matching 3300 NSv extension cable to establish the complete 5.0 m or 7.0 m tuned system length.
Q: What tip construction is used for high-temperature fluid resistance?
A: The probe tip is constructed from molded Polyphenylene sulfide (PPS), encapsulating the internal coil to withstand temperatures from -34 deg C to +177 deg C.
Field Installation Guidelines
- Thread the M10 x 1 stainless steel casing into the tapped mounting port by hand to prevent cross-threading before applying final torque.
- Ensure a minimum engagement of 5 full threads within the port to maintain mechanical stability under high vibration.
- Route the unarmored FEP coaxial cable through protective conduit, maintaining minimum bend radii and keeping distance from high-voltage AC cables.
- Clean the coaxial ClickLoc connector contact surfaces to eliminate dirt and moisture prior to twisting and latching the bayonet lock.
