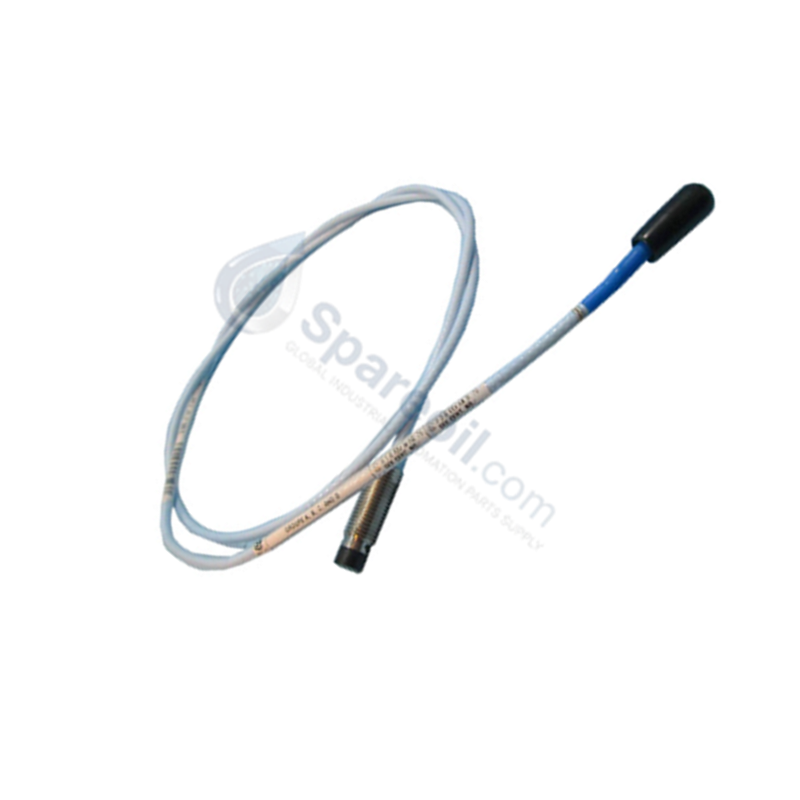

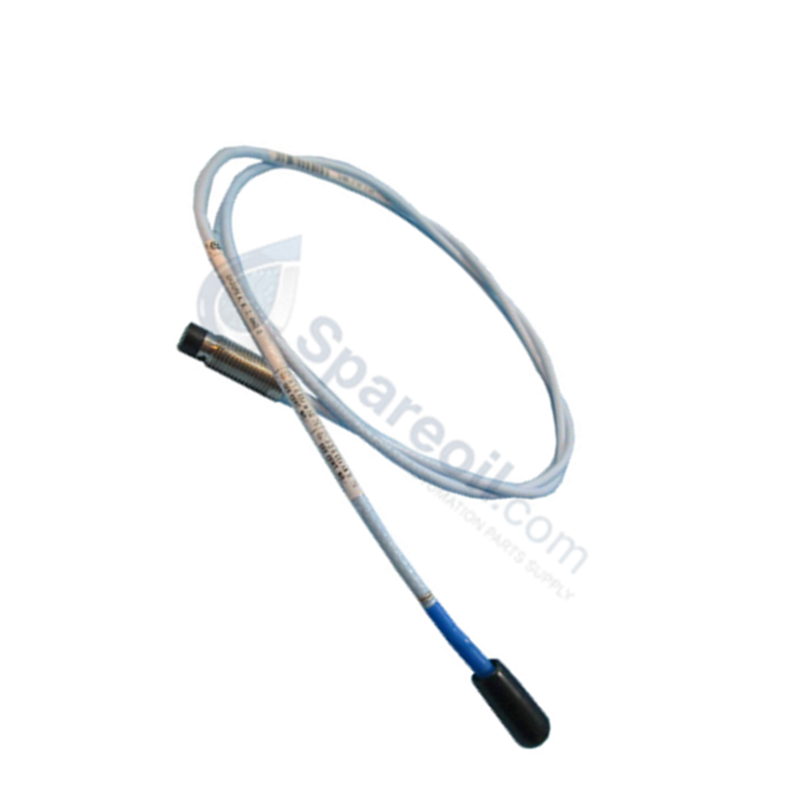

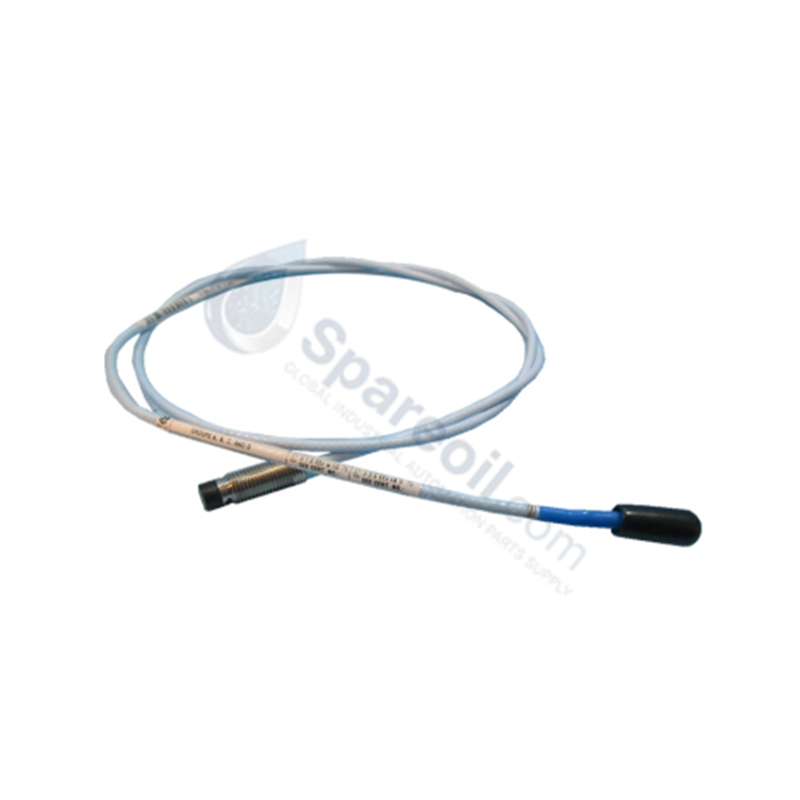

The Bently Nevada 330103-00-06-50-02-00, also cataloged as the 330103 Proximity Transducer System, operates as a dedicated hardware component for eddy-current displacement and vibration sensing within 3300 XL Proximity Transducer System platforms.

Suffix Breakdown & Model Matrix

Option Slot Configured Code Technical Definition
Unthreaded Length Option 00 0 mm
Overall Case Length Option 06 60 mm
Total Length Option 50 5.0 meters (16.4 feet)
Connector and Cable-Type Option 02 Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option 00 Not required

Hardware Specifications

Parameter Specification
Model 330103-00-06-50-02-00
Brand Bently Nevada
Origin U.S.A
Probe Tip Diameter 8 mm
Unthreaded Length 0 mm
Overall Case Length 60 mm
Total Length 5.0 meters (16.4 feet)
Connector Type Miniature coaxial ClickLoc connector
Cable Type Standard cable
Operating Temp -51 to +177 deg C
Power Consumption Passive hardware element driven by Proximitor Sensor
Dimensions M10 x 1 threaded case
Weight 1.0 kg (Shipping weight)

Cross-Talk Suppression and Eddy-Current Probe Scaling

The 3300 XL 8 mm proximity probe requires defined spatial conditions to maintain precise eddy-current probe scaling and linearity metrics. When multiple sensors are positioned in close physical configuration along a machine casing, magnetic field coupling can manifest as electronic noise. To enforce adequate cross-talk suppression, physical installation clearances must follow strict mechanical separation vectors. Proper spacing preserves the target gap voltage validation metrics (-10 VDC targets at the center of the linear field) and ensures uncorrupted processing of high-frequency waveforms reflecting complex rotor dynamics.

Frequently Asked Questions

Q: How does the 5.0 meters total cable length configuration dictate the choice of external hardware?

A: The 330103-00-06-50-02-00 probe contains a 5.0 meters physical length that must match a 5.0 meters system Proximitor Sensor without intermediate extension cables. Intermixing 5.0 meters probes with 9.0 meters Proximitor hardware compromises the calibrated system impedance and alters the target eddy-current probe scaling metrics.

Q: What physical validation method evaluates if a probe has been influenced by poor cross-talk suppression?

A: Connect an oscilloscope or multi-meter to the driver terminal outputs. If cross-talk suppression is inadequate due to improper mounting distance between adjacent 8 mm probe tips, the steady-state gap voltage validation will reveal a high-frequency voltage oscillation or a DC bias offset outside nominal tolerances.

Field Installation Guidelines

  • Mechanical Torque Limits: Thread the M10 x 1 probe body into the indicator bracket or housing sleeve carefully. Do not exceed standard engineering torque tolerances for 8 mm hardware to minimize internal stress on the sensing coil.
  • Coaxial Connector Moisture Protection: Ensure the miniature coaxial ClickLoc connection point is completely free of oil, water, and debris. Seal the connection using self-fusing electrical insulation tape or specialized environmental boots prior to final casing closure.
  • Cable Bend Radius Constraints: Maintain a structural bend radius minimum for the standard coaxial cable during routing to prevent internal conductor damage or degradation of the RF shielding layers.
  • Target Area Clearance: Verify that the target area on the rotating shaft extends beyond the 8 mm probe tip diameter to prevent fringing of the magnetic field, which degrades overall rotor dynamics measurement linearity.
