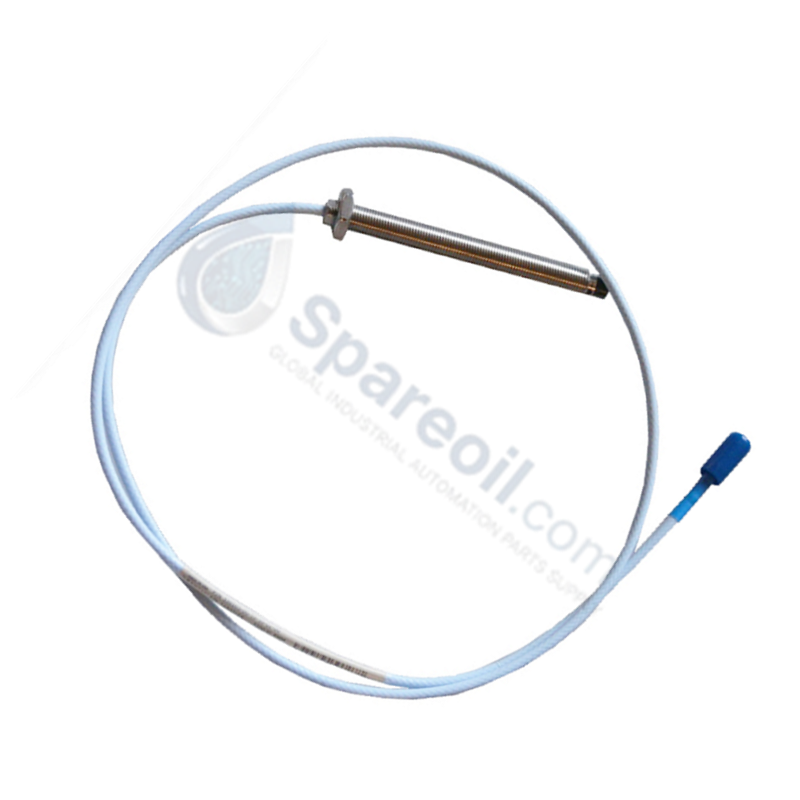

The Bently Nevada 330103-00-15-10-02-00, also cataloged as the 330103 Proximity Probe, operates as a dedicated hardware component for proximity and vibration sensing within 3300 XL machinery monitoring platforms. The hardware executing the physical displacement verification translates mechanical rotor dynamics into proportional voltage deviations via high-frequency eddy-current probe scaling circuits.
Suffix Breakdown & Model Matrix
| Suffix Code | Option Description | Technical Parameter |
|---|---|---|
| 330103 | Base Model | 8 mm Proximity Probe |
| -00 | Unthreaded Length Option | 0 mm |
| -12 | Overall Case Length Option | 150 mm |
| -10 | Total Length Option | 1.0 metre (3.3 feet) |
| -02 | Connector and Cable Type Option | Miniature coaxial ClickLoc connector, standard cable |
| -00 | Agency Approval Option | Not required |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 330103-00-15-10-02-00 |
| Brand | Bently Nevada |
| Origin | USA |
| Weight | 0.15 kg nominal |
| Dimensions | 8 mm tip diameter, 150 mm case length |
| Operating Temp | -51 deg C to +177 deg C |
| Power Consumption | Driven by Proximitor Sensor (Typically 12 mA at -24 VDC) |
| Nominal Scale Factor | 7.87 V/mm (200 mV/mil) with standard target |
Gap Voltage Validation and Rotor Dynamics
Physical implementation of the 8 mm eddy-current probe requires strict gap voltage validation to secure accurate baseline metrics. During mechanical positioning, installers must calibrate the physical distance to achieve a -10 VDC target voltage at the center of the linear calibration spectrum. Maintaining this static electrical offset ensures structural loop response remains constant across sudden rotor dynamics transitions, suppressing peripheral signal clipping during high-vibration operational transients.
Frequently Asked Questions
Q: What technical fault occurs if the physical probe cable is spliced or altered in length?
A: Altering the 1.0 metre cable length modifies total loop capacitance and impedance parameters. This shifts the internal eddy-current probe scaling configurations, introducing critical linearity errors across the monitoring range.
Q: How does cross-talk manifest between multiple 8 mm probes installed in close proximity?
A: When multiple units are mounted below recommended physical clearances, mutual electromagnetic fields overlap. This creates cross-talk modulation, inducing false high-frequency components into the raw vibration monitoring signal.
Field Installation Guidelines
Mount the probe housing into a heavy-duty bracket to isolate the internal assembly from secondary structural resonance. Ensure peripheral clearance rules are satisfied to eliminate unwanted tracking deviations from surrounding conductive structural components. Rotate the probe depth within the mounting port until the dynamic gap voltage registers exactly -10 VDC on a digital voltmeter. Fasten the retention locknuts to nominal torque tolerances to prevent mechanical slipping under high thermal gradient cycles. Secure the miniature coaxial ClickLoc connection interface inside a dedicated conduit box to block moisture entry.
