330103-05-15-10-02-00 Bently Nevada Proximity Probe Datasheet & Technical Manual

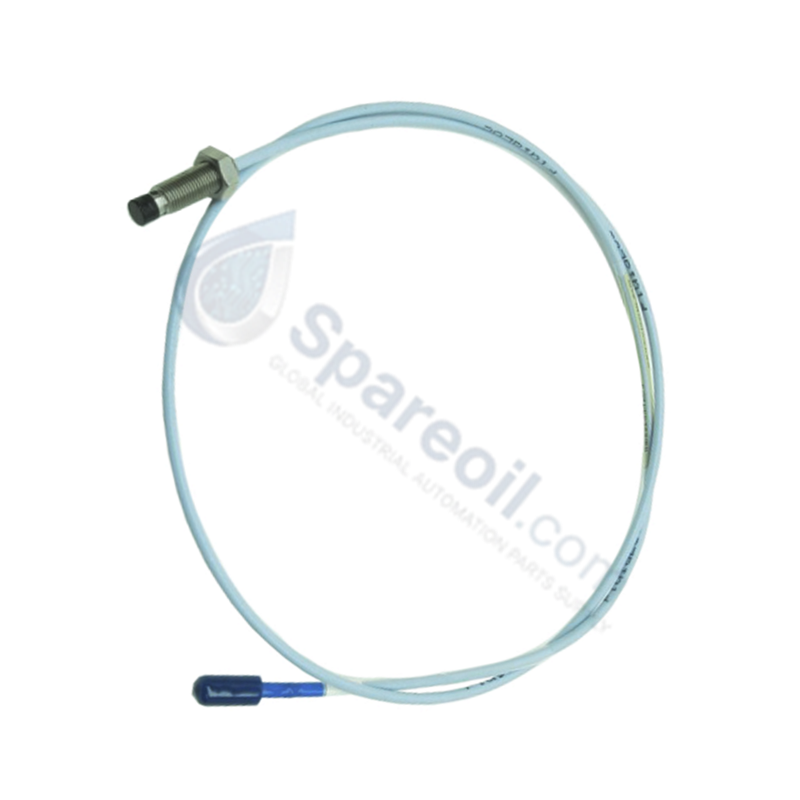

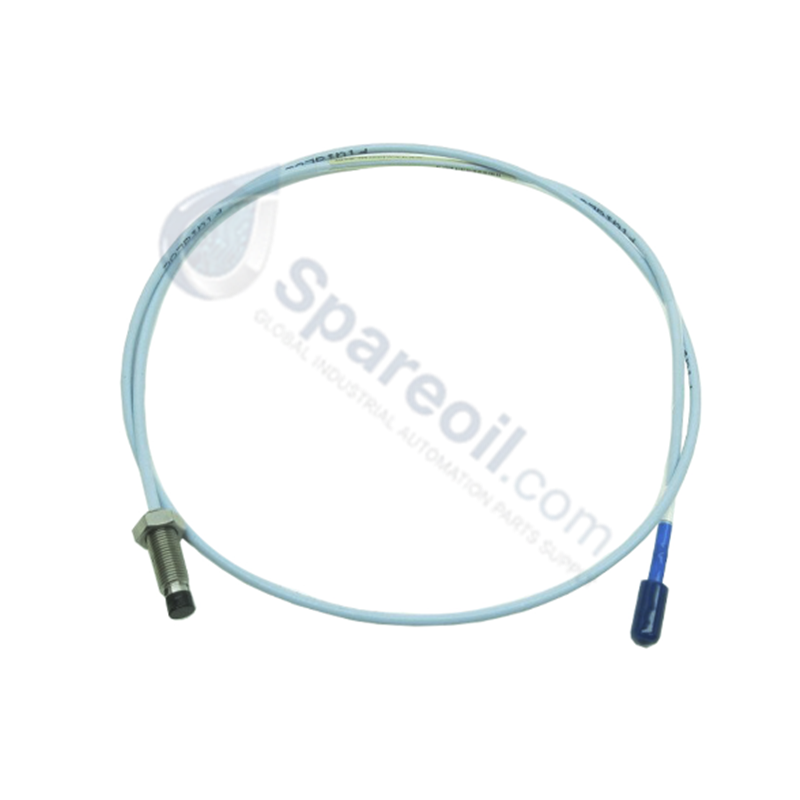

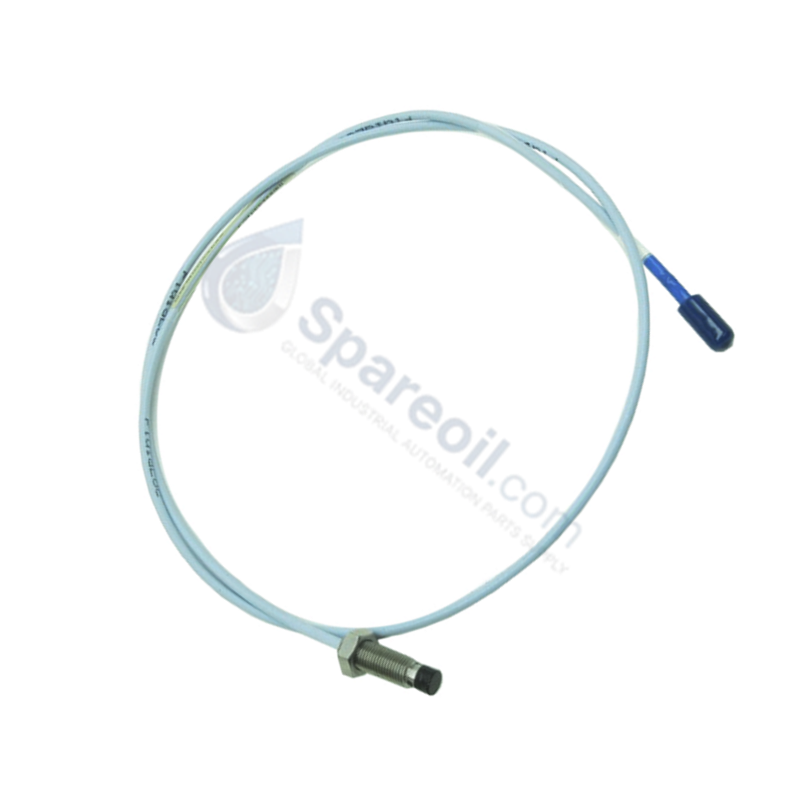

Bently Nevada 330103-05-15-10-02-00 3300 XL 8 mm Proximity Probe

Bently Nevada 330103-05-15-10-02-00 3300 XL 8 mm Proximity Probe

Availability: 10 left in stock

Configured for proximity and vibration sensing in 3300 XL machinery monitoring platforms, the Bently Nevada 330103-05-15-10-02-00 (330103 Proximity Probe) provides...

SKU: 330103-05-15-10-02-00

Manufacturer: Bently Nevada
Product No.: 330103-05-15-10-02-00
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Configured for proximity and vibration sensing in 3300 XL machinery monitoring platforms, the Bently Nevada 330103-05-15-10-02-00 (330103 Proximity Probe) provides direct physical/electrical execution. The hardware translates physical shaft displacement into proportional voltage modifications via a high-frequency eddy-current sensing circuit.

Suffix Breakdown & Model Matrix

Suffix Code	Option Description	Technical Parameter
330103	Base Model	3300 XL 8 mm Proximity Probe
-05	Unthreaded Length Option	50 mm
-15	Overall Case Length Option	150 mm
-10	Total Length Option	1.0 metre (3.3 feet)
-02	Connector and Cable-Type Option	Miniature coaxial ClickLoc connector, standard cable
-00	Agency Approval Option	Not required

Hardware Specifications

Parameter	Specification
Model	330103-05-15-10-02-00
Brand	Bently Nevada
Origin	USA
Weight	0.15 kg nominal
Dimensions	8 mm probe tip diameter, 150 mm overall case length
Operating Temp	-51 deg C to +177 deg C nominal parameters
Power Consumption	Driven by external Proximitor Sensor loop
Interconnection Interface	Miniature coaxial ClickLoc connector

Gap Voltage Validation and Cross-Talk Suppression

Physical deployment of this 8 mm sensor requires precise gap voltage validation (-10 VDC targets) during static installation to establish optimal operation within the system's linear scaling range. Calibrating the hardware to this exact voltage baseline ensures accurate tracking of rapid rotor dynamics and target shaft displacement. Furthermore, when multiple probe assemblies are mounted in close proximity, structural positioning must strictly comply with minimum spacing rules to maintain cross-talk suppression and eliminate mutual electromagnetic interference between loop signals.

Frequently Asked Questions

Q: Can this proximity probe be modified or spliced in the field to extend cable reach?

A: No. Splicing or modifying the physical cable alters the calibrated impedance and loop capacitance, which causes errors in the eddy-current probe scaling and invalidates the output.

Q: Does replacing a probe require complete recalibration of the associated Proximitor Sensor?

A: No. The 3300 XL 8 mm proximity probes feature standard matching electrical profiles, allowing direct field replacement without a requirement for component re-matching.

Field Installation Guidelines

Thread the probe case into the dedicated mounting bracket, ensuring that the 8 mm tip maintains adequate clearance from adjacent conductive materials to prevent side-viewing interference. Monitor the electrical output via a digital voltmeter and adjust the insertion depth until the gap voltage reaches the standard -10 VDC baseline target. Secure the hardware using the secondary locknut to prevent physical movement caused by continuous machinery vibration. Connect the integrated cable to the extension lead using the ClickLoc coaxial interface, and ensure the entire junction is insulated inside a sealed, dry terminal enclosure.
