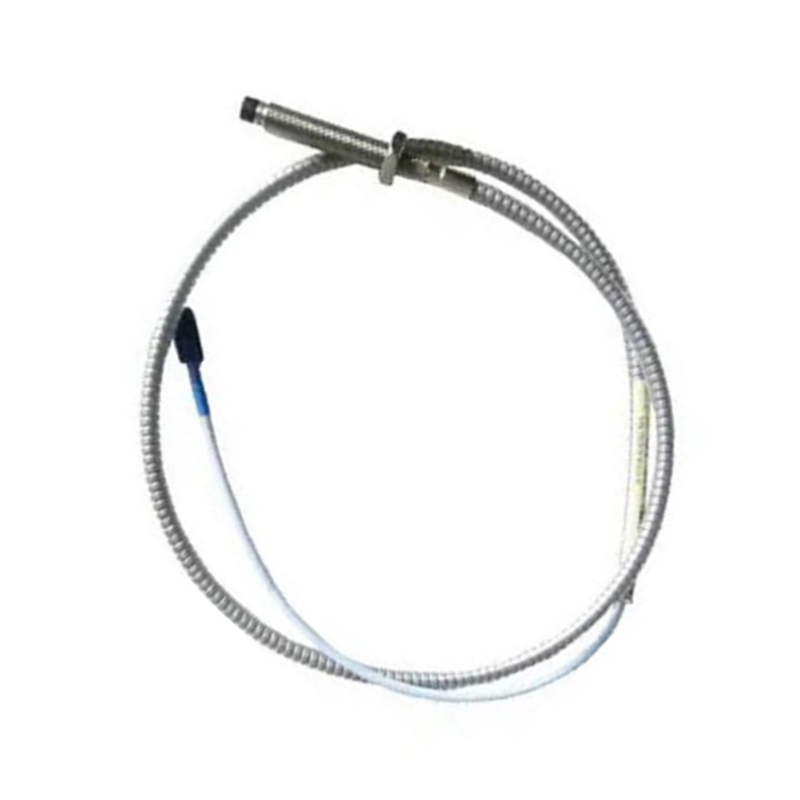

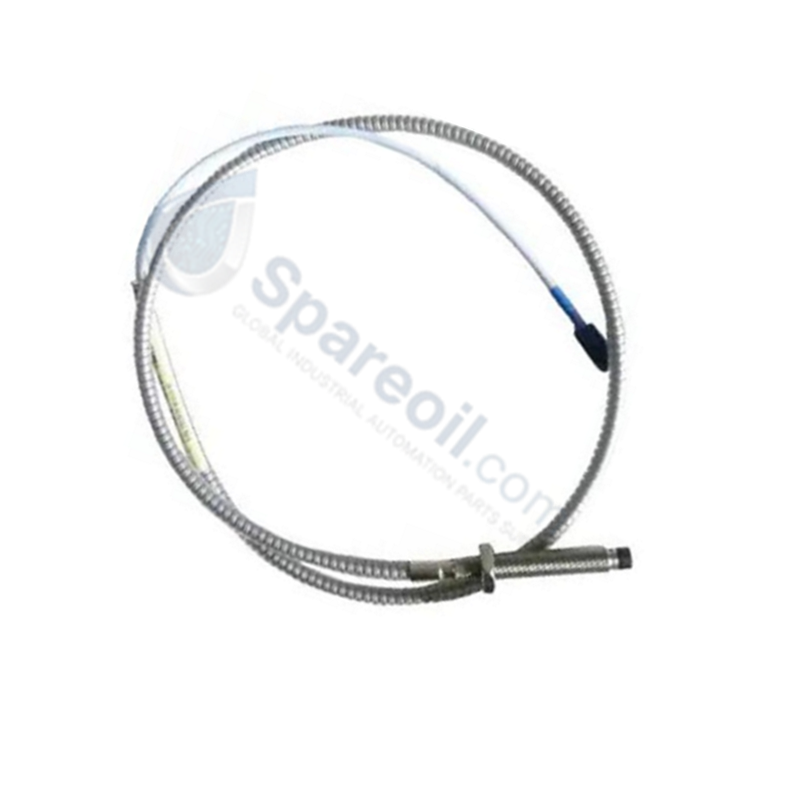

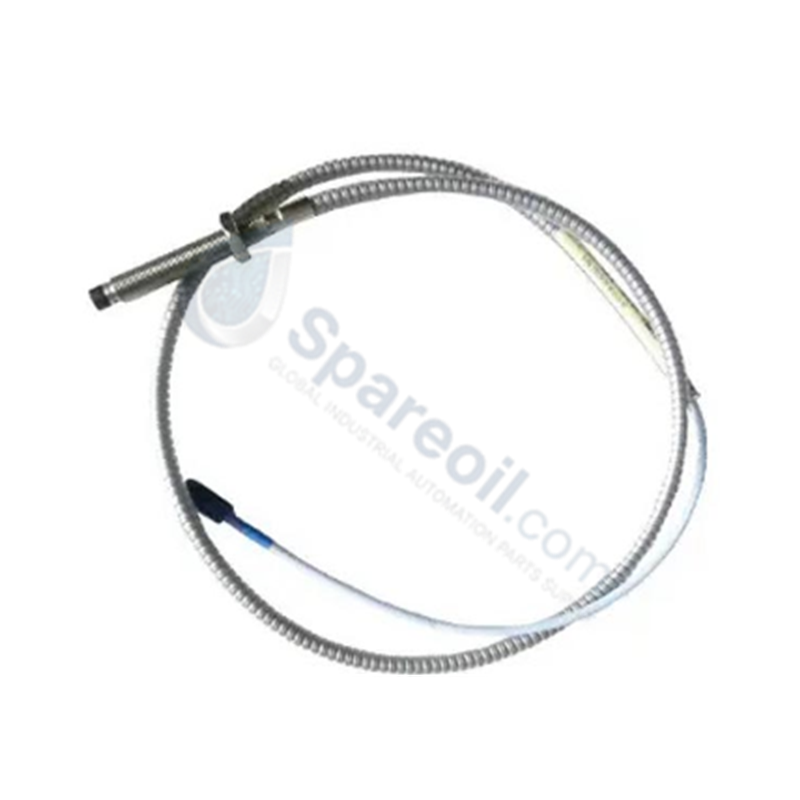

Configured for high-frequency eddy-current displacement sensing in 3300 XL Transducer System platforms, the Bently Nevada 330104-00-05-20-02-CN (330104 Proximity Sensors) provides direct physical/electrical execution. It projects an alternating radio frequency magnetic field through its tip to measure continuous non-contact vibration and axial position of rotating shafts.
Suffix Breakdown & Model Matrix
| Option Code | Designation | Parameter Value / Option Description |
|---|---|---|
| 330104 | Base Model | 3300 XL 8 mm Proximity Probe, M10 x 1 thread |
| -00 | Unthreaded Length Option | 0 mm |
| -05 | Overall Case Length Option | 50 mm |
| -20 | Total Length Option | 2.0 meters (6.6 feet) |
| -02 | Connector and Cable Type Option | Miniature coaxial ClickLoc connector, standard cable |
| -CN | Agency Approval Option | Country specific approvals (China) |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 330104-00-05-20-02-CN |
| Base Model | 330104 |
| Brand | Bently Nevada |
| Series | 3300 XL 8 mm |
| Product Type | Proximity Sensors |
| Origin | USA |
| Case Geometry & Threading | M10 x 1 thread, 50 mm overall case length, 0 mm unthreaded length |
| Total Cable Length | 2.0 meters (6.6 feet) |
| Cable & Connector Configuration | 75 ohm coaxial, standard cable with miniature coaxial ClickLoc connector |
| Agency Approval Option | Country specific approvals (-CN option) |
| Operating Temp | -51 to +177 deg C (Standard probe operational limits) |
| Power Consumption | Passive physical component (0 W) |
| Dimensions | Standard 8 mm probe tip diameter, 50 mm case length |
| Weight | 2 kg (Shipping Weight) |
Eddy-Current Probe Scaling & Rotor Dynamics
The 330104-00-05-20-02-CN probe provides precise 7.87 V/mm (200 mV/mil) eddy-current probe scaling when connected into a complete 3300 XL transducer system matched for a 2.0-meter total system configuration. The 75 ohm coaxial transmission line maintains low phase shift and cross-talk suppression across dynamic frequency bands. Physical setting of the probe face yields accurate gap voltage validation targeting -10 VDC at nominal shaft center position, ensuring linear response across peak-to-peak vibration excursions in critical rotor dynamics monitoring.
Frequently Asked Questions
Q: How does the -CN suffix differ from standard agency approval options?
A: The -CN option indicates country-specific certification compliance for Chinese regulatory standards, requiring specialized field notification documentation and field installation reference guidelines.
Q: What function does the ClickLoc connector perform on option -02?
A: The ClickLoc miniature coaxial connector incorporates a tactile locking mechanism that prevents connector loosening under high machine vibration, maintaining coaxial contact resistance stability.
Q: Can this 2.0-meter probe cable option be connected directly to a 5.0-meter Proximitor sensor?
A: No, probe total length must match the Proximitor sensor calibration (or be combined with an extension cable to equal the total system design length, such as pairing a 2.0-meter probe with a 3.0-meter extension cable for a 5.0-meter Proximitor).
Field Installation Guidelines
- Clean the M10 x 1 threaded mounting port to clear debris and metal shavings prior to probe threading.
- Screw the 50 mm case probe into the mounting location by hand. Connect the output lead to a calibrated meter to perform gap setting.
- Position the probe tip relative to the target shaft until reaching the -10 VDC target gap voltage baseline at physical center.
- Secure the probe mounting body with a locknut, tightening to the standard thread torque spec without applying rotational stress to the cable boot exit.
- Push the ClickLoc coaxial connector securely onto the matching extension cable connector until fully locked. Slide a protective rubber connector sleeve over the mated junction to prevent earth ground loop paths.
