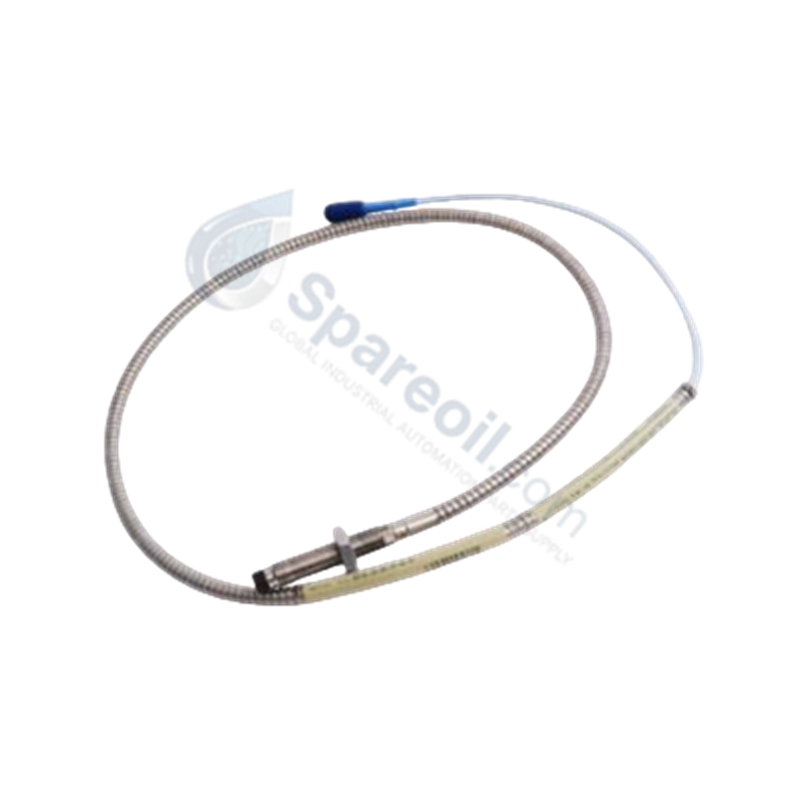

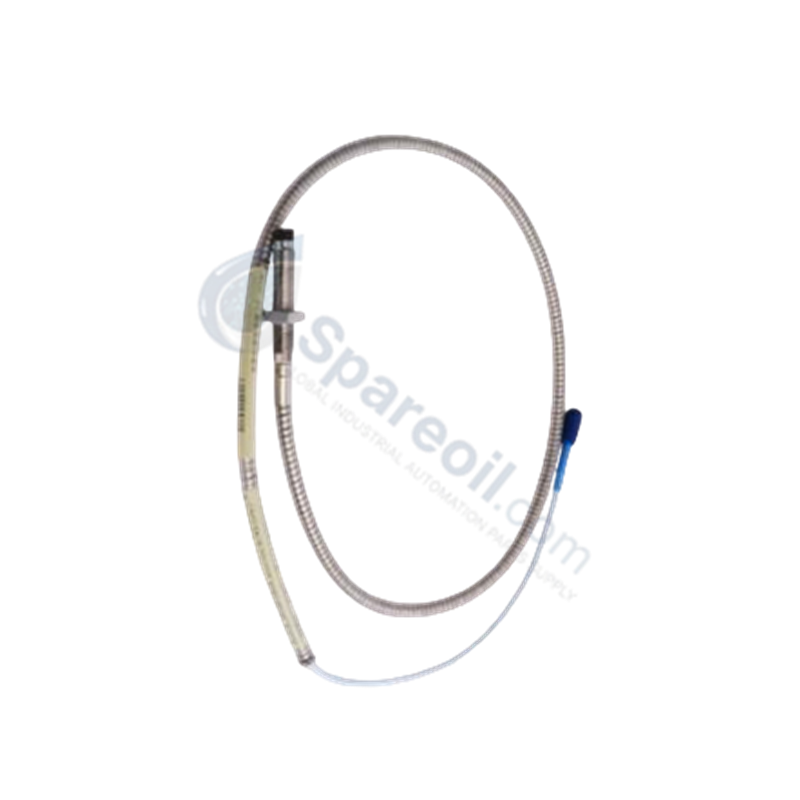

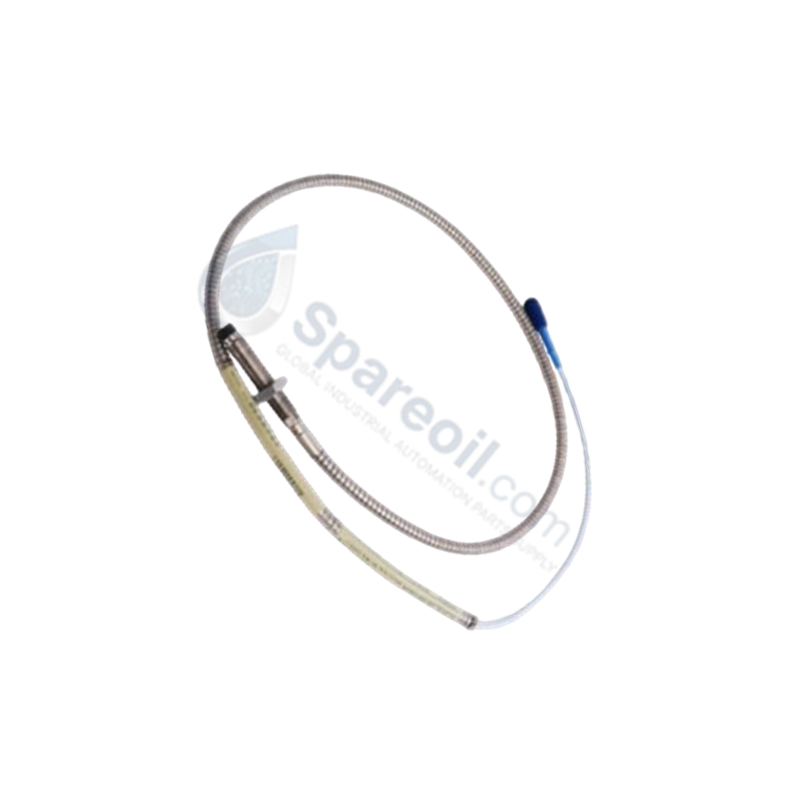

The Bently Nevada 330104-00-15-05-02-00 serves as the primary 330104 Proximity Probe utilized to execute non-contacting shaft displacement and vibration tracking across 3300 XL machinery monitoring platforms. The hardware registers proximity variations via eddy-current field interaction, establishing a raw analog measurement loop directly linked to an external proximitor module.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 330104-00-15-05-02-00 |
| Brand | Bently Nevada |
| Origin | U.S.A. |
| Weight | 0.32 kg (Net) / 2.0 kg (Shipping weight variant) |
| Dimensions | 150 mm overall case length, 0.5 m total length |
| Operating Temp | -51 deg C to +177 deg C |
| Power Consumption | Passive sensor (voltage driven by external proximitor) |
| Unthreaded Length | 0 mm |
| Overall Case Length | 150 mm |
| Total Length Option | 0.5 meter (1.6 feet) |
| Connector Type | Miniature coaxial ClickLoc connector with standard cable |
| Agency Approval Option | Not required |
Machinery Monitoring and TSI Characteristics
This proximity probe installation requires a baseline gap voltage validation to ensure the sensor tips operate within the linear mid-band calibration curve. Field configurations must achieve an optimal target reading near -10 VDC at the physical zero position of the machine shaft. To maintain clear signal fidelity across rotor dynamics channels, proper isolation must be maintained along the entire cable run. Technicians must enforce cross-talk suppression protocols when configuring adjacent channels by maintaining standardized structural spacing between parallel probe bodies to avoid high-frequency mutual induction error.
Frequently Asked Questions
Q: What are the installation limitations when pairing a 0.5-meter probe with an extension cable?
A: The 3300 XL series requires a tightly managed total electrical system length of either 5.0 meters or 9.0 meters. Since this specific module includes a 0.5-meter integrated coaxial cable, it must be paired with an extension cable of exactly 4.5 meters or 8.5 meters to prevent scale factor deviations.
Q: How should the ClickLoc connector be protected from liquid infiltration and environmental contaminants?
A: The miniature coaxial connection point must be insulated using clean, oil-resistant silicone connector protectors or high-temperature self-fusing tape. Direct contact between the uninsulated connector housing and terminal junction boxes or surrounding metallic conduits will result in measurement ground loops.
Field Installation Guidelines
- Mechanical Placement and Case Alignment: Thread the probe body into the pre-drilled brackets by hand to verify appropriate alignment. Do not exceed the nominal torque limits specified for the casing when tightening the primary locknut against the machine frame.
- Armored Shield Routing and Bending Boundaries: Run all integral cabling within protective conduit infrastructure where available. Maintain a strict minimum bend radius of 25.4 mm (1.0 inch) across all directional adjustments to protect the core coaxial dielectric layering from crushing forces.
- Shield Grounding and Isolation Integrity: Ensure the coaxial cable shield remains fully floating at the machine installation point. The entire loop shield must connect to the clean instrument ground solely at the proximitor terminal housing inside the local control panel enclosure.
