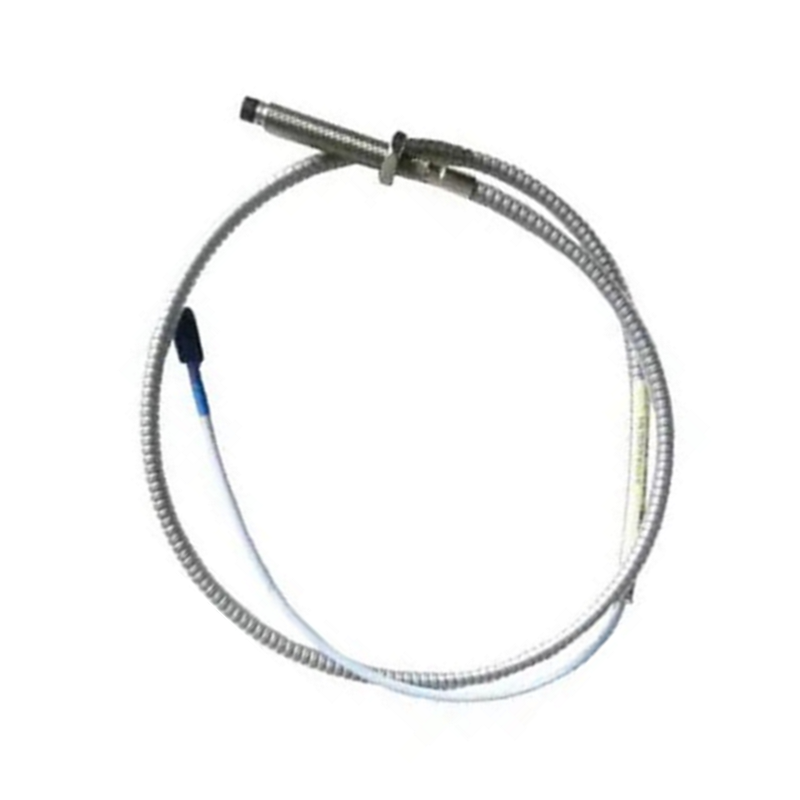

Configured for non-contacting shaft displacement tracking in machinery monitoring systems, the Bently Nevada 330104-00-15-10-02-05 (330104 Proximity Probe) provides direct physical/electrical execution. The instrument registers proximity variations via eddy-current field interaction, establishing a raw analog measurement loop directly linked to an external proximitor module.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 330104-00-15-10-02-05 |
| Brand | Bently Nevada |
| Dimensions | M10 x 1 thread, 30 mm overall case length, 1.0 m total length |
| Operating Temp | Standard 3300 XL limits apply (-51 deg C to +177 deg C typical) |
| Power Consumption | Passive sensor element (excitation provided by proximitor) |
| Thread Type | M10 x 1 thread |
| Overall Case Length | 30 mm |
| Total Length | 1.0 meter (3.3 feet) |
| Protective Armor | Integrated flexible armor casing |
| Connector Type | Miniature Coaxial ClickLoc Connector with Connector Protector |
| Cable Type | Standard cable |
| Agency Approval | Multiple approvals certified for safety and performance standards |
| Interchangeability | Fully interchangeable with matching series units and cabling |
Machinery Monitoring and TSI Characteristics
The transducer operates via eddy-current probe scaling to measure static and dynamic displacement parameters. Field loop testing requires precise gap voltage validation targeting a nominal -10 VDC output at the center of the calibrated linear range. This electrical baseline enables accurate tracking of rotor dynamics under fluctuating operational loads. To prevent magnetic interference between parallel sensor channels, proper cross-talk suppression distances must be established during spatial arrangement.
Frequently Asked Questions
Q: What total electrical loop length must be maintained with this 1.0 meter probe?
A: The 3300 XL 8 mm proximity sensor system mandates a total calibrated electrical length of either 5.0 meters or 9.0 meters. This 1.0 meter probe must be combined with a matching 4.0 meter or 8.0 meter extension cable to maintain the proper scale factor.
Q: Can this probe be swapped with other 3300 XL 8 mm components without manual loop tuning?
A: Yes. The probe elements and cabling are designed with complete physical and electrical interchangeability, allowing field replacement without manual adjustments to the underlying eddy-current scaling profile.
Field Installation Guidelines
- Mechanical Mount and Threading: Insert the M10 x 1 threaded probe body into the mounting bracket by hand to prevent cross-threading. Secure utilizing a standard locknut to prevent physical shifting caused by mechanical vibrations.
- Connector Shielding and Isolation: Ensure the ClickLoc connector protector is fully engaged. The coaxial connection must remain completely isolated from the machine housing and electrical conduits to avoid stray ground loop currents.
- Cable Routing Rules: Maintain the minimum physical bend radius of the armored cable during installation to avoid damaging the internal coaxial dielectric layers.
