Bently Nevada 330130-075-00-05 3300 XL Extension Cable

Bently Nevada 330130-075-00-05 3300 XL Standard Extension Cable

Availability: 0 left in stock

The Bently Nevada 330130-075-00-05 is a 7.5-meter (24.6 feet) 3300 XL standard extension cable designed for use within eddy current...

SKU: 330130-075-00-05

Manufacturer: Bently Nevada
Product No.: 330130-075-00-05
Product Type: Vibration Monitor Cable
Product Origin: USA
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

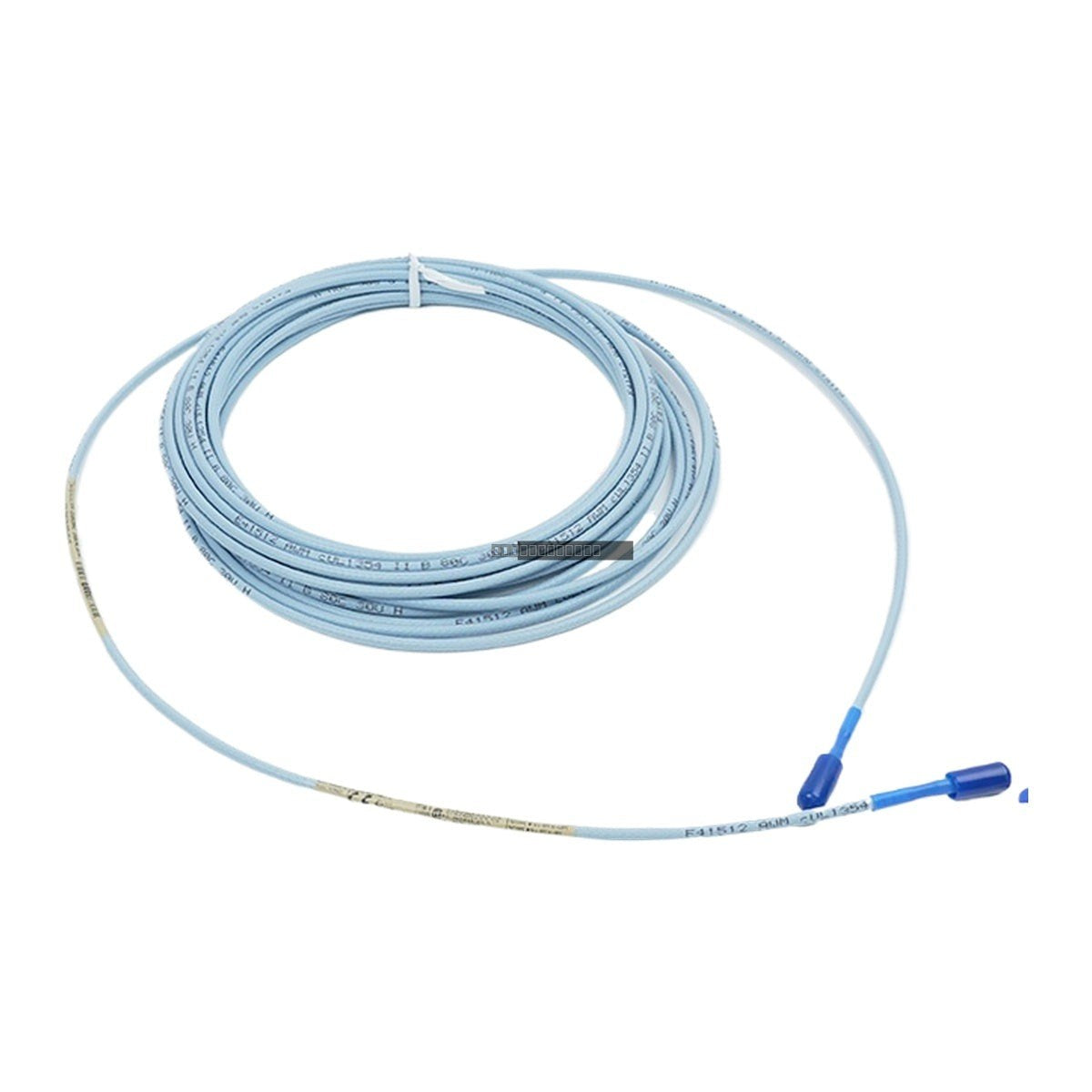

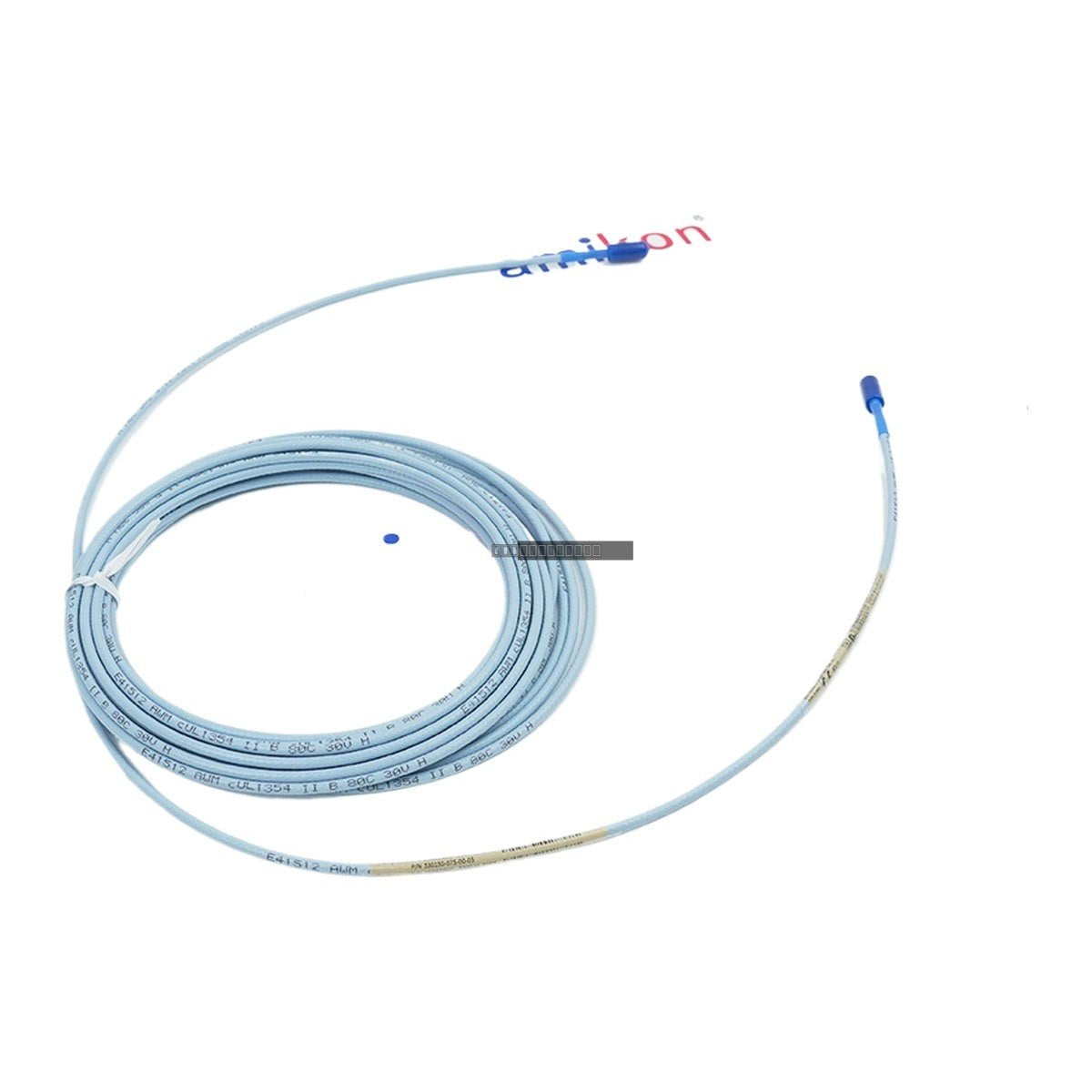

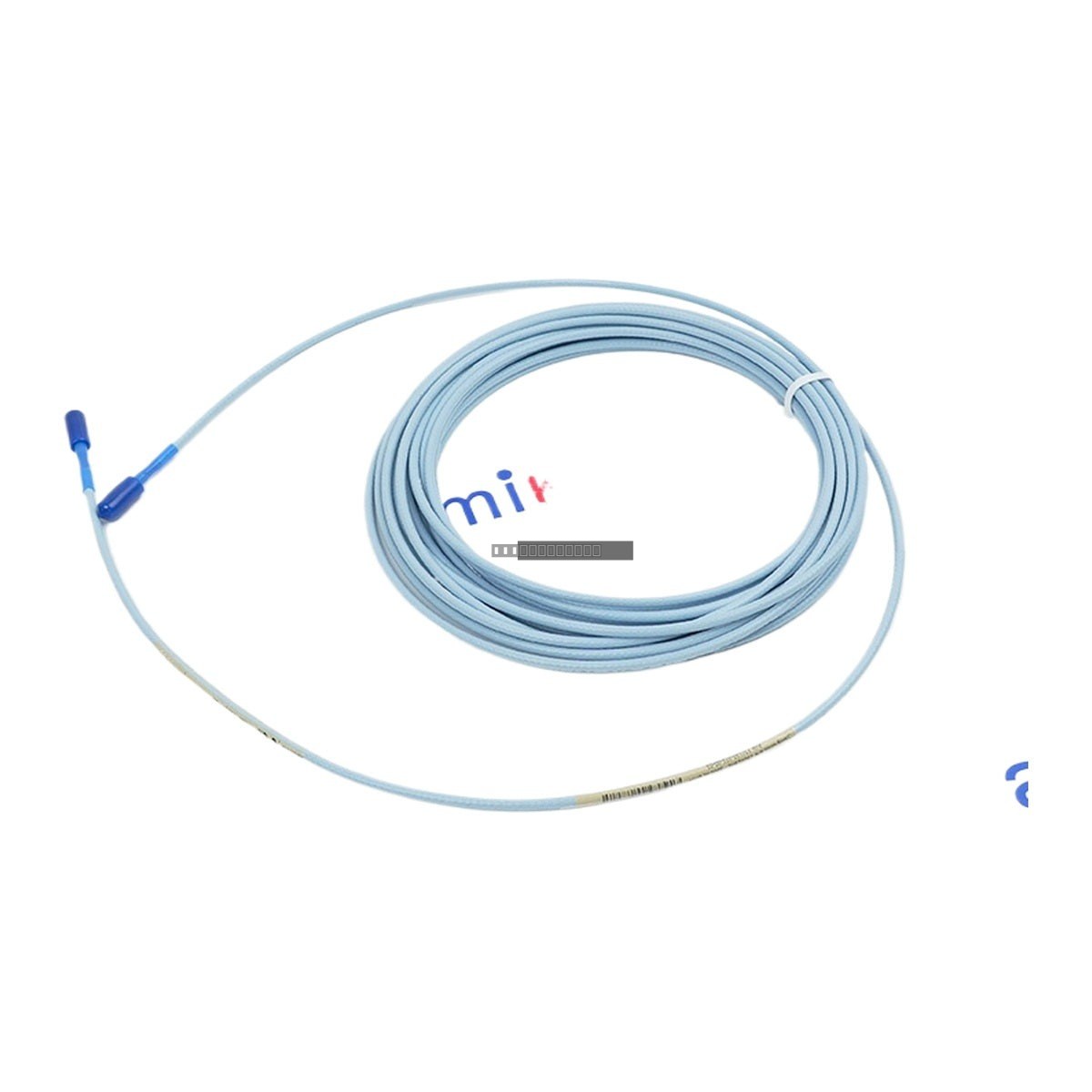

The Bently Nevada 330130-075-00-05 is a 7.5-meter (24.6 feet) 3300 XL standard extension cable designed for use within eddy current proximity transducer systems. This component facilitates the connection between a 3300 XL 8 mm probe and a Proximitor sensor, enabling precise vibration and displacement monitoring on rotating machinery.

Features

Designed for compression systems, speed measurements, and fluid-film bearing machines.
Supports complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for bench calibration.
Backwards compatible with other non-3300 XL series 5 mm and 8 mm transducer system components.
Includes standard cable protection and multiple agency approvals (CSA, ATEX, IECEx).

Applications

Critical rotating machinery monitoring including turbines, compressors, pumps, and motors.
Radial vibration, axial thrust, and Keyphasor speed signal acquisition.
Fluid-film bearing analysis in power generation and oil and gas industries.
Industrial asset management for early detection of mechanical wear or failure.

Technical Specifications

Model	330130-075-00-05
Cable Length	7.5 meters (24.6 feet)
Cable Type	75 Ohm triaxial, FEP insulated
Minimum Bend Radius	25.4 mm (1.0 in)
Connector Material	Gold-plated brass or beryllium copper
Max Connector Torque	0.565 N-m (5 in-lbf)
Approvals	CSA, ATEX, IECEx

Installation Guidelines

Ensure a minimum cable bend radius of 25.4 mm (1.0 in) during installation to prevent signal degradation.
Maintain physical separation from high-voltage lines to minimize electromagnetic interference (EMI).
Use 3-conductor shielded triad cable for field wiring between the Proximitor sensor and the monitoring system.
Ensure all connectors are clean and tightened to the specified torque of 0.565 N-m.
Verify system compatibility; while this cable is interchangeable, ensure the total system length matches the calibration requirements of the Proximitor sensor.

FAQs

What is the 330130-075-00-05?

It is a 7.5-meter 3300 XL 8 mm standard extension cable used to connect a proximity probe to a Proximitor sensor in vibration monitoring systems.

Does this cable require calibration?

No, the 3300 XL system is designed for complete component interchangeability, meaning individual probes, cables, and sensors do not require matching or bench calibration.

What do the order codes represent?

The -075 specifies the 7.5-meter length, -00 indicates standard cable protection (no armor), and -05 denotes the inclusion of CSA, ATEX, and IECEx agency approvals.
