330130-080-00-CN Bently Nevada Extension Cable

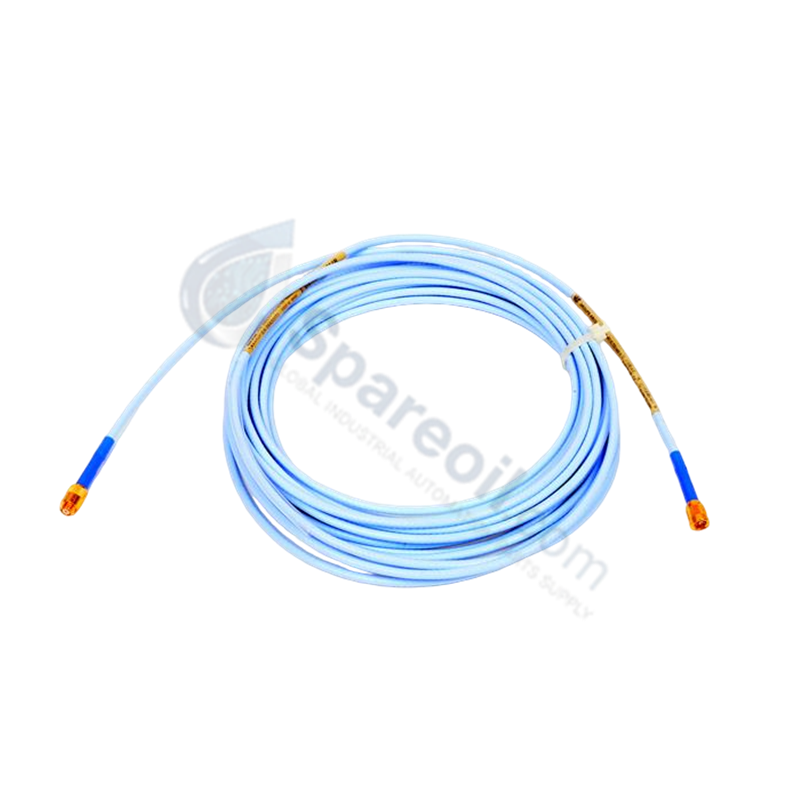

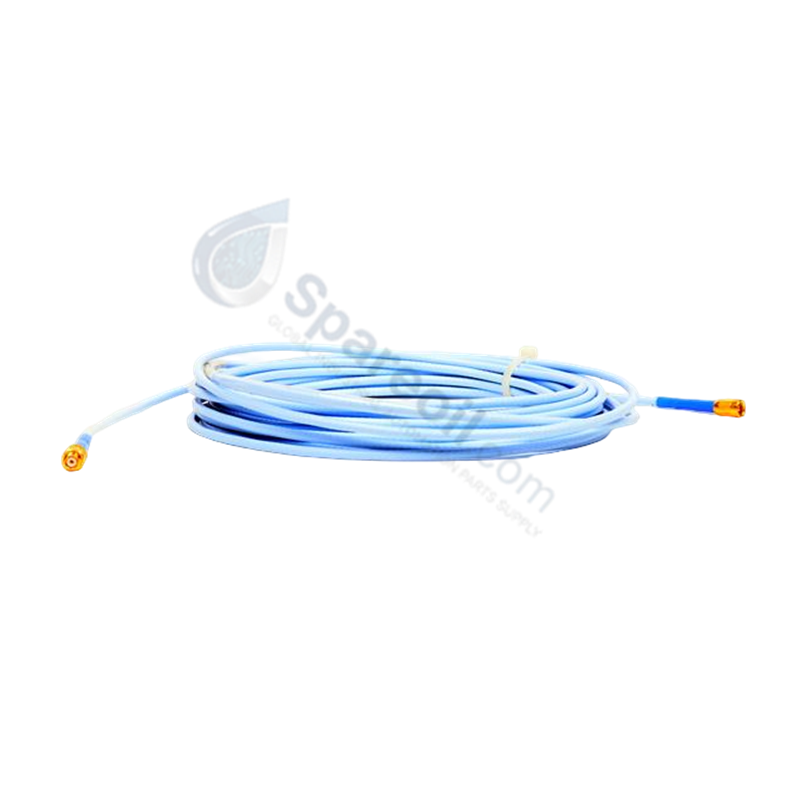

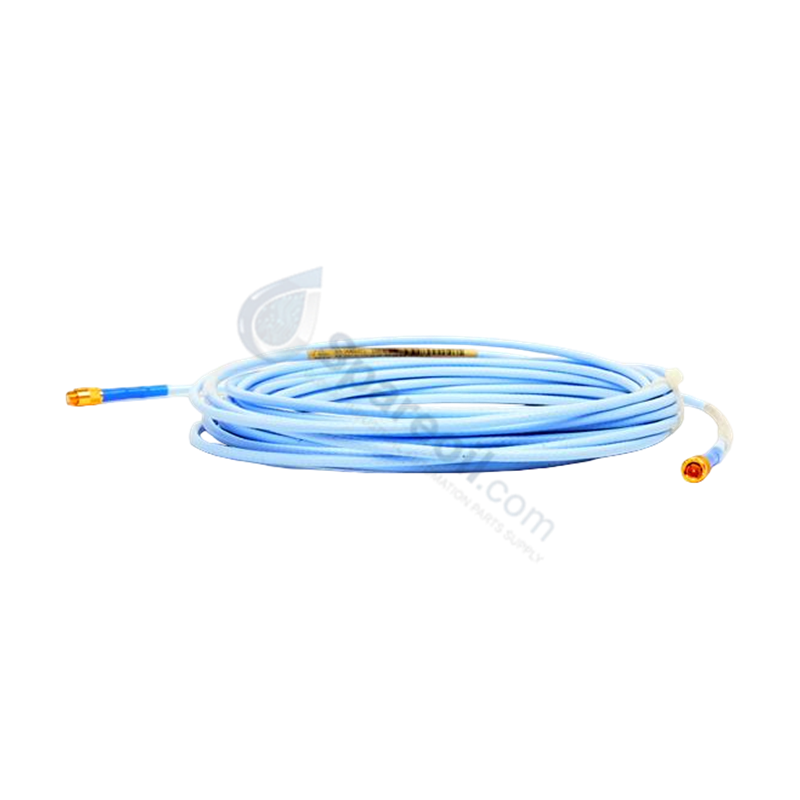

Bently Nevada 330130-080-00-CN 3300 XL Series Extension Cable

Bently Nevada 330130-080-00-CN 3300 XL Series Extension Cable

Availability: 10 left in stock

The Bently Nevada 330130-080-00-CN, also cataloged as the 330130 Extension Cable, operates as a dedicated hardware component for RF signal...

SKU: 330130-080-00-CN

Manufacturer: Bently Nevada
Product No.: 330130-080-00-CN
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 272g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Bently Nevada 330130-080-00-CN, also cataloged as the 330130 Extension Cable, operates as a dedicated hardware component for RF signal transmission within 3300 XL Proximitor Sensor networks. It functions as the calibrated low-attenuation physical pathway linking a proximity probe to a remote transducer module, maintaining consistent capacitance parameters to prevent analog measurement loop distortion.

Suffix Breakdown & Model Matrix

330130 - Base Model: 3300 XL Standard Extension Cable
-080 - Cable Length Option: 8.0 metres (26.2 feet)
-00 - Connector Protector and Cable Option: Standard cable (non-armored)
-CN - Agency Approval Option: Country-specific approvals (China)

Hardware Specifications

Parameter	Specification
Model	330130-080-00-CN
Brand	Bently Nevada
Origin	United States
Weight	0.272 kg net (Shipping weight 3.0 kg)
Dimensions	8.0 m nominal cable length (75 ohm triaxial geometry)
Operating Temp	-51 to +177 deg C
Power Consumption	0.0 W (Passive component)
Cable Material	Fluoroethylene propylene (FEP) insulated
Nominal Capacitance	69.9 pF/m (21.3 pF/ft) typical
Minimum Bend Radius	25.4 mm (1.0 in)

Eddy-Current Probe Scaling & Gap Voltage Validation

The physical geometry and integrated FEP insulation layers of the 330130-080-00-CN extension cable are designed to stabilize overall eddy-current probe scaling across the 8.0 m transmission length. By controlling internal capacitive and inductive parameters, the cable mitigates high-frequency signal degradation during continuous rotor dynamics monitoring. This electrical consistency enables precise gap voltage validation back to target -10 VDC operational baselines, ensuring stable signal integrity at the remote Proximitor interface.

Frequently Asked Questions

Q: How does modifying the physical length of the 330130-080-00-CN cable impact system performance?

A: Trimming or splicing this cable alters its total nominal capacitance and electrical length. Because the Proximitor sensor relies on a tuned 5.0 m or 9.0 m total circuit loop, changing the length shifts the calibrated linear scale factor and invalidates displacement readouts.

Q: What are the installation restrictions regarding the standard non-armored (-00) option?

A: The non-armored option lacks native resistance to external mechanical compression or abrasions. When routed across exposed infrastructure or high-vibration zones, it must be run inside a grounded metallic conduit to preserve the structural uniformity of the triaxial core.

Field Installation Guidelines

Confirm that the combined physical length of the extension cable and the target proximity probe matches the fixed 5.0 m or 9.0 m configuration specified on the Proximitor label.
Maintain a minimum static bend radius of 25.4 mm during layout execution to prevent permanent structural deformation of the inner dielectric and shielding layers.
Cover all subminiature coaxial connector joints using insulation sleeves or specialized self-fusing tape to prevent ground loops caused by physical contact with adjacent structures.
Run non-armored transducer cabling through dedicated low-voltage instrumentation channels to minimize noise from adjacent power distribution links.
