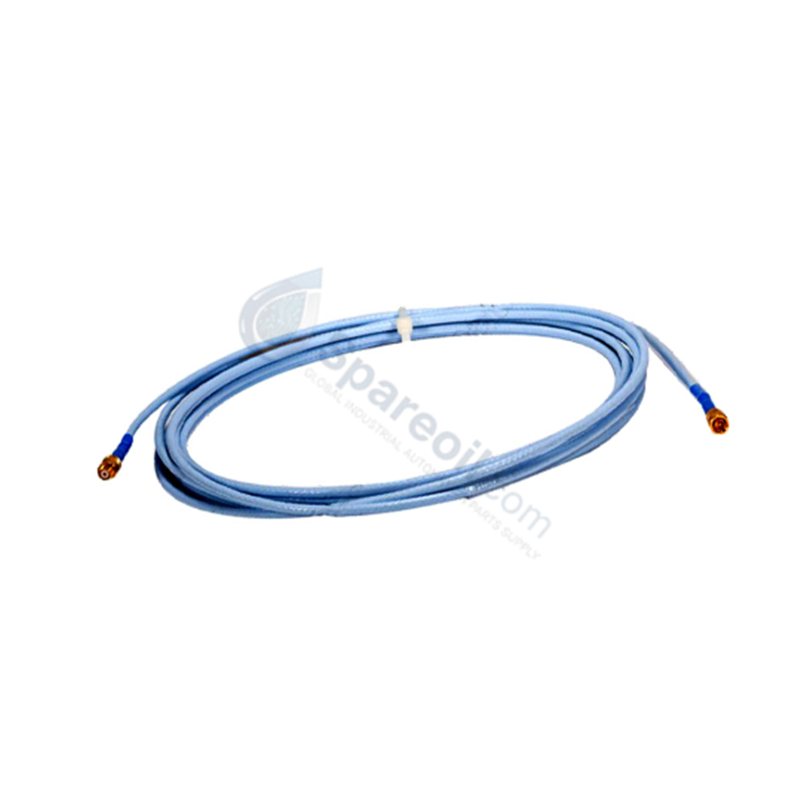

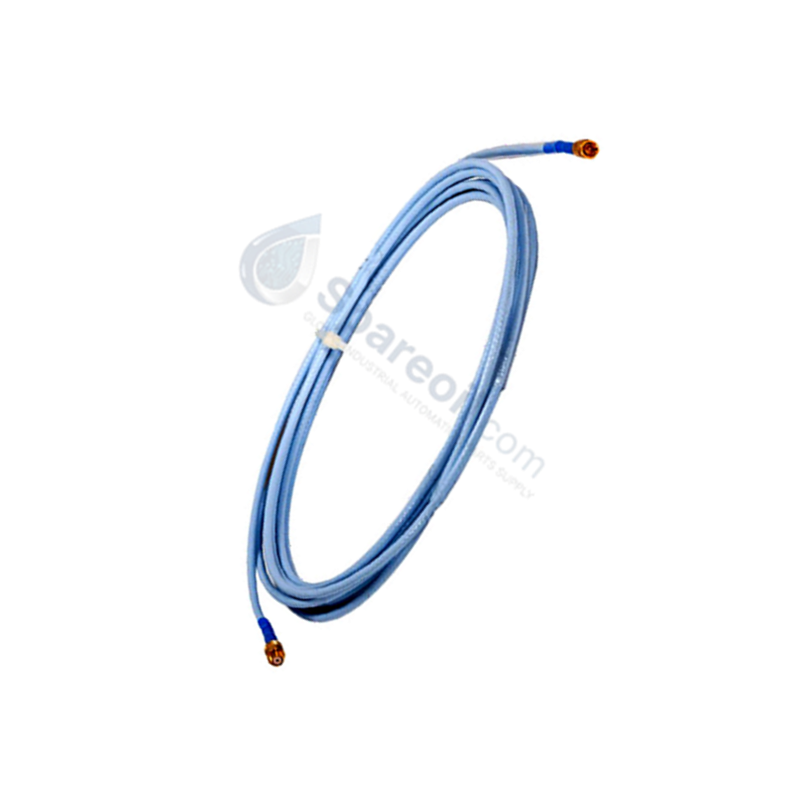

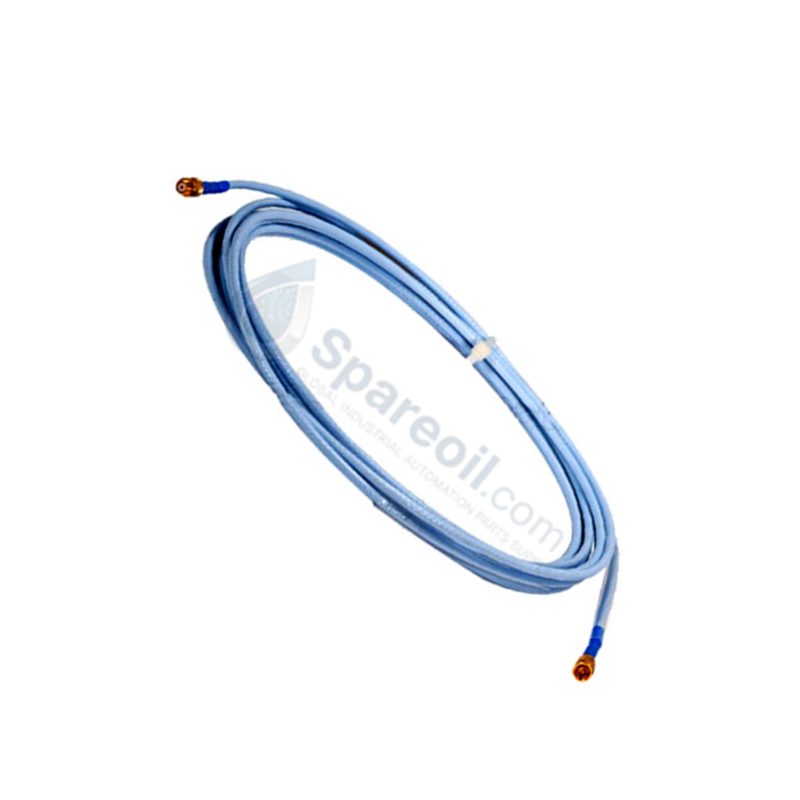

The Bently Nevada 330130-085-00-05, also cataloged as the 330130 Extension Cable, operates as a dedicated hardware component for RF signal transmission within 3300 XL Transducer System networks. The passive coaxial link maintains calibrated impedance matching parameters between the proximity probe and the Proximitor sensor, facilitating the propagation of high-frequency displacement signals without phase or amplitude distortion.

Suffix Breakdown & Model Matrix

  • 330130 - Base Model: 3300 XL Standard Extension Cable
  • -085 - Cable Length Option: 8.5 metres (27.9 feet)
  • -00 - Connector Protector and Cable Option: Standard cable configuration
  • -05 - Agency Approval Option: Multiple Approvals (CSA, ATEX, IECEx certified)

Hardware Specifications

Parameter Specification
Model 330130-085-00-05
Brand Bently Nevada
Origin United States
Weight 0.29 kg nominal core weight
Dimensions 8.5 m nominal physical cable length; 3.70 mm outer diameter
Operating Temp -51 to +177 deg C environmental range
Power Consumption 0.0 W (Passive electrical architecture)
Nominal Impedance 75 ohm coaxial configuration
Electrical Capacitance 69.9 pF/m nominal capacitance matching parameter
Approvals Hazardous area certifications for global installations

Eddy-Current Probe Scaling & Cross-Talk Suppression

The internal 75 ohm coaxial design of the 330130-085-00-05 extension cable provides the precise electrical matching necessary for stable eddy-current probe scaling. By maintaining uniform capacitance and resistance profiles along the 8.5 metres run, the cable achieves high cross-talk suppression against adjacent machinery interference. This transmission accuracy enables precise gap voltage validation targeting standard -10 VDC baselines, preserving signal integrity for multi-channel rotor dynamics analysis.

Frequently Asked Questions

Q: Can this 8.5 metres extension cable be altered or cut to fit specific enclosure layouts?

A: No. Shortening or changing the cable length alters the calibrated loop capacitance and electrical length. This directly shifts the linear scale factor of the paired Proximitor sensor, causing inaccurate displacement metrics.

Q: What structural limits apply to the standard cable design specified by the -00 suffix?

A: The -00 suffix indicates a standard coaxial jacket without an external stainless steel armor wrap or specialized FluidLoc barriers. It is designed for standard dry conduit runs where mechanical abrasion or direct liquid submersion is not present.

Field Installation Guidelines

  • Verify that this 8.5 metres cable is matched with the appropriate 0.5 metre proximity probe to maintain the total 9.0 metres system parameter expected by the Proximitor sensor.
  • Do not exceed the minimum bending radius limit of 25.4 mm during installation routing to prevent mechanical flattening of the internal dielectric core.
  • Ensure all coaxial connectors are fully seated and insulated inside junction boxes to prevent unwanted physical grounding or exposure to moisture.
  • Keep the low-voltage sensor cable separated from high-current AC motor leads within the cable tray to prevent electromagnetic noise from degrading the analog signal.
