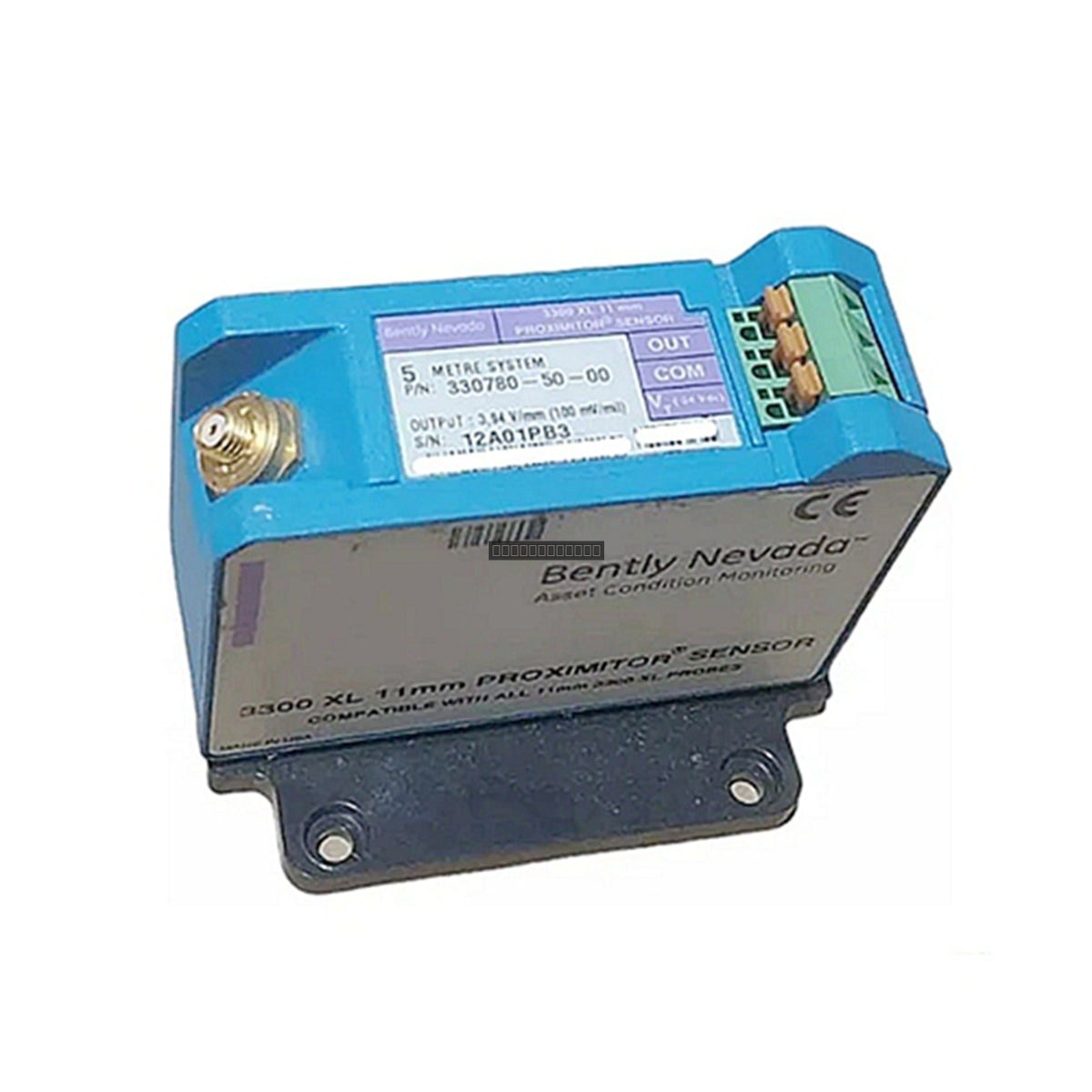

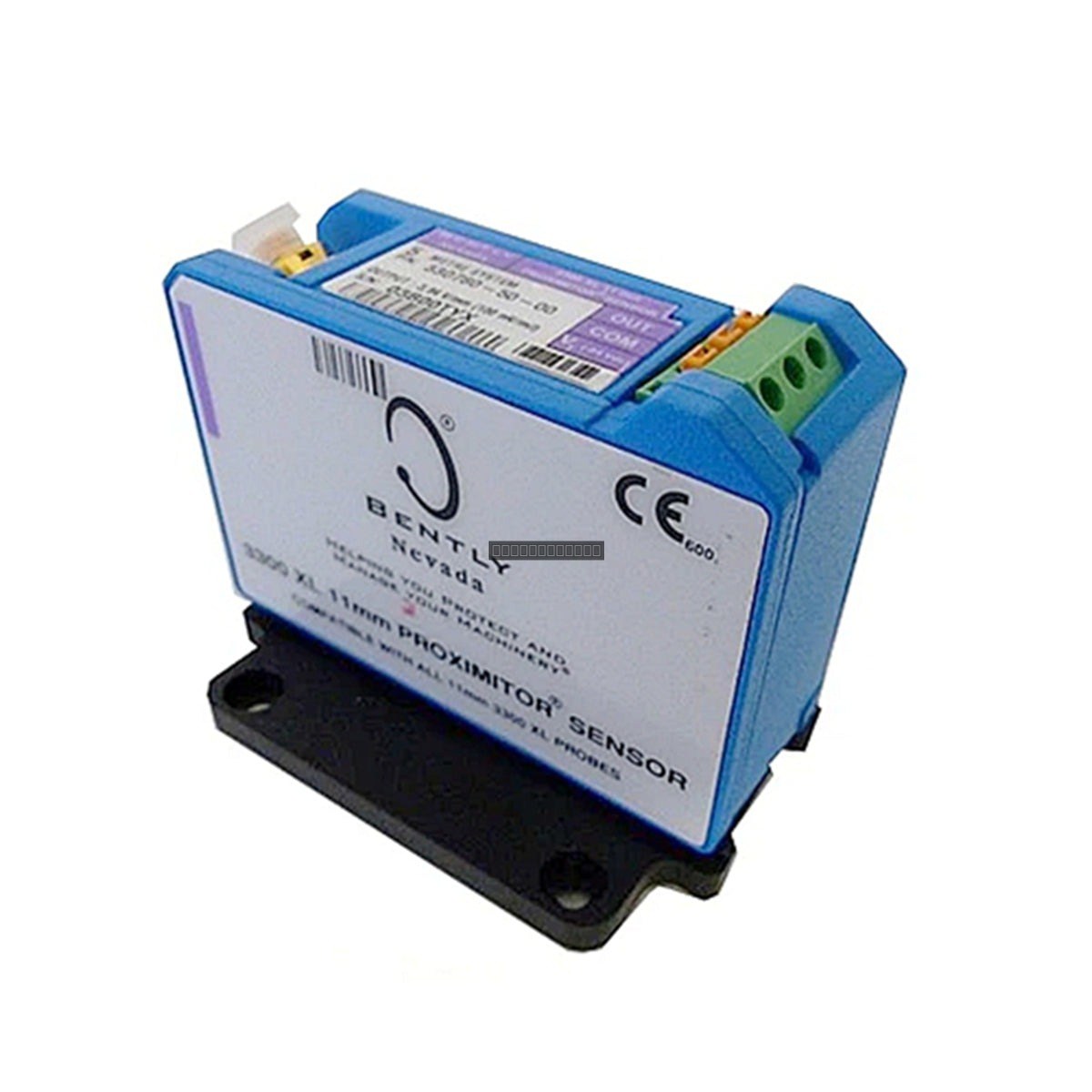

Bently Nevada 330180-X1-CN 3300 XL Proximitor Sensor

Availability: 1 left in stock

The Bently Nevada 330180-X1-CN, also identified by module reference 145004-141, is a core component of the 3300 XL Proximitor Sensor...

SKU: 330180-X1-CN

Manufacturer: Bently Nevada
Product No.: 330180-X1-CN
Product Type: Proximitor Sensor
Product Origin: USA
Payment:T/T, Western Union
Weight: 220g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Bently Nevada 330180-X1-CN, also identified by module reference 145004-141, is a core component of the 3300 XL Proximitor Sensor series. Designed for high-precision vibration and position monitoring, this sensor is engineered to provide reliable signal conditioning for eddy current transducer systems in demanding industrial environments.

Features

Advanced 3300 XL series signal processing for consistent output.
Standard linear range of 0 to 500 mils with extended options available up to 1,000 mils.
High sensitivity rated at 200 mV/mil.
Robust operating temperature range suitable for extreme industrial conditions from -52 degC to +100 degC.
Designed for integration with Bently Nevada monitoring systems requiring -18 V to -24 V DC power input.

Technical Specifications

Model Number	330180-X1-CN
Module Reference	145004-141
Sensitivity	200 mV/mil
Linearity	+/- 1% of full scale
Operating Voltage	-18 V to -24 V DC
Operating Temperature	-52 degC to +100 degC
Storage Temperature	-52 degC to +105 degC

Installation Guidelines

Proper installation is critical for maintaining the accuracy of the 3300 XL Proximitor sensor system:

Ensure the Proximitor sensor is mounted in a protected, vibration-free enclosure to prevent signal noise.
Use high-quality coaxial cabling to connect the probe to the sensor, ensuring connections are tight and free of oxidation.
Verify that the power supply voltage is within the specified -18 V to -24 V DC range before powering on the unit.
Maintain proper grounding practices to minimize electromagnetic interference (EMI) that can affect millivolt-level signals.
Always perform a system calibration after installation to verify the gap voltage and linearity against the target material.

FAQ

What is the primary function of the 330180-X1-CN?

This unit acts as a signal conditioner for eddy current probes, converting the proximity of a target material into a proportional voltage output used by monitoring systems to track vibration and displacement.

Can this sensor operate in high-temperature environments?

Yes, the 330180-X1-CN is rated for operation in temperatures ranging from -52 degC to +100 degC, making it suitable for most industrial rotating machinery applications.
