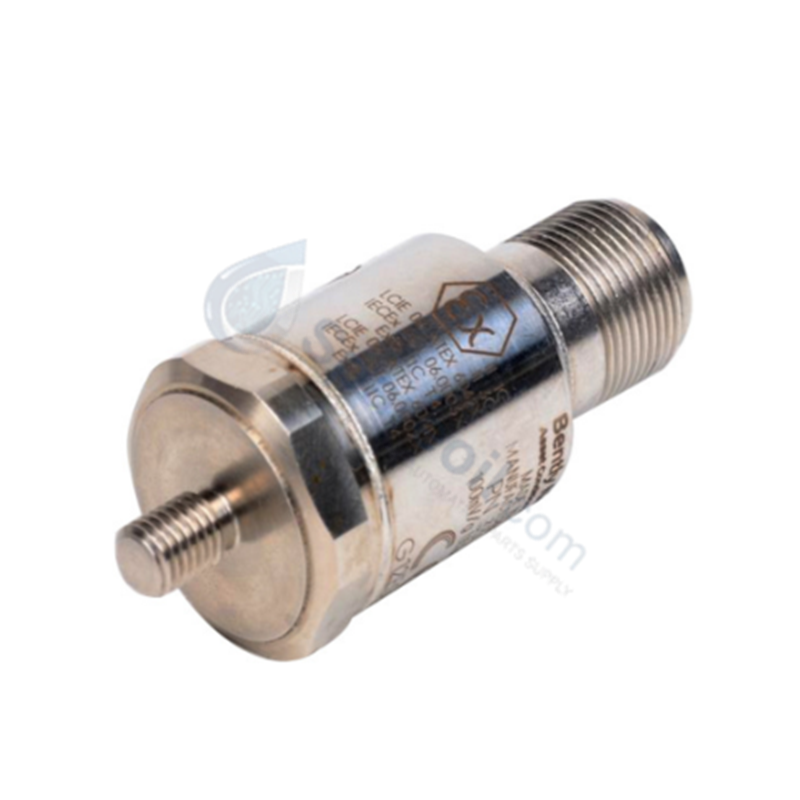

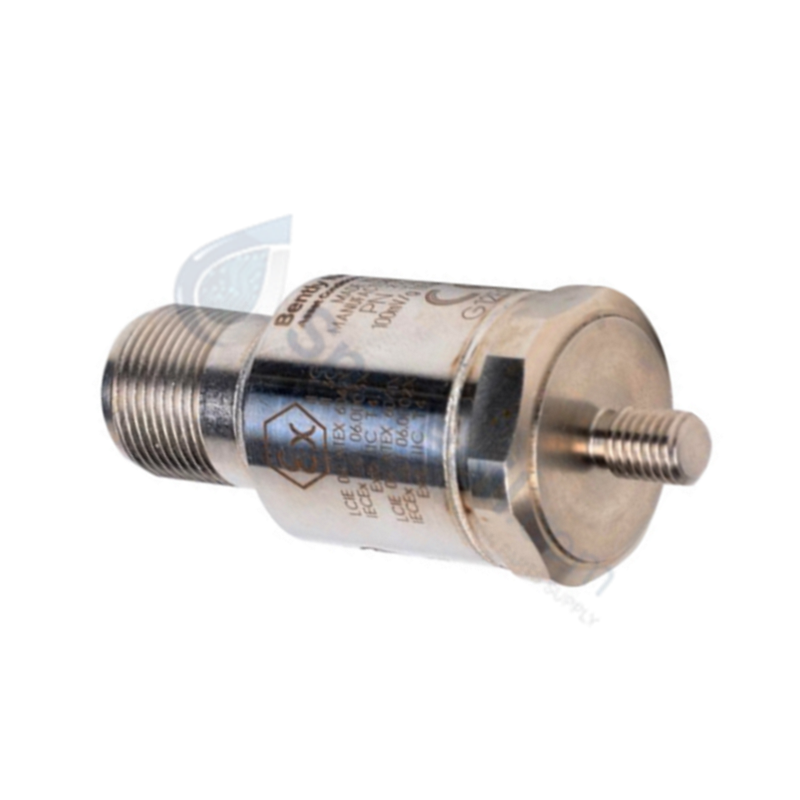

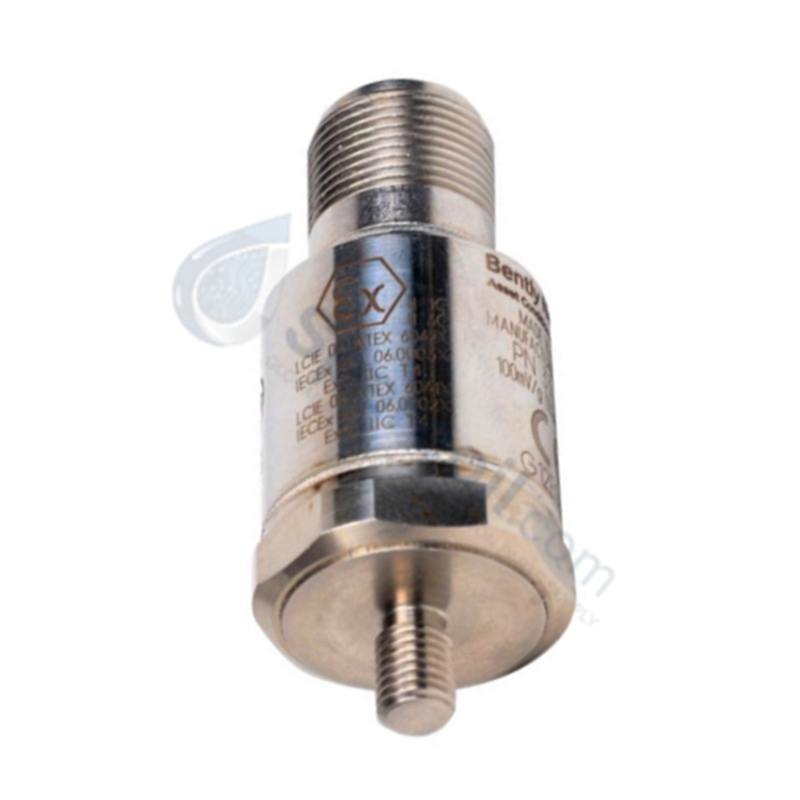

Configured for seismic vibration monitoring in rotating machinery, the Bently Nevada 330400-02-05, also cataloged as the 330400 Accelerometer, operates as a dedicated hardware component for acceleration-to-voltage signal conversion within TSI networks. This transducer system detects high-frequency vibration signals, facilitating the analysis of rotor dynamics and mechanical health for various rotating assets.

Suffix Breakdown & Model Matrix

Suffix Description
330400 Base Model: Accelerometer
02 Mounting Thread: M8 x 1 integral stud
05 Agency Approvals: CSA, ATEX, IECEx

Hardware Specifications

Parameter Specification
Model 330400-02-05
Brand Bently Nevada
Origin USA
Weight 0.5 kg
Dimensions Standard accelerometer profile
Operating Temp -55 deg C to +121 deg C
Power Consumption 2 mA to 10 mA constant current
Mounting M8 x 1 integral stud

Mechanical Monitoring and Transducer Scaling

The 330400 series accelerometer requires precise mechanical mounting to ensure the integrity of the vibration signal. Unlike eddy-current displacement probes that rely on gap voltage validation at -10 VDC targets, the accelerometer captures inertial acceleration, requiring the monitoring system to be configured for the specific sensitivity (mV/g) of the transducer. To maintain linear frequency response, the M8 x 1 stud must be torqued to ensure rigid coupling with the machine casing; any air gap or loose mounting interface will introduce mechanical resonance artifacts into the vibration spectrum. Cross-talk suppression is achieved through the use of shielded coaxial cabling, preventing ambient electromagnetic interference from corrupting the low-level signal output.

Frequently Asked Questions

Q: Is the M8 x 1 stud compatible with standard 1/4-28 UNF mounting holes?

A: No. The 330400-02-05 features an M8 x 1 metric thread. Attempting to install this into a 1/4-28 UNF hole will cause thread damage to the sensor stud or the machine casing.

Q: Does the 330400 accelerometer require a specific power supply configuration?

A: Yes, it requires a constant current source (typically 24 VDC supplied via the monitor) to power the internal preamplifier. Ensure the monitor card is configured to provide the required current range of 2 mA to 10 mA.

Field Installation Guidelines

  1. Ensure the mounting surface is spot-faced to be perfectly flat and smooth, ensuring full contact of the accelerometer base.
  2. Tighten the M8 x 1 stud according to standard torque specifications for metric fasteners to ensure rigid frequency response.
  3. Use isolated mounting blocks if the machine casing is subject to high ground potential differences to avoid ground loops.
  4. Route signal cables in metallic conduits, separated from high-current AC cabling, to minimize noise injection.
  5. Check the coaxial connector at the sensor end for cleanliness; contamination can increase contact resistance and introduce signal drift.
