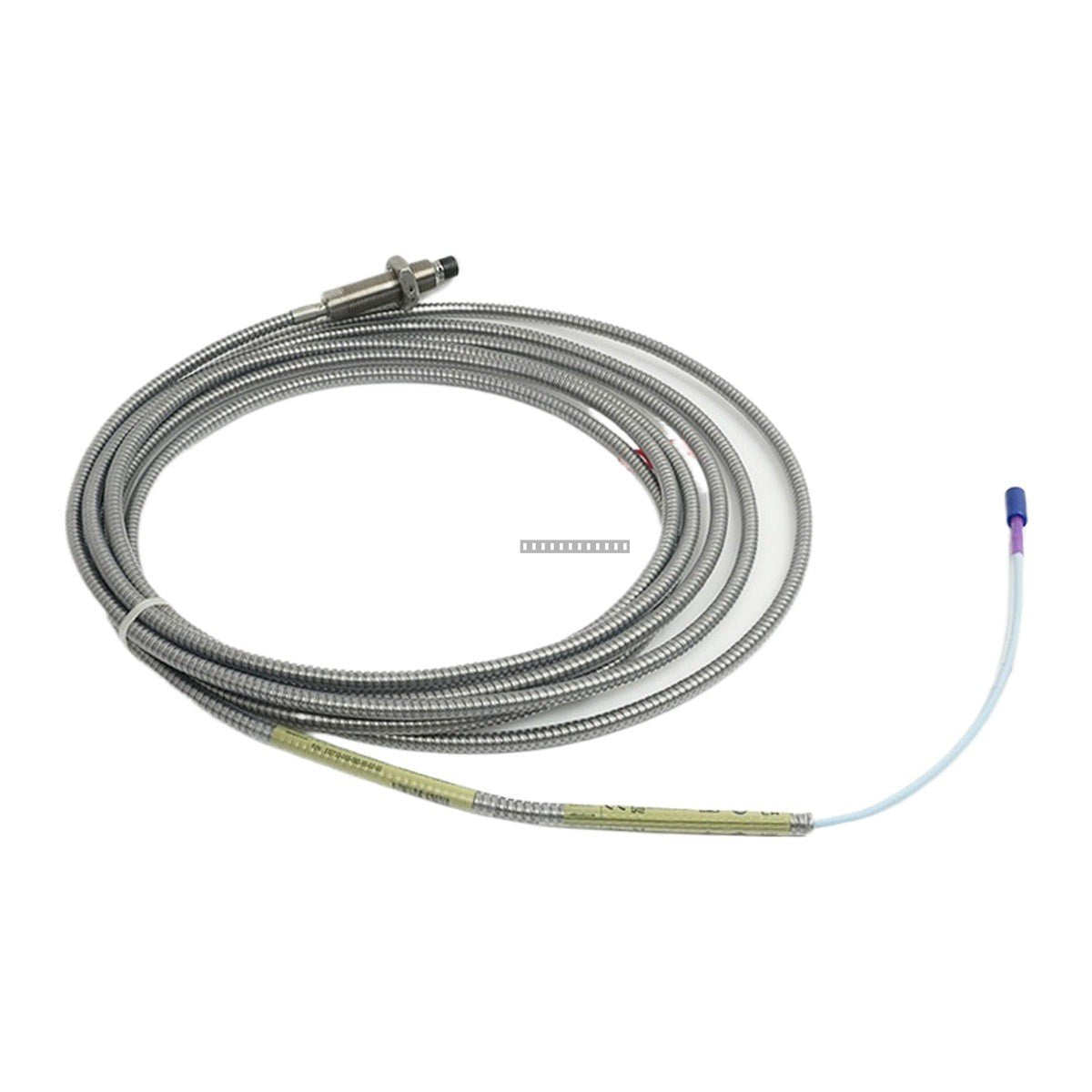

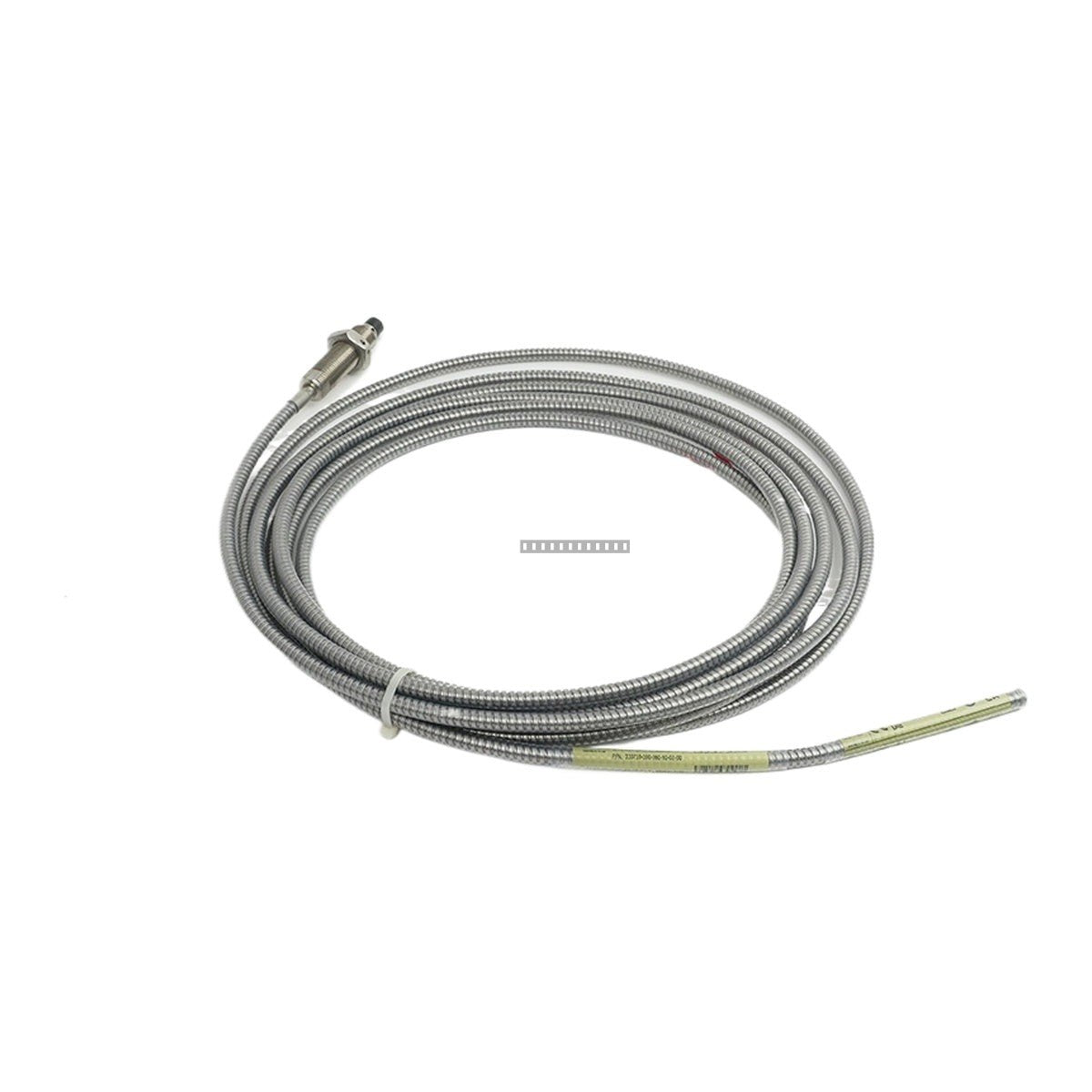

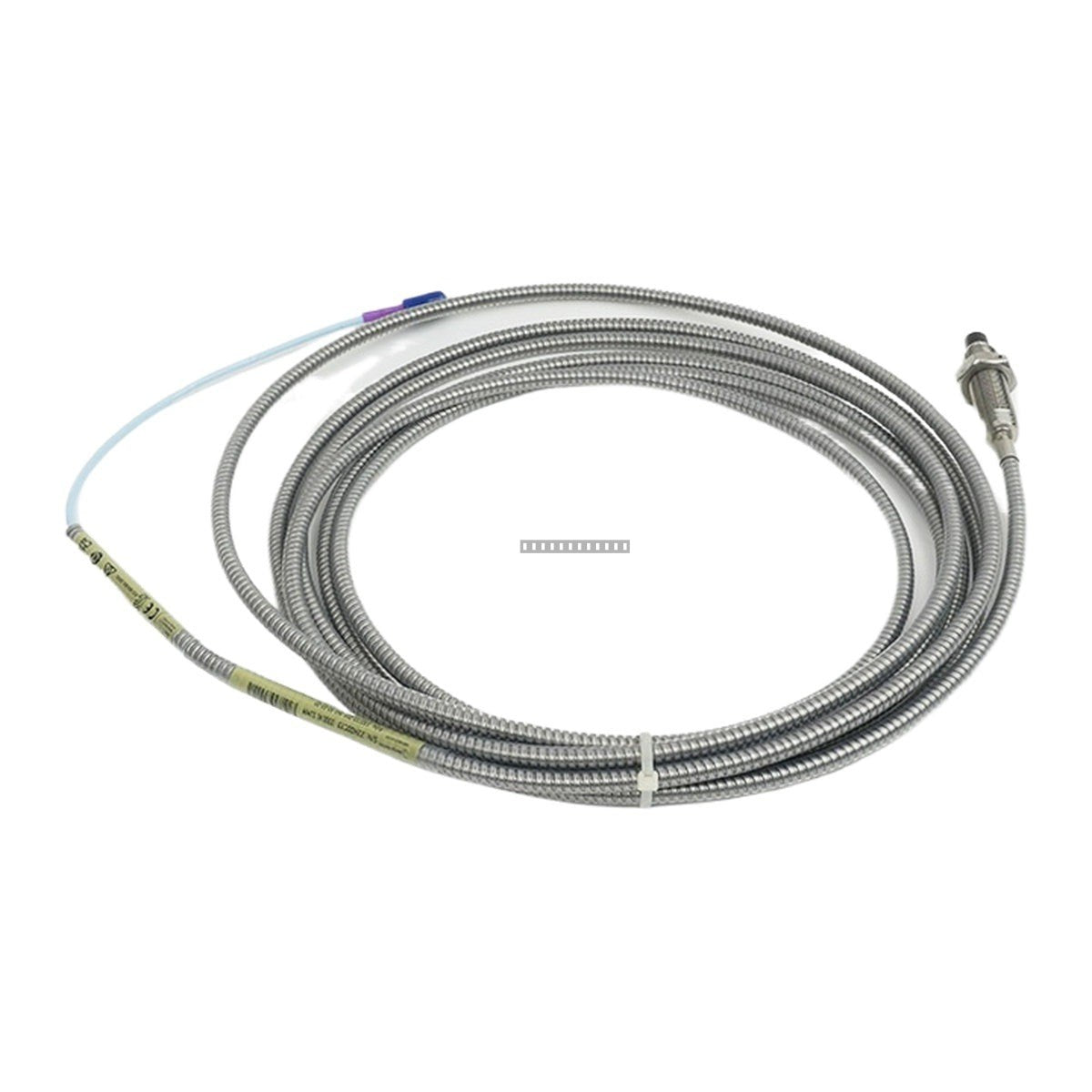

Bently Nevada 330710-000-060-50-02-00 3300 XL 11mm Proximity Probe

Availability: 0 left in stock

DescriptionThe Bently Nevada 330710-000-060-50-02-00 is a 3300 XL 11mm Proximity Probe designed for high-performance vibration and position monitoring in rotating...

SKU: 330710-000-060-50-02-00

Manufacturer: Bently Nevada
Product No.: 330710-000-060-50-02-00
Product Type: Proximity Probe
Product Origin: USA
Payment:T/T, Western Union
Weight: 650g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Bently Nevada 330710-000-060-50-02-00 is a 3300 XL 11mm Proximity Probe designed for high-performance vibration and position monitoring in rotating machinery. As a core component of the 3300 XL 11mm Proximity Transducer System, this probe provides a 3.94 V/mm (100 mV/mil) output for non-contacting measurements. The larger 11mm tip diameter offers an extended linear range compared to standard 8mm systems, making it suitable for applications where greater clearance or thermal growth is expected.

Features

M16 x 1.5 metric thread with armored construction for harsh industrial environments
Extended linear range enabled by 11mm probe tip
Patented TipLoc molding for a robust probe tip bond
Patented CableLoc design providing 330N (75 lbf) pull strength
Includes 5.0-meter cable with miniature coaxial ClickLoc connector
Viton O-ring seal for differential pressure protection

Applications

Axial (thrust) position measurements
Ramp differential expansion measurements on steam turbines
Rod position or rod drop measurements on reciprocating compressors
Tachometer and zero speed measurements
Phase reference (Keyphasor) signals

Technical Specifications

Product Model	330710-000-060-50-02-00
Probe Tip Diameter	11 mm
Thread Configuration	M16 x 1.5 Metric
Case Length	60 mm
Unthreaded Length	0 mm
Cable Length	5.0 meters
Output Sensitivity	3.94 V/mm (100 mV/mil)
Linear Range	4.0 mm (160 mils)
Operating Temperature	-52 degC to +177 degC
Material	AISI 303/304 Stainless Steel / PPS Tip

Installation Guidelines

Ensure the target shaft surface is clean, smooth, and free of scratches to prevent false readings.
Maintain proper side clearance around the 11mm probe head to avoid side-wall interference.
Thread the probe by hand into the mounting bracket; do not use tools to torque the probe against the shaft.
Set the physical gap according to the system requirements (typically centered around 2.0 to 3.0 mm).
Secure the locknut against the housing; ensure the cable is not twisted during the tightening process.
This probe must be used exclusively with compatible 3300 XL 11mm extension cables and 11mm Proximitor sensors.

FAQ

What is the 330710-000-060-50-02-00?

The 330710-000-060-50-02-00 is a specific variant of the 3300 XL 11 mm Proximity Probe, primarily used for continuous shaft displacement, rotor speed, and vibration monitoring in large-frame rotating machinery.

Why use an 11 mm probe instead of a standard 8 mm probe?

The larger 11 mm tip allows for a longer linear measurement range. This is ideal for large-frame rotating machinery where shaft clearances and thermal growth patterns exceed the limits of standard 8 mm probes.

Can I mix this probe with 8 mm or 50 mm components?

No. You must connect this 11 mm probe exclusively to a 3300 XL 11 mm extension cable and an 11 mm Proximitor sensor. Mixing sizes will lead to calibration errors and incorrect data.
