330905-00-07-10-02-05 Bently Nevada Proximity Sensors

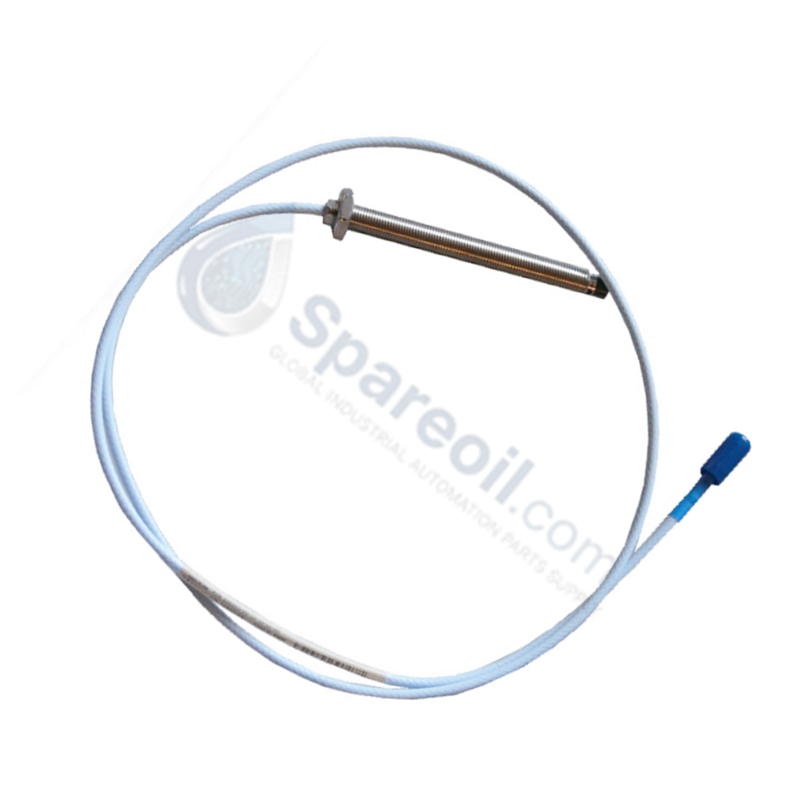

Bently Nevada 330905-00-07-10-02-05 3300 NSv Proximity Probes

Bently Nevada 330905-00-07-10-02-05 3300 NSv Proximity Probes

Availability: 10 left in stock

Configured for non-contact shaft vibration and positional displacement measurement in restricted machinery housings, the Bently Nevada 330905-00-07-10-02-05 (330905 Proximity Sensors)...

SKU: 330905-00-07-10-02-05

Manufacturer: Bently Nevada
Product No.: 330905-00-07-10-02-05
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Configured for non-contact shaft vibration and positional displacement measurement in restricted machinery housings, the Bently Nevada 330905-00-07-10-02-05 (330905 Proximity Sensors) provides direct physical/electrical execution. The sensor probe features an M10 x 1 metric thread, 0 mm unthreaded length, 70 mm overall case length, and a 1.0 m (39 in) standard coaxial cable without armor terminated by a miniature coaxial ClickLoc connector.

Suffix Breakdown & Model Matrix

Option Code	Parameter Designation	Selected Configuration
330905	Base Model	3300 NSv Probe, M10 x 1 thread, without armor
-00	Unthreaded Length	0 mm
-07	Overall Case Length	70 mm
-10	Total Length Option	1.0 m (39 in)
-02	Connector & Cable Type	Miniature coaxial ClickLoc connector, standard cable
-05	Agency Approval Option	Country-specific approvals / Multiple Approvals

Hardware Specifications

Parameter	Specification
Model	330905-00-07-10-02-05
Brand	Bently Nevada
Origin	United States
Weight	2.0 kg
Dimensions	M10 x 1 metric thread profile (70 mm overall case length)
Operating Temp	-51 deg C to +177 deg C (-60 deg F to +350 deg F)
Power Consumption	Passive transducer (Powered via Proximitor Sensor)
Thread Specification	M10 x 1 metric thread
Cable Armor	Unarmored standard cable
Unthreaded Length	0 mm
Overall Case Length	70 mm
Total Cable Length	1.0 m (39 in)
Connector Type	Miniature coaxial ClickLoc connector
Agency Approvals	Multiple hazardous area approvals (Option 05)

Mechanical Monitoring & TSI Performance

The 330905-00-07-10-02-05 probe operates on high-frequency eddy-current sensing principles to evaluate real-time rotor dynamics on small-diameter shafts or counterbored bearing assemblies. Coupled with a 3300 NSv Proximitor Sensor, eddy-current probe scaling produces a calibrated linear output proportional to target distance. Performing gap voltage validation targeted at -10 VDC during physical installation centers the transducer within its dynamic linear range, maintaining precise displacement resolution and cross-talk suppression across adjacent machinery protection channels.

Frequently Asked Questions

Q: What gap voltage reading indicates correct mechanical position for the 330905-00-07-10-02-05 probe?

A: Mechanical insertion depth should be adjusted until the connected Proximitor Sensor output registers -10 VDC, corresponding to the midpoint of the calibrated linear sensing range.

Q: Can the 1.0 m probe cable be wired directly into a monitoring system cabinet terminal block?

A: No. The integrated 1.0 m probe cable must connect to a matching 3300 NSv extension cable to complete the 5.0 m or 7.0 m total system length required for proper Proximitor operation.

Q: What is the primary operational advantage of the 3300 NSv probe design compared to standard 8 mm probes?

A: The 3300 NSv probe possesses a narrower side-view clearance requirement, allowing accurate vibration tracking inside tight counterbores and small target shaft diameters without side-wall interference.

Field Installation Guidelines

Screw the M10 x 1 probe body into the internal mounting thread using proper hand tools without exceeding recommended casing torque limits.
Confirm a minimum of 5 full threads engagement to ensure mechanical stability against high-frequency machine vibration.
Route the unarmored coaxial cable away from sharp housing edges and heavy power cables to prevent physical chafing and electrical noise induction.
Clean the ClickLoc coaxial connector surfaces to remove oil or debris before snapping the locking coupling securely into place.
