330905-00-15-05-02-05 Bently Nevada Proximity Sensors

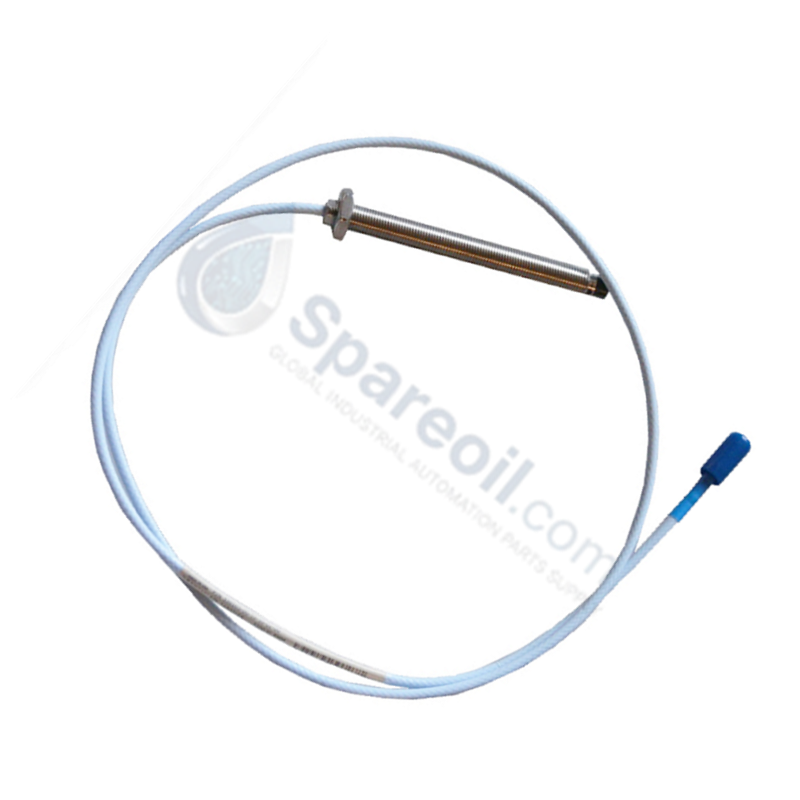

Bently Nevada 330905-00-15-05-02-05 3300 NSv Proximity Probes

Bently Nevada 330905-00-15-05-02-05 3300 NSv Proximity Probes

Availability: 10 left in stock

The Bently Nevada 330905-00-15-05-02-05, also cataloged as the 330905 Proximity Sensors, operates as a dedicated hardware component for non-contact shaft...

SKU: 330905-00-15-05-02-05

Manufacturer: Bently Nevada
Product No.: 330905-00-15-05-02-05
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Bently Nevada 330905-00-15-05-02-05, also cataloged as the 330905 Proximity Sensors, operates as a dedicated hardware component for non-contact shaft displacement and vibration measurement within 3300 NSv Machinery Monitoring System platforms. Featuring an M10 x 1 AISI 304 stainless steel casing, this transducer integrates a 0 mm unthreaded length, 150 mm overall case length, and a 0.5 m (20 in) standard coaxial cable terminated with a ClickLoc miniature coaxial connector and CSA/FM agency approvals.

Suffix Breakdown & Model Matrix

Option Code	Parameter Designation	Selected Configuration
330905	Base Model	3300 NSv Probe, M10 x 1 thread, without armor
-00	Unthreaded Length	0 mm
-15	Overall Case Length	150 mm
-05	Total Length Option	0.5 m (20 in)
-02	Connector & Cable Type	Miniature coaxial ClickLoc connector, standard cable
-05	Agency Approval Option	Multiple approvals (CSA, ATEX, IECEx)

Hardware Specifications

Parameter	Specification
Model	330905-00-15-05-02-05
Brand	Bently Nevada
Origin	United States
Weight	0.45 kg (1.0 lb)
Dimensions	M10 x 1 thread profile (150 mm overall case length)
Operating Temp	-34 deg C to +177 deg C (-30 deg F to +351 deg F)
Power Consumption	Passive transducer (Powered via Proximitor Sensor)
Storage Temp	-51 deg C to +177 deg C (-60 deg F to +351 deg F)
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 304 stainless steel (SST)
Cable Armor	Unarmored standard coaxial cable
Connector Type	Miniature coaxial ClickLoc connector
Agency Approvals	Multiple approvals (Option 05: CSA, ATEX, IECEx)

Mechanical Monitoring & TSI Performance

The 330905-00-15-05-02-05 proximity probe utilizes calibrated eddy-current probe scaling to evaluate dynamic rotor dynamics on tight targets and small-diameter shafts where narrow side clearances exist. Operating in combination with a matching 3300 NSv Proximitor Sensor, the assembly yields a linear differential voltage output directly proportional to the physical gap between the probe tip and the target shaft. Achieving gap voltage validation targeted at -10 VDC during installation places the system at the midpoint of its linear response curve, optimizing cross-talk suppression in high-density sensor layouts.

Frequently Asked Questions

Q: What gap voltage level verifies proper mechanical positioning during probe installation?

A: Mechanical insertion depth should be adjusted until the output voltage measured at the connected 3300 NSv Proximitor Sensor reads -10 VDC, centering the signal in its linear operating zone.

Q: Can the 0.5 m probe cable connect directly to system monitoring rack channels?

A: No. The integrated 0.5 m (20 in) probe coaxial cable must be connected to a matching 3300 NSv extension cable to establish the complete 5.0 m or 7.0 m electrical loop length required by the Proximitor.

Q: What is the main structural advantage of the 3300 NSv series over standard 8 mm probes?

A: The 3300 NSv probe series features a compact tip diameter and reduced side-view footprint, preventing lateral wall-effect interference in small counterbores or restricted bearing housings.

Field Installation Guidelines

Thread the M10 x 1 casing into the mounting tapped hole by hand to ensure smooth alignment prior to applying torque.
Engage a minimum of 5 full threads in the mounting port to lock the assembly firmly against machinery vibration.
Route the unarmored coaxial cable along rigid conduits, avoiding sharp bends and proximity to high-voltage AC conductors.
Clean all ClickLoc miniature connector surfaces to remove metallic dust and grease before locking the coaxial bayonet mechanism.
