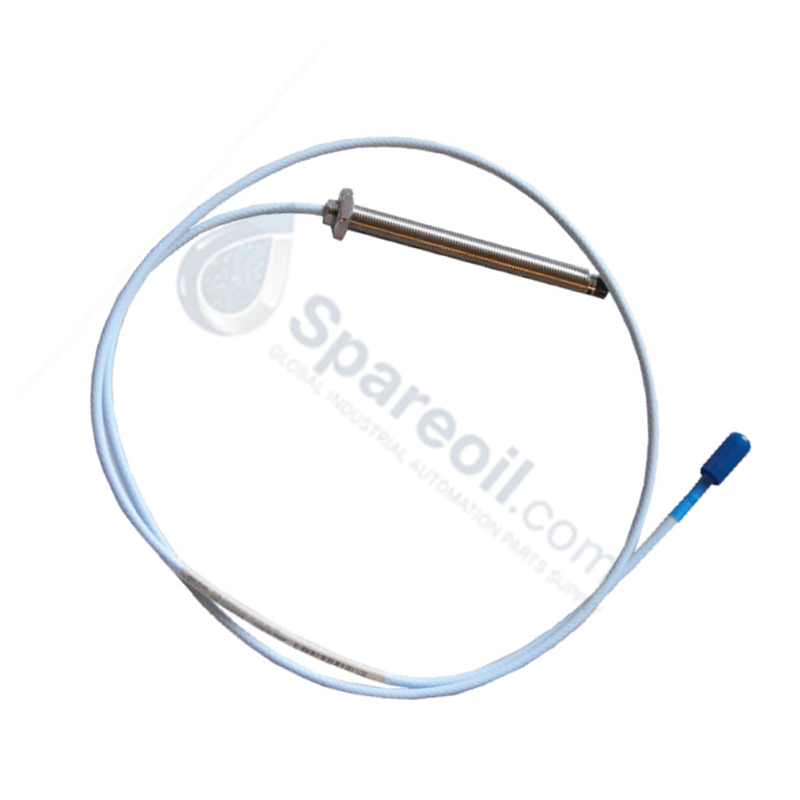

Bently Nevada 330905-07-17-05-02-05 3300 NSv Proximity Probe

Bently Nevada 330905-07-17-05-02-05 3300 NSv Proximity Probe

Availability: 10 left in stock

Configured for high-precision shaft displacement and vibration measurement in compact mechanical spaces, the Bently Nevada 330905-07-17-05-02-05 (3300 NSv Proximity Probe)...

SKU: 330905-07-17-05-02-05

Manufacturer: Bently Nevada
Product No.: 330905-07-17-05-02-05
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Configured for high-precision shaft displacement and vibration measurement in compact mechanical spaces, the Bently Nevada 330905-07-17-05-02-05 (3300 NSv Proximity Probe) provides direct physical execution.

Suffix Breakdown & Model Matrix

The 330905 series utilizes a structured part numbering system to define mechanical dimensions, cable lengths, connector styles, and agency approvals:

330905: Base Model for 3300 NSv Proximity Probe (M10 x 1 Thread)
07: Unthreaded Length option - 70 mm
17: Overall Case Length option - 170 mm
05: Total Length option - 0.5 meter (20 inches)
02: Connector & Cable Option - Miniature coaxial ClickLoc connector with connector protector, standard cable
05: Agency Approval Option - Multiple approval certifications for hazardous areas

Hardware Specifications

Parameter	Specification
Model	330905-07-17-05-02-05
Brand	Bently Nevada
Origin	USA
Weight	0.2 kg
Dimensions	M10 x 1 thread, 170 mm overall case length
Operating Temp	-40 to 82 deg C
Power Consumption	Powered via connected Proximitor Sensor loop (typically -24 VDC system)
Linear Range	0 to 1.5 mm (0 to 60 mils)
System Resolution	0.1 um (0.4 uin)
Accuracy	+/- 2% of full range
Frequency Response	2 Hz to 10 kHz
Target Material	AISI 4140 steel (standard calibration)
Output Signal	High-frequency RF signal driven by Proximitor Sensor / Transducer System
Connector Type	Miniature coaxial ClickLoc connector with connector protector
Ingress Protection	IP67

Eddy-Current Probe Scaling & Gap Voltage Validation

The 3300 NSv probe operates on the eddy-current principle to measure static and dynamic distances between the probe tip and the target conductive surface. Standard system scaling yields an incremental scale factor (ISF) calibrated against AISI 4140 steel target material. During installation and routine maintenance, accurate gap voltage validation (-10 VDC nominal gap target corresponding to the center of the linear voltage-to-distance transfer curve) must be verified across the probe leads using a calibrated digital multimeter. Ensuring cross-talk suppression requires maintaining adequate physical spacing between adjacent probe tips or utilizing staggered mounting angles when probes are installed in tight bearing housing radial pairs.

Frequently Asked Questions

Q: What is the primary difference between a standard 3300 XL 8mm probe and the 3300 NSv probe?

A: The 3300 NSv (Narrow Side-view) probe features a smaller tip diameter and tighter RF field pattern designed specifically for fluid-film bearing installations with counterbores or reduced side clearances where a standard 8 mm probe would suffer from side-view cross-talk or structural interference.

Q: How do you ensure proper connector seating and environmental sealing during installation?

A: Ensure the miniature coaxial ClickLoc connector fully snaps into place. When specified with option 02, slide the integrated connector protector over the mated junction to prevent ingress of oil, moisture, and particulate matter into the RF signal path.

Field Installation Guidelines

Mechanical Mounting: Thread the probe into the pre-tapped M10 x 1 mounting port. Ensure the unthreaded length (70 mm) properly matches the housing counterbore to prevent binding.
Gap Setting: Advance the probe until it makes gentle contact with the target surface, then back it off until the measured DC gap voltage reaches the recommended target voltage (typically -10 VDC) at the Proximitor output.
Cable Routing: Route the 0.5-meter probe lead through dedicated metal conduit or armor channels. Avoid sharp bends that exceed the minimum bend radius of 25.4 mm (1.0 inch).
Grounding & Shielding: Maintain continuous signal shielding through the Proximitor terminal housing and terminate the cable shield to a single-point instrument earth ground to prevent ground loops.
